TPI Outdoor/Indoor Quartz Infrared Heater, Electric, Steel, 6000W 240V, Model# OCH2-66-240V

Item# 4882725
"TPI Outdoor/Indoor Quartz Infrared Heater, Electric, Steel, 6000W 240V, Model# OCH2-66-240V"

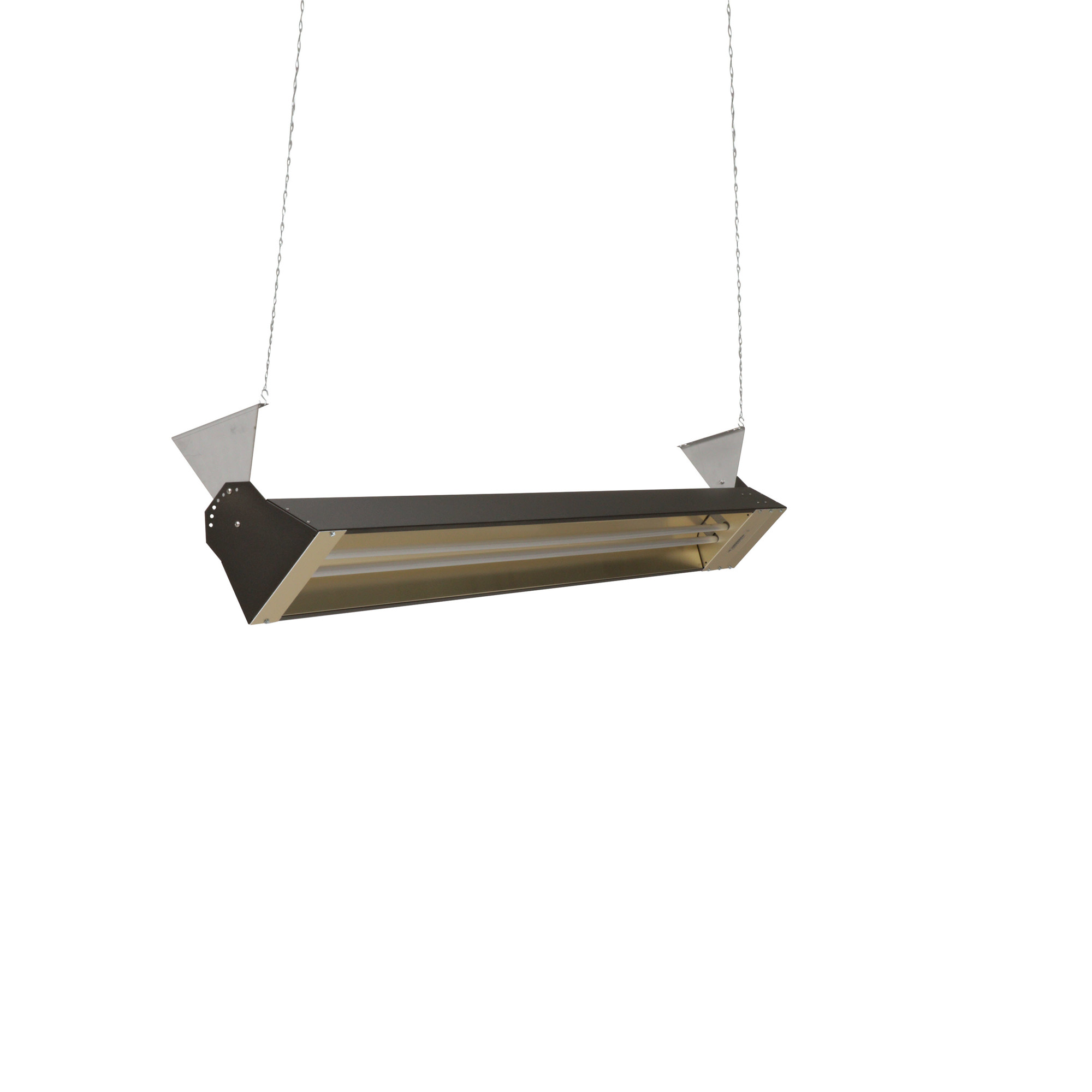

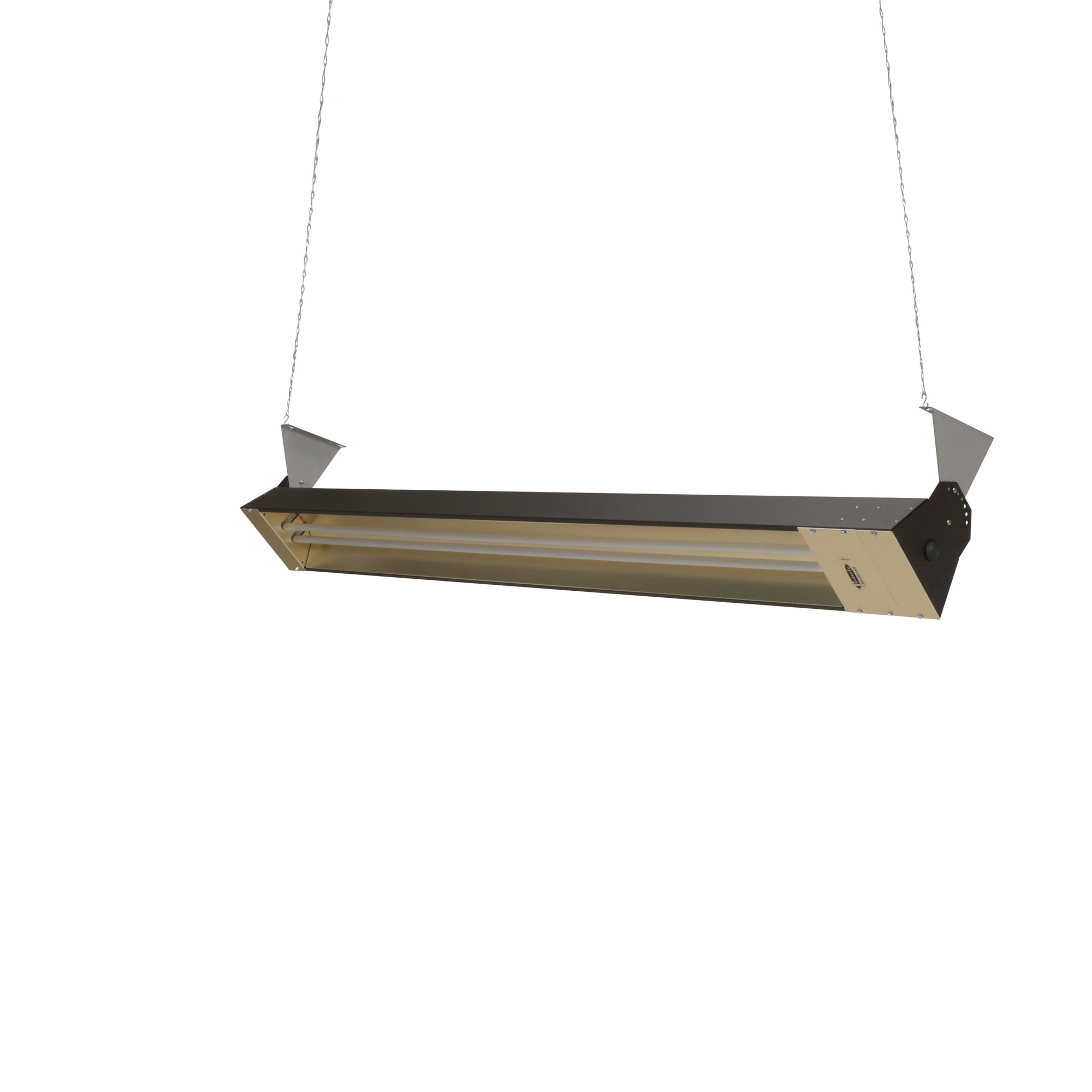

TPI Outdoor/Indoor Quartz Infrared Heater, Electric, Steel, 6000W 240V, Model# OCH2-66-240V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Outdoor/Indoor Quartz Infrared Heater, Electric, Steel, 6000W 240V, Model# OCH2-66-240V

Click or Tap image to Zoom

$524.16

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • ETL C/US listed for suspended, totally exposed (outdoor) and indoor (not for residential use) spot heating applications
  • 2 frosted quartz tube heating elements included

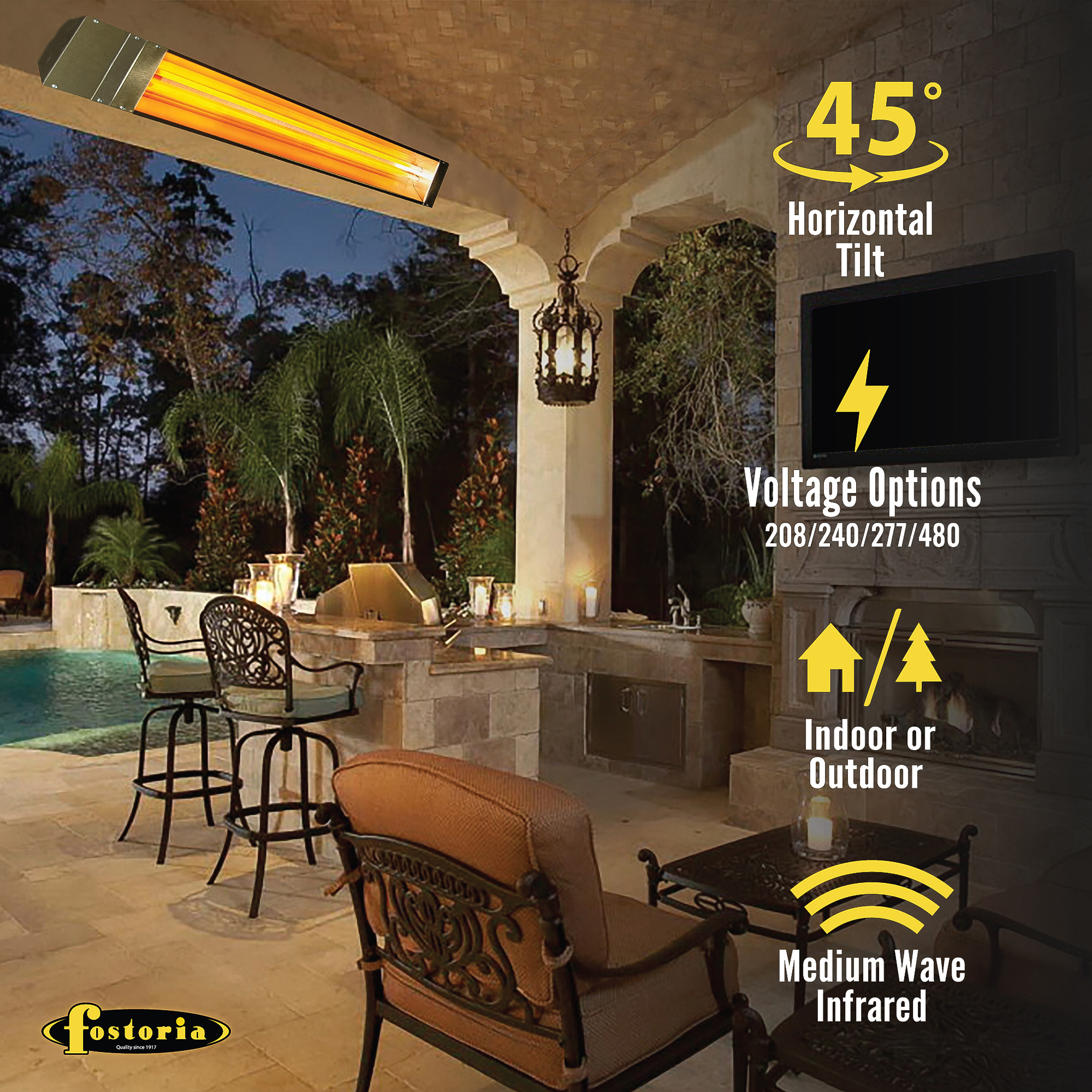

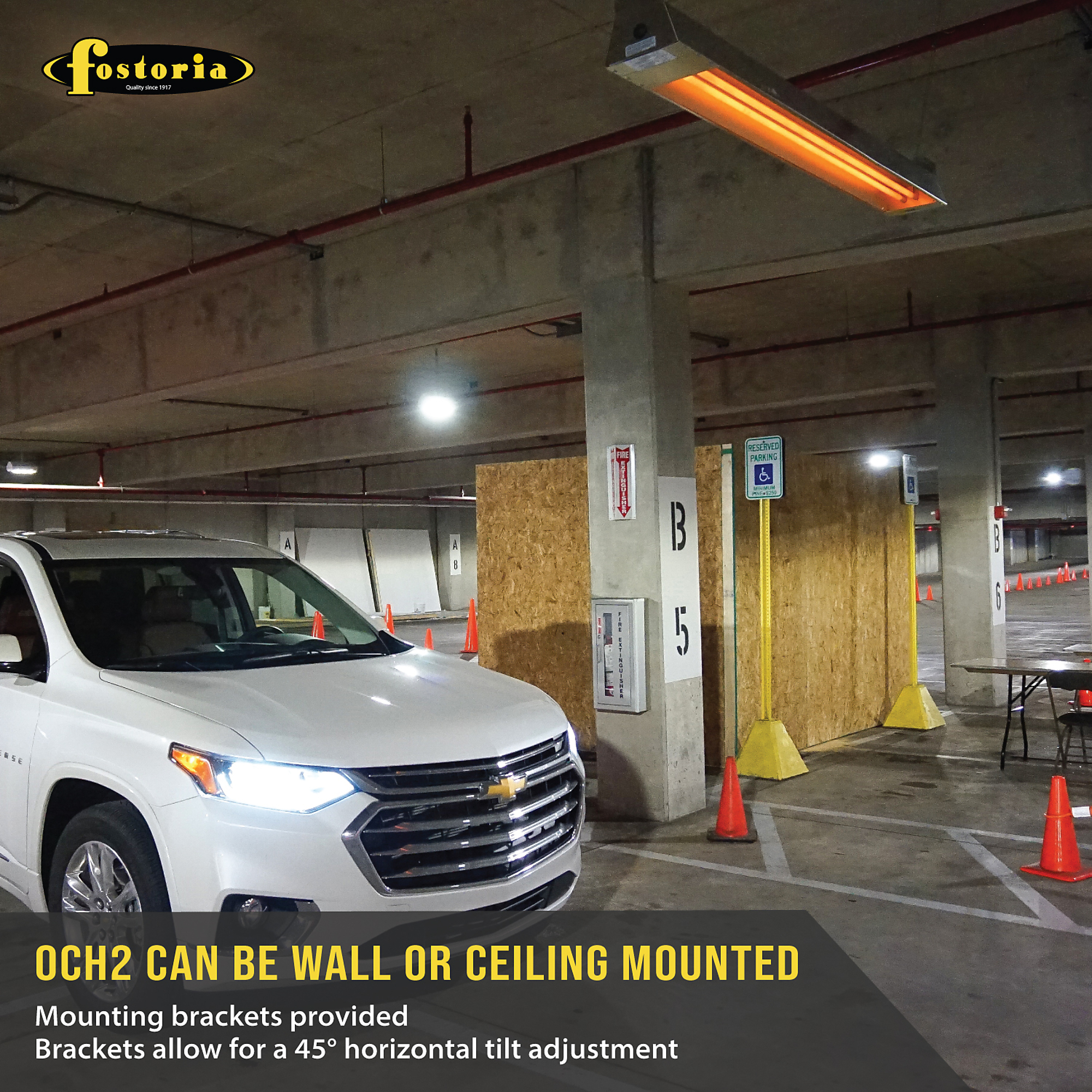

  • Can be wall or ceiling mounted using the supplied mounting brackets which allow up to a 45° horizontal tilt adjustment
  • Painted steel with powder-coat bankers bronze finish
  • 60° symmetric heat pattern

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Fostoria Outdoor/Indoor Suspended Infrared Radiant Electric Heater by TPI warms people and objects without taking up floor or wall space. Heater is designed to provide efficient spot heating for many commercial and industrial applications. Operates with dual quartz tube emitters included with the heater, is easily installed and is equipped with spectral reflectors for excellent radiant output. Built with corrosion-resistant materials and listed for both indoor and outdoor applications.

What's Included

    (1) Quartz electric infrared heater

Downloads

Product Manual

Features + Benefits

  • ETL C/US listed for suspended, totally exposed (outdoor) and indoor (not for residential use) spot heating applications
  • 2 frosted quartz tube heating elements included
  • Can be wall or ceiling mounted using the supplied mounting brackets which allow up to a 45° horizontal tilt adjustment
  • Painted steel with powder-coat bankers bronze finish
  • 60° symmetric heat pattern

Key Specs

AttributeSpecification

item#

4882725

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.0 LB

Product Type

Patio Heater

Fuel Type

Electric
AttributeSpecification

Material

Steel

Color

Brown

Assembly Required

No

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

66.0 x 7.5 x 7.0 in

Reviews

Questions & Answers

37 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What thermostat do you have that works with this heater. What is the maximum temperature does this heater produce. Will the thermostat be adjustable to regulate the temperature of the unit. Thank you

    1 answer

    1. The TPI DPST thermostat, item 4906213, is compatible with this heater. The thermostat range is 50-90 degrees F. It is a standard thermostat, which can regulate the temperature.

      Helpful?

  2. can this unit be thermostat controlled, how many units are needed in a 25 ft x 70 ft DPW truck garage

    1 answer

    1. This unit can be thermostatically controlled. Installation must be done by a certified electrician. This unit has a max output of 20,478 BTU's. You would need 2 to 3 heaters to heat your area.

      Helpful?

  3. Does this come with a cord or is it hard wired?

    1 answer

    1. The heater will be hard wired. Wire size needed will be 8 AWG.

      Helpful?

  4. What clearance is needed from a horizontal ceiling mount to combustible object below the heater?

    1 answer

    1. This heater requires 85" of clearance from combustibles. The full mounting clearances are: 6-3/4" from ceiling, 30" from vertical surface, and 36" from another heater. It is also recommended to be mounted 10' to 12' high.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
