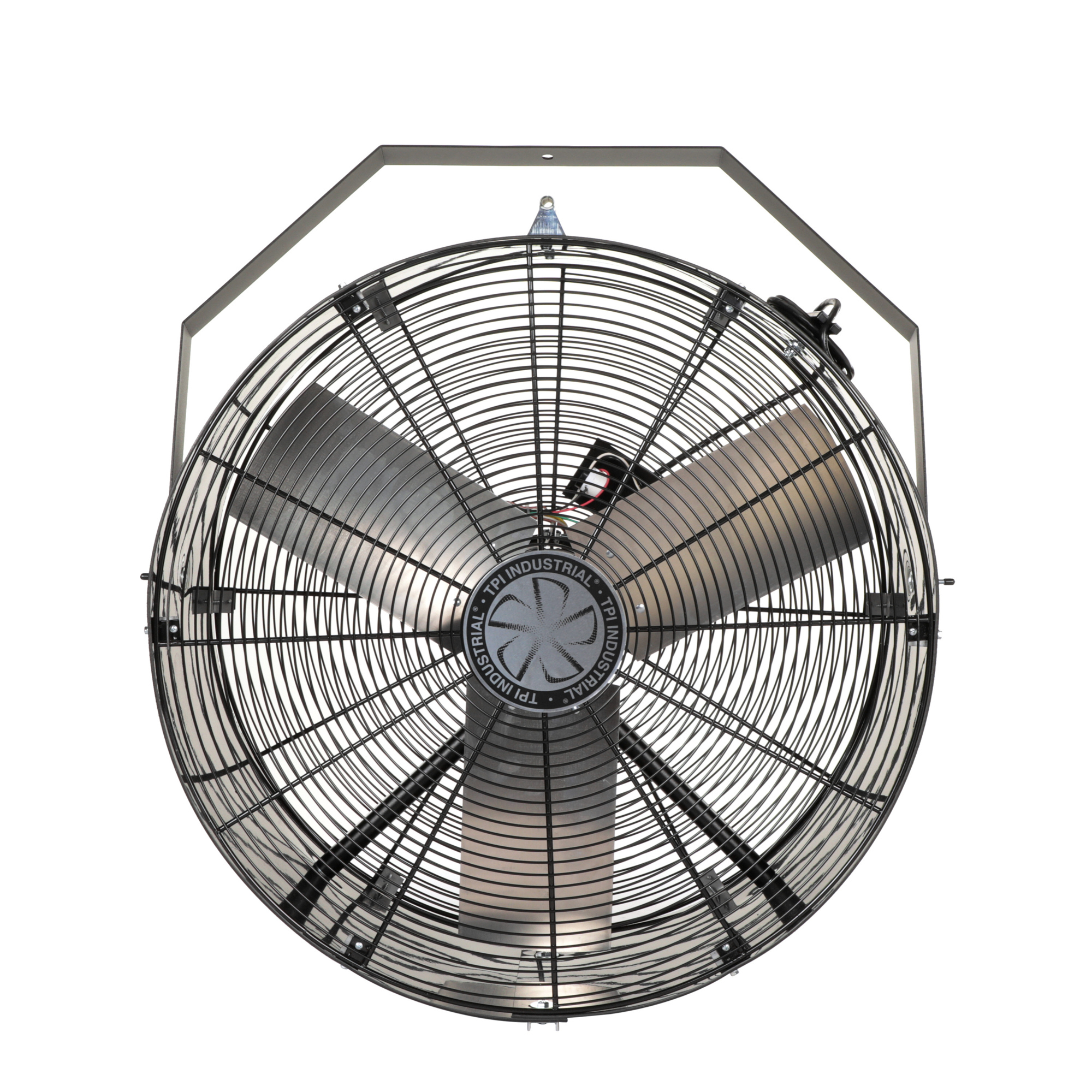

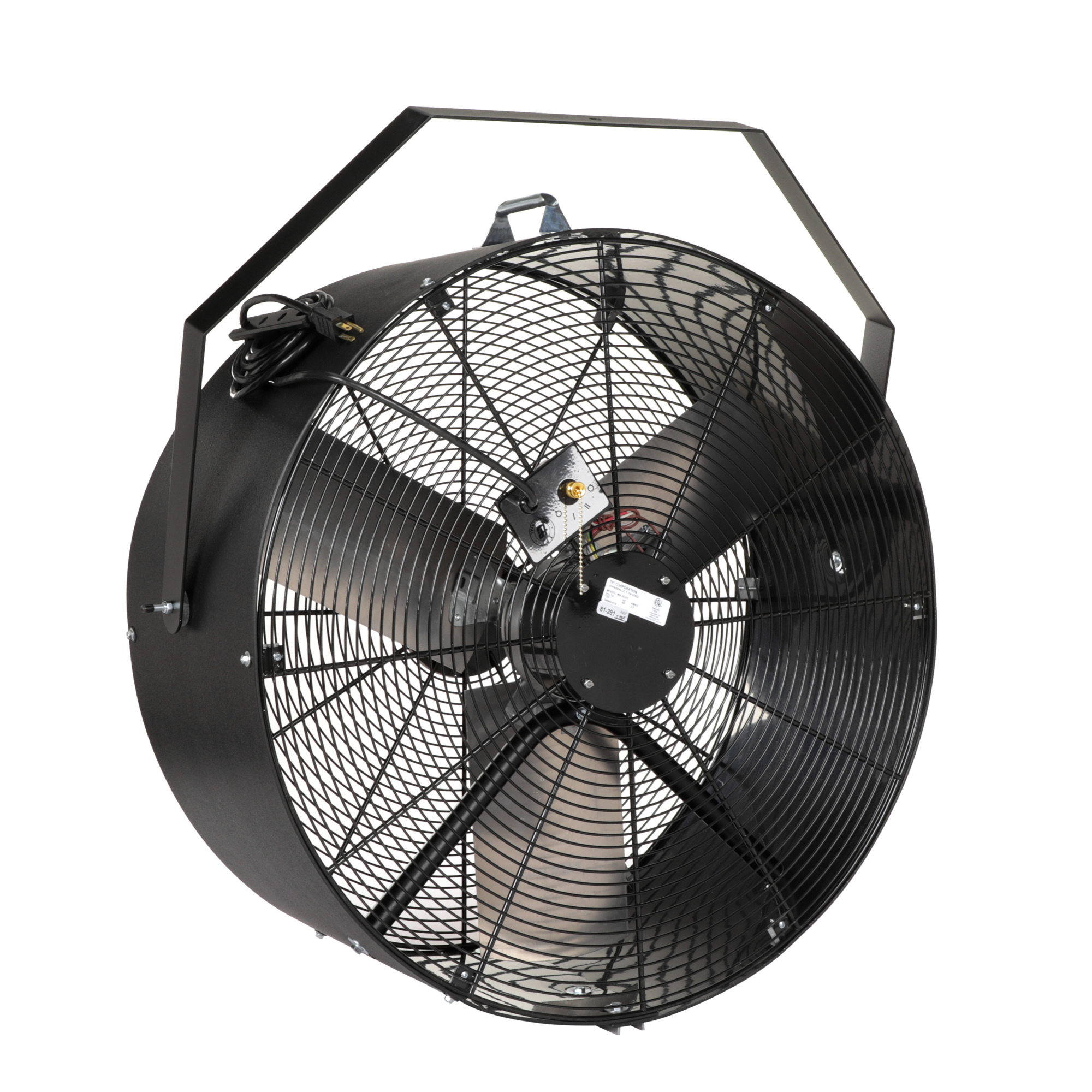

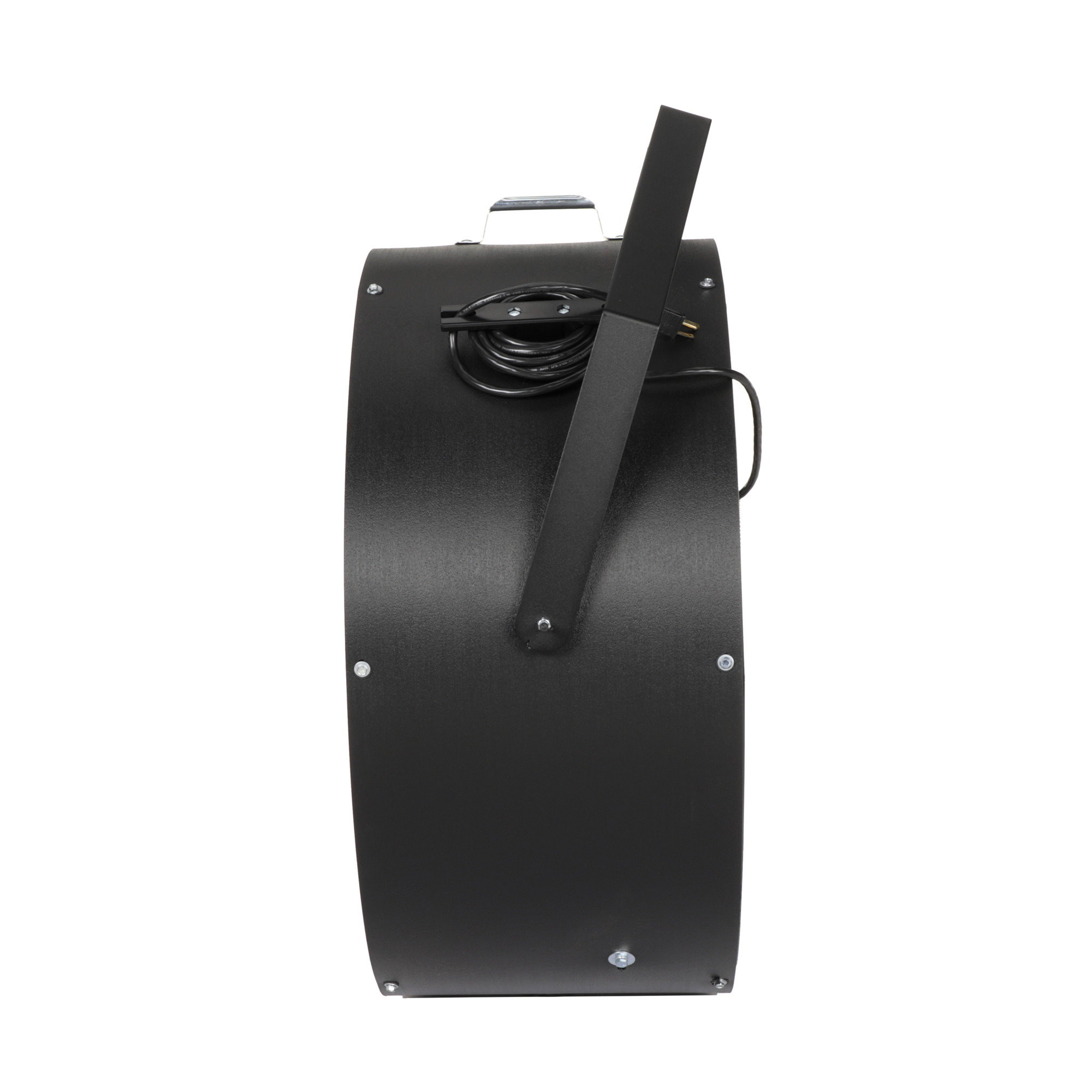

TPI Industrial Yoke Mount Blower - 30in. Diameter, 7000 CFM, 1/4 HP, 120V, Model# MBX30DY

Item# 4229531
TPI Industrial Yoke Mount Blower - 30in. Diameter, 7000 CFM, 1/4 HP, 120V, Model# MBX30DY

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Industrial Yoke Mount Blower - 30in. Diameter, 7000 CFM, 1/4 HP, 120V, Model# MBX30DY

Click or Tap image to Zoom

$826.88

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Industrial suspension blower, 30" blade diameter, direct drive with steel yoke mount
  • Operates at 120-Volts generating up to 2.4-amps on single phase
  • Includes 10' long black SJT 3-conductor grounded molded plug
  • Corrosion resistant and dent proof high density polyethylene black housing
  • Two speed, 1/4-HP direct drive motor constructed of a totally enclosed housing, ball bearing, and is permanently lubricated

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TPI Industrial Yoke Mount Blower is a high-performance ventilation solution designed for demanding environments. With a 30-inch diameter and capable of delivering 7000 CFM (cubic feet per minute), this blower ensures efficient air circulation in large spaces. Powered by a 1/4 HP motor, it operates on a standard 120V electrical supply, making it suitable for a wide range of industrial applications. The blower features a totally enclosed motor, providing protection against harsh and dirty conditions, ensuring long-lasting durability and reliable performance. Ideal for overhead or wall mounting, this blower is perfect for factories, warehouses, and other industrial settings where robust air movement is essential. Its sturdy construction and powerful airflow make the TPI Industrial Yoke Mount Blower a dependable choice for maintaining air quality and comfort in challenging environments.

What's Included

    (1) Fan assembled unit

Features + Benefits

  • Industrial suspension blower, 30" blade diameter, direct drive with steel yoke mount
  • Operates at 120-Volts generating up to 2.4-amps on single phase
  • Includes 10' long black SJT 3-conductor grounded molded plug
  • Corrosion resistant and dent proof high density polyethylene black housing
  • Two speed, 1/4-HP direct drive motor constructed of a totally enclosed housing, ball bearing, and is permanently lubricated
  • Pull chain switch to operate the three speeds
  • Uses a 30" aluminum 3-paddle blade generating 7,000 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a black finish
  • Fan housing is stationary, but will rotate from the black steel yoke 360° on both vertical and horizontal axis
  • ETL Listed for USA and Canada

Key Specs

AttributeSpecification

item#

4229531

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

58.0 LB

Fan Diameter

30 in

Air Delivery

7,000 cfm

Oscillating

No

Volts

120

Outdoor Rated

No

Assembly Required

Yes
AttributeSpecification

Primary Color

Silver

Housing Material

Combination

Speeds (qty.)

2

Max. Fan Speed

1,040 rpm

Hardwired

No

Phase

Single-phase

Power Cord Length

10 ft

Watts

300

Product Weight

50.0000 lb

Dimensions L x W x H (in.)

18.0 x 38.0 x 36.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
