TPI Industrial Workstation Floor Fan - 24in. Diameter, 0.12 HP, 5850 CFM, 3-Speed, Model# F-24-TE

Item# 49236
"TPI Industrial Workstation Floor Fan - 24in. Diameter, 0.12 HP, 5850 CFM, 3-Speed, Model# F-24-TE"
TPI Industrial Workstation Floor Fan - 24in. Diameter, 0.12 HP, 5850 CFM, 3-Speed, Model# F-24-TE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Industrial Workstation Floor Fan - 24in. Diameter, 0.12 HP, 5850 CFM, 3-Speed, Model# F-24-TE

Click or Tap image to Zoom

$259.84

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Steel hub/spider guards
  • Rotary switch
  • SJT type-3 conductor
  • 10ft. cord
  • Powered by a 1/8 HP, 3-speed, 42 frame, 120V, 1-phase, ball bearing motor with 5/16in. shaft, complete enclosure and permanent split capacitor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

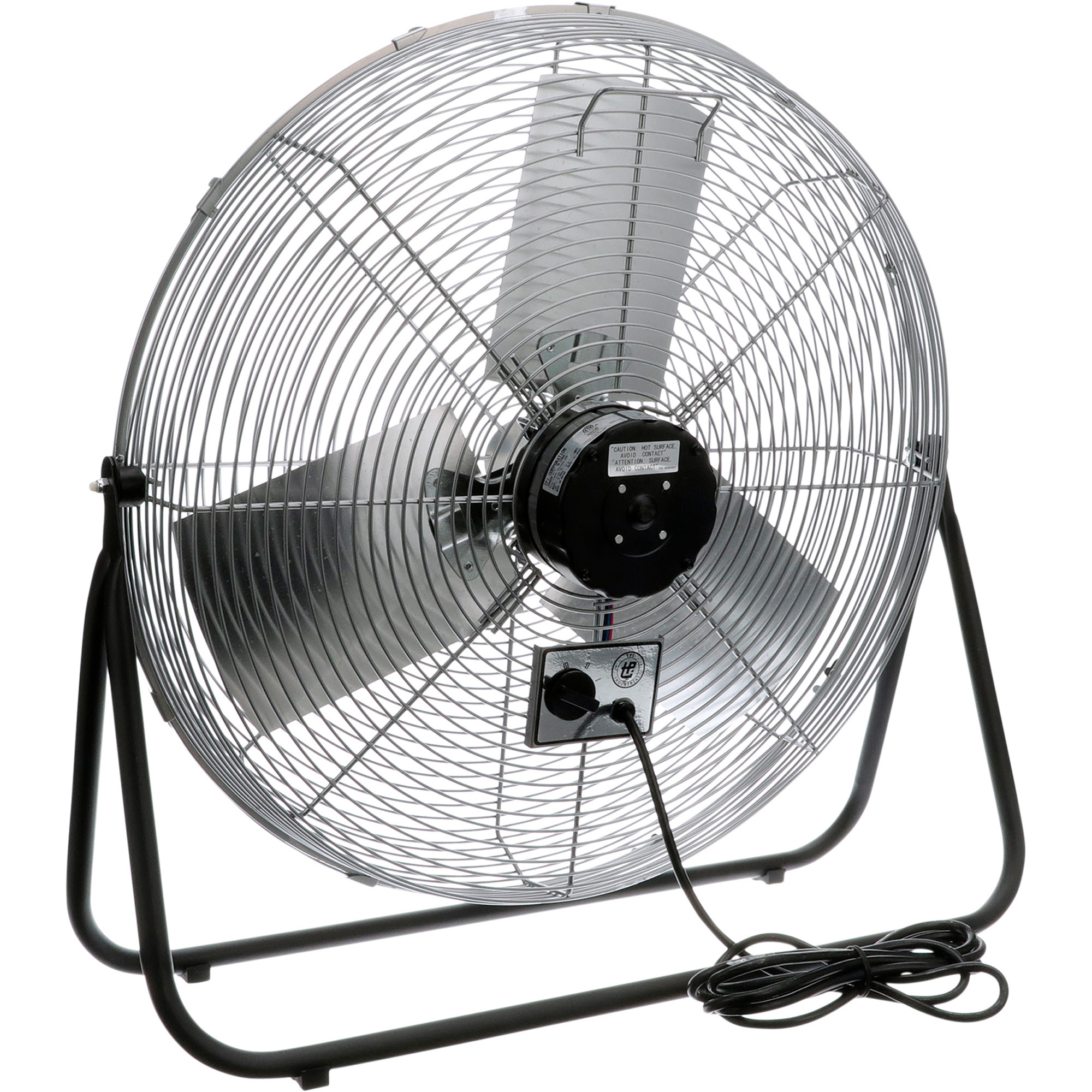

The TPI Industrial Workstation Floor Fan has a steel hub/spider guards, a rotary switch, a SJT type-3 conductor and a 10ft. cord. Powered by a 1/8 HP, 3-speed, 42 frame, 120V, 1-phase, ball bearing motor with 5/16in. shaft, complete enclosure and permanent split capacitor. Creates 5,850/5,200/3,600 CFM and 1,634/1,484/1,200 RPM. Head tilts 360°. Meets OSHA standards.

What's Included

    (1) Fan

Features + Benefits

  • Steel hub/spider guards
  • Rotary switch
  • SJT type-3 conductor
  • 10ft. cord
  • Powered by a 1/8 HP, 3-speed, 42 frame, 120V, 1-phase, ball bearing motor with 5/16in. shaft, complete enclosure and permanent split capacitor
  • Creates 5,580/5,200/3,600 CFM and 1,634/1,484/1,200 RPM

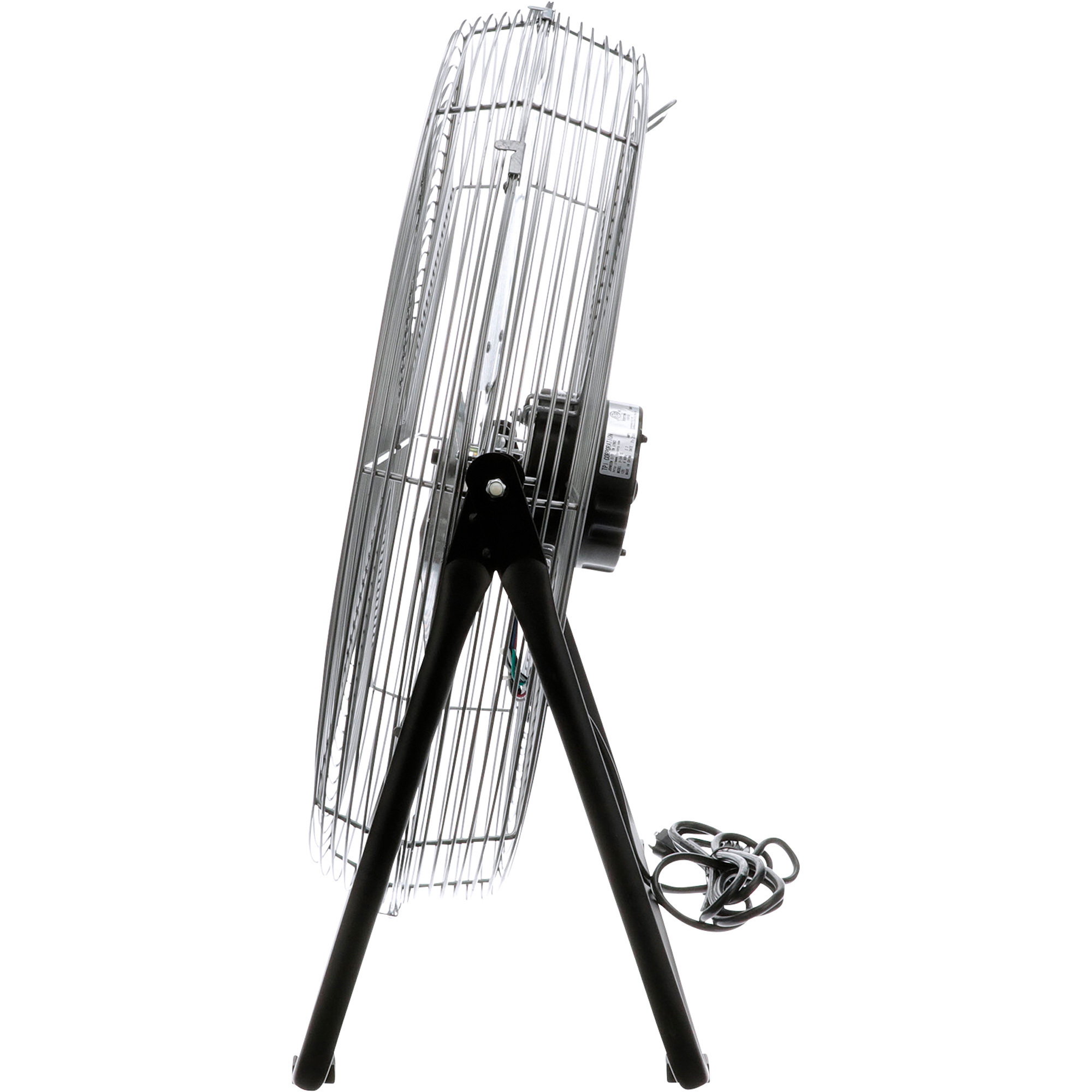

  • Head tilts 360°
  • Meets OSHA standards
  • 10 1/2in.L x 26in.W x 26in.H

Key Specs

AttributeSpecification

item#

49236

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23.0 LB

Fan Diameter

24 in

Air Delivery

5,850 cfm

Volts

120

Amps

2.4
AttributeSpecification

Drive Type

Direct

Speeds (qty.)

3

Max. Fan Speed

1,200 rpm

Power Cord Length

10 ft

Horsepower

0.12 HP

Product Weight

lb

Dimensions L x W x H (in.)

10.5 x 26.0 x 26.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. How loud is this fan? How many Decibels?

    Could you please share how many decibel are attributed to each speed of this fan?

    1 answer

    1. The unit is rated for 65 decibels at 15'.

      Helpful?

  2. Is this fan made in the USA?

    1 answer

    1. This TPI floor fan is manufactured in China.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
