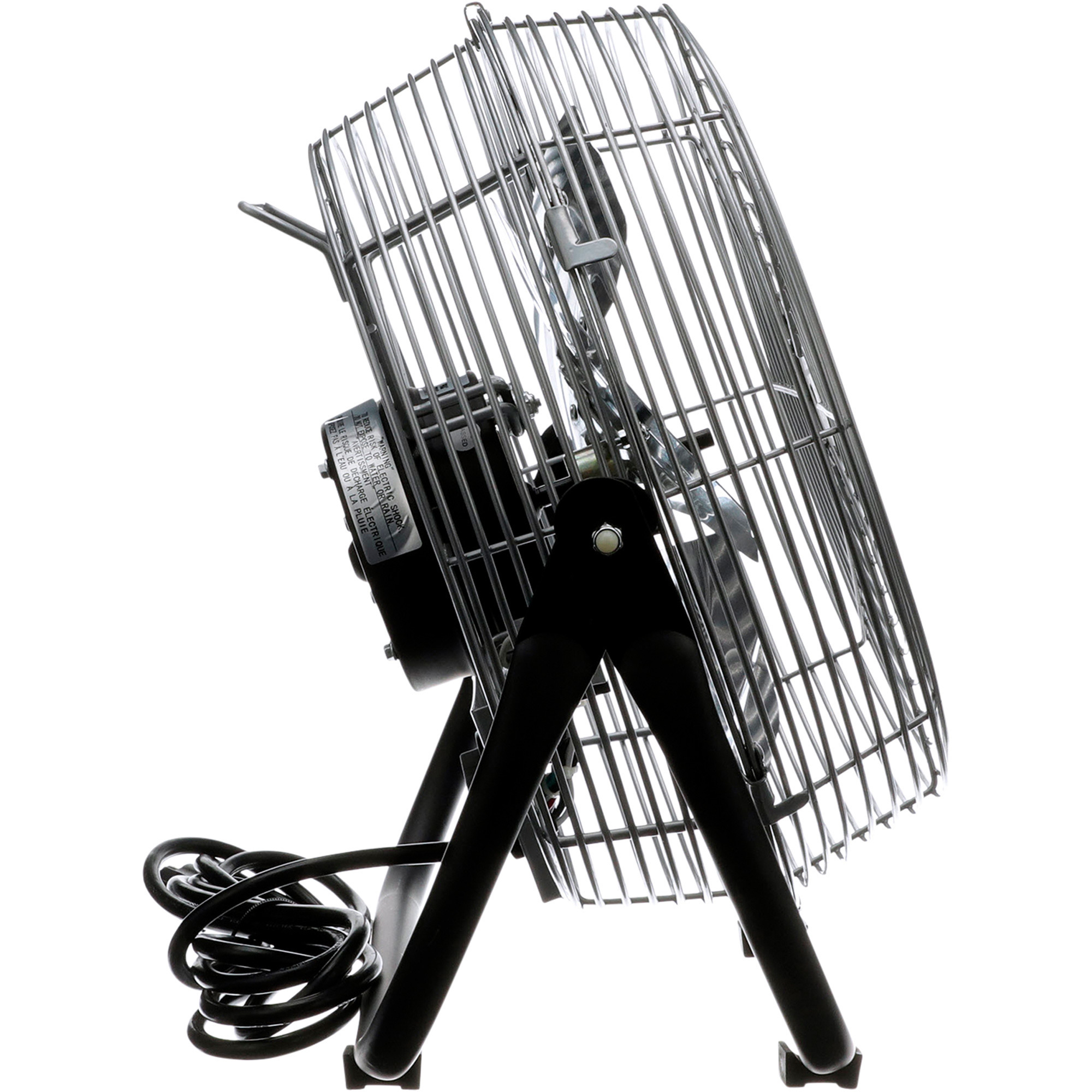

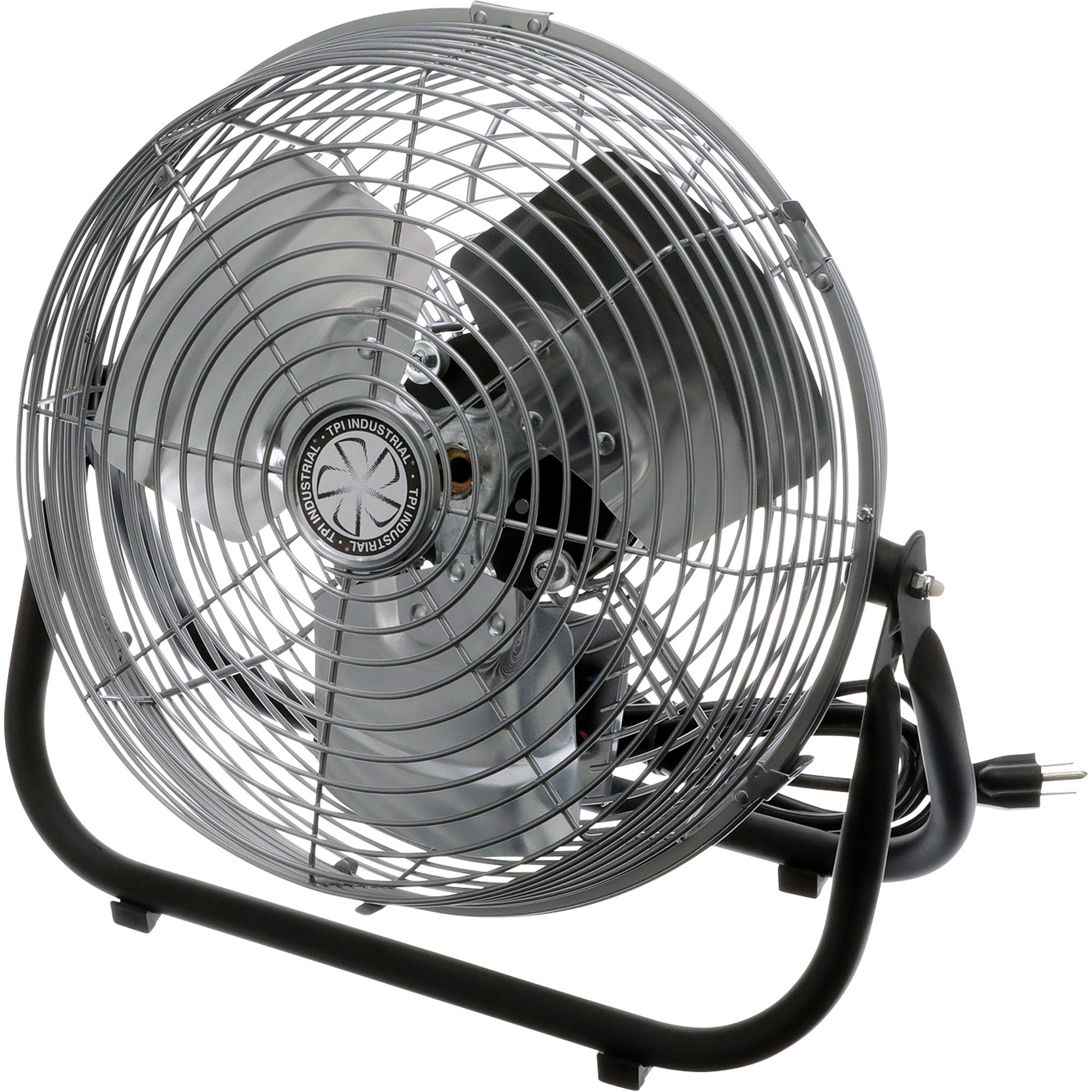

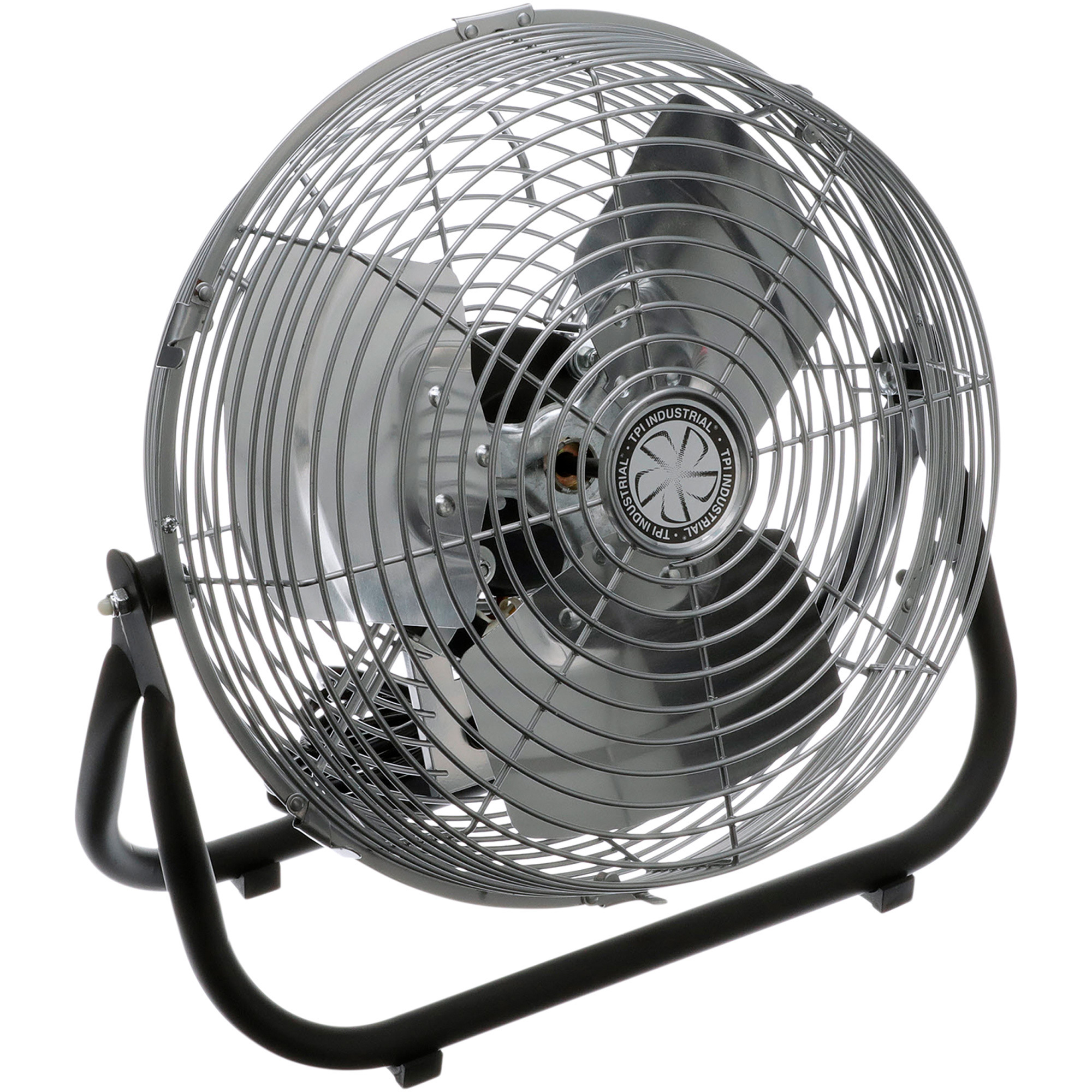

The TPI Industrial Workstation Floor Fan, Model #F-12-TE, includes a thermo-protector that automatically de-energizes the fan if it overheats.
TPI Industrial Workstation Floor Fan - 12in. Diameter, 1650 CFM, 0.5 HP, 3-Speed, Model# F-12-TE
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$181.76
- Totally enclosed 1/12 HP, 3 speed, 120V, 1-phase, ball bearing motor has a 48 frame size, 1/2in. shaft, a permanent split capacitor and is permanently lubricated
- Steel hub
- 12in. aluminum paddle blades
- Coated steel guards
- Pull chain switch
See full description
What's Included
- (1) Fan
Features + Benefits
- Totally enclosed 1/12 HP, 3 speed, 120V, 1-phase, ball bearing motor has a 48 frame size, 1/2in. shaft, a permanent split capacitor and is permanently lubricated
- Steel hub
- 12in. aluminum paddle blades
- Coated steel guards
- Pull chain switch
- SJT type-3 conductor
- 10ft.L cord
- 9in.L x 14in.W x 14in.H
- 1.1 amps
- 1,590/1,380/1,080 RPM
- 1,650/1,450/1,120 CFM
See All Floor Fans
See All TPI Floor Fans
Currently Viewing This Product
Specifications
Specifications
TPI Industrial Workstation Floor Fan - 12in. Diameter, 1650 CFM, 0.5 HP, 3-Speed, Model# F-12-TE
TPI Commercial Floor Fan - 12in. Diameter, 0.08 HP, 1050 CFM, Black, Model# CF12
TPI Portable Square Blower - 42in. Fan Diameter, 17500 CFM, 3/4 HP, Belt Drive, Model# PCBT42B
TPI Portable Square Blower - 48in. Fan Diameter, 23,500 CFM, 1 HP, Belt Drive, Model# PCBT48B
Fan Diameter
Same
12 in
12 in
42 in
48 in
Air Delivery
Same
1,650 cfm
1,050 cfm
17,500 cfm
23,500 cfm
Volts
Same
120
120
120
120
Amps
Same
1.1
0.6
11
-
Drive Type
Same
Direct
Direct
Belt
Belt
Speeds (qty.)
Same
3
3
1
1
Max. Fan Speed
Same
1,080 rpm
900 rpm
1,725 rpm
725 rpm
Power Cord Length
Same
10 ft
7 ft
12 ft
12 ft
Horsepower
Same
0.5 HP
0.08 HP
-
-
Product Weight
Same
lb
lb
120.0000 lb
145.0000 lb
Dimensions L x W x H (in.)
Same
9.0 x 14.0 x 14.0 in
14.0 x 16.0 x 15.0 in
22.5 x 34.25 x 56.5 in
18.5 x 40.25 x 62.5 in
Watts
Same
-
72
1,320
1,800
Outdoor Rated
Same
-
-
No
No
Phase
Same
-
-
Single-phase
Single-phase
Noise Level
Same
-
-
77 dB
79 dB
Hardwired
Same
-
-
No
No
Primary Color
Same
-
-
Silver
Silver
Secondary Color
Same
-
-
Other
Other
Assembly Required
Same
-
-
No
No
