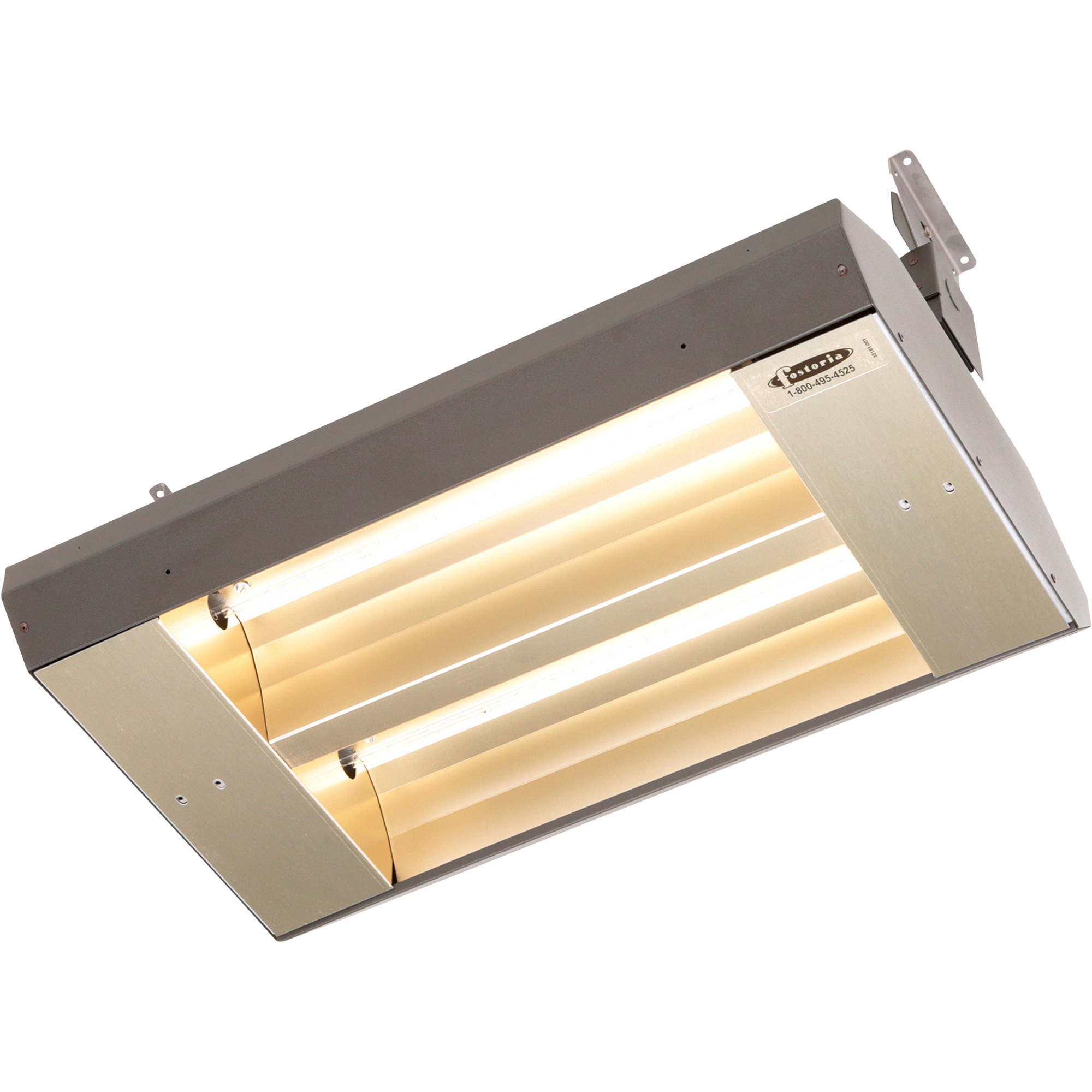

Fostoria Quartz Infrared Heater, 10,922 BTU, Model# 222-60-TH-208V

Item# 255393
"Fostoria Quartz Infrared Heater, 10,922 BTU, Model# 222-60-TH-208V"
Fostoria Quartz Infrared Heater, 10,922 BTU, Model# 222-60-TH-208V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Quartz Infrared Heater, 10,922 BTU, Model# 222-60-TH-208V

Click or Tap image to Zoom

$727.68

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3.2kW, 10,922 BTU, 208V, single-phase motor
  • 2 clear quartz lamps
  • 20-gauge galvanized steel
  • Baked-on brown enamel finish
  • Gold anodized aluminum reflectors and endcaps for superior reflectivity

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Fostoria Indoor/Outdoor Overhead Quartz Electric Infrared Heater by TPI offers powerful heat for snow and ice control, outdoor spot heating and all indoor heating applications. ETL listed for suspended, totally exposed outdoor heating and high-bay indoor comfort heating, exterior snow and ice control, as well as recessed applications. 96% radiant delivered efficiency with high moisture and thermal shock resistance. Broadcasts a 60° pattern with instantaneous heat-up and cool-down performance. Built-in surface mounting brackets for fixture adjustment up to 45° horizontal tilt.

What's Included

    (1) Heater

Features + Benefits

  • 3.2kW, 10,922 BTU, 208V, single-phase motor
  • 2 clear quartz lamps
  • 20-gauge galvanized steel
  • Baked-on brown enamel finish
  • Gold anodized aluminum reflectors and endcaps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen-filled quartz envelope
  • 6in.H temperature pigtail lead wires
  • Requires hardwired connection, 3in. mounting clearance from ceiling and 24in. from vertical surface, 72in. mounting clearance from face of heater to combustible surface
  • 12ft.–18ft. recommended indoor mounting height
  • ETL C/US listed

Key Specs

AttributeSpecification

item#

255393

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.0 LB

Heat Type

Infrared

Heat Output

10,922 Btu/hour

Hardwired

Yes
AttributeSpecification

Indoor-Outdoor Use

Indoor and Outdoor

Volts

208

Watts

3,200

Remote Included

No

Blower Included

No

Dimensions L x W x H (in.)

15 x 33 x 11 in

Reviews

Questions & Answers

34 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Is this unit single phase volts or three phase?

    1. single phase

      Helpful?

    2. This heater uses single phase voltage.

      Helpful?

  2. what is the amperage draw?

    1 answer

    1. The amperage draw for this heater is 15.40.

      Helpful?

  3. Building measures 25' X 60' & 14' ceiling height. How many would you recommend putting & how far apart on mounting? Thank you

    OR what other heaters do you recommend.

    1 answer

    1. The heater will heat approximately 272 sq feet. In this size of an area it would be recommended that you have a minimum of 5-6 units that would be spaced evenly through out the area.

      Helpful?

  4. What , if any, mounting bracket is included?

    Is it designed to be mounted directly above head, in the rafters of a screened porch, for instance, or can it also be wall mounted? Also, what is the heated area of the 90 degree pattern (i.e. 8x8, 6x6)?

    1 answer

    1. This unit is designed to be mounted over head Built-in surface mounting brackets attached to the top wiring channel. 0 to 45° Tilt @ 15° increments. Allows the unit to be tilted (up to 45º from horizontal) when the unit is surfaced mounted. With a 90 degree symmetric heating capability the recommended mounting height for this unit is 8' to 12'.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
