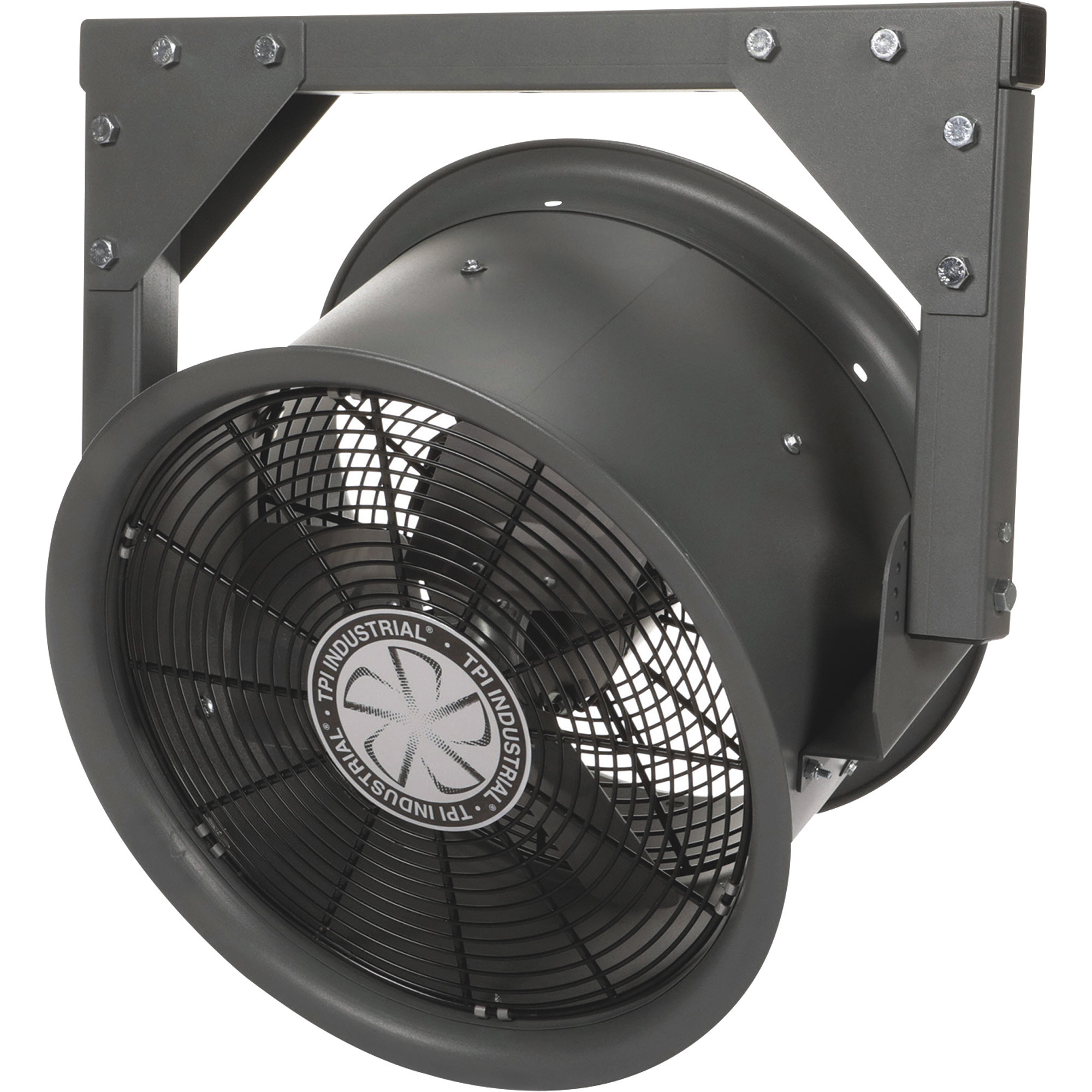

TPI High-Velocity Air Circulator Fan - 18in. Diameter, Wall Mount, 3000 CFM, Model# HV18-120V

Item# 99657
"TPI High-Velocity Air Circulator Fan - 18in. Diameter, Wall Mount, 3000 CFM, Model# HV18-120V"
TPI High-Velocity Air Circulator Fan - 18in. Diameter, Wall Mount, 3000 CFM, Model# HV18-120V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI High-Velocity Air Circulator Fan - 18in. Diameter, Wall Mount, 3000 CFM, Model# HV18-120V

Click or Tap image to Zoom

$1115.52

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Housing designed for all types of air circulating applications to provide directional high-velocity air flow
  • Built-in rotating design allows the supplied mounting bracket to pivot 120 degrees in (9) adjustment settings at 15° variations
  • Front and rear spiral wound grills are OSHA approved and have a black powder-coated finish
  • Shipped fully assembled and ready for hard-wired connections
  • TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments

See full description

Complete Your Solution

  • TPI High-Velocity Air Circulator Fan - 18in. Diameter, Wall Mount, 3000 CFM, Model# HV18-120V

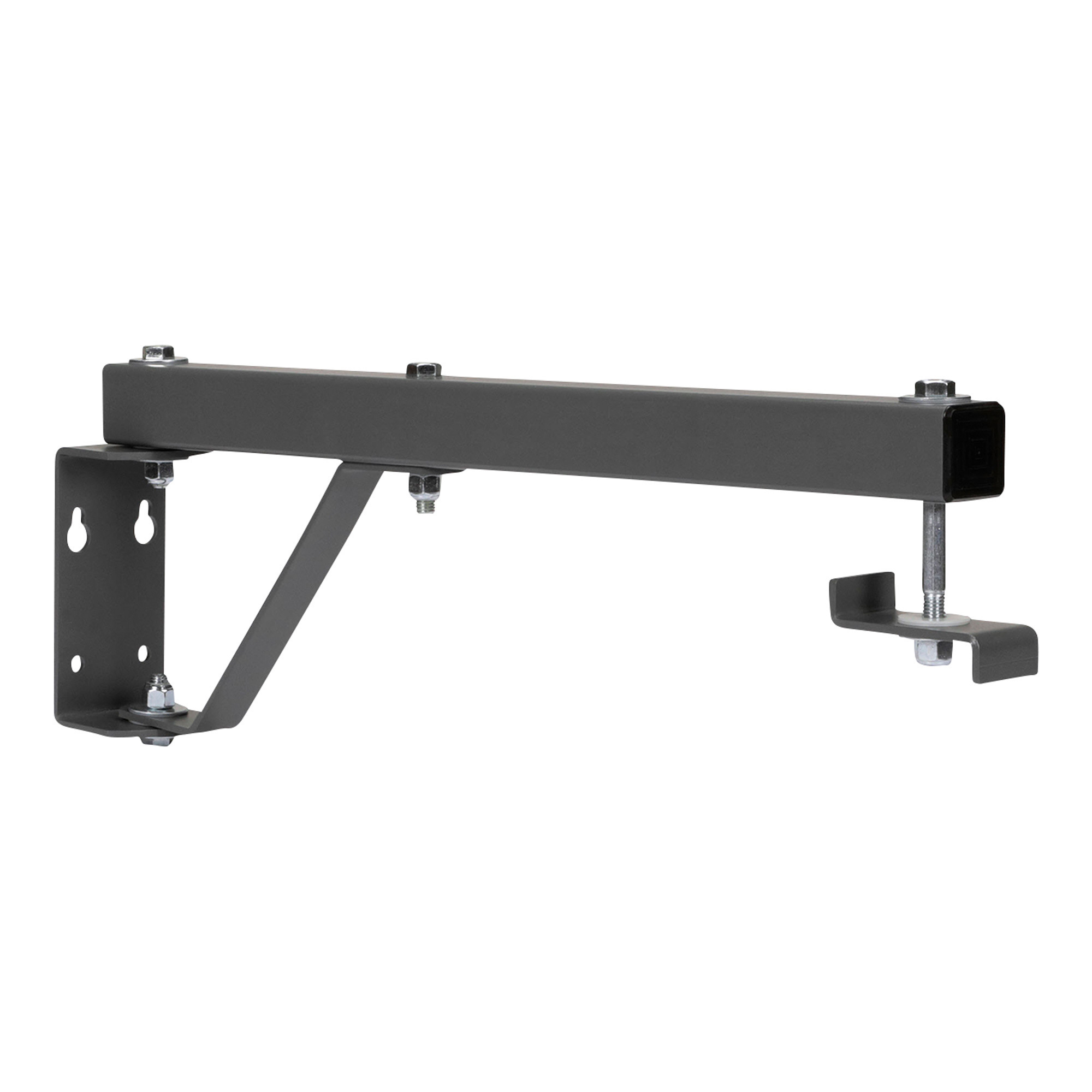

  • TPI Bracket for HV-18 Series Blower - Steel, Compatible with Fan Heads, Model# HV-1
Price for all two:

$1278.72

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The TPI HV Series Industrial High-Velocity Fan is ideal for warehouse material handling and high-shelf areas. This unit directs high volumes of airflow down aisles, loading dock areas, conveyor systems, processing centers, workstations, jobsites and many other types of industrial operations and rugged environments. This blower is ETL C/US listed for indoor spot cooling applications. Its 20-gauge all-steel housing with gray epoxy powder-coated finish is designed to last. The heavy-duty yoke mounting bracket design features a 2in. square steel tubing frame. The direct drive, totally enclosed air-over (TEAO), single-speed motor generates up to 9,000 CFMs. The ball bearing, with split capacitor, is permanently lubricated. The motor operates on 60HZ and 1725 RPMs, and requires hard-wired connection to the supplied electrical enclosure is located on the motor housing. Aluminum 3-paddle blade system includes steel hub and cast aluminum spider connections and an 18in. non-oscillating fan head.

What's Included

    (1) High-velocity blower

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Housing designed for all types of air circulating applications to provide directional high-velocity air flow
  • Built-in rotating design allows the supplied mounting bracket to pivot 120 degrees in (9) adjustment settings at 15° variations
  • Front and rear spiral wound grills are OSHA approved and have a black powder-coated finish
  • Shipped fully assembled and ready for hard-wired connections
  • TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments
  • Rated up to 115° F max ambient temperature

Key Specs

AttributeSpecification

item#

99657

Brand

TPI

Manufacturer's Warranty

2 year limited warranty

Ship Weight

55.0 LB

Fan Diameter

18 in

Air Delivery

3,000 cfm

Volts

120
AttributeSpecification

Amps

3.4

Speeds (qty.)

1

Max. Fan Speed

1,725 rpm

Watts

373

Horsepower

0.5 HP

Product Weight

52.0000 lb

Dimensions L x W x H (in.)

13.5 x 27.43 x 26.0 in

Reviews

Questions & Answers

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

2 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
