TPI Guard-Mounted Exhaust Fan - 18in. Dia., Direct Drive, 2300 CFM, 1/8 HP, 3-Speed, Model# CE18D

Item# 4229654
TPI Guard-Mounted Exhaust Fan - 18in. Dia., Direct Drive, 2300 CFM, 1/8 HP, 3-Speed, Model# CE18D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Guard-Mounted Exhaust Fan - 18in. Dia., Direct Drive, 2300 CFM, 1/8 HP, 3-Speed, Model# CE18D

Click or Tap image to Zoom

$416.64

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Guard mount exhaust fan, bolts directly to an inside wall / vertical surface
  • Junction box enclosure for direct wiring connection; NO cord provided
  • Pull chain switch to operate the (3) speeds
  • Operates at 120-Volts and single-phase generating 2.2-amps using a totally enclosed motor
  • Three speed, 1/8-HP direct drive motor constructed of sleeve bearing, split capacitor and permanently lubricated

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TPI Guard-Mounted Exhaust Fan is a robust and efficient solution designed to improve air quality in harsh environments. With an 18in. diameter, this direct drive fan delivers a powerful airflow of 2300 CFM, ensuring optimal ventilation. It features a 1/8 HP motor and offers three-speed settings, allowing for customizable performance to suit various needs. Built to withstand demanding conditions, this exhaust fan is ideal for industrial, commercial, and agricultural applications, providing reliable and effective air circulation to maintain a healthier and more comfortable environment. The guard-mounted design ensures safety and durability, making it a dependable choice for any setting that requires enhanced air quality management.

What's Included

    (1) Guard, blade & motor; assembled

Features + Benefits

  • Guard mount exhaust fan, bolts directly to an inside wall / vertical surface
  • Junction box enclosure for direct wiring connection; NO cord provided
  • Pull chain switch to operate the (3) speeds
  • Operates at 120-Volts and single-phase generating 2.2-amps using a totally enclosed motor
  • Three speed, 1/8-HP direct drive motor constructed of sleeve bearing, split capacitor and permanently lubricated
  • Uses a 18" aluminum 3-paddle blade generating 2300 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a silver finish
  • Can be used with or without external shutter (sold separately)
  • Designed for harsh industrial and commercial environments to improve air quality
  • UL recognized motor
  • Proudly Designed, Engineered, Tested and Assembled in the USA

Key Specs

AttributeSpecification

item#

4229654

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

19.0 LB

Drive Type

Direct

Fan Diameter

18 in

Air Delivery

2,300 cfm

Volts

120
AttributeSpecification

Watts

93

Hardwired

Yes

Speeds (qty.)

1,660

Assembly Required

Yes

Outdoor Rated

No

Phase

Single-phase

Product Weight

16.0000 lb

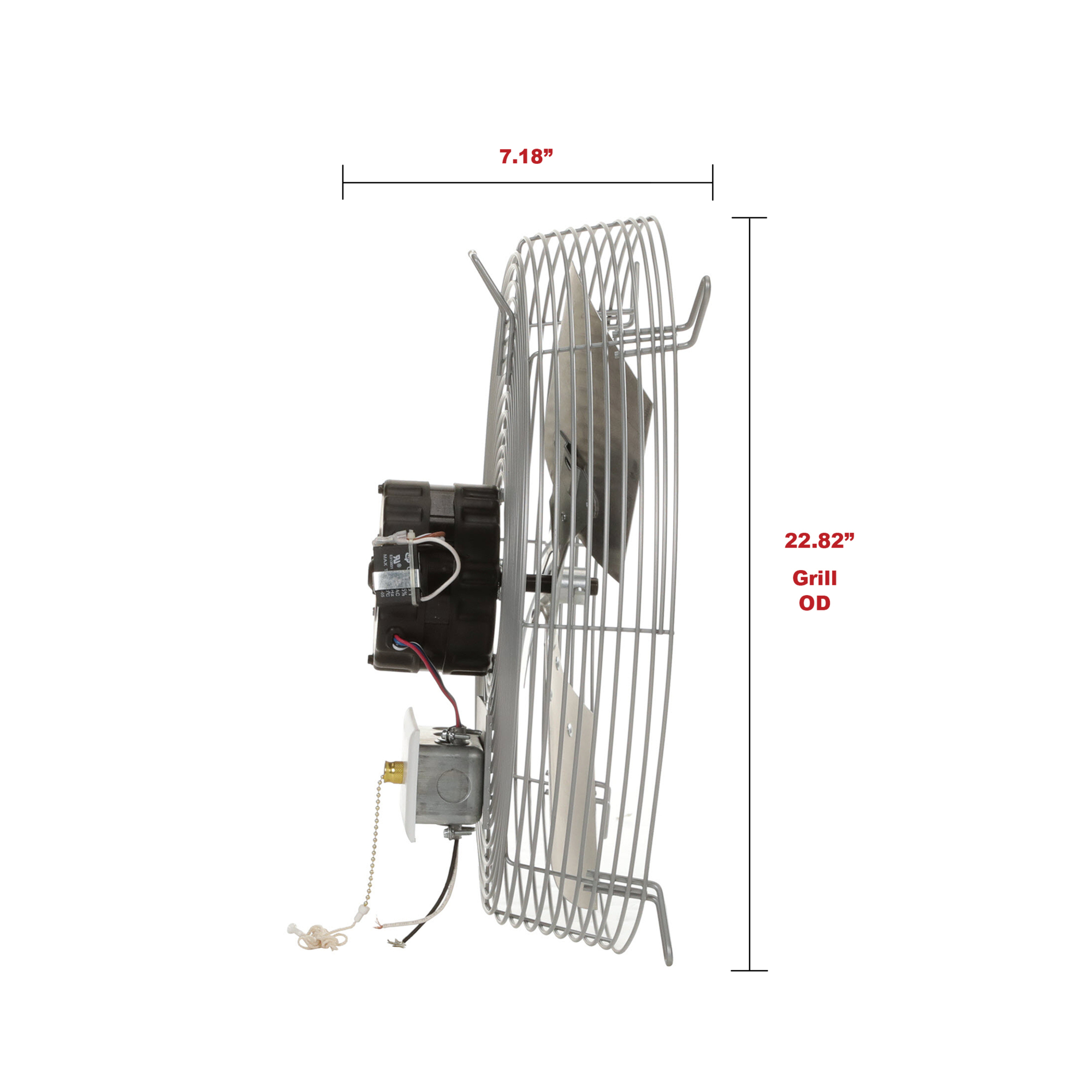

Dimensions L x W x H (in.)

7.18 x 22.82 x 22.82 in
