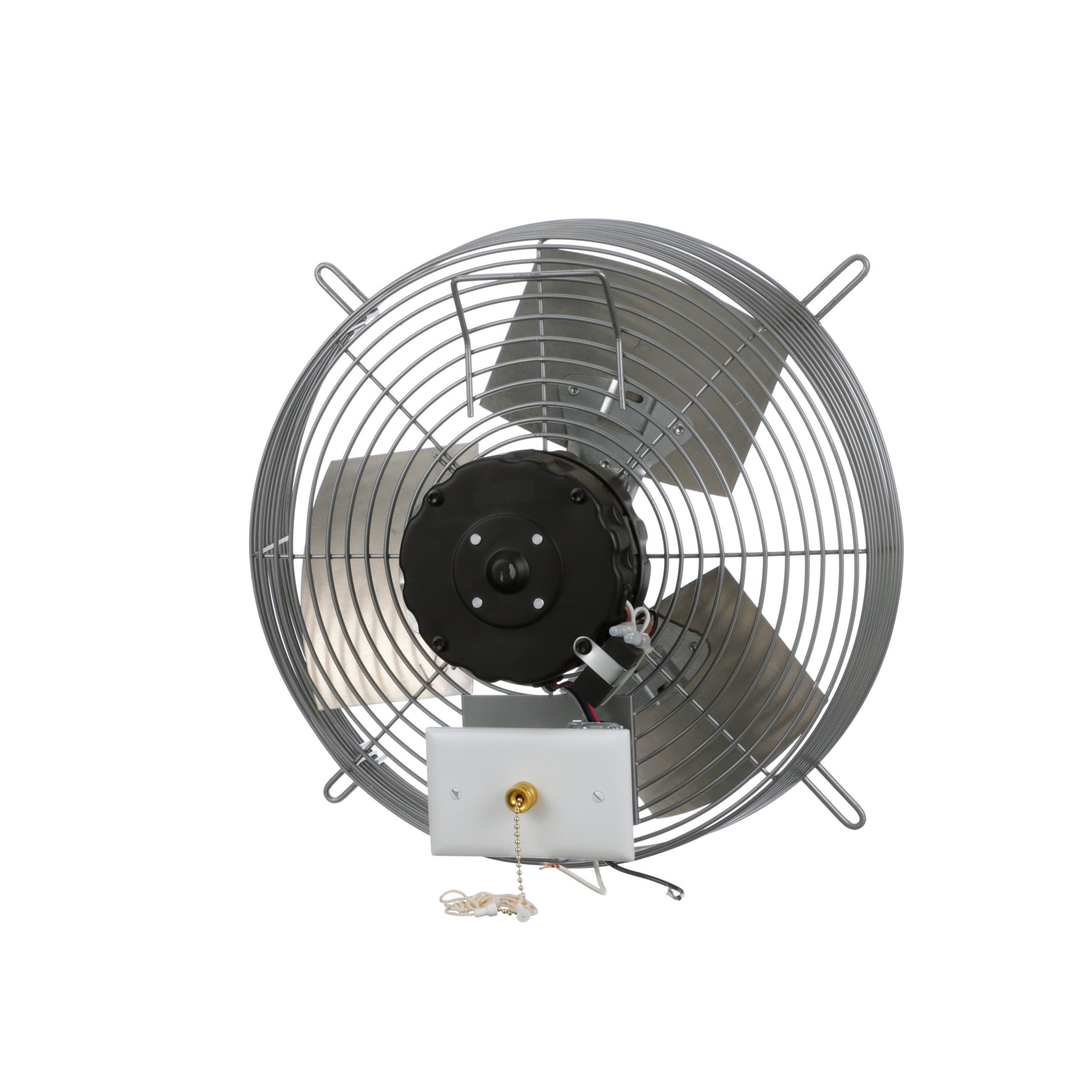

TPI Guard-Mounted Exhaust Fan - 14in. Diameter, Direct Drive, 1520 CFM, 1/8 HP, 120V, Model# CE14D

Item# 4229486
TPI Guard-Mounted Exhaust Fan - 14in. Diameter, Direct Drive, 1520 CFM, 1/8 HP, 120V, Model# CE14D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Guard-Mounted Exhaust Fan - 14in. Diameter, Direct Drive, 1520 CFM, 1/8 HP, 120V, Model# CE14D

Click or Tap image to Zoom

$346.24

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Guard mount exhaust fan, bolts directly to an inside wall / vertical surface
  • Junction box enclosure for direct wiring connection; NO cord provided
  • Pull chain switch to operate the (3) speeds
  • Operates at 120-Volts and single-phase generating 2.0-amps using a totally enclosed motor
  • Three speed, 1/8-HP direct drive motor constructed of sleeve bearing, split capacitor and permanently lubricated

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Improves air quality and designed for harsh environments

What's Included

    (1) Guard, blade & motor; assembled

Features + Benefits

  • Guard mount exhaust fan, bolts directly to an inside wall / vertical surface
  • Junction box enclosure for direct wiring connection; NO cord provided
  • Pull chain switch to operate the (3) speeds
  • Operates at 120-Volts and single-phase generating 2.0-amps using a totally enclosed motor
  • Three speed, 1/8-HP direct drive motor constructed of sleeve bearing, split capacitor and permanently lubricated
  • Uses a 14" aluminum 3-paddle blade generating 1520 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a silver finish
  • Can be used with or without external shutter (sold separately)
  • Designed for harsh industrial and commercial environments to improve air quality
  • UL recognized motor
  • Proudly Designed, Engineered, Tested and Assembled in the USA

Key Specs

AttributeSpecification

item#

4229486

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

17.0 LB

Drive Type

Direct

Fan Diameter

14 in

Air Delivery

1,520 cfm

Volts

120
AttributeSpecification

Watts

93

Hardwired

Yes

Speeds (qty.)

1,660

Assembly Required

Yes

Outdoor Rated

No

Phase

Single-phase

Product Weight

12.0000 lb

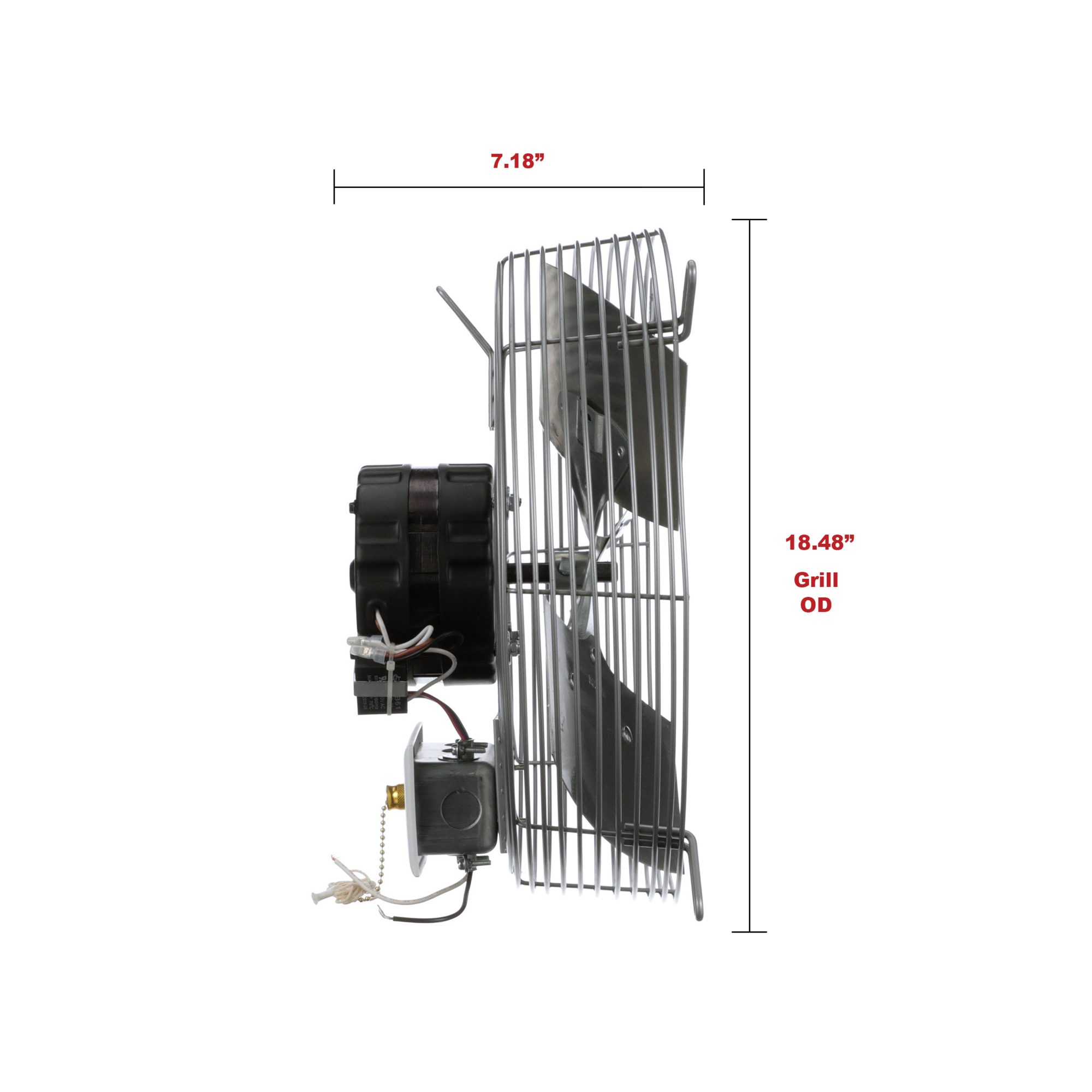

Dimensions L x W x H (in.)

7.18 x 18.48 x 18.48 in

Reviews

Questions & Answers

Questions

  1. can this fan be mounted horizontally?

    1 answer

    1. The fan cannot be mounted horizontally.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
