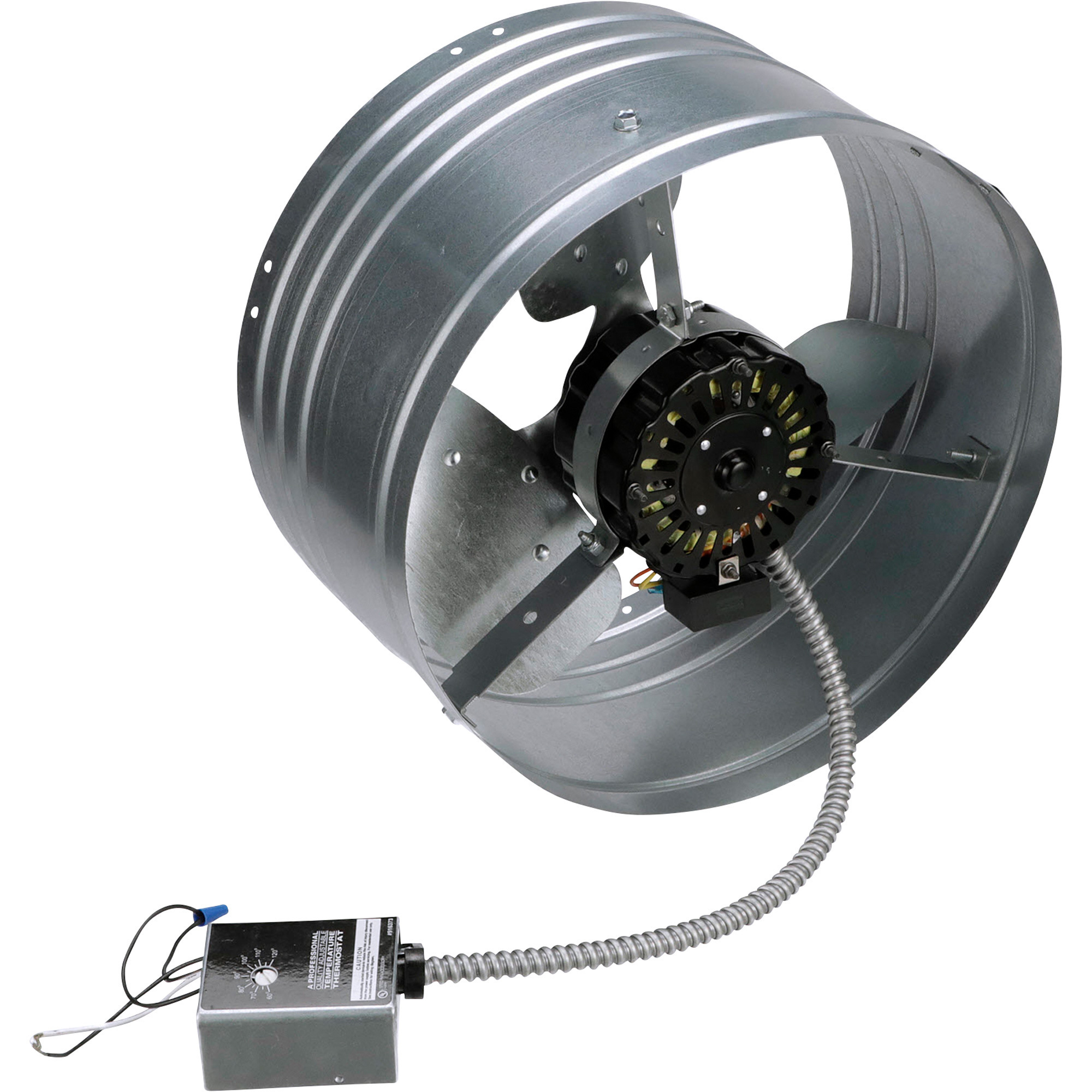

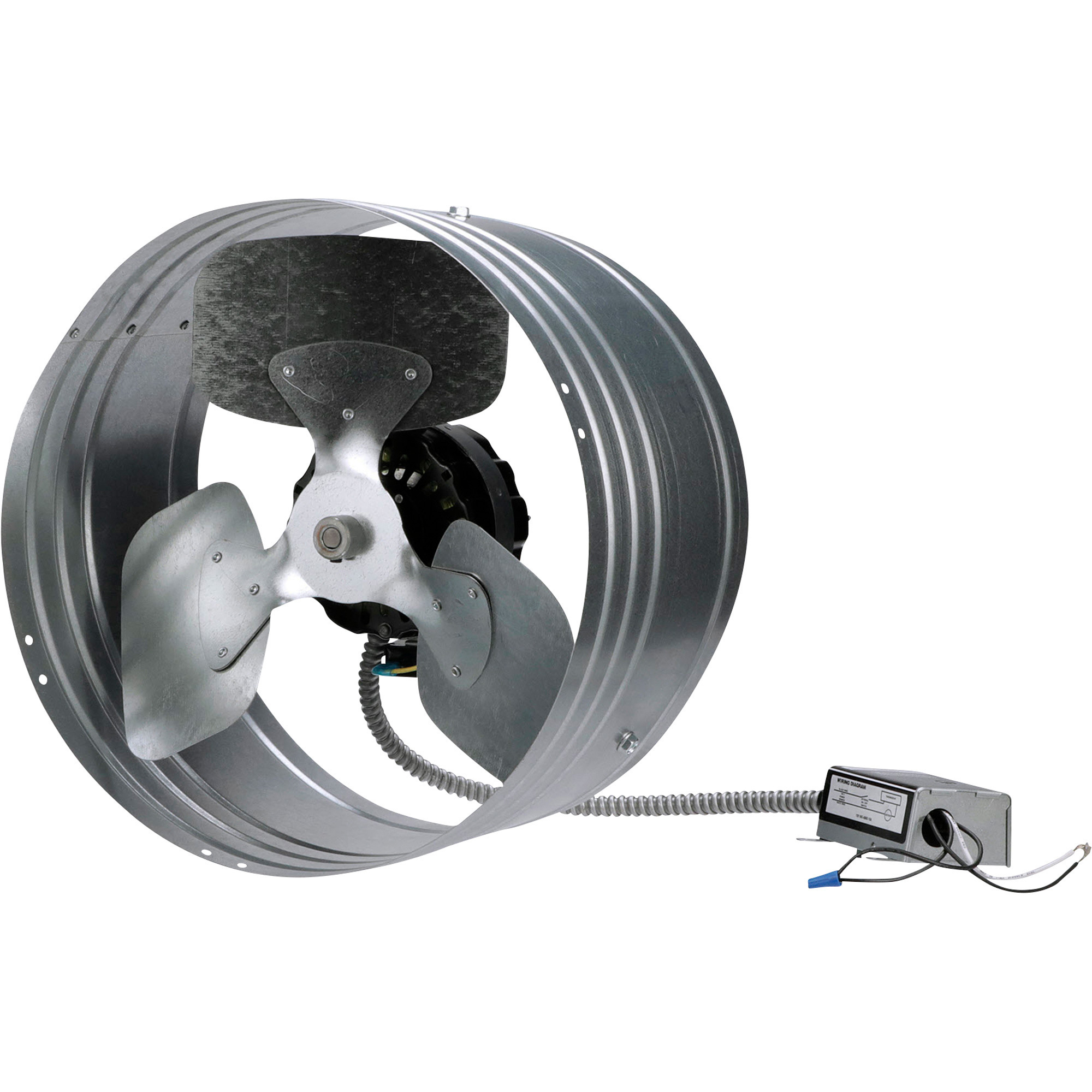

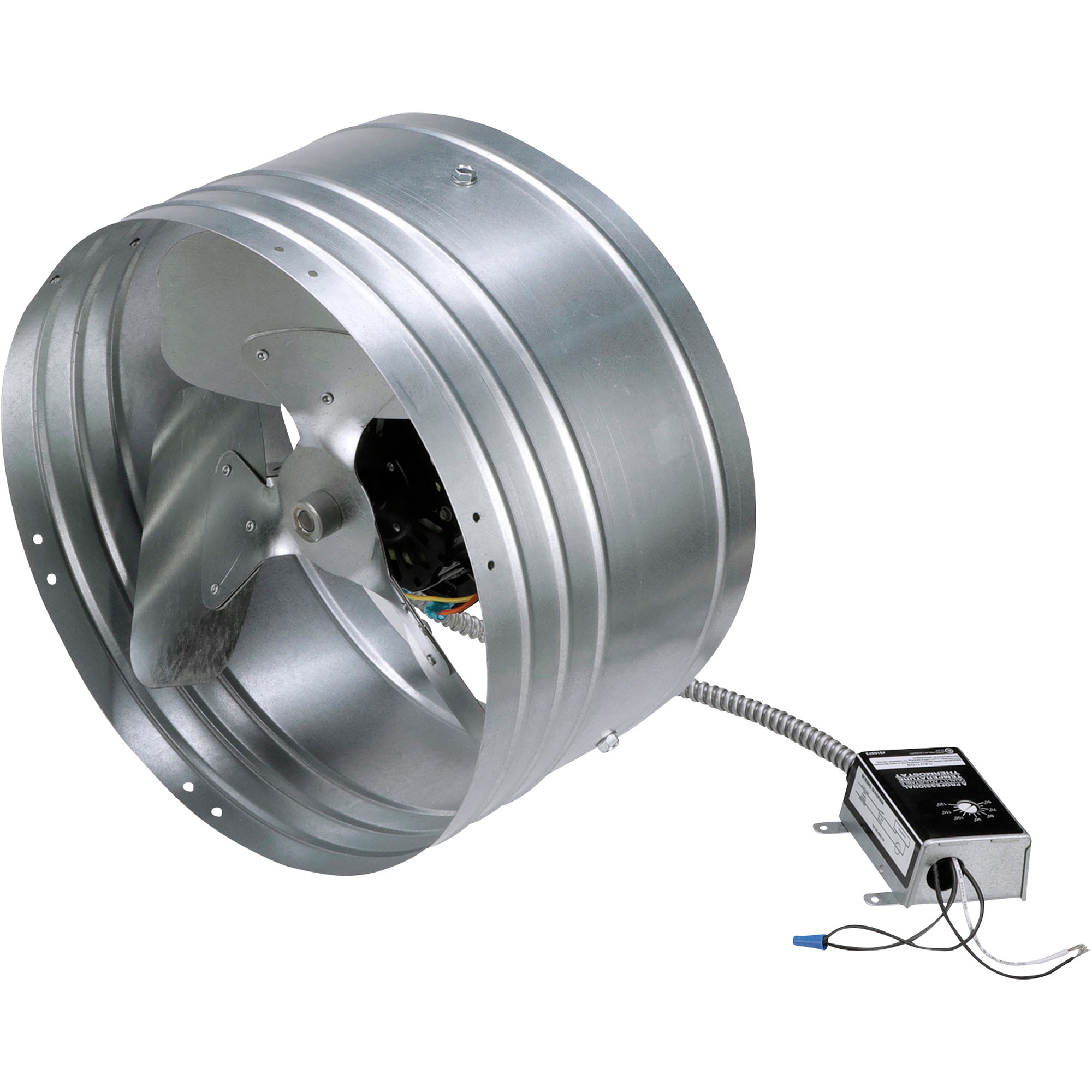

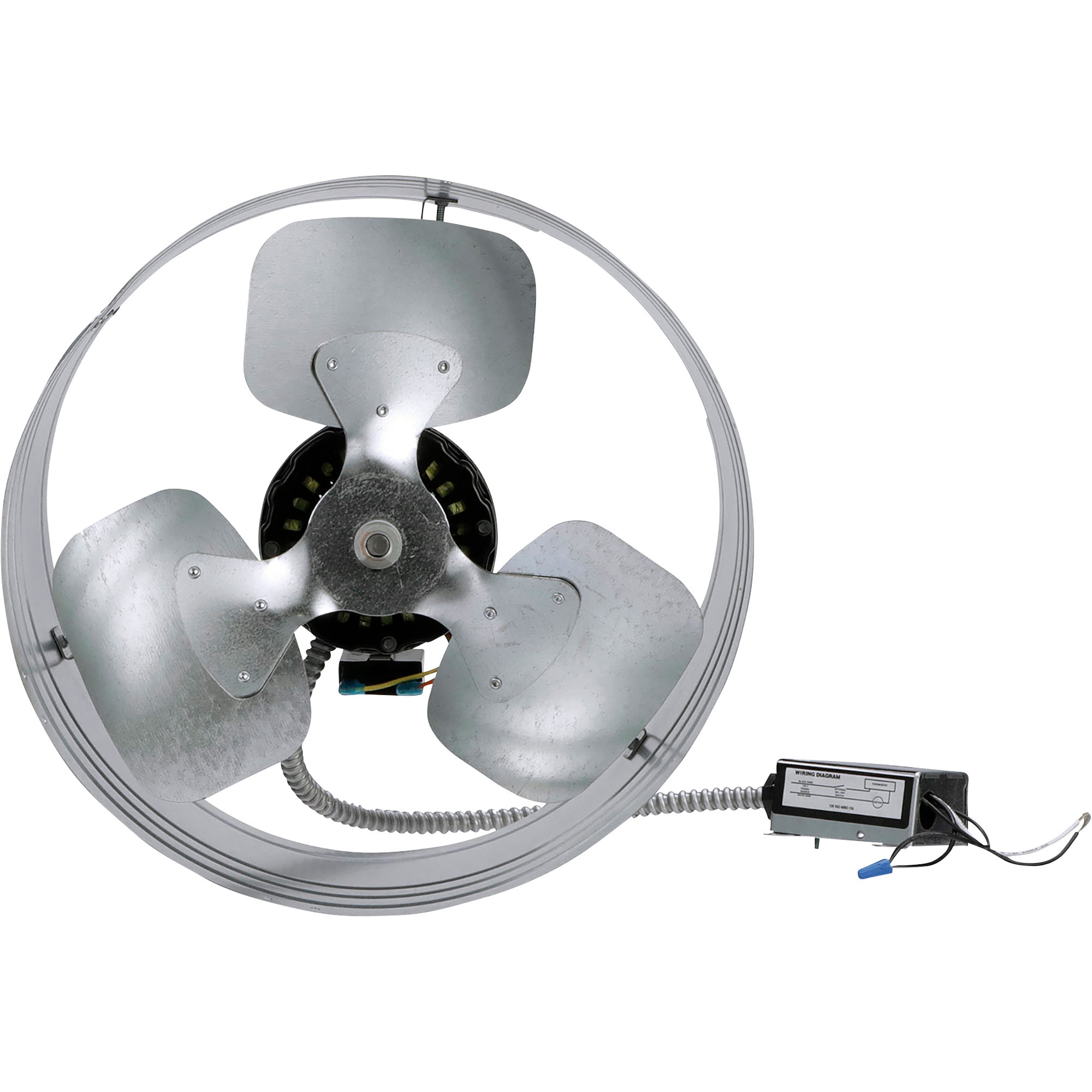

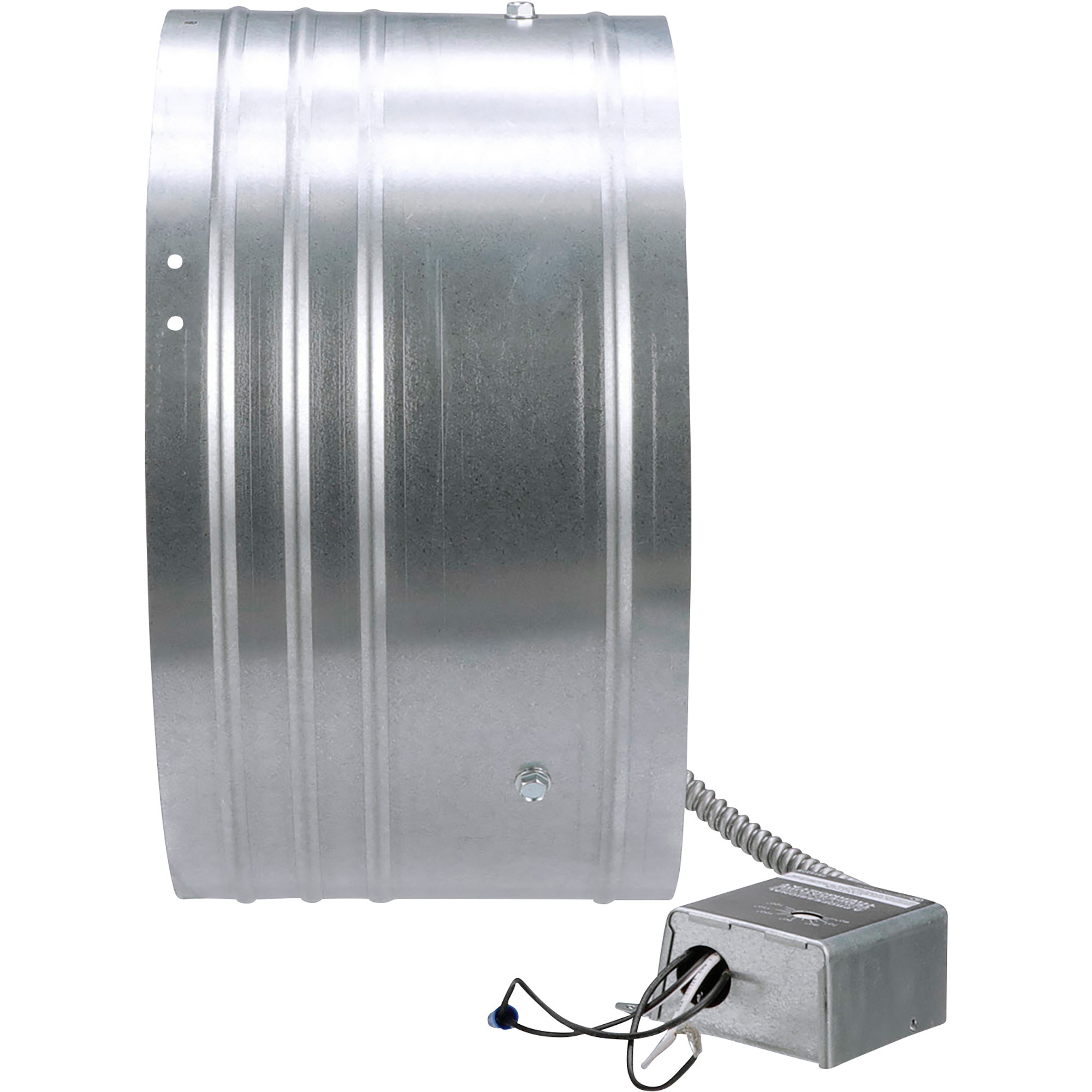

TPI Gable-Mount Exhaust Fan, 1300 CFM, Model# GV-405-2B

Item# 2507596
TPI Gable-Mount Exhaust Fan, 1300 CFM, Model# GV-405-2B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Gable-Mount Exhaust Fan, 1300 CFM, Model# GV-405-2B

Click or Tap image to Zoom

  • Safety fire link-protected to minimize chance of overheating
  • Vents up to 2,000 sq. ft.
  • Includes automatic adjustable thermostat must be hardwired with 4 mounting tabs of 16in. centers
  • UL listed
  • 120V motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

This TPI Gable-Mount Exhaust Fan moves the hot air trapped in your attic out through your existing gable vents, significantly cutting cooling costs.

What's Included

    (1) Gable exhaust fan

Features + Benefits

  • Safety fire link-protected to minimize chance of overheating
  • Vents up to 2,000 sq. ft.
  • Includes automatic adjustable thermostat must be hardwired with 4 mounting tabs of 16in. centers
  • UL listed
  • 120V motor
  • 1 phase
  • Automatic adjustable thermostat (90-130° F)
  • 1,300 CFM
  • Partially assembled (mounting tabs must be assembled)
  • 15in. diameter x 6in. depth

Key Specs

AttributeSpecification

item#

2507596

Brand

TPI

Ship Weight

10.4 LB

Air Delivery

1,300 cfm
AttributeSpecification

Volts

120

Fan Diameter

15 in

Speeds (qty.)

1

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Does it come with an oil port - if not, how is it lubricated?

    1 answer

    1. The fan motor is a sealed unit and does not require lubrication.

      Helpful?

  2. USA made motor or China?

    1 answer

    1. The motor on this exhaust fan is made in China.

      Helpful?

  3. revresible blade position?

    I have installed attic fans before and know they pull hot air out. I have long house and small soffit venting. I want to konw if I can reverse the blade (pull off the arbor and install backwards) on a second fan and install on opposite end to pull cooler air IN and the other fan traditionally on opposite gable to pull air out.

    1 answer

    1. The fan blade is held on by a single nut. You could remove the nut and blade and install the blade backwards.

      Helpful?

  4. What size gable end vent is required for the exhaust?

    1 answer

    1. The gable vent required for this unit is 15 inches in diameter by 6 inch depth with 16 inch centers.

      Helpful?

  5. does this fan have the option to add a speed control

    1 answer

    1. There is no optional speed control available for the fan.

      Helpful?

  6. what hp is the motor?

    1 answer

    1. The TPI Gable Exhaust Fan motor does not have a HP rating. It draws 2.8 amps and is 1300 CFM.

      Helpful?

  7. What square footage for attic space does this fan service?

    1 answer

    1. The exhaust fan will service approximately 2000 square feet.

      Helpful?

  8. what temp range is on the thermostat

    1 answer

    1. The temperature range on the thermostat ranges from 90 degrees to 140 degrees.

      Helpful?

  9. can fan be mounted on ceiling

    would like to use to cool garage by blowing into attic

    1 answer

    1. Yes this TPI Exhaust Fan can be mounted in a ceiling, or anywhere near a gable or external vent to help remove hot air from the attic area.

      Helpful?

  10. Diameter of Motor

    This is to replace an existing Cool Attic fan and need to know the diameter of the motor so that the replacement can be strapped into existing housing. How many amps? Does this include a control box? Thanks.

    1 answer

    1. The diameter of the motor is 5.12". The motor depth is 4.97". The amps are 2.8 . This does include a control box.

      Helpful?
