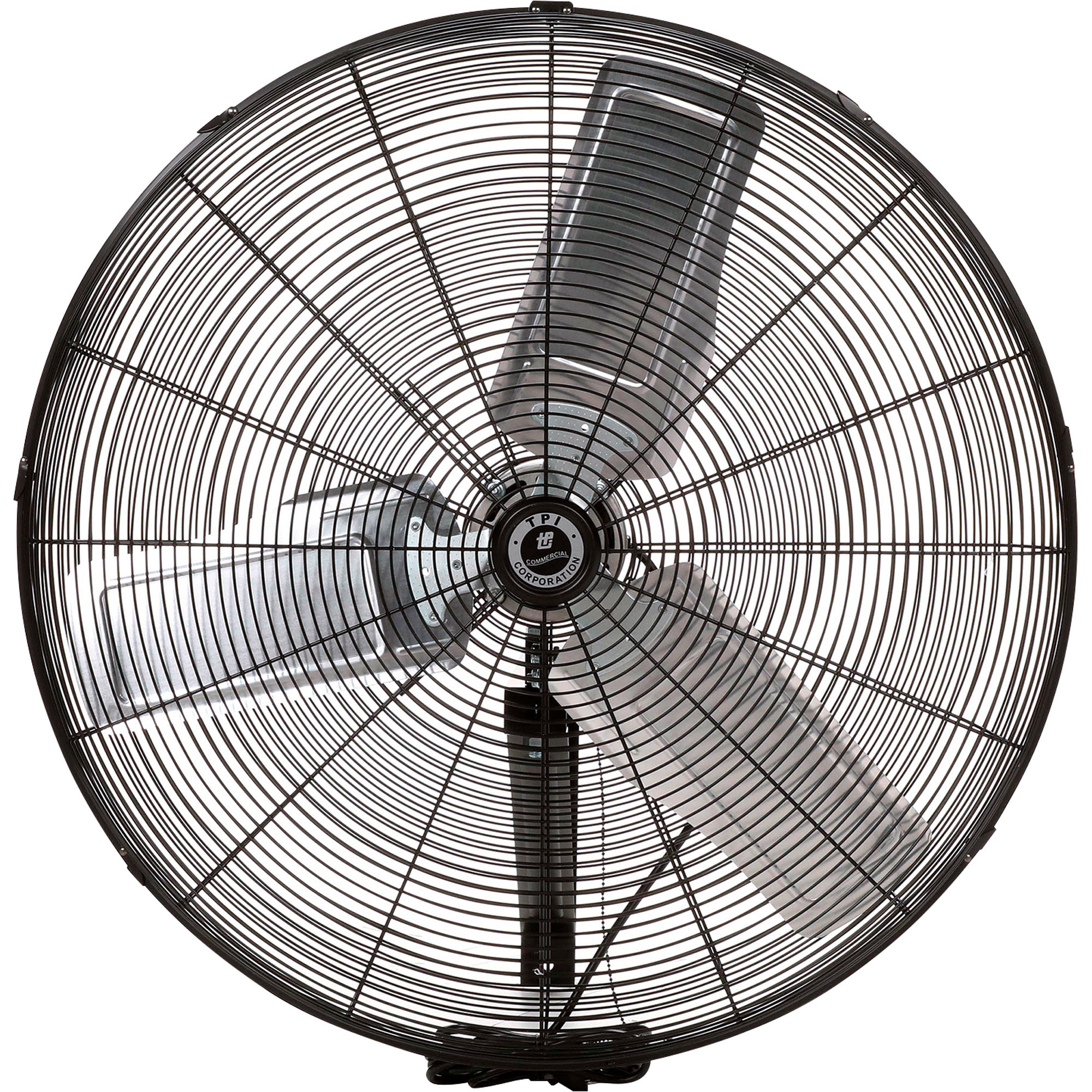

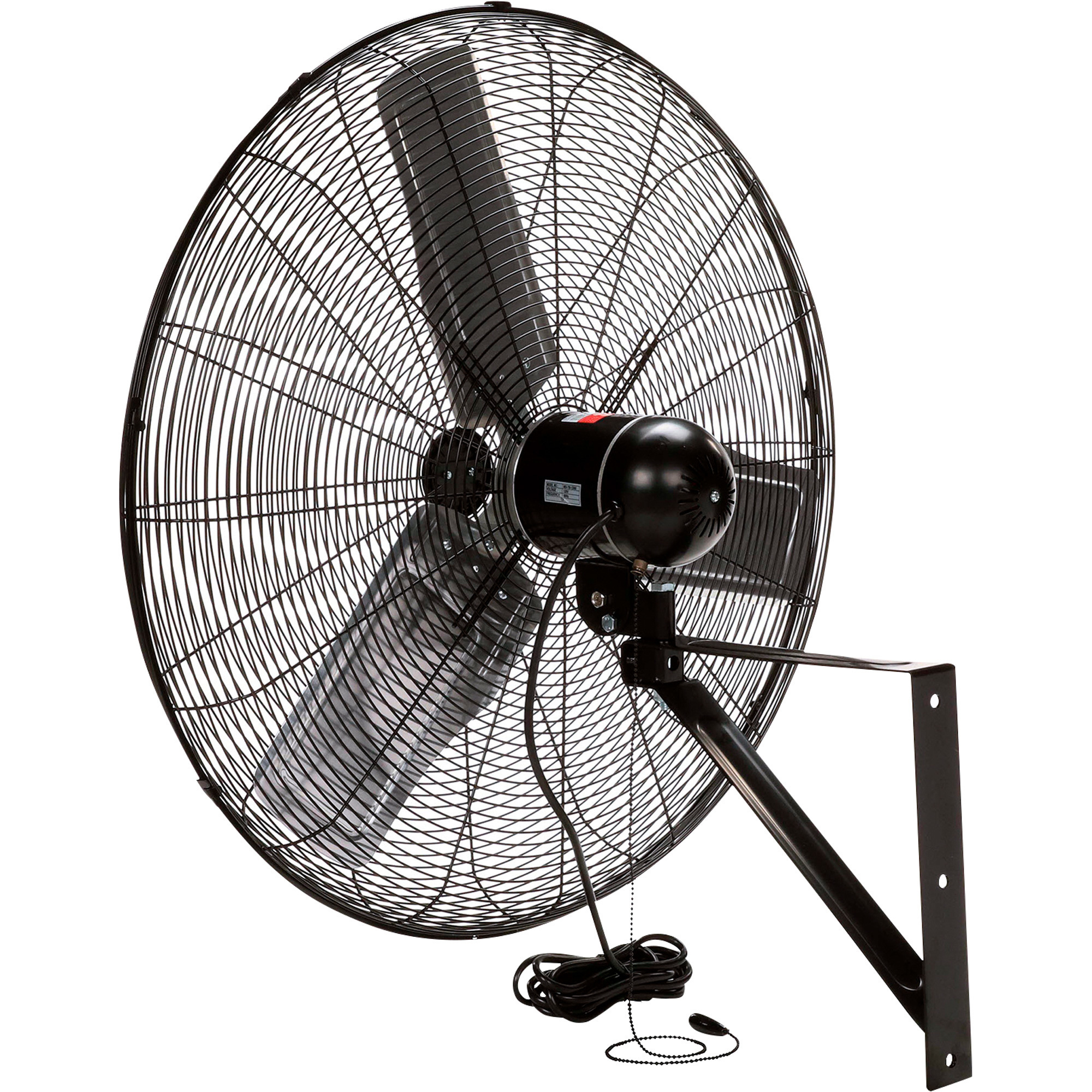

TPI Commercial Wall Mount Fan - 30in. Dia., 6700 CFM, Pull Chain Switch, Model# CACU30-W

Item# 81021
TPI Commercial Wall Mount Fan - 30in. Dia., 6700 CFM, Pull Chain Switch, Model# CACU30-W

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Commercial Wall Mount Fan - 30in. Dia., 6700 CFM, Pull Chain Switch, Model# CACU30-W

Click or Tap image to Zoom

$404.48

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Pull chain switch
  • SJT type 3 conductor
  • Coated black steel guards with retaining clips
  • Steel hub/spider aluminum 3-paddle blades
  • Single-phase ball bearing, open ventilated, permanently lubricated, permanent split capacitor motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The TPI Commercial Wall Mount Fan is a robust and efficient solution designed for clean and dry commercial environments such as schools, shops, offices, or warehouses. With a 30in. diameter, this fan delivers powerful airflow, capable of moving up to 6700 cubic feet per minute (CFM), ensuring optimal ventilation and air circulation in large spaces. The fan features a convenient pull chain switch for easy operation, allowing users to quickly adjust the fan's settings as needed. Built with durability and performance in mind, the TPI Commercial Wall Mount Fan is an excellent choice for maintaining a comfortable and well-ventilated atmosphere in various commercial settings.

What's Included

    (1) Commercial wall-mount fan

Downloads

Product Manual

Features + Benefits

  • Pull chain switch
  • SJT type 3 conductor
  • Coated black steel guards with retaining clips
  • Steel hub/spider aluminum 3-paddle blades
  • Single-phase ball bearing, open ventilated, permanently lubricated, permanent split capacitor motor
  • Meets OSHA standards

Key Specs

AttributeSpecification

item#

81021

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

35.0 LB

Fan Diameter

30 in

Air Delivery

6,700 cfm

Volts

120
AttributeSpecification

Drive Type

Direct

Noise Level

54 dB

Speeds (qty.)

3

Power Cord Length

9 ft

Watts

288

Horsepower

0.25 HP

Product Weight

35 lb

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Can this fan be installed into wood studs? Some wall fans are restrictive on wall materials.

    1 answer

    1. The wall fan should be mounted on 4" x 5" wood studs/joists. When mounting to a wooden surface, or wall, surface shall be a minimum of 1" thick. Using 5/32" drill bit, drill 4 pilot holes at pre-marked locations. Use four 1/4" wood lags of appropriate length (minimum 1").

      Helpful?

  2. Where is the switch for oscillation located? Can a pull-chain also be used to control oscillation? I plan to mount this 8' in the air and will not be able to easily reach the fan itself

    1 answer

    1. The fan does not oscillate. The fan is fixed. There is a pull cord on the fan for speed adjustment.

      Helpful?

  3. Can the oscillation be turned off, and if so, how is it turned off?

    1 answer

    1. The fan does not oscillate. The fan is fixed.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
