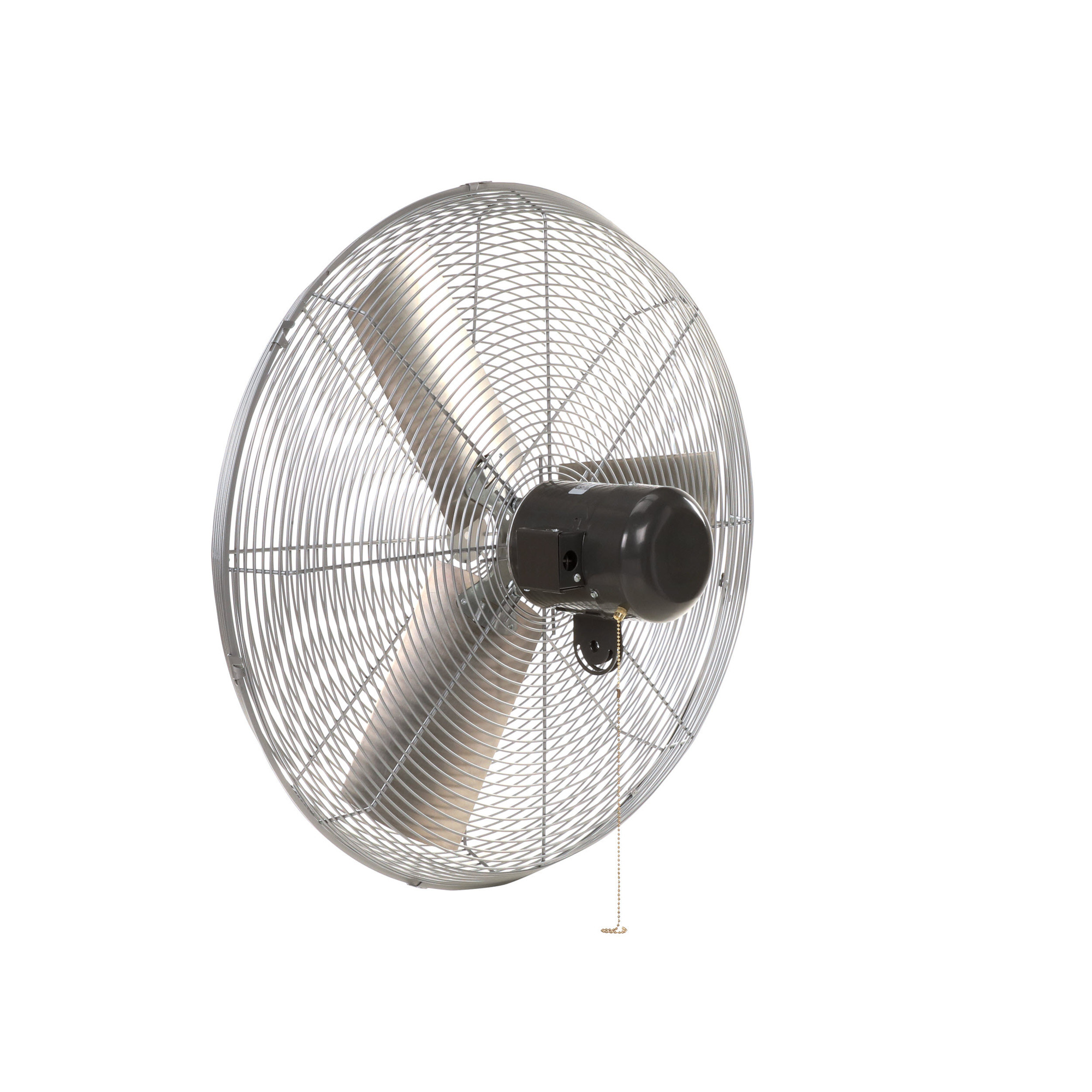

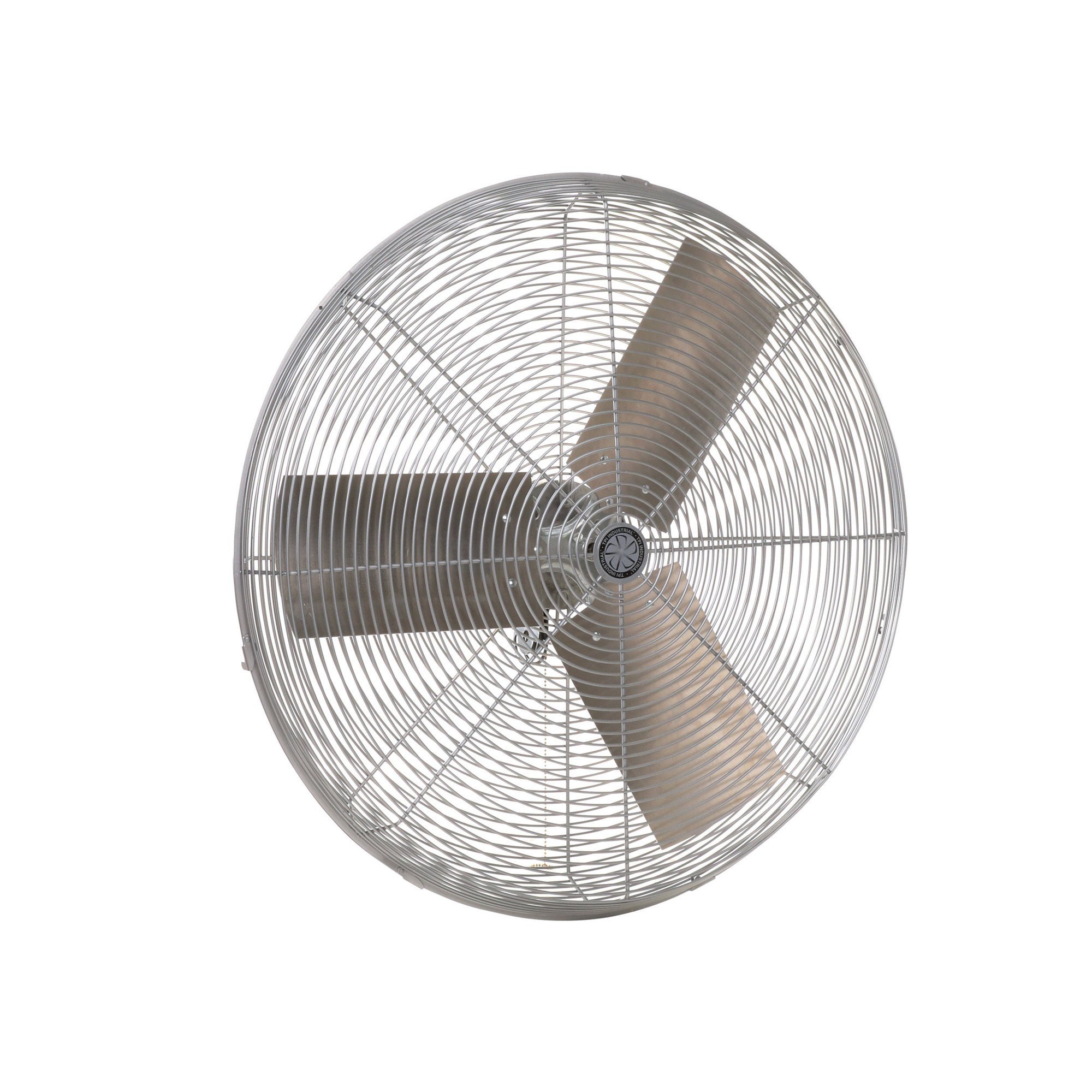

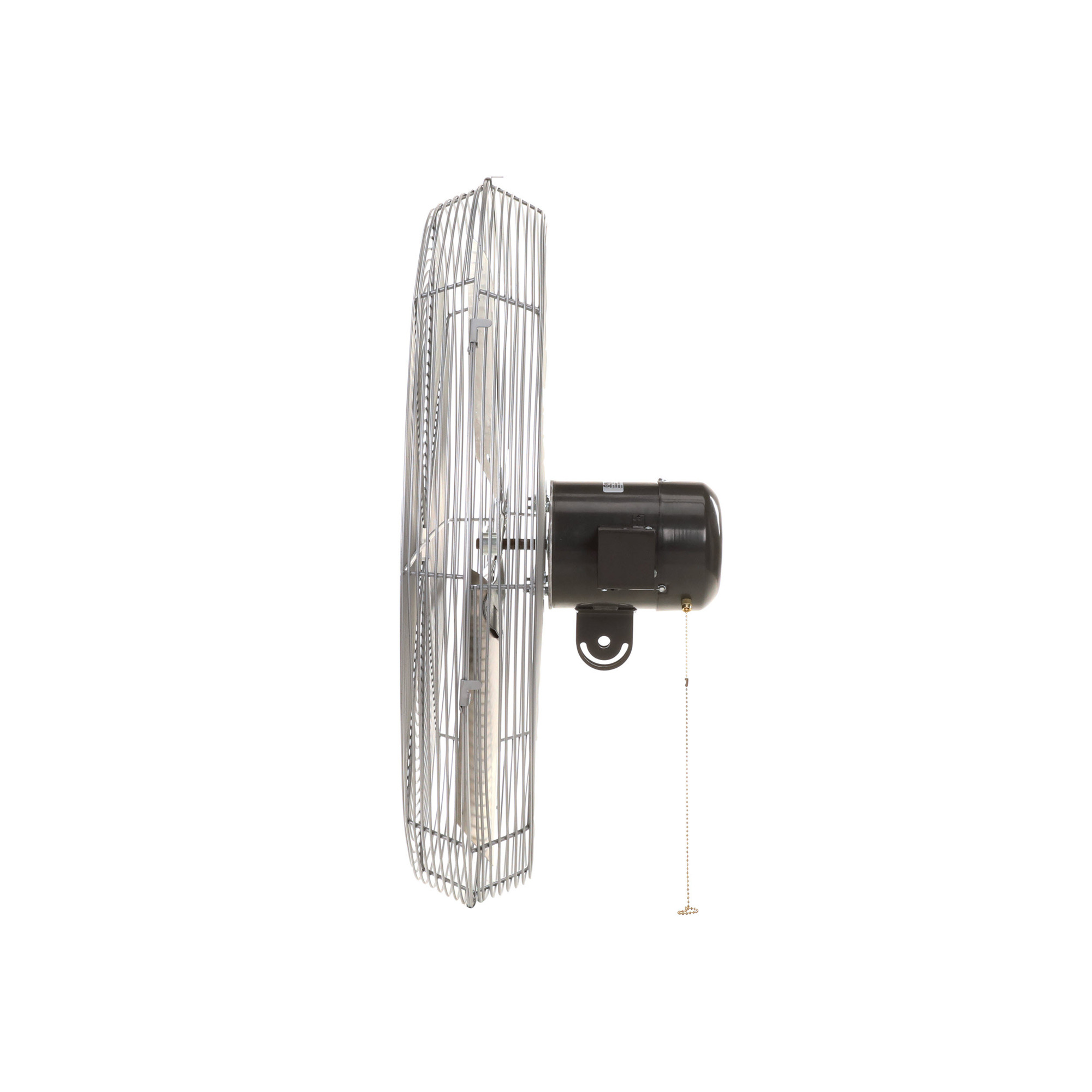

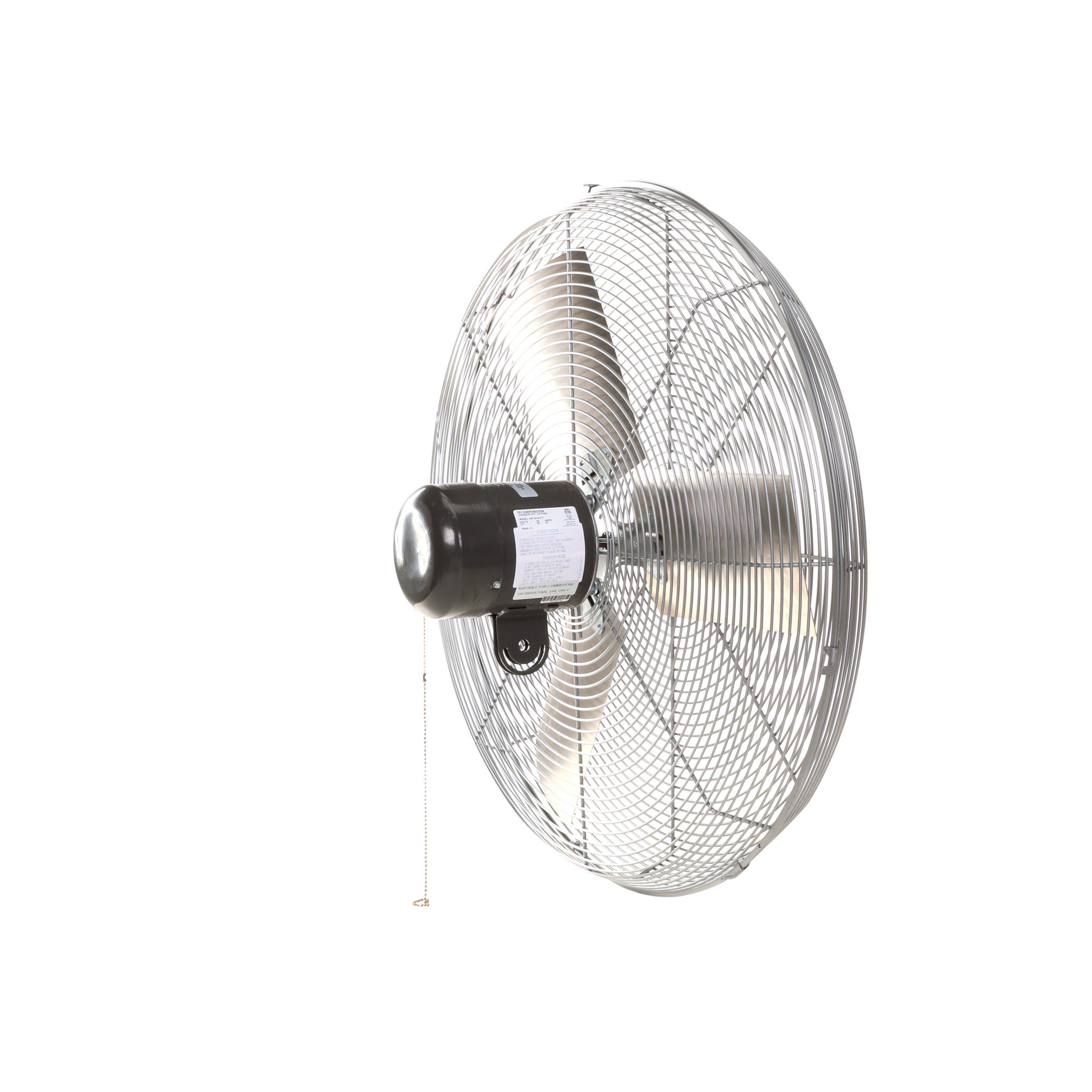

TPI Air Circulator Fan Head - 24in. Dia., Wall Mount, 6000 CFM, 277 Volts, Model# IHP24H277

Item# 4229742
TPI Air Circulator Fan Head - 24in. Dia., Wall Mount, 6000 CFM, 277 Volts, Model# IHP24H277

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Air Circulator Fan Head - 24in. Dia., Wall Mount, 6000 CFM, 277 Volts, Model# IHP24H277

Click or Tap image to Zoom

$571.52

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Industrial air circulator, 24" blade diameter, fully-assembled fan head
  • Operates at 277-Volts generating up to 1.0-amps on single phase
  • Motor is TEAO (Totally Enclosed Air Over) and design for harsh industrial and commercial environments
  • Single speed, 1/3-HP direct drive motor constructed of ball bearing, permanent split capacitor and permanently lubricated
  • Pull chain switch to operate the three speeds, fan head is stationary

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Special 277-Volt Fan Head for specific applications to reduce amp capacity over 120V models

What's Included

    (1) Fan assembled unit

Features + Benefits

  • Industrial air circulator, 24" blade diameter, fully-assembled fan head
  • Operates at 277-Volts generating up to 1.0-amps on single phase
  • Motor is TEAO (Totally Enclosed Air Over) and design for harsh industrial and commercial environments
  • Single speed, 1/3-HP direct drive motor constructed of ball bearing, permanent split capacitor and permanently lubricated
  • Pull chain switch to operate the three speeds, fan head is stationary
  • Uses a 24" aluminum 3-paddle blade generating 6,000 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a silver finish
  • Grills are designed with retaining clips for easy access to the blade and motor for better maintenance
  • Fits all types of TPI Fan Mounts: ACM-W, ACM-P, ACM-I, ACM-C, ACM-S or ACM-PM
  • ETL Listed for USA and Canada
  • Proudly Designed, Engineered, Tested and Assembled in the USA

Key Specs

AttributeSpecification

item#

4229742

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

40.0 LB

Fan Diameter

24 in

Air Delivery

6,000 cfm

Oscillating

No

Volts

277

Amps

1

Outdoor Rated

No

Drive Type

Direct

Assembly Required

Yes
AttributeSpecification

Primary Color

Gray

Noise Level

67 dB

Housing Material

Steel

Secondary Color

Silver

Speeds (qty.)

2

Max. Fan Speed

1,125 rpm

Hardwired

Yes

Phase

Single-phase

Watts

277

Product Weight

32.0000 lb

Dimensions L x W x H (in.)

15.0 x 27.0 x 22.0 in
