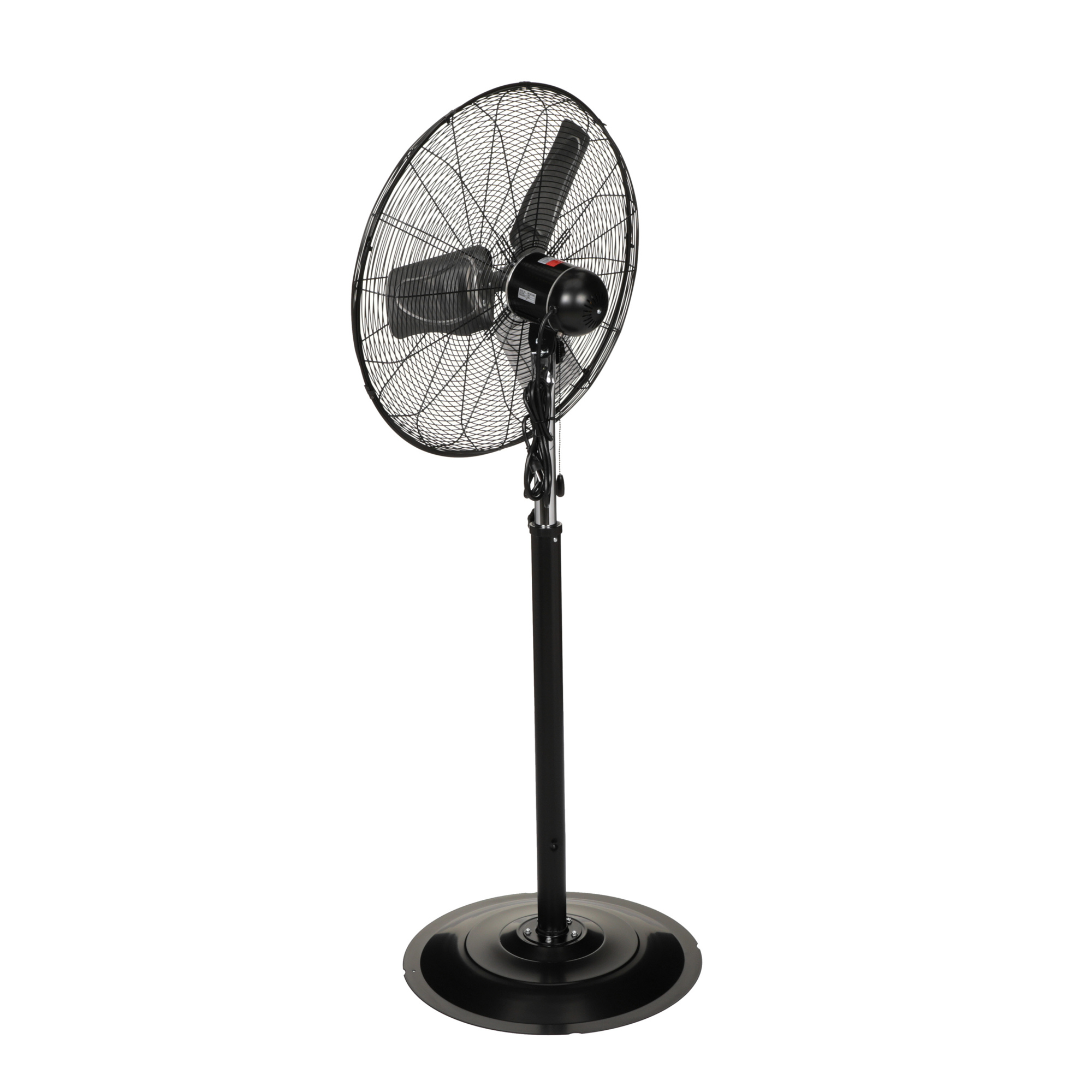

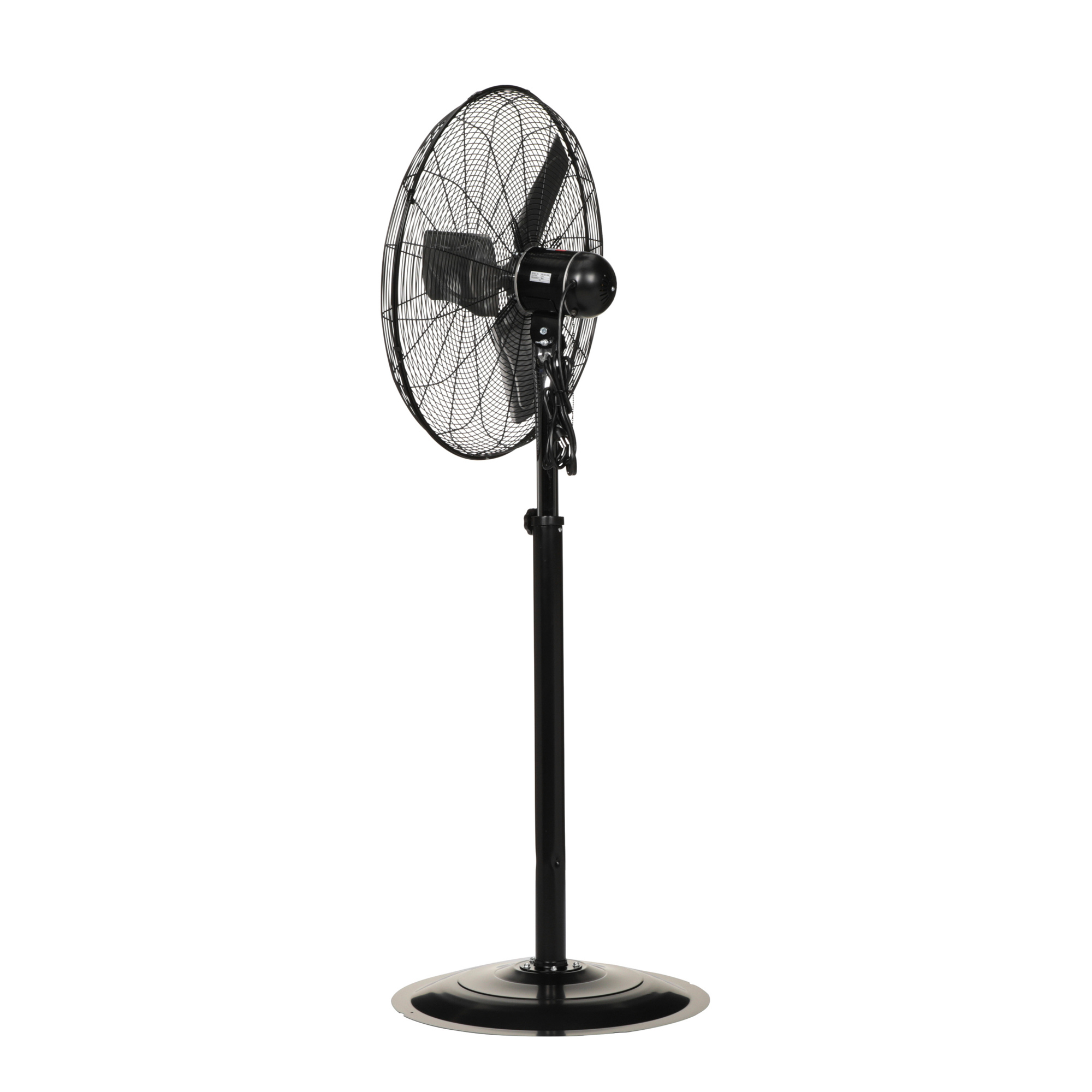

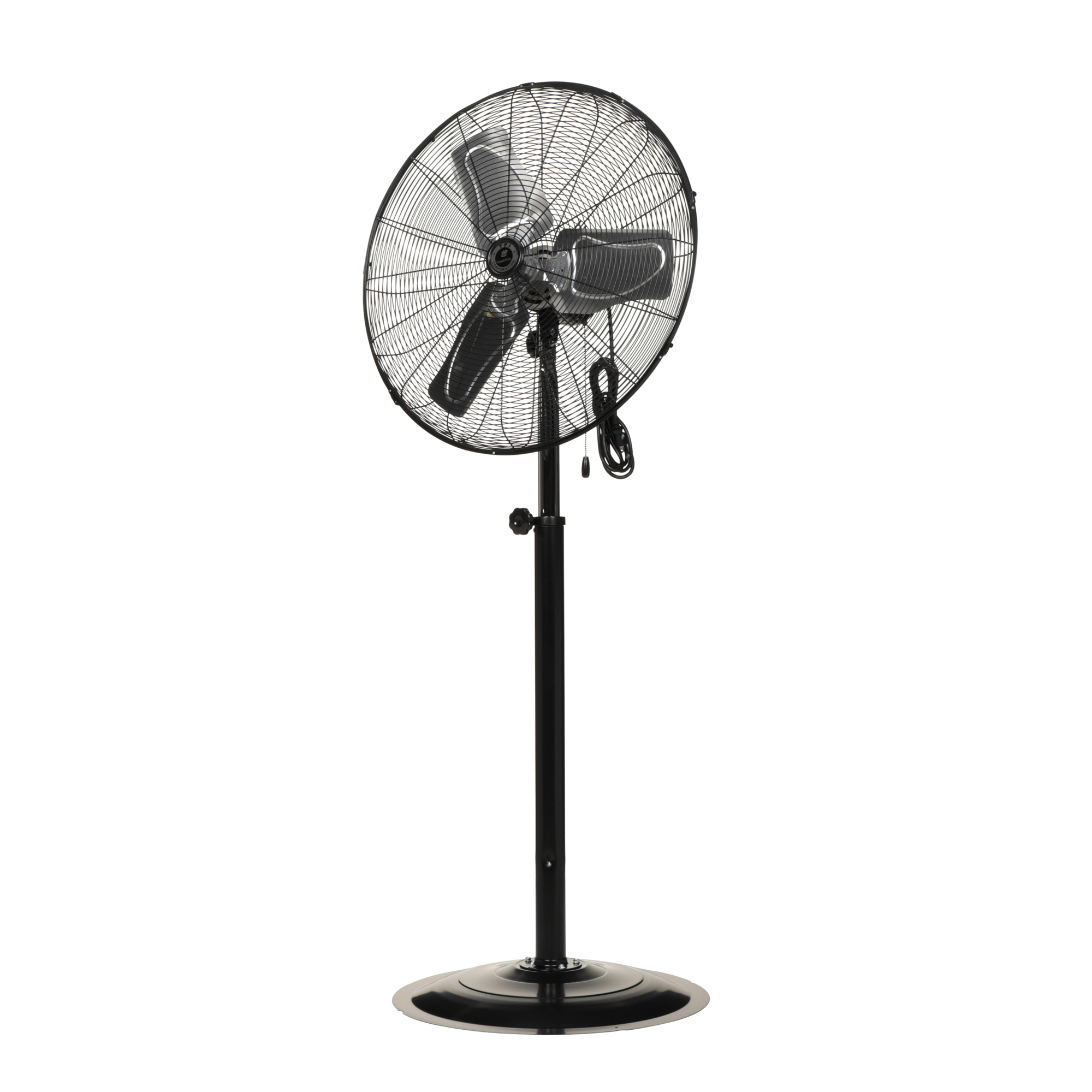

TPI Air Circulator - 24in. Fan Diameter, 5400 CFM, 3-Speed, Pedestal Base, Model# CACU24P

Item# 4228643
TPI Air Circulator - 24in. Fan Diameter, 5400 CFM, 3-Speed, Pedestal Base, Model# CACU24P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Air Circulator - 24in. Fan Diameter, 5400 CFM, 3-Speed, Pedestal Base, Model# CACU24P

Click or Tap image to Zoom

$435.84

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Commercial air circulator, 24" blade diameter, pedestal base, shipped unassembled
  • Operates at 120-Volts generating up to 2.3-amps on single phase
  • Includes 9' long black SJT 3-conductor grounded molded plug
  • All steel construction with a high gloss powder coated black finish
  • Three speed, 1/4-HP direct drive motor constructed of an open ventilated ball bearing, permanent split capacitor and permanently lubricated

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

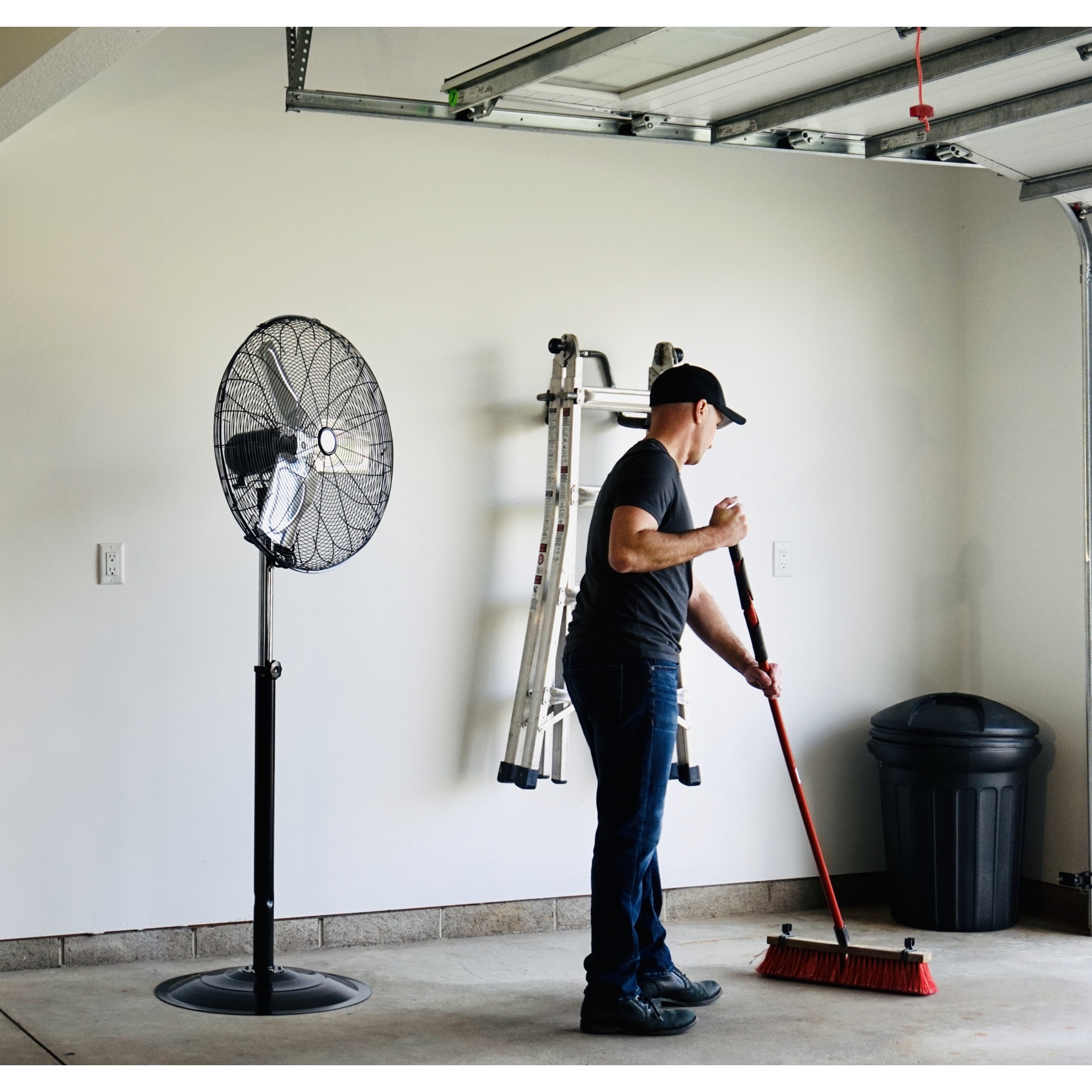

Great value for clean environments such as garages, gyms, and general workstations

What's Included

    (4) Pedestal mount, grill, blade, & motor

Features + Benefits

  • Commercial air circulator, 24" blade diameter, pedestal base, shipped unassembled
  • Operates at 120-Volts generating up to 2.3-amps on single phase
  • Includes 9' long black SJT 3-conductor grounded molded plug
  • All steel construction with a high gloss powder coated black finish
  • Three speed, 1/4-HP direct drive motor constructed of an open ventilated ball bearing, permanent split capacitor and permanently lubricated
  • Pull chain switch to operate the three speeds, fan head is stationary
  • Uses a 24" aluminum 3-paddle blade generating 5,400 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a black finish
  • Grills are designed with retaining clips for easy access to the blade and motor for better maintenance
  • Pedestal upright will adjust from 43" to 60" high
  • UL Listed for the USA and Canada

Key Specs

AttributeSpecification

item#

4228643

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

63.0 LB

Fan Diameter

24 in

Air Delivery

5,400 cfm

Oscillating

No

Volts

120

Watts

210
AttributeSpecification

Speeds (qty.)

2

Max. Fan Speed

1,100 rpm

Outdoor Rated

No

Phase

Single-phase

Hardwired

No

Power Cord Length

9 ft

Assembly Required

Yes

Product Weight

48.0000 lb

Dimensions L x W x H (in.)

9.0 x 32.0 x 41.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
