If the limit control cut off switch goes bad, it could cause the unit to overheat.

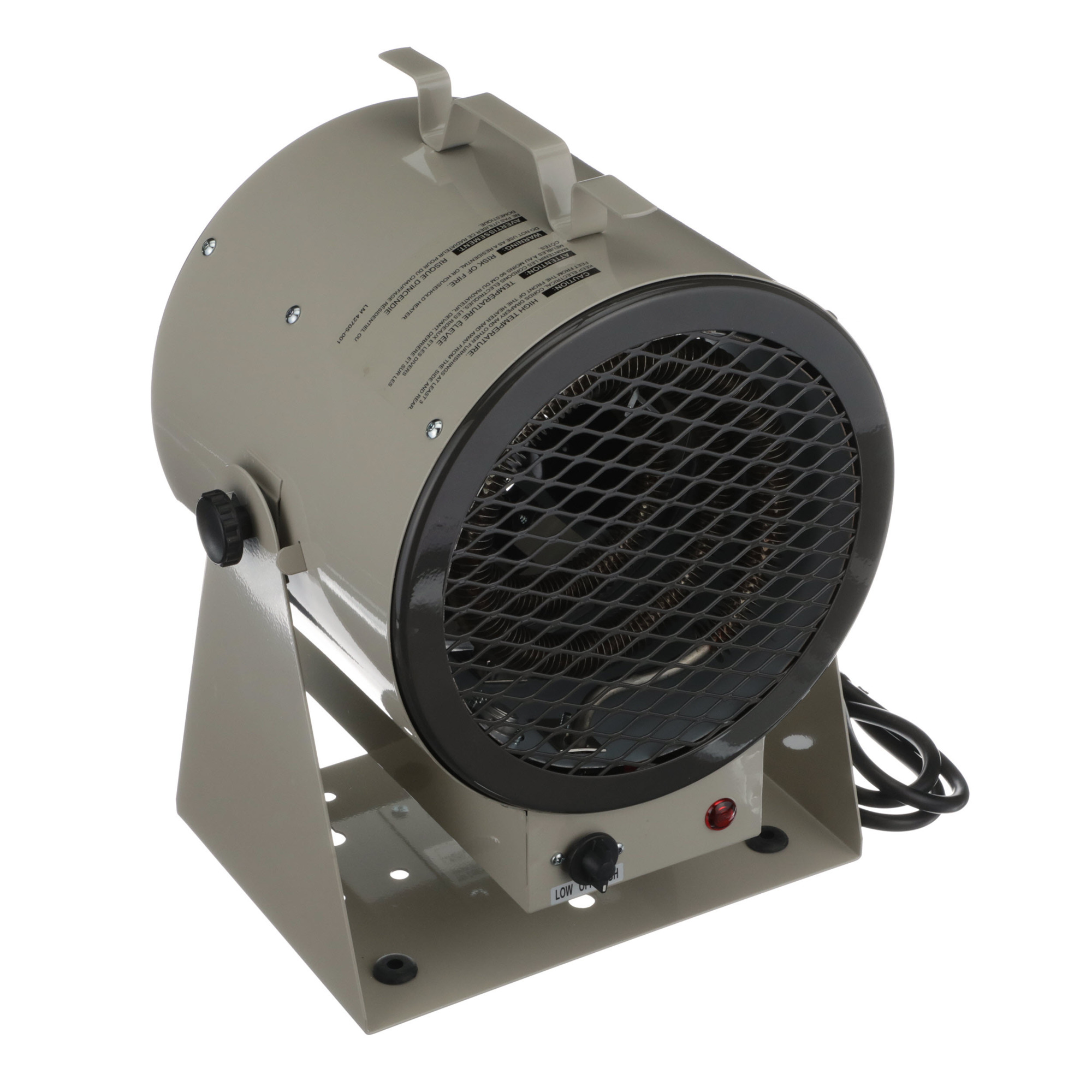

TPI 680 Series Bulldog Fan Forced Portable Heater - 5600W, 19,107 BTU, 550 Sq. Ft. Heating Capability, Model# HF686TC
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$550.40
- Operates at 240 or 208-Volt, 1-phase, generating 5600-watts and maximum of 19,107 BTU's and 23.3-Amps. Fan-forced heat output with 262-CFM's, 10' airflow throw providing 75-deg.F temperature rise.
- Includes 6' long black cord with 30-amp molded plug for quick plug & play connection.
- Includes built in bi-metal double pole thermostat, 60F to 110F range, with manual control knob.

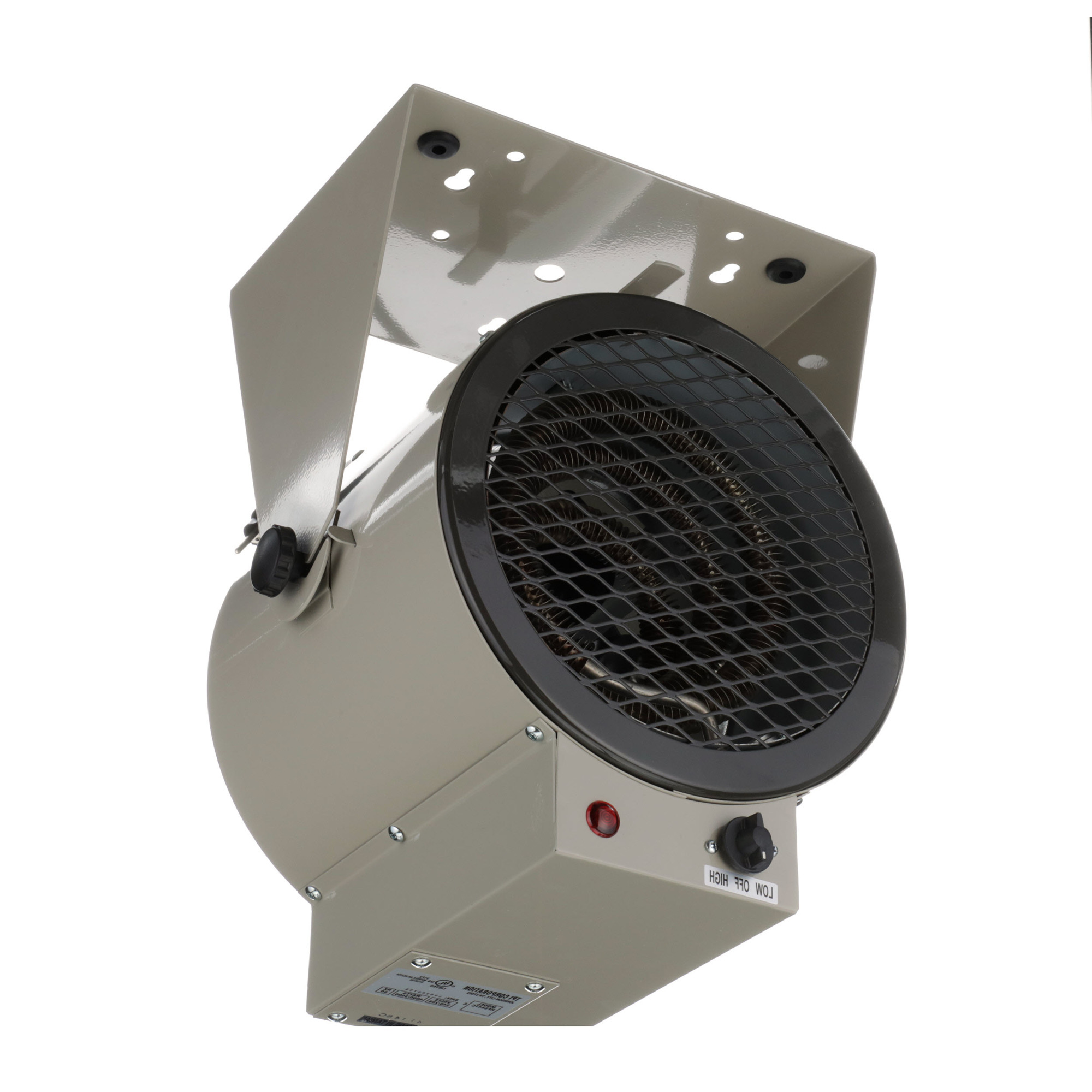

- All steel construction with powder coated beige finish includes; steel tubular heating element, wall/ceiling bracket, manual reset safety thermal limit, power on pilot light.
- UL Listed for USA and Canada for residential, commercial, & industrial heating applications. Provides up to 300 to 560-sq.ft.coverage and operates as portable heater for bench or floor heater, or mount to the wall or ceiling with the supplied bracket.
Prop 65 Warning: See Details
See full description
What's Included
- (1) Thermostat, Cord and Mounting Bracket
Features + Benefits
- Operates at 240 or 208-Volt, 1-phase, generating 5600-watts and maximum of 19,107 BTU's and 23.3-Amps. Fan-forced heat output with 262-CFM's, 10' airflow throw providing 75-deg.F temperature rise.
- Includes 6' long black cord with 30-amp molded plug for quick plug & play connection.
- Includes built in bi-metal double pole thermostat, 60F to 110F range, with manual control knob.
- All steel construction with powder coated beige finish includes; steel tubular heating element, wall/ceiling bracket, manual reset safety thermal limit, power on pilot light.
- UL Listed for USA and Canada for residential, commercial, & industrial heating applications. Provides up to 300 to 560-sq.ft.coverage and operates as portable heater for bench or floor heater, or mount to the wall or ceiling with the supplied bracket.
See All Overhead Electric Garage Heaters
See All TPI Overhead Electric Garage Heaters
Currently Viewing This Product
Specifications
Specifications
TPI 680 Series Bulldog Fan Forced Portable Heater - 5600W, 19,107 BTU, 550 Sq. Ft. Heating Capability, Model# HF686TC
King Electric Garage Heater, 25,600 BTU, 7,500 Watts, Model# KB2407-1-B2-ECO
King Electric Garage Heater, 51,200 BTU, 15,000 Watts, KB2415-1-B2-ECO
King Electric Garage Heater, 42,700 BTU, 12,000 Watts, Model# KB2412-1-B2-ECO
Heat Output
Same
19,107 Btu/hour
25,600 Btu/hour
51,200 Btu/hour
42,700 Btu/hour
Heat Type
Same
Forced Air
Forced Air
Forced Air
Forced Air
Heating Capability
Same
550 ft²
750 ft²
1,500 ft²
1,200 ft²
Needs Direct Venting
Same
No
-
-
-
Blower Included
Same
Yes
Yes
Yes
Yes
Blower CFM
Same
262 cfm
600 cfm
925 cfm
825 cfm
Thermostat Included
Same
Yes
Yes
Yes
Yes
Remote Included
Same
No
Yes
Yes
Yes
Phase
Same
Single-phase
-
-
-
Power Cord Length
Same
6 ft
-
-
-
Volts
Same
Multi
240/208
240/208
240/208
Product Weight
Same
18.0000 lb
-
-
-

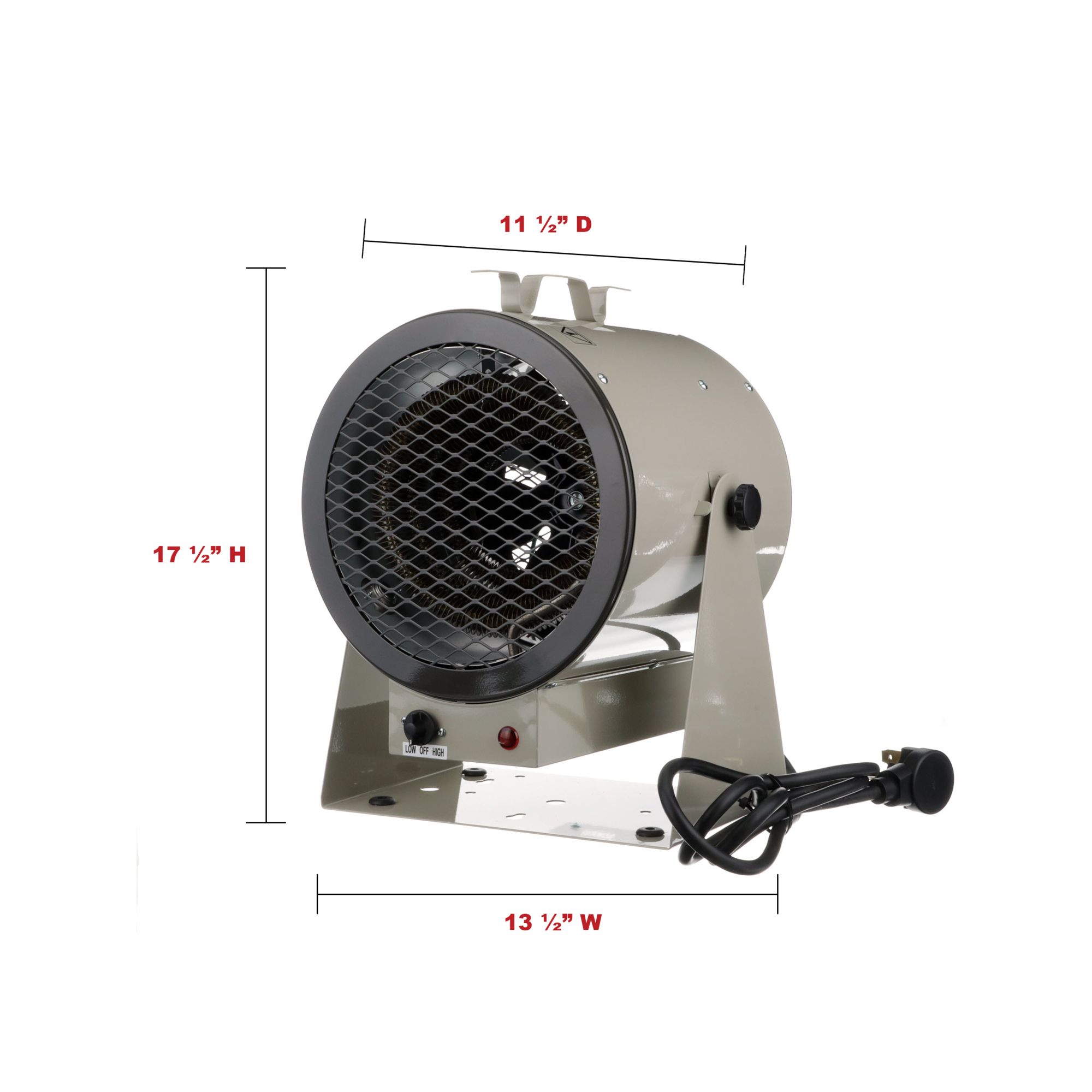

Dimensions L x W x H (in.)
Same
11.5 x 13.5 x 17.5 in
-
-
-
Amps
Same
-
31.2
62.5
52
Watts
Same
-
7,500
15,000
12,000
Hardwired
Same
-
Yes
Yes
Yes
