Product Summary

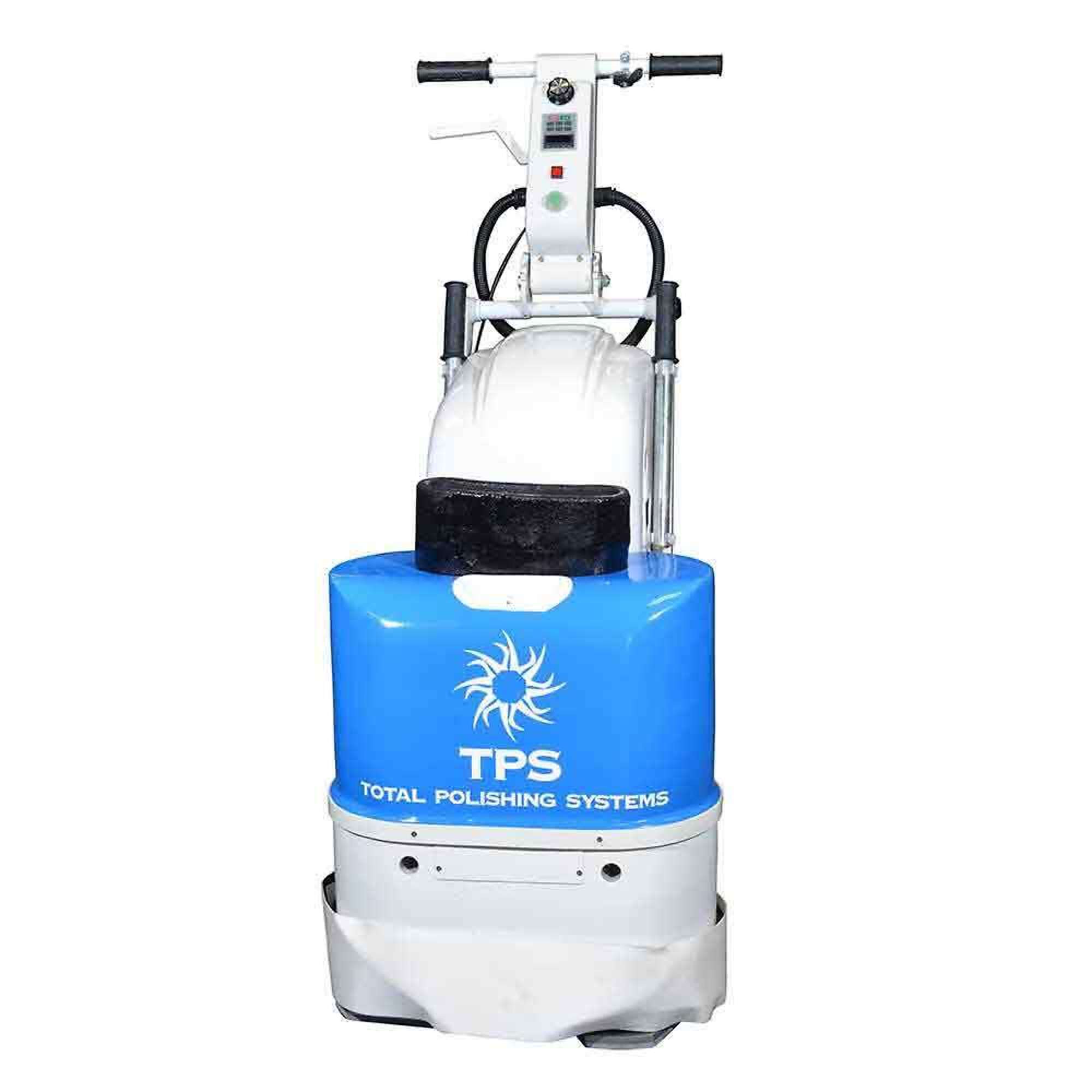

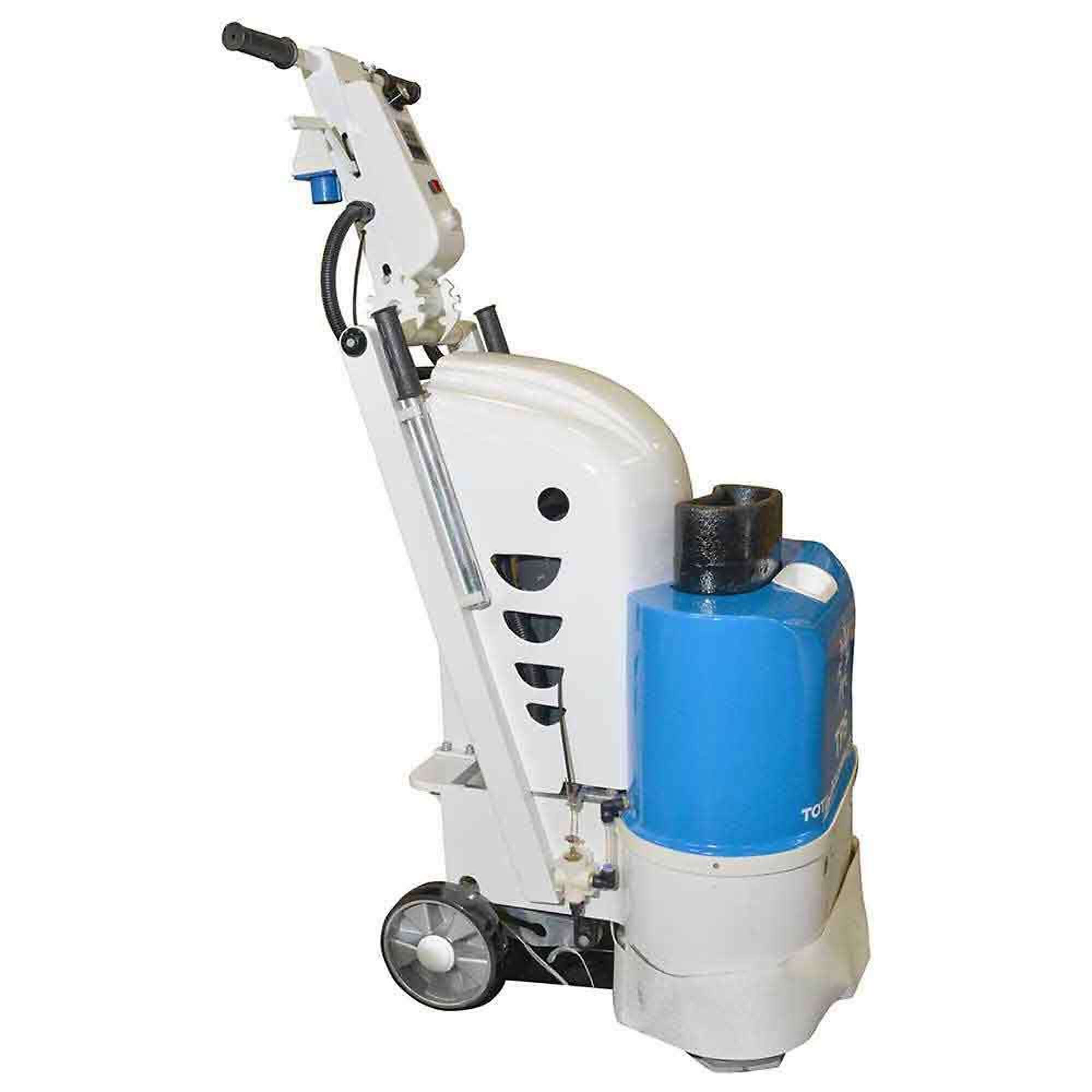

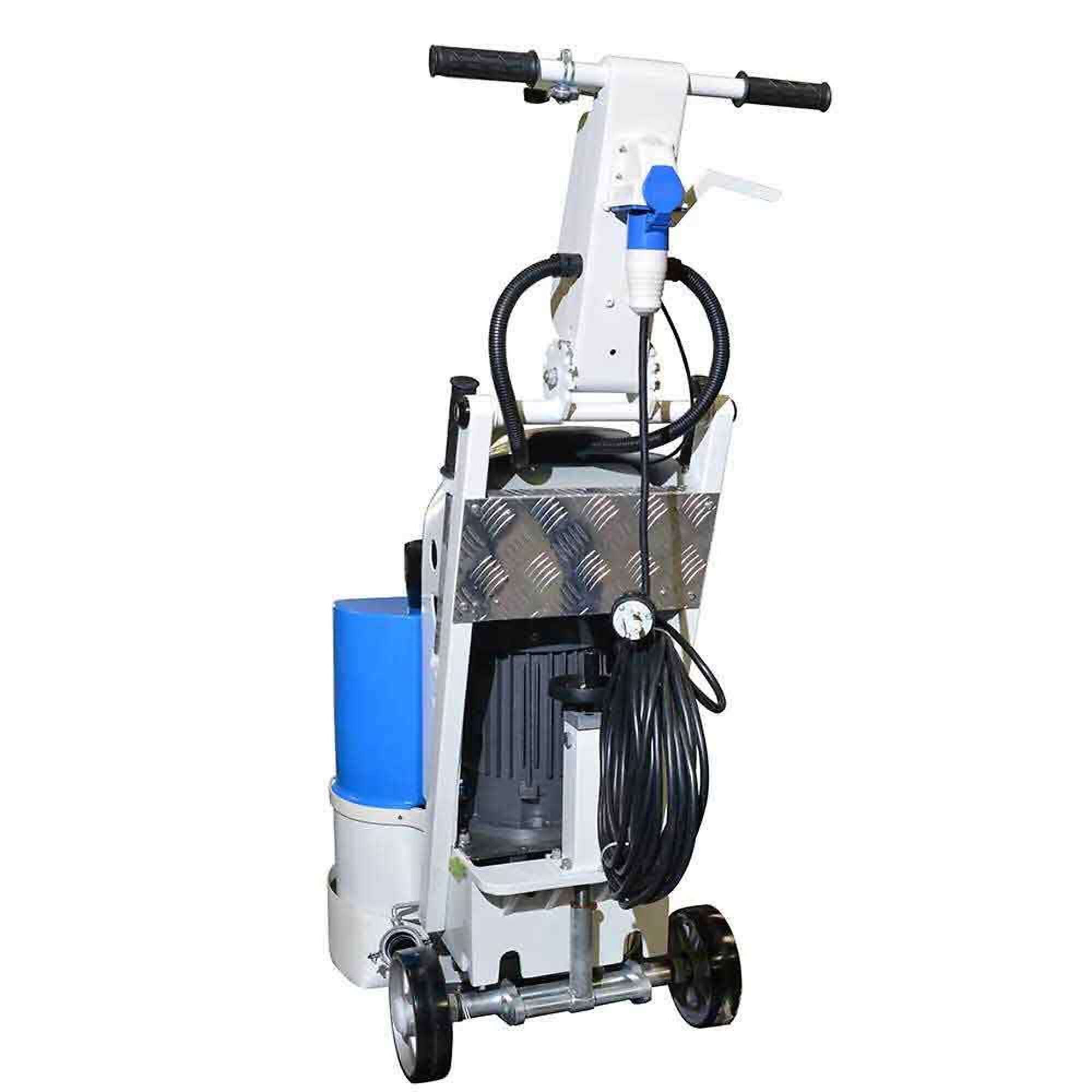

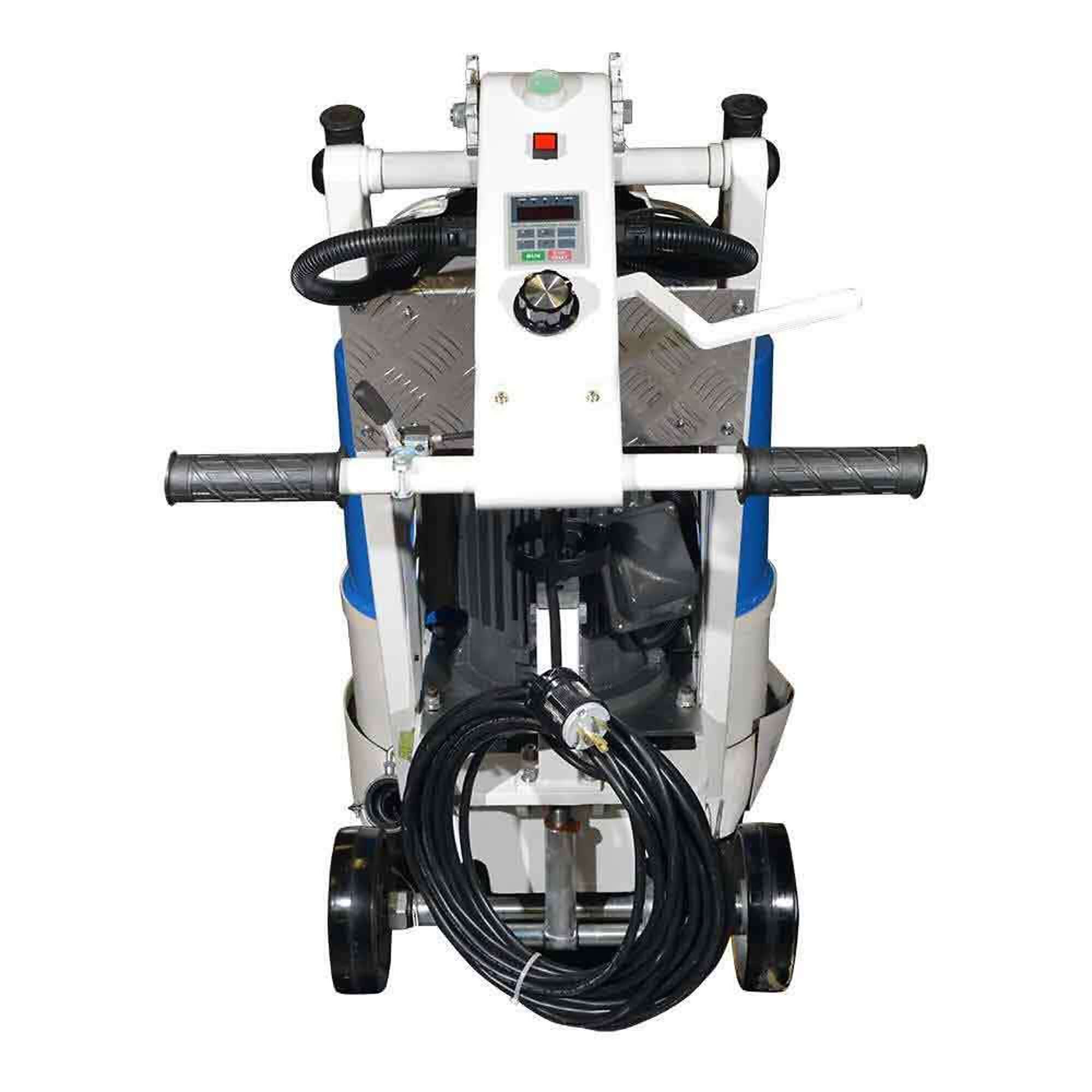

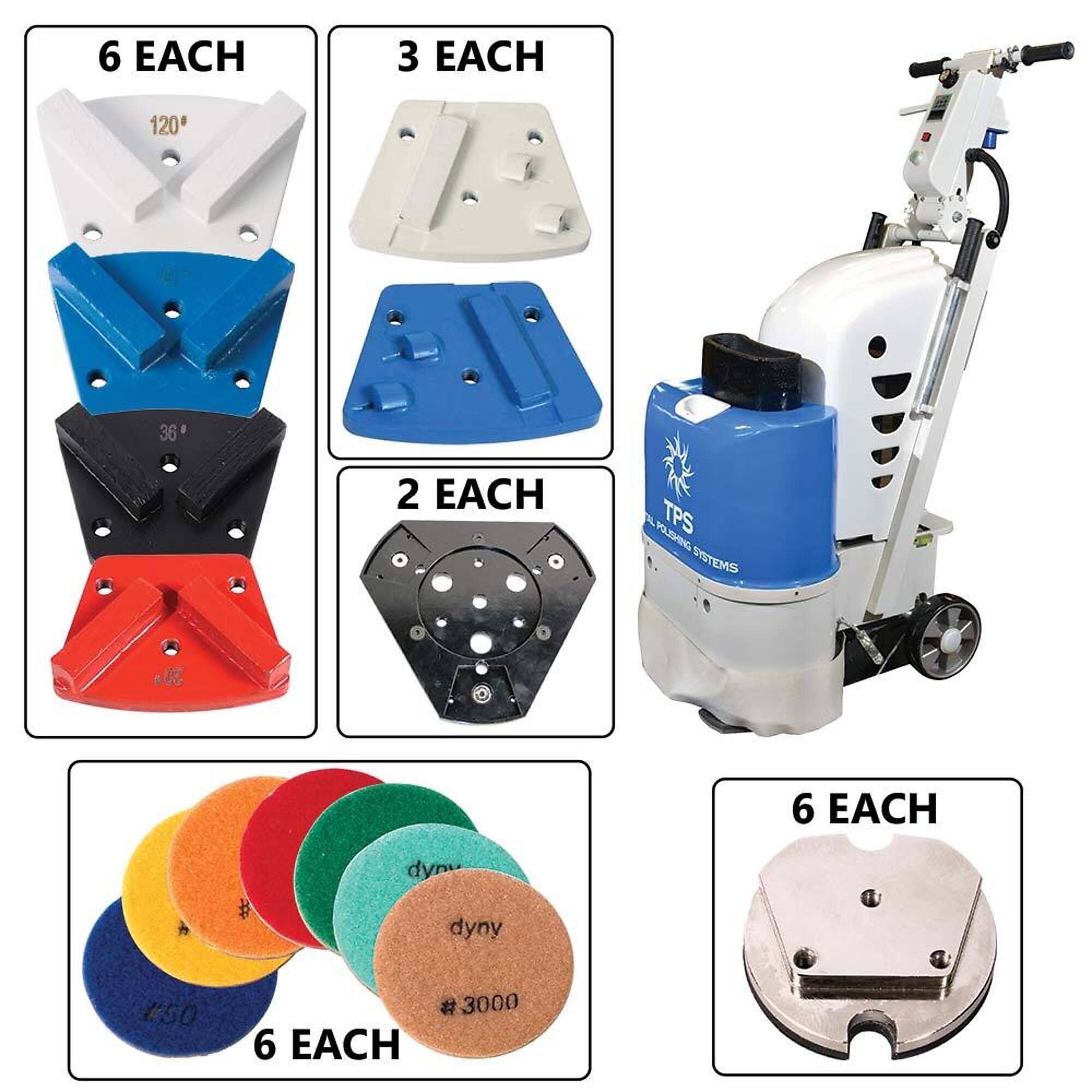

Total Polishing Systems TPSX1KITQPNO (TPS X1 Floor Preparation Machine) with 6 ea Diamond Grinding Blocks, Traps, Pcd, Polishing Pads w / Magnectic Adapter + Q Plate. The total polishing systems TPSX1 machine gives you the ability to polish, grind or texture concrete floor or prepare surfaces. This is the perfect tool for sidewalk grinding, trip hazard removal, and floor leveling. The TPS-X1 is great for residential and small commercial projects alike and is commonly used for bathrooms, kitchens, and closets. With a grinding width of 20” and adjustable speed up to 1,500 RPM the X1 can grind 1/32” of material at a rate of 400-750 sq. feet per hour. Kit Includes: 1x TPSX1 Machine 1x FPAD-K1 6x PCD BLOCKS 24x TRAPEZOIDAL DIAMOND BLOCK 6x TRAPEZOIDAL MAGNETIC HOOK LOOP ADAPTER 2x QUICK PLATE

What's Included

    (1) (TPS X1) Floor Preparation Machine Kit

Features + Benefits

  • Designed for wet and dry polishing especially in floor machines with multiple polishing heads
  • Thick diamond polishing floor pads ideal for floor machine used to polish granite, concrete, porcelain, terrazzo, natural & artificial stones
  • Hoop and loop supports firm connection and quick replacement. The polishing disc has a water inlet, square polishing units distribution provides even and stable cutting force, and is also conducive to heat dissipation and water immersion, so as to obtain better polishing effect in the wet method
  • Square design benefits heat dissipation and soaking, sharp grinding units makes a fast, high brightness & no fade polishing result, like a mirror
  • Variable speed 0 -1500 RPM for versatility

Key Specs

AttributeSpecification

item#

7400681

Brand

Total Polishing Systems

Manufacturer's Warranty

1 month limited warranty

Ship Weight

600.0 LB

Disc Diameter

20 in

Disc (qty.)

4

Operation

Walk-Behind

Grinding Width

20 in

Horsepower

5

Product Type

Concrete Grinder

Volts

220
AttributeSpecification

Max. RPM

1,500

Min. RPM

0

Amps

17

Power Cord Length

0 ft

Anti-Restart

Yes

Anti-Vibration

No

Overload Protection

Yes

Grit (qty.)

6

Included (qty.)

15

Product Weight

600.0000 lb

Dimensions L x W x H (in.)

48.0 x 59.0 x 42.0 in

Warranty

Manufacturer's Warranty

1 month limited warranty
