TOPDON UltraDiag Scan Tool - 8in. Display, Key Programming, Full-System Diagnostics, Model# ULTRADIAG

Item# 5868554
TOPDON UltraDiag Scan Tool - 8in. Display, Key Programming, Full-System Diagnostics, Model# ULTRADIAG

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TOPDON UltraDiag Scan Tool - 8in. Display, Key Programming, Full-System Diagnostics, Model# ULTRADIAG

Click or Tap image to Zoom

$699.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Full System Diagnostics for 60+ Brands: Get a complete diagnostic report on over 60 different car brands with the UltraDiag scanner. This powerful tool lets you perform a comprehensive scan through all vehicle systems, including engine, transmission, airbag, ABS, ESP, TPMS, immobilizer, gateway, steering, radio, and air conditioning. You'll have access to all the information you need to get your vehicle running smoothly again. No more guesswork - the UltraDiag scanner provides you with the complete picture of your car's health.
  • Pro-Level OBD2 Code Reader: With the comprehensive OBD2 code reader, you can quickly identify and resolve issues related to your vehicle's emissions system. The UltraDiag supports a range of key functions, including DTC lookup, live data, freeze frame data, and more. Whether you're a professional mechanic or a DIY enthusiast, the UltraDiag is the perfect tool for enhanced emissions diagnostics.
  • Effortlessly Program Your Vehicle Keys: Unlock the full potential of your UltraDiag with our key programming add-on. Compatible with over 40 vehicle brands, this upgrade provides a range of functions such as Number of Keys, PIN Reading, Key Learning, Remote Control Learning, Delete Keys, and All Keys Lost. With this powerful key programming tool, you can tackle a wide range of automotive locksmithing jobs with ease.
  • Repair Data Library: Upgrade your vehicle diagnosis skills with the UltraDiag! Our OBD2 DTC Repair Guide provides a comprehensive guide to fault codes and repair guidance. With service bulletins and DLC location guides, repairs are easier than ever. Plus, our warning light library offers solutions to dashboard warnings. Trust the UltraDiag for all your vehicle diagnostic needs.
  • DTC Repair Guide: Maximize your diagnostic capabilities with TOPDON's UltraDiag and its DTC Repair Guide. Easily diagnose issues with your vehicle and receive guidance on repairs with the tool's fault code definitions for all systems. This includes dashboards and air conditioning systems. Compatible with Chrysler/Dodge/Jeep/Fiat 2010-2014 and expanding with continual updates, the UltraDiag is the must-have tool for any technician or DIY enthusiast.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TOPDON ULTRADIAG is a well-rounded diagnostic tool with added key programming features. The ULTRADIAG is capable of performing full OBD2 capabilities, accessing 8 commonly used maintenance services, and supports full-system diagnostics for 60+ car brands all over the world. Stepping into more advanced functions, the diagnostic scanner includes features such as the Repair Data Library to quickly get started on auto repair jobs and bidirectional controls to locate the faulty parts accurately. This powerful tool can act as key matching tool to work on car keys and immobilizer systems. Functions include PIN reading, key learning, remote control learning, and all keys lost. These key programming functions add versatility to open many new streams of revenue. The perfect tool for repair shops and locksmiths.

What's Included

    (1) UltraDiag Tablet (1) UltraDiag VCI (1) Power Adapter (1) OBD-II Extension Cable (1) USB Cable (Type-A to Type-C) (1) Quick User Guide (1) User Manual (1) Carrying Case

Features + Benefits

  • Full System Diagnostics for 60+ Brands: Get a complete diagnostic report on over 60 different car brands with the UltraDiag scanner. This powerful tool lets you perform a comprehensive scan through all vehicle systems, including engine, transmission, airbag, ABS, ESP, TPMS, immobilizer, gateway, steering, radio, and air conditioning. You'll have access to all the information you need to get your vehicle running smoothly again. No more guesswork - the UltraDiag scanner provides you with the complete picture of your car's health.
  • Pro-Level OBD2 Code Reader: With the comprehensive OBD2 code reader, you can quickly identify and resolve issues related to your vehicle's emissions system. The UltraDiag supports a range of key functions, including DTC lookup, live data, freeze frame data, and more. Whether you're a professional mechanic or a DIY enthusiast, the UltraDiag is the perfect tool for enhanced emissions diagnostics.
  • Effortlessly Program Your Vehicle Keys: Unlock the full potential of your UltraDiag with our key programming add-on. Compatible with over 40 vehicle brands, this upgrade provides a range of functions such as Number of Keys, PIN Reading, Key Learning, Remote Control Learning, Delete Keys, and All Keys Lost. With this powerful key programming tool, you can tackle a wide range of automotive locksmithing jobs with ease.
  • Repair Data Library: Upgrade your vehicle diagnosis skills with the UltraDiag! Our OBD2 DTC Repair Guide provides a comprehensive guide to fault codes and repair guidance. With service bulletins and DLC location guides, repairs are easier than ever. Plus, our warning light library offers solutions to dashboard warnings. Trust the UltraDiag for all your vehicle diagnostic needs.
  • DTC Repair Guide: Maximize your diagnostic capabilities with TOPDON's UltraDiag and its DTC Repair Guide. Easily diagnose issues with your vehicle and receive guidance on repairs with the tool's fault code definitions for all systems. This includes dashboards and air conditioning systems. Compatible with Chrysler/Dodge/Jeep/Fiat 2010-2014 and expanding with continual updates, the UltraDiag is the must-have tool for any technician or DIY enthusiast.
  • Bidirectional Control: The UltraDiag scanner can get access to vehicle-specific subsystems and component parts that drive the actuators to perform a specific function. This determines the integrity of the system or parts, allowing users to analyze and locate faulty parts more accurately. Bidirectional control includes fuel injectors, coolant pumps, windows, windshield wipers, and more.
  • 8 Reset Functions: The UltraDiag offers the 8 most commonly used reset functions of passenger vehicles: Oil Resets, Throttle Adaptation, EPB Resets, Steering Angle Resets, DPF Regeneration, ABS Bleeding, BMS Resets, and Airbag Resets.
  • AutoVIN & AutoScan: Streamlined for More Convenience: The UltraDiag comes with AutoVIN and AutoScan functions to streamline your repair progress and save diagnostic time. AutoVIN automatically identifies vehicle information such as make, model, and year of manufacture. AutoScan detects all vehicle systems and retrieves DTCs easily.
  • Vehicle Coverage Lookup: Enter the vehicle information and function you would like to perform on a car. The Vehicle Coverage Lookup function can check whether the device is applicable to your vehicle. The Lookup Coverage supports 60+ brands.

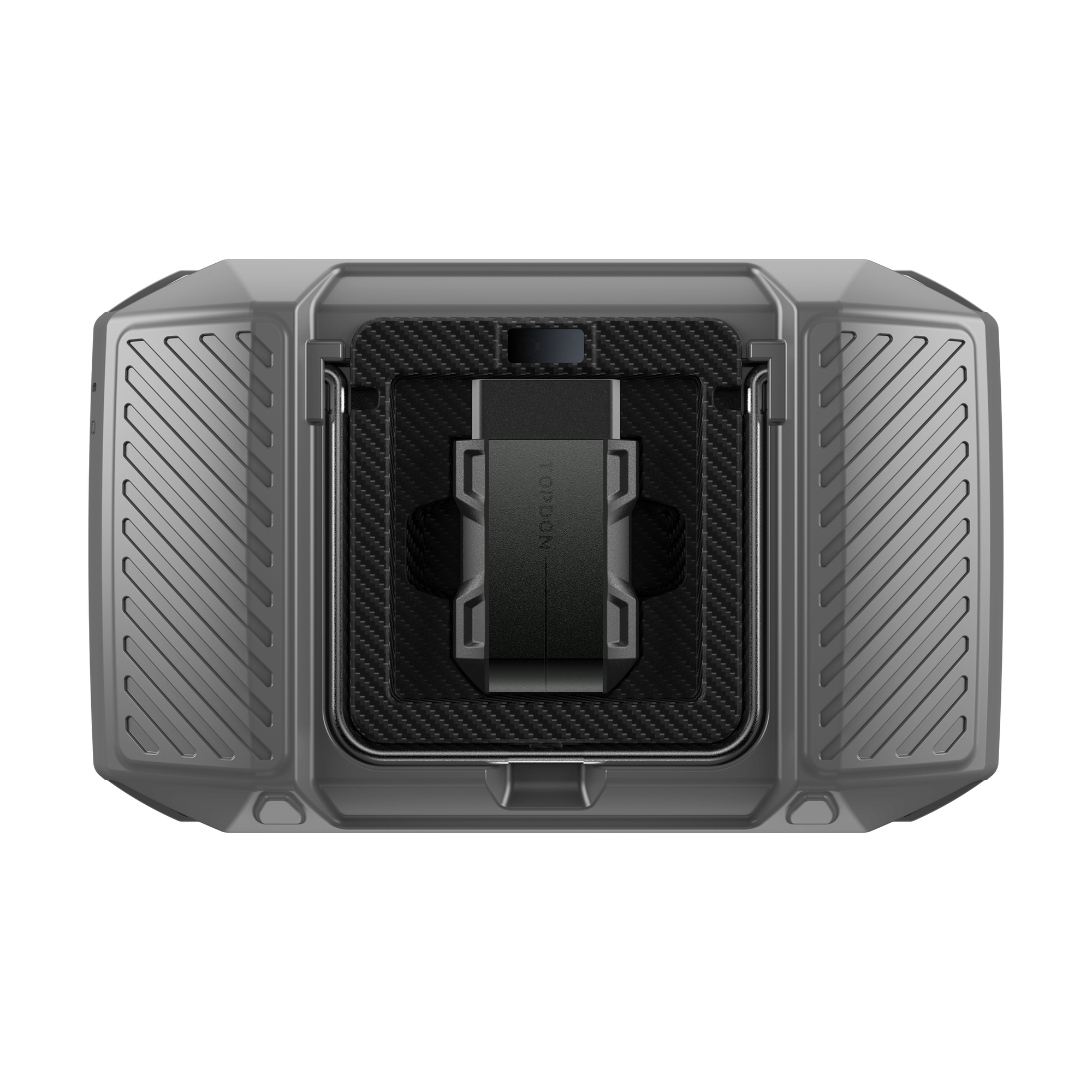

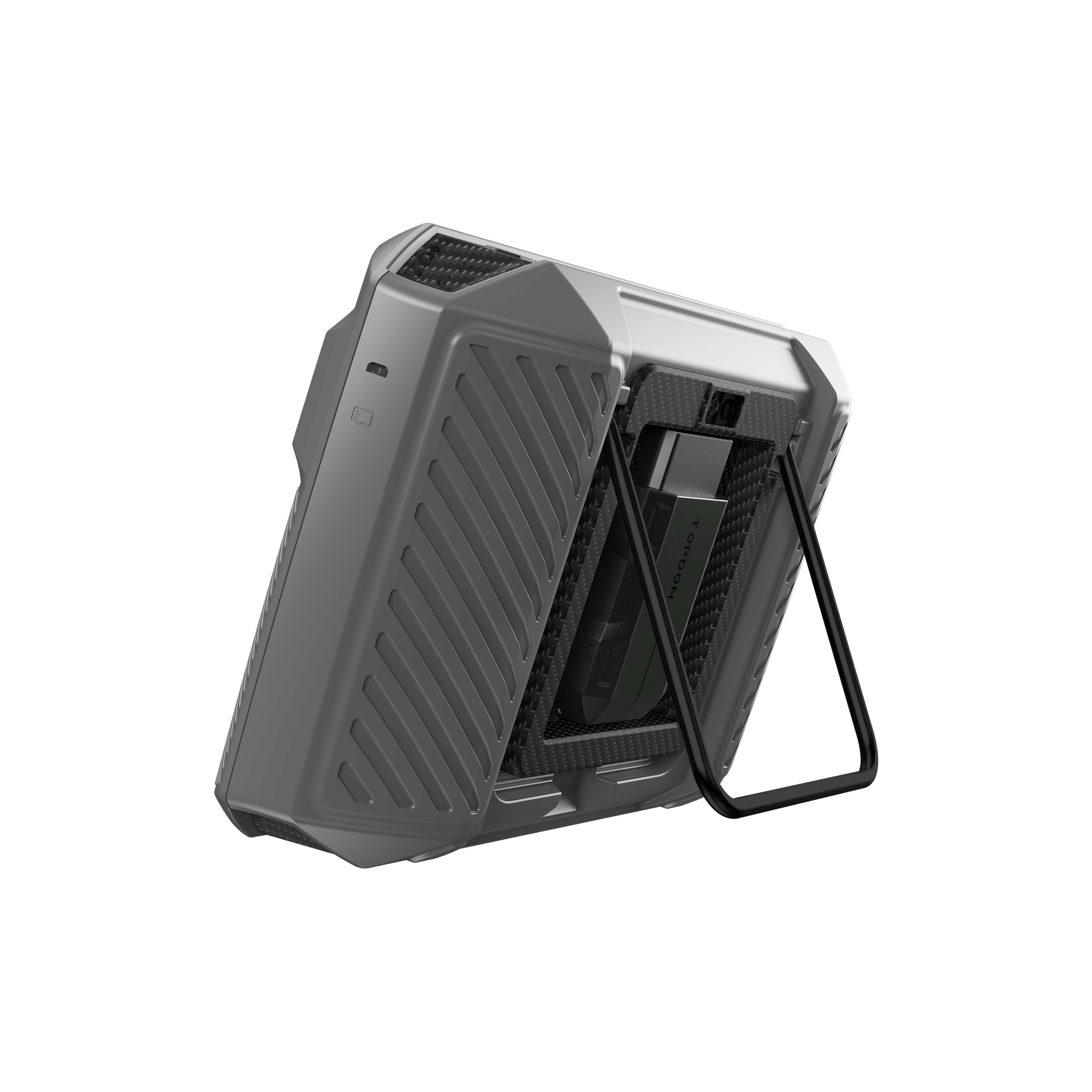

  • VCI Bluetooth Wireless Diagnostics: The UltraDiag comes with a magnetic VCI that attaches to the back of the tablet for easy storage. Connecting the VCI to the vehicles via Bluetooth gives users ultimate flexibility in diagnosis.

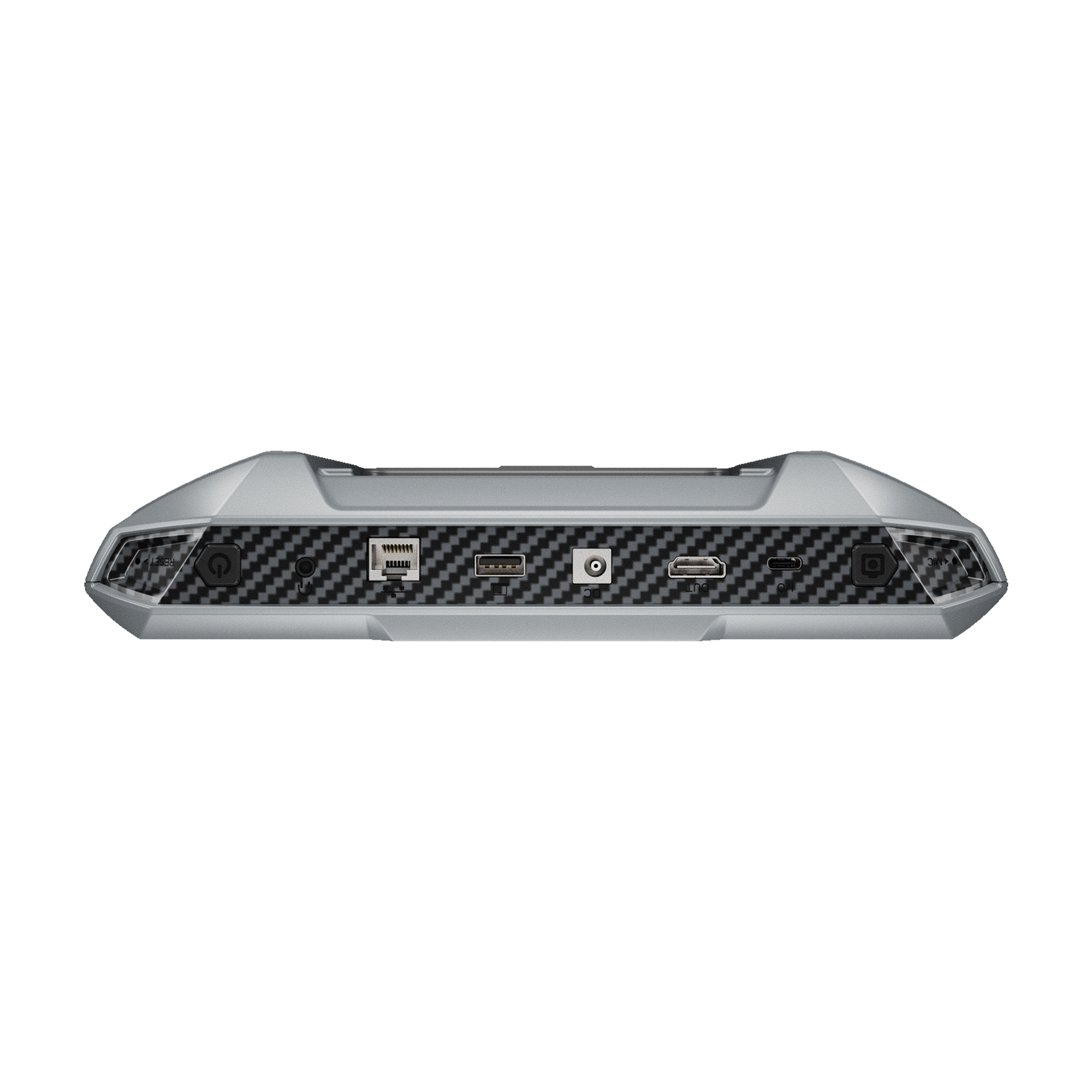

  • Improved Hardware for Convenience and Performance: The UltraDiag features a long-lasting 10000mAh battery to save technicians from repeated recharges throughout the day. Android 11.0 makes for faster user interface and processing.
  • Equipped with a USB-Type A port, users can conne

Key Specs

AttributeSpecification

item#

5868554

Brand

TOPDON

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.07 LB

Product Type

Diagnostic Tool

Display

Digital

Battery Type

Other
AttributeSpecification

Battery Included

No

Battery Required

No

Thermostat Min.

0 °F

Thermostat Max.

140 °F

Product Weight

2.2800 lb

Dimensions L x W x H (in.)

10.04 x 6.1 x 1.97 in

Reviews

Questions & Answers

Questions

1–6 of 6 Questions
Sort by:

  1. Can read vga codecs

    1 answer

    1. The scan tool does not read VGA codes.

      Helpful?

  2. Can it run diagnostics on any Ford Chevy Nissan Honda Toyota and what year models does it work for ?

    1 answer

    1. Yes, the TOPDON UltraDiag can run diagnostics on Ford, Chevy, Nissan, Honda, and Toyota vehicles and supports over 100 car brands for diagnostics. It works on most vehicles from 1996 and newer, or those that are OBD2 compliant, with the exact year range varying by specific make and model.

      Helpful?

  3. how long for free updates and the cost afterwards

    1 answer

    1. The ULTRADIAG will come with 2 years of free software updates. Please contact the manufacturer for subscription availability and pricing.

      Helpful?

  4. Does this scan tool give all sensor voltages specifically the evap system

    1 answer

    1. This TOPDON scan tool can display sensor voltages, as long as the vehicle is equipped.

      Helpful?

  5. From what year to what year this model topDon will scan

    1 answer

    1. The TOPDON UltraDiag is compatible with vehicles from 2010 to 2014 for Chrysler, Dodge, Jeep, and Fiat models.

      Helpful?

  6. Will it do regeneration for diesel engines

    1 answer

    1. The ULTRADIAG scan tool is capable of performing DPF (Diesel Particulate Filter) regeneration on a wide range of diesel vehicles.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
