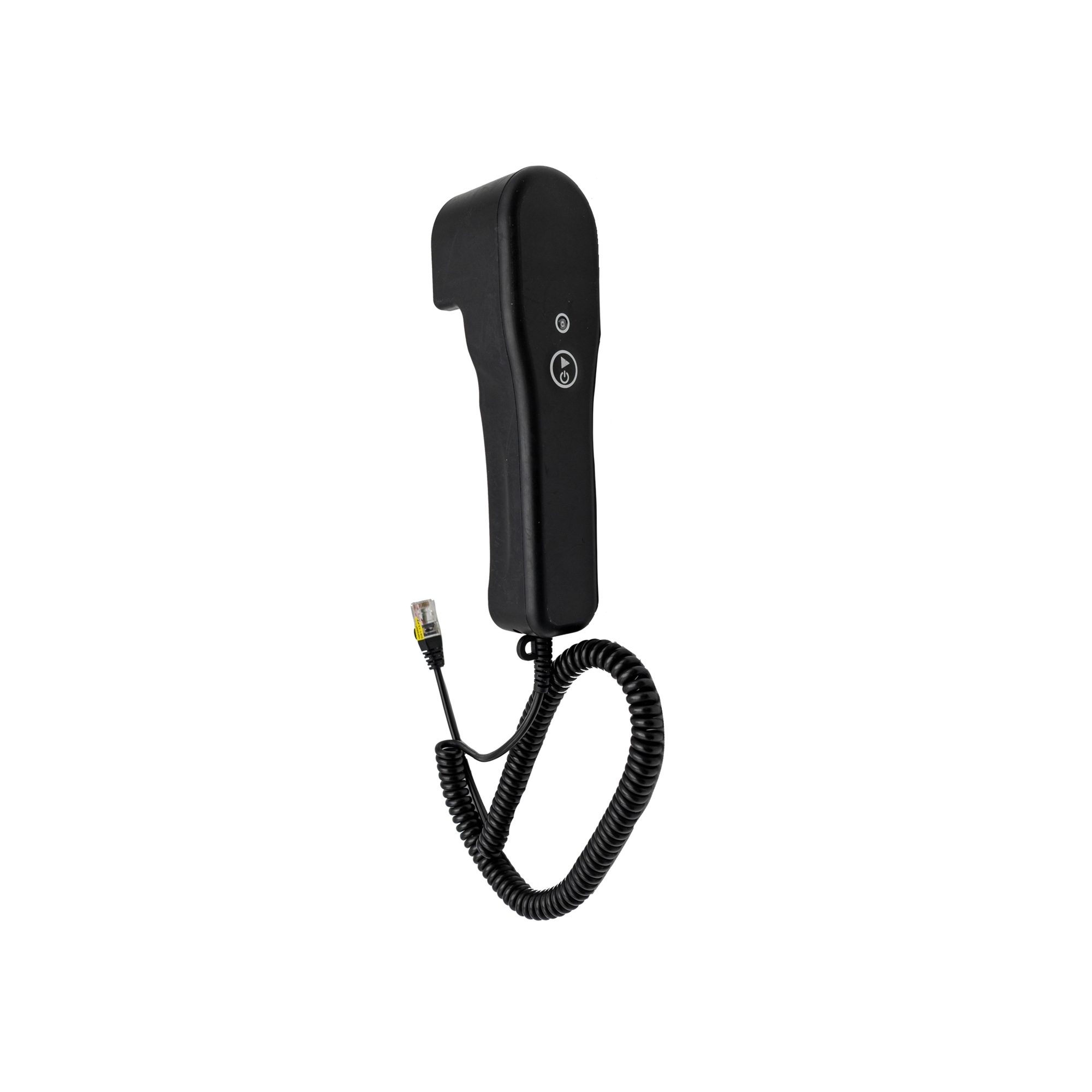

TOPDON Tire Tread Depth Gauge — High-Precision, TP58 TPMS Tool Accessory, Model# TD52120038

Item# 6754452
1 Included
TOPDON Tire Tread Depth Gauge — High-Precision, TP58 TPMS Tool Accessory, Model# TD52120038

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TOPDON Tire Tread Depth Gauge — High-Precision, TP58 TPMS Tool Accessory, Model# TD52120038

Click or Tap image to Zoom

$211.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • High-Precision Tread Depth Measurement The TOPDON Tire Tread Depth Gauge delivers highly accurate readings with a ±1% + 0.0012 inch (0.03 mm) precision, ensuring technicians get reliable data every time. It quickly measures inner, center, and outer tread depth, allowing for a comprehensive tire health check to prevent uneven wear and potential blowouts.
  • No Batteries or Charging Required Unlike many handheld tread depth gauges, this device connects directly to the TOPDON TP58 TPMS tool via an RJ45 connector cable, eliminating the need for Bluetooth pairing or battery replacements. Automatic calibration before each use ensures consistent and dependable performance.
  • Durable & Ergonomic Design Built for tough shop environments, the rugged grip handle with a protective rubber jacket provides a secure hold, while the built-in gauge pin storage ensures the tool is always ready for use. The compact and lightweight design allows for easy handling and access to tire treads inside the wheel well.

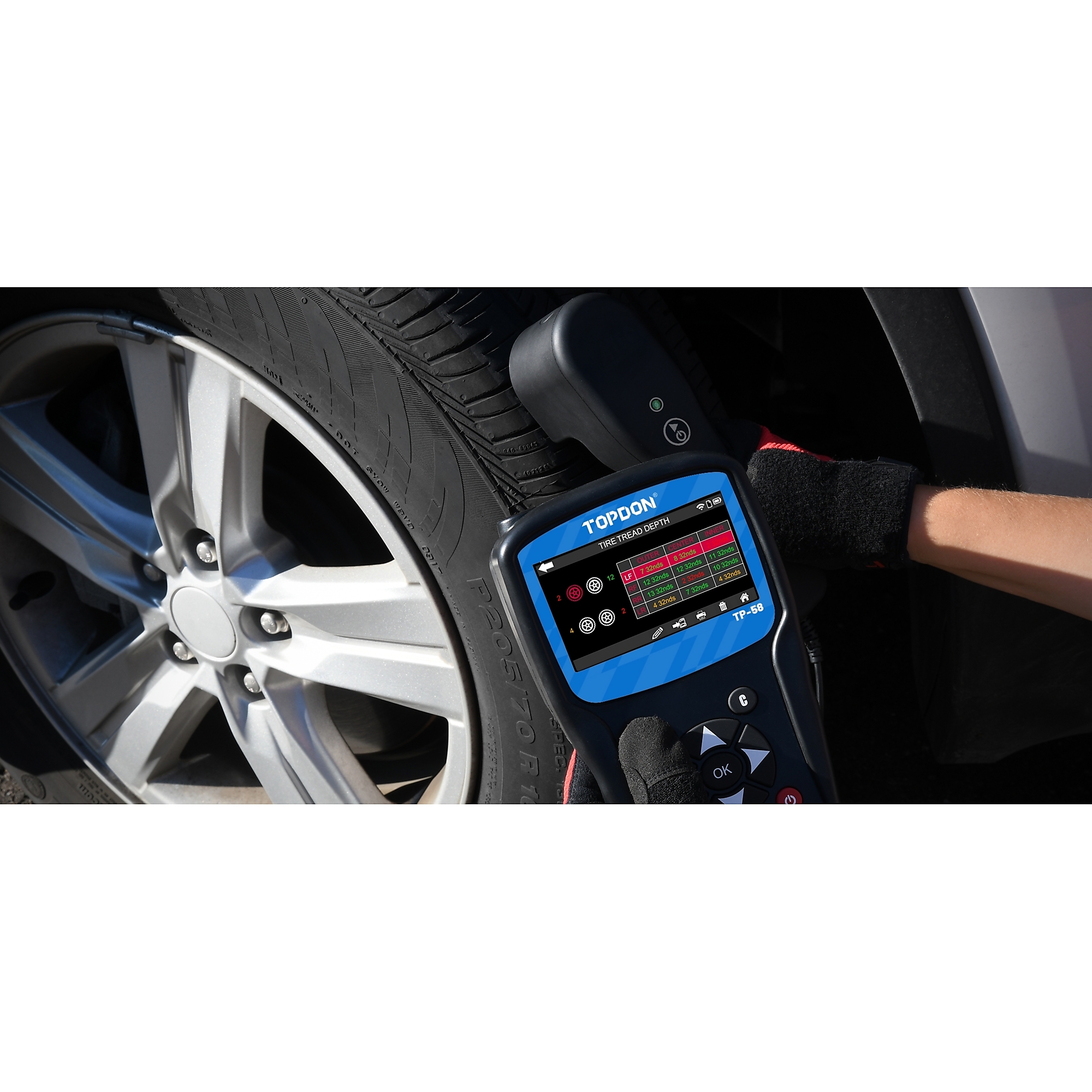

  • Instant Feedback & Visual Indicators Designed to streamline workflow, the TOPDON Tire Tread Depth Gauge features vibration and sound alerts to confirm successful measurements. The TP58 screen displays results with green, yellow, and red color codes, allowing technicians to quickly assess whether a tire needs replacement, rotation, or further inspection.
  • Easy Data Reporting & Customer Transparency The tread depth results can be stored, printed, and shared using the TP58’s PC software or SD card. This feature boosts customer confidence by providing clear visual proof of tire conditions, making it easier to sell tire replacements or additional services.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Ensure tire safety with the TOPDON Tire Tread Depth Gauge, a high-precision TP58 TPMS tool accessory designed for quick, accurate tread depth measurement. Detect worn tires, alignment issues, and damage in seconds. With ±1% precision, no batteries needed, and instant visual alerts, it streamlines inspections and enhances service efficiency. Print and share results with customers to boost confidence and increase tire sales. Durable, accurate, and easy to use.

What's Included

    (1) Tire Tread Depth Gauge for TP58 TPMS Tool (1) User Manual

Features + Benefits

  • High-Precision Tread Depth Measurement The TOPDON Tire Tread Depth Gauge delivers highly accurate readings with a ±1% + 0.0012 inch (0.03 mm) precision, ensuring technicians get reliable data every time. It quickly measures inner, center, and outer tread depth, allowing for a comprehensive tire health check to prevent uneven wear and potential blowouts.
  • No Batteries or Charging Required Unlike many handheld tread depth gauges, this device connects directly to the TOPDON TP58 TPMS tool via an RJ45 connector cable, eliminating the need for Bluetooth pairing or battery replacements. Automatic calibration before each use ensures consistent and dependable performance.
  • Durable & Ergonomic Design Built for tough shop environments, the rugged grip handle with a protective rubber jacket provides a secure hold, while the built-in gauge pin storage ensures the tool is always ready for use. The compact and lightweight design allows for easy handling and access to tire treads inside the wheel well.
  • Instant Feedback & Visual Indicators Designed to streamline workflow, the TOPDON Tire Tread Depth Gauge features vibration and sound alerts to confirm successful measurements. The TP58 screen displays results with green, yellow, and red color codes, allowing technicians to quickly assess whether a tire needs replacement, rotation, or further inspection.
  • Easy Data Reporting & Customer Transparency The tread depth results can be stored, printed, and shared using the TP58’s PC software or SD card. This feature boosts customer confidence by providing clear visual proof of tire conditions, making it easier to sell tire replacements or additional services.
  • Designed for Efficiency & Versatility Capable of measuring 4 to 7 wheels per vehicle, this tool is ideal for fleet maintenance, tire storage facilities, and general repair shops. By quickly assessing tire wear, it helps mechanics improve vehicle safety and efficiency while opening opportunities for additional service sales.

Key Specs

AttributeSpecification

item#

6754452

Brand

TOPDON

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.2 LB

Product Type

Other
AttributeSpecification

Single, Pair, or Set

Single

Included (qty.)

1

For Use With

TP58, Model #TD52170005. Advanced TPMS Tool with OBDII

Product Weight

1.2000 lb

Dimensions L x W x H (in.)

3.1 x 10.9 x 3.1 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
