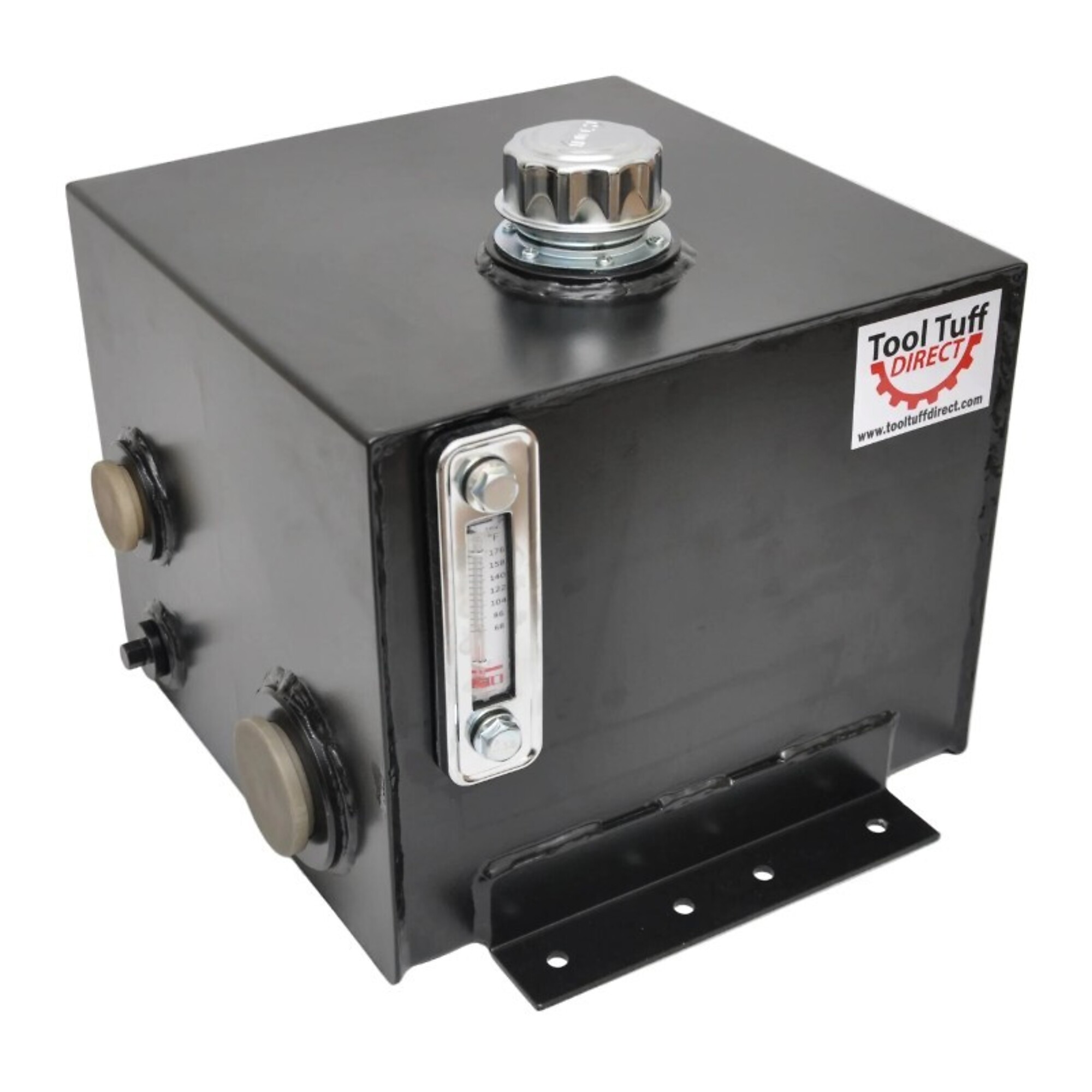

Tool-Tuff, 7-Gallon Hydraulic Fluid Reservoir Tank, Horizontal-Mount, w/Temp Gauge, Sight-Gauge & Breather/Strainer Fill Cap, Model # 31-108

Item# 7507111
New
Tool-Tuff, 7-Gallon Hydraulic Fluid Reservoir Tank, Horizontal-Mount, w/Temp Gauge, Sight-Gauge & Breather/Strainer Fill Cap, Model # 31-108

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tool-Tuff, 7-Gallon Hydraulic Fluid Reservoir Tank, Horizontal-Mount, w/Temp Gauge, Sight-Gauge & Breather/Strainer Fill Cap, Model # 31-108

Click or Tap image to Zoom

$199.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 7-Gallon Fluid Capacity
  • Heavy duty steel construction

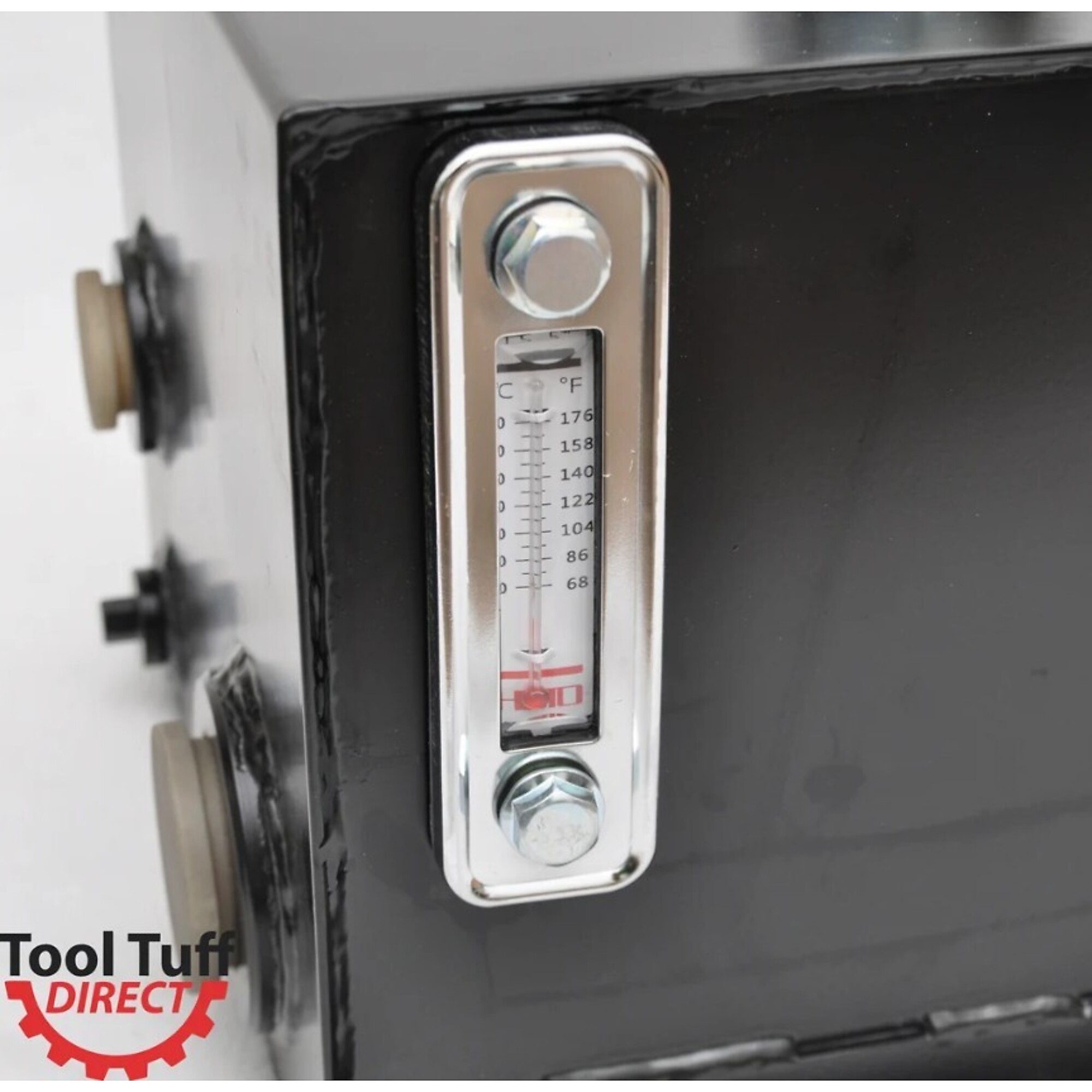

  • Built-in Sight Gauge/Temp Gauge Combo
  • Factory Leak-Tested
  • Heavy Duty 12 ga Sheet Metal Construction

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Tool-Tuff, 7-Gallon Hydraulic Fluid Reservoir Tank, Horizontal-Mount, w/Temp Gauge, Sight-Gauge Breather/Strainer Fill Cap, Model # 31-108 The Tool-Tuff line of versatile hydraulic fluid reservoirs are factory leak-tested and include many features to help make your DIY project or repair a success. Features Specs: 7-Gallon Fluid Capacity Heavy duty steel construction Built-in Sight Gauge/Temp Gauge Combo.

What's Included

    (1) 7-Gallon Hydraulic Tank

Features + Benefits

  • 7-Gallon Fluid Capacity
  • Heavy duty steel construction
  • Built-in Sight Gauge/Temp Gauge Combo
  • Factory Leak-Tested
  • Heavy Duty 12 ga Sheet Metal Construction
  • 1" wide fill port

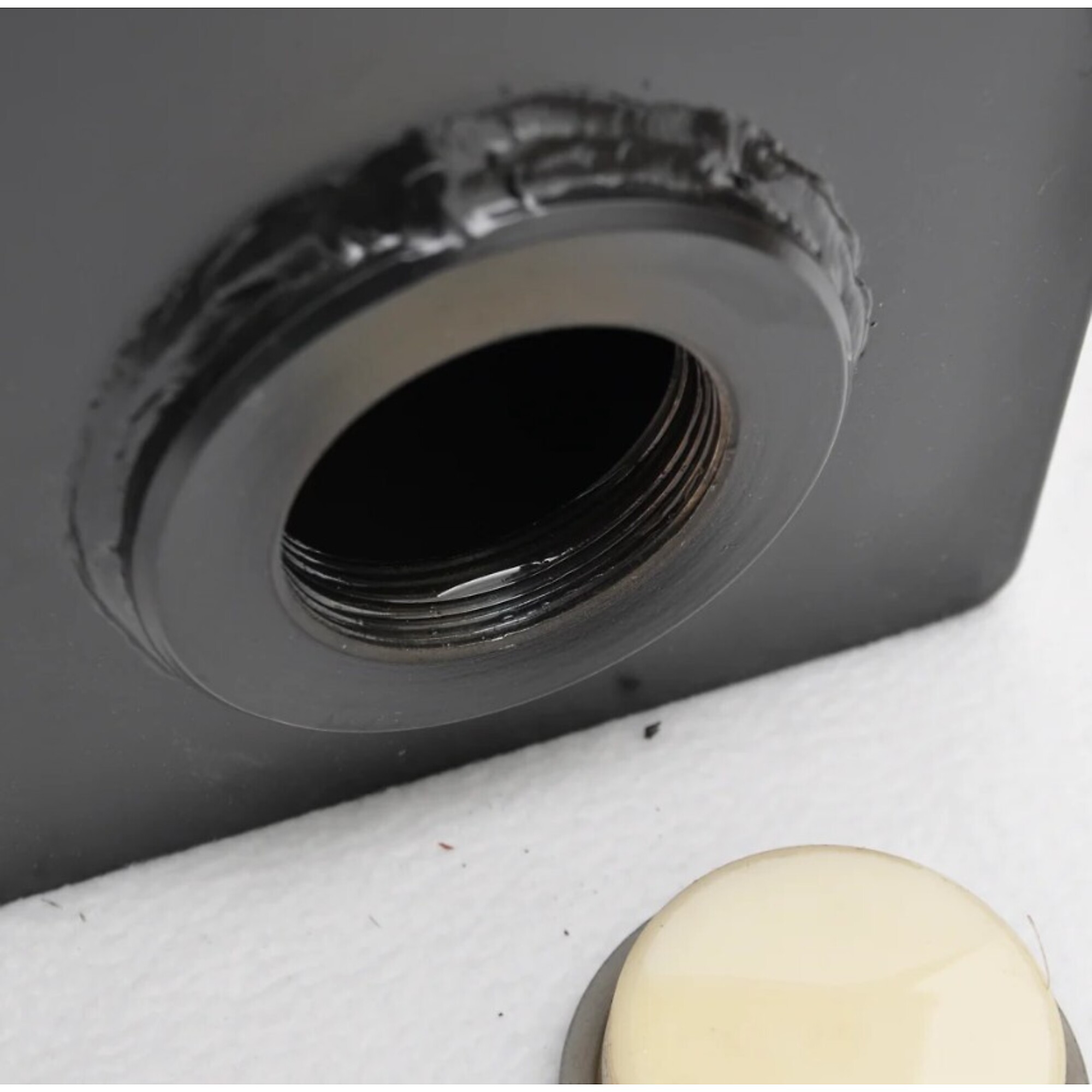

  • Dual 1.25" NPT threaded ports
  • One 2" NPT threaded port
  • 4-hole mounting plates on each side (max 7.875" apart between the two outer holes, and the holes in between are 2" apart). Center-Center Distance between the two mounting brackets across the tank is 16"

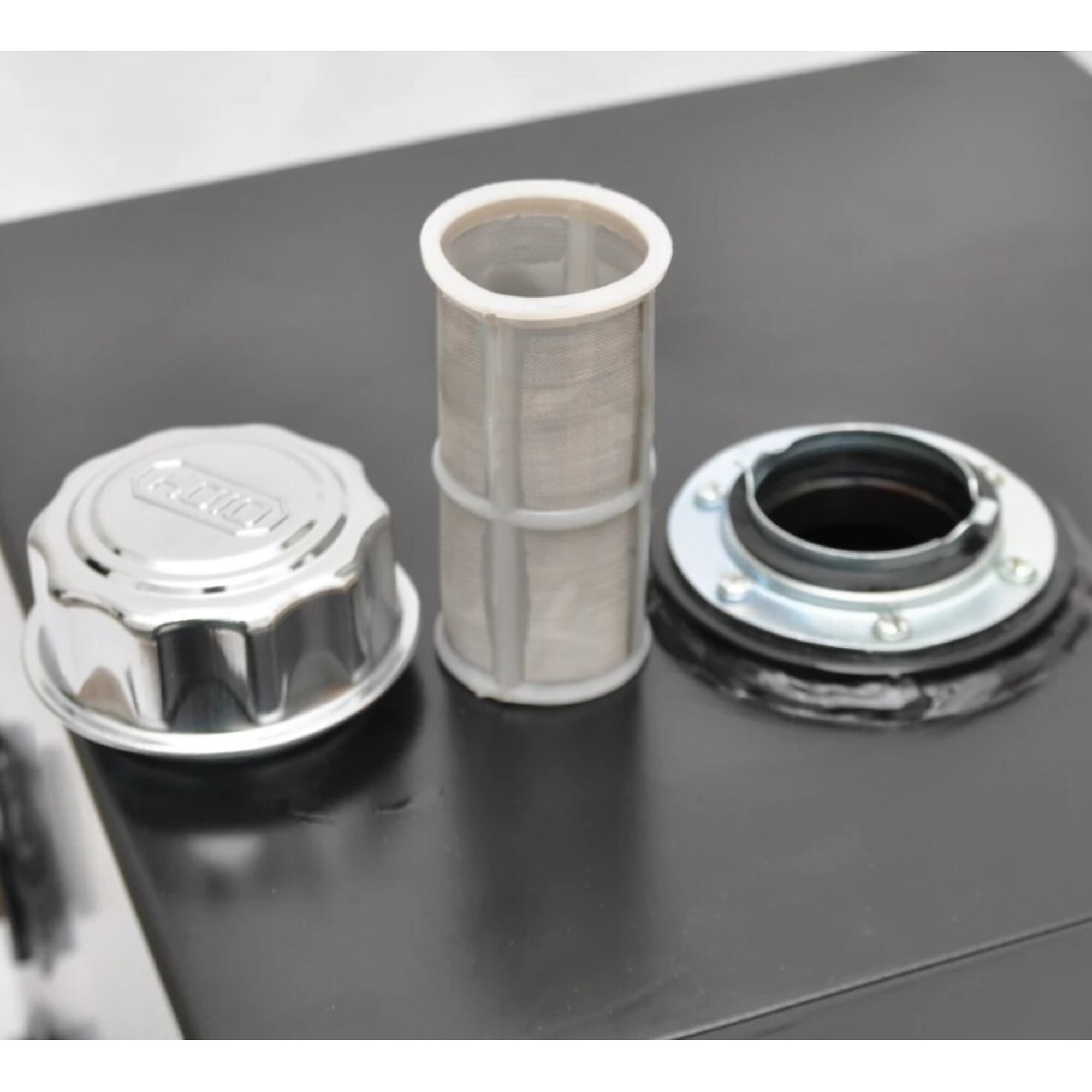

  • 40 micron breather cap

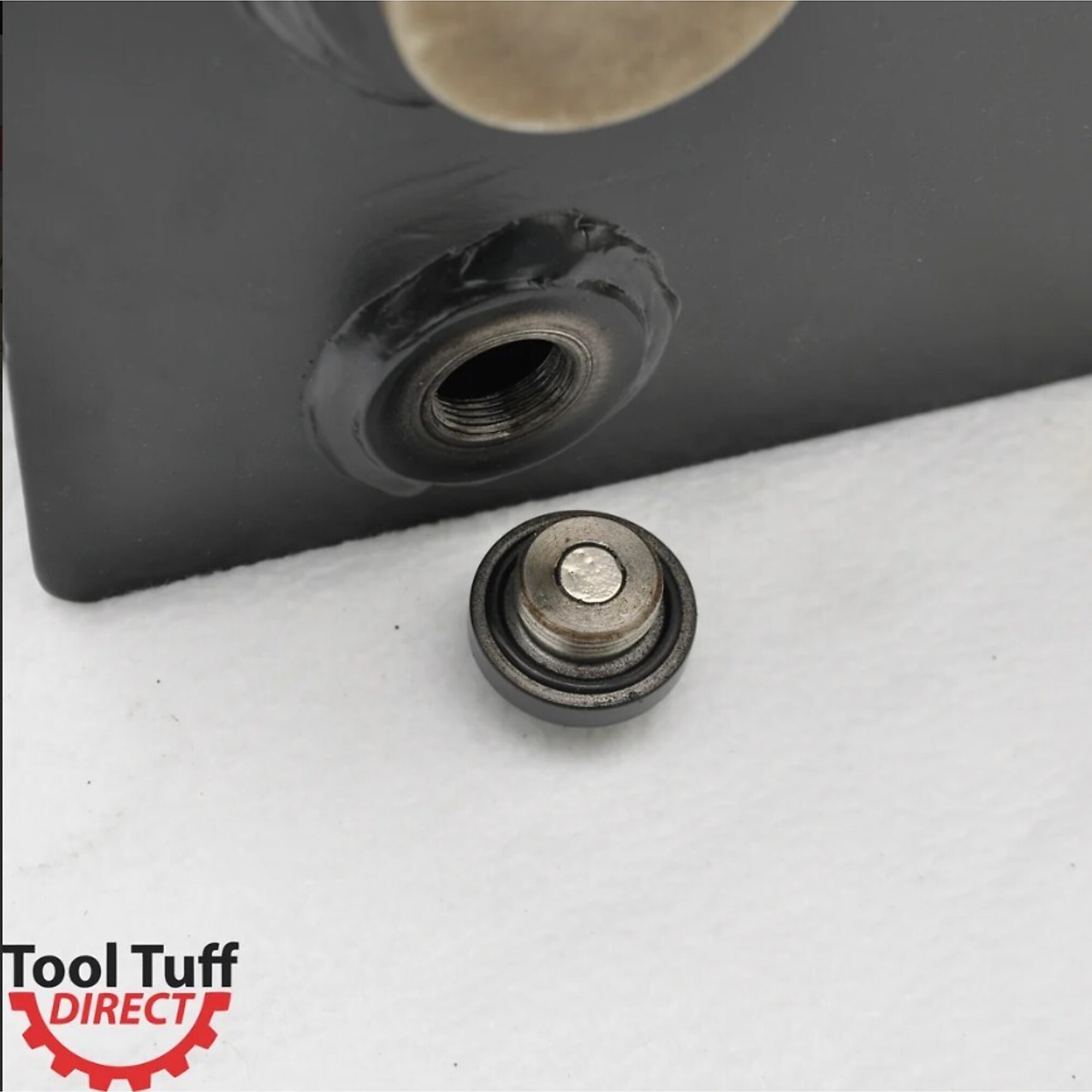

  • Drain plug is not included, the port is a 7/8"-18 SAE, plug can be found at most auto stores.
  • Internally baffled
  • Dimensions: 17.5" wide (including bracket width)x 14" long x 12" high (14.5" high with cap)
  • Weight: 41.5 lb
  • Comes with poly plugs for all ports (may not be rated for use in all applications, but it'll keep it from leaking on it's way to you)
  • 6-month warranty

Key Specs

AttributeSpecification

item#

7507111

Manufacturer's Warranty

6 month limited warranty

Ship Weight

41.5 LB

Capacity

7 Gal

Suction Port Size

2 in

Return Port Size

1-1/4 in

Oil Level Gauge

Yes

Temperature Gauge

Yes
AttributeSpecification

Mount Position

Bottom

Mounting Hardware Included

No

Material

Steel

Removable Cover

No

Thread Type

NPT

Product Weight

41.5000 lb

Dimensions L x W x H (in.)

14.0 x 17.5 x 14.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

6 month limited warranty
