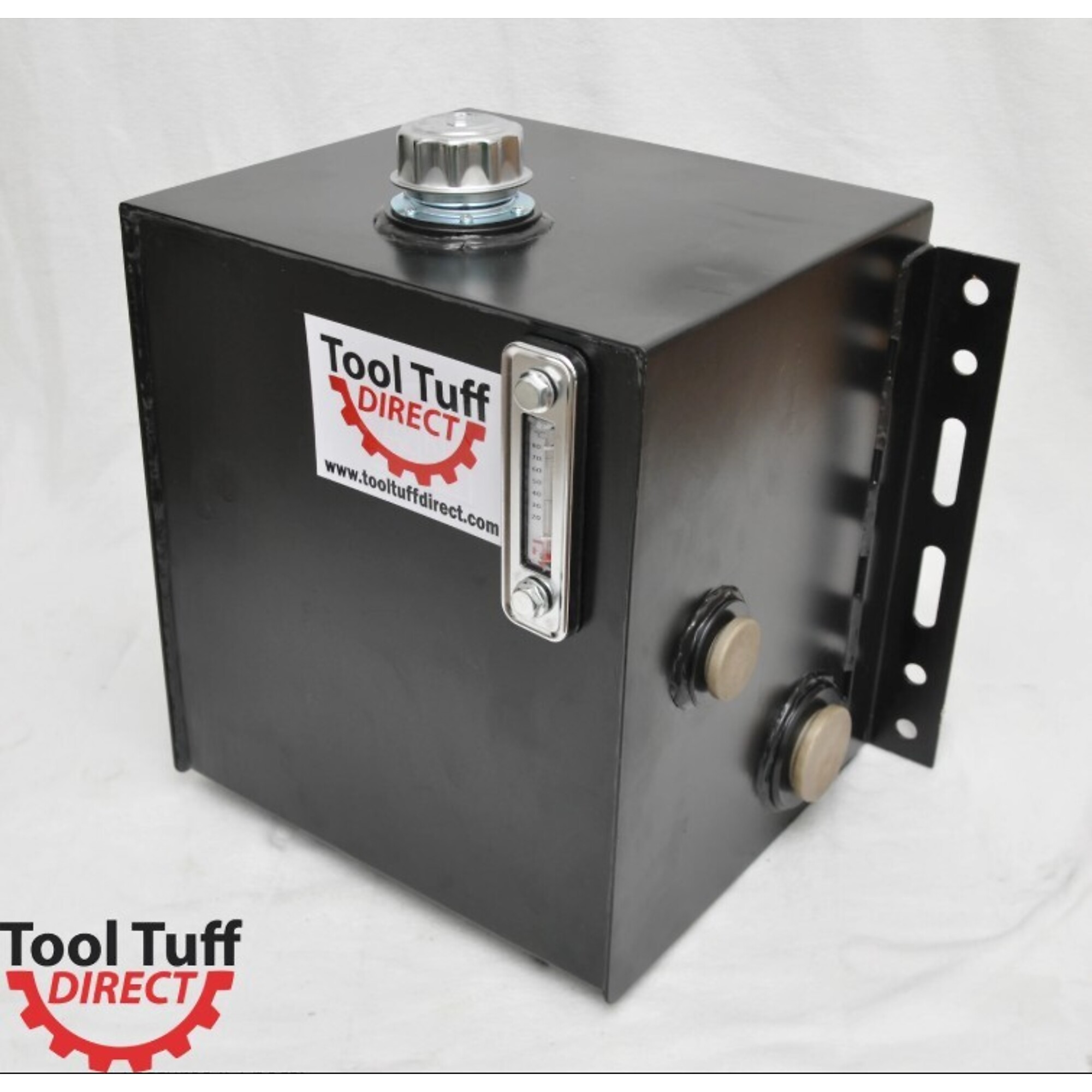

Tool-Tuff 15-Gallon Hydraulic Fluid Reservoir Tank, Vertical-Mount, w/Temp Gauge, Sight-Gauge & Breather/Strainer Fill Cap, Model # 31-109.

Item# 7507120
New
Tool-Tuff 15-Gallon Hydraulic Fluid Reservoir Tank, Vertical-Mount, w/Temp Gauge, Sight-Gauge & Breather/Strainer Fill Cap, Model # 31-109.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tool-Tuff 15-Gallon Hydraulic Fluid Reservoir Tank, Vertical-Mount, w/Temp Gauge, Sight-Gauge & Breather/Strainer Fill Cap, Model # 31-109.

Click or Tap image to Zoom

$249.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 15-Gallon Fluid Capacity
  • Heavy duty steel construction

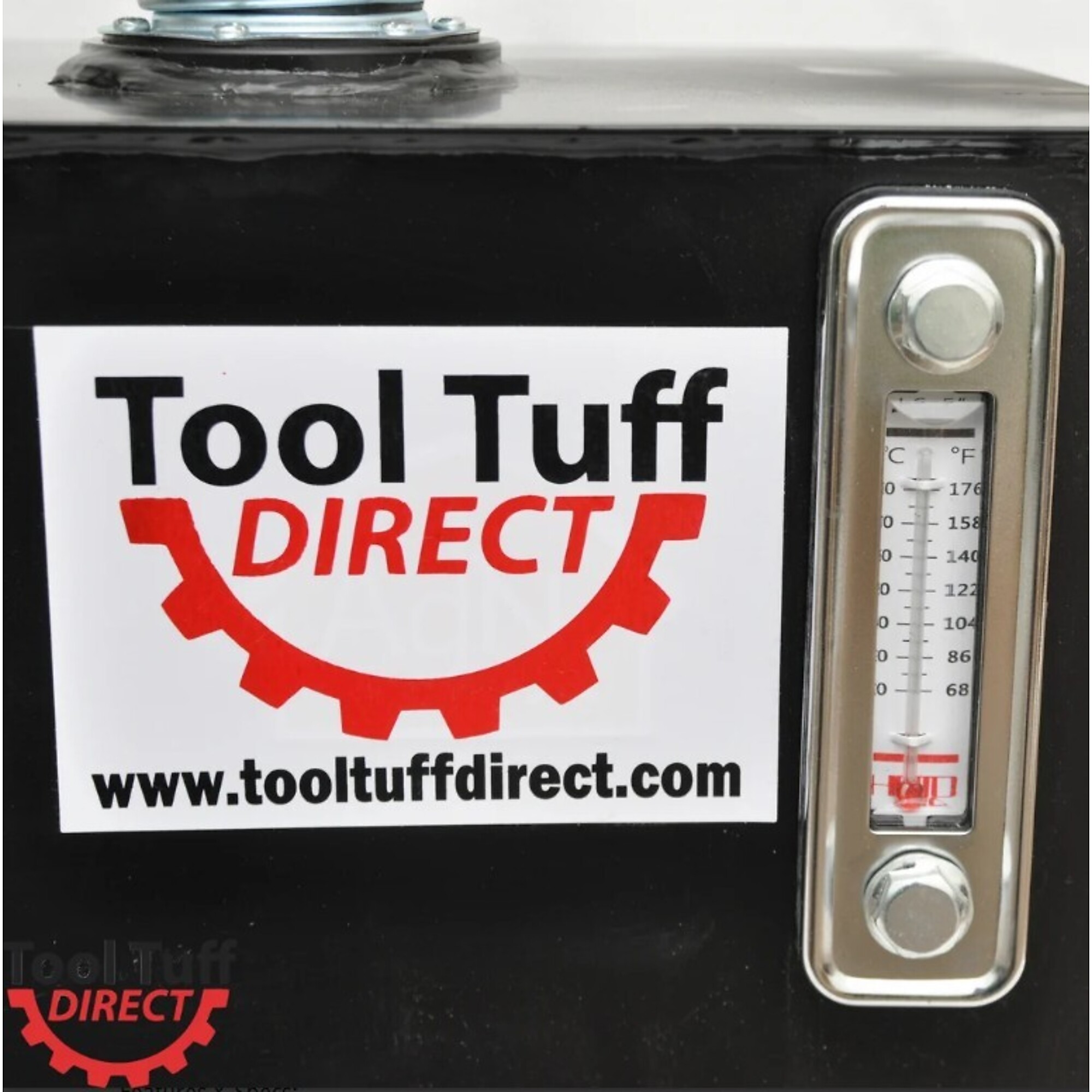

  • Built-in Sight Gauge/Temp Gauge Combo
  • Factory Leak-Tested
  • Heavy Duty 12 ga Sheet Metal Construction

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Tool-Tuff 15-Gallon Hydraulic Fluid Reservoir Tank, Vertical-Mount, w/Temp Gauge, Sight-Gauge Breather/Strainer Fill Cap, Model # 31-109. The Tool-Tuff line of versatile hydraulic fluid reservoirs are factory leak-tested and include many features to help make your DIY project or repair a success.

What's Included

    (1) 15-Gallon Hydraulic Tank

Features + Benefits

  • 15-Gallon Fluid Capacity
  • Heavy duty steel construction
  • Built-in Sight Gauge/Temp Gauge Combo
  • Factory Leak-Tested
  • Heavy Duty 12 ga Sheet Metal Construction
  • 1" wide fill port

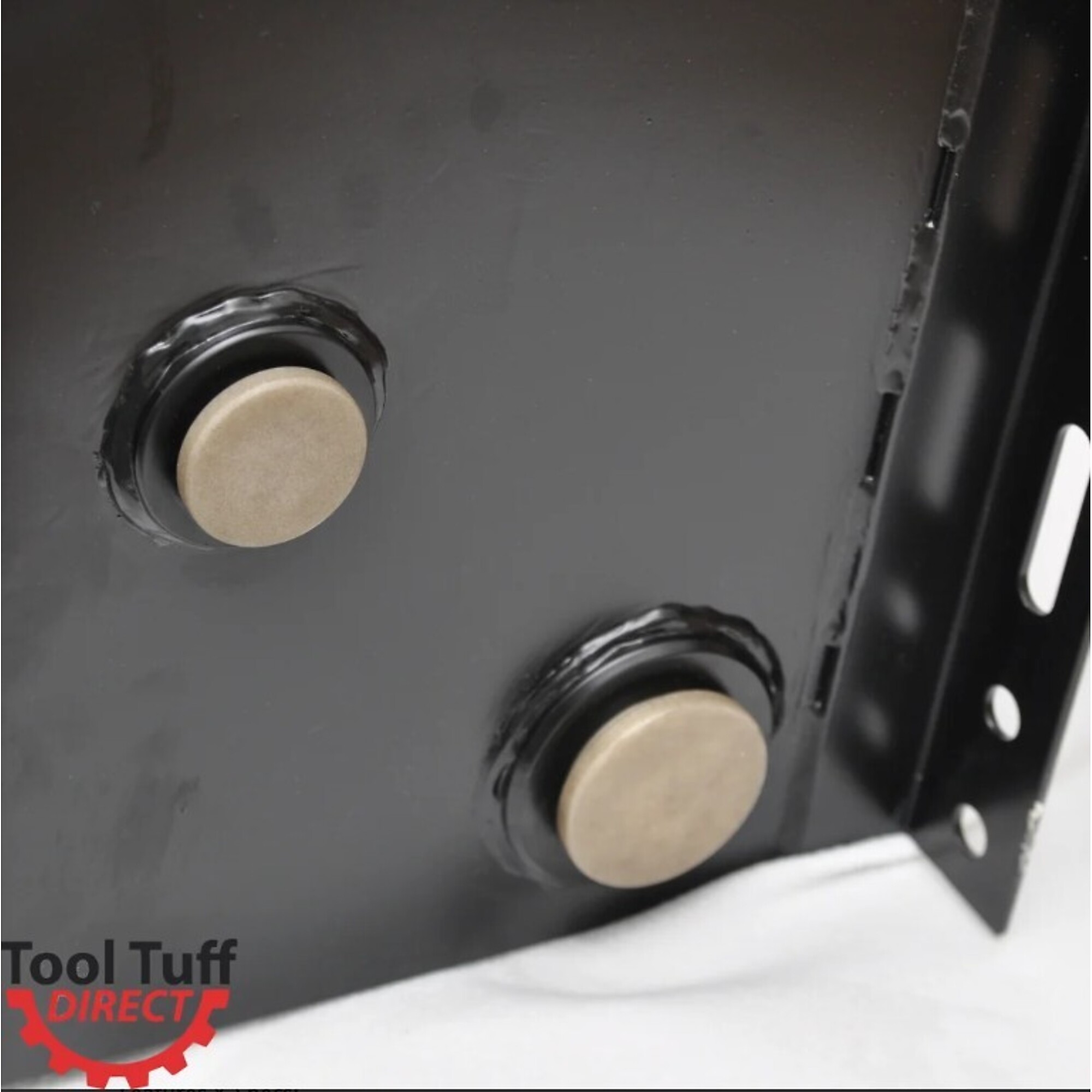

  • Dual 2" NPT threaded ports
  • Dual 1.25" NPT threaded ports

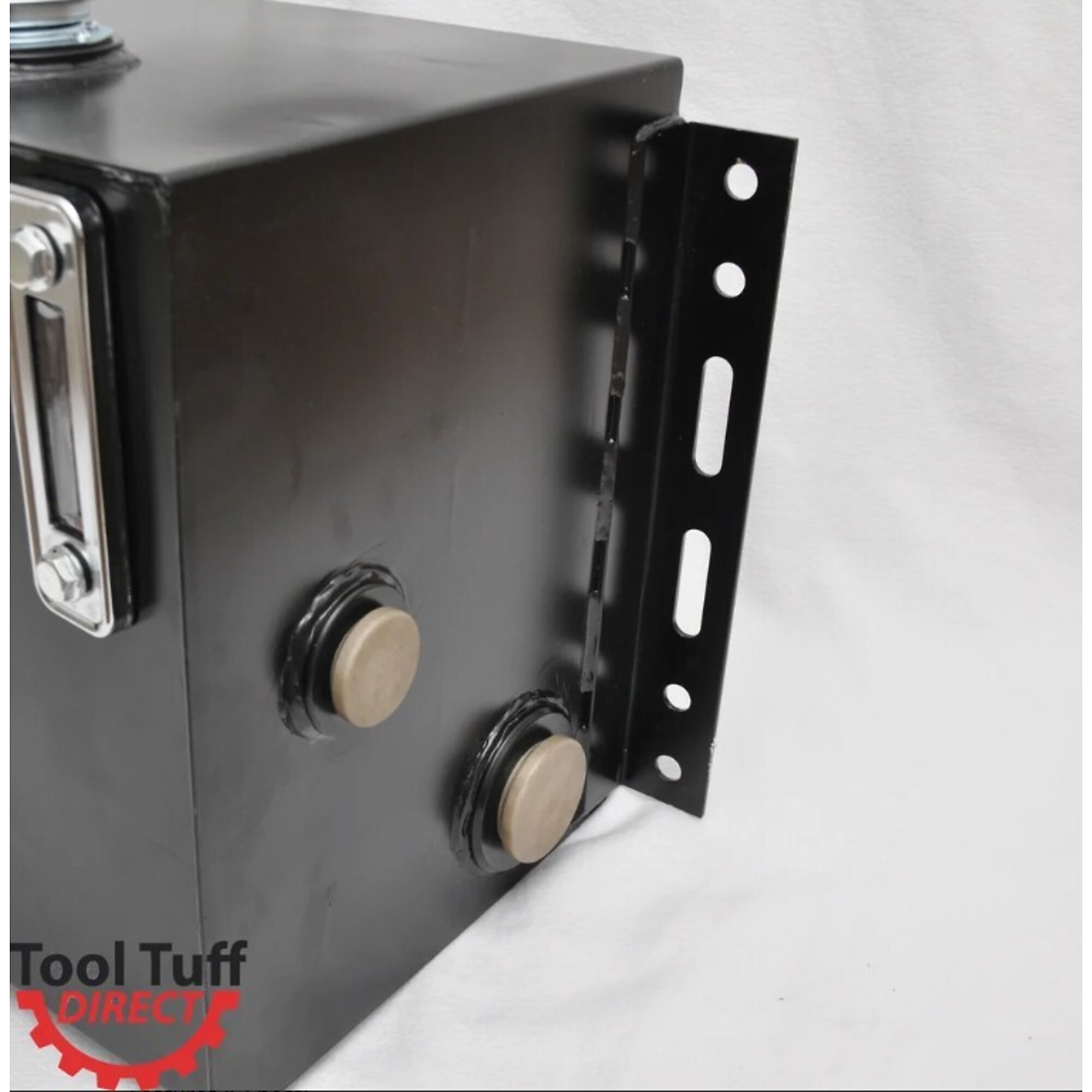

  • Mounting brackets spaced 18" center-center across, with a maximum vertical bolt spacing of 14". Holes/slots are 3/4" diameter
  • 40-micron breather cap

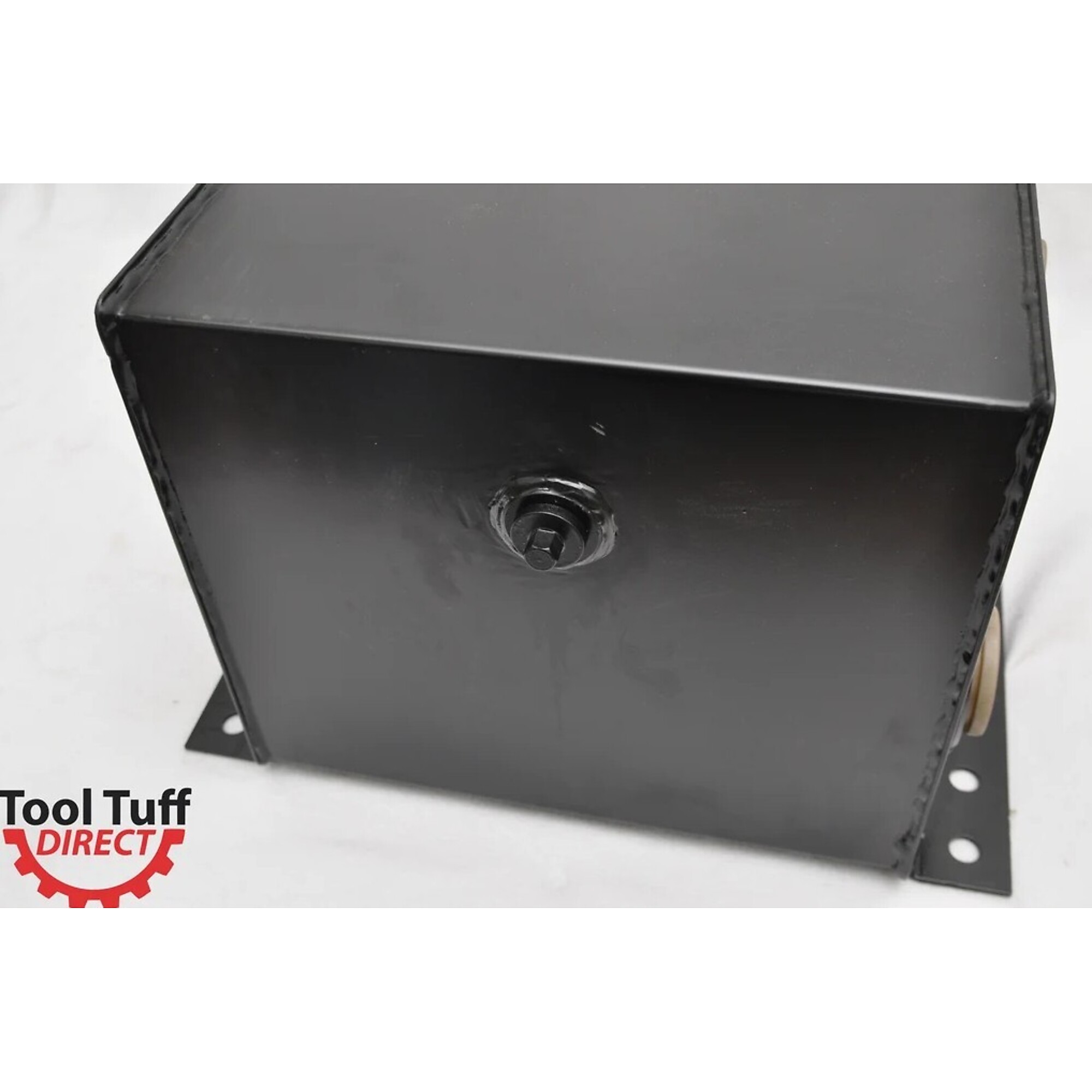

  • Includes a magnetic drain plug
  • Internally baffled
  • Dimensions: 20.25 wide (including bracket width) x 13-5/8" long x 17.5" high (20" high with cap)
  • Weight: 56.6 lb.
  • Comes with poly plugs for all ports (may not be rated for use in all applications, but it'll keep it from leaking on its way to you)
  • 6-month warranty

Key Specs

AttributeSpecification

item#

7507120

Manufacturer's Warranty

6 month limited warranty

Ship Weight

72.0 LB

Capacity

15 Gal

Suction Port Size

2 in

Return Port Size

1-1/4 in

Oil Level Gauge

Yes

Temperature Gauge

Yes
AttributeSpecification

Mount Position

Rear

Mounting Hardware Included

No

Material

Steel

Removable Cover

No

Thread Type

NPT

Product Weight

56.6000 lb

Dimensions L x W x H (in.)

20.25 x 20.0 x 13.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

6 month limited warranty
