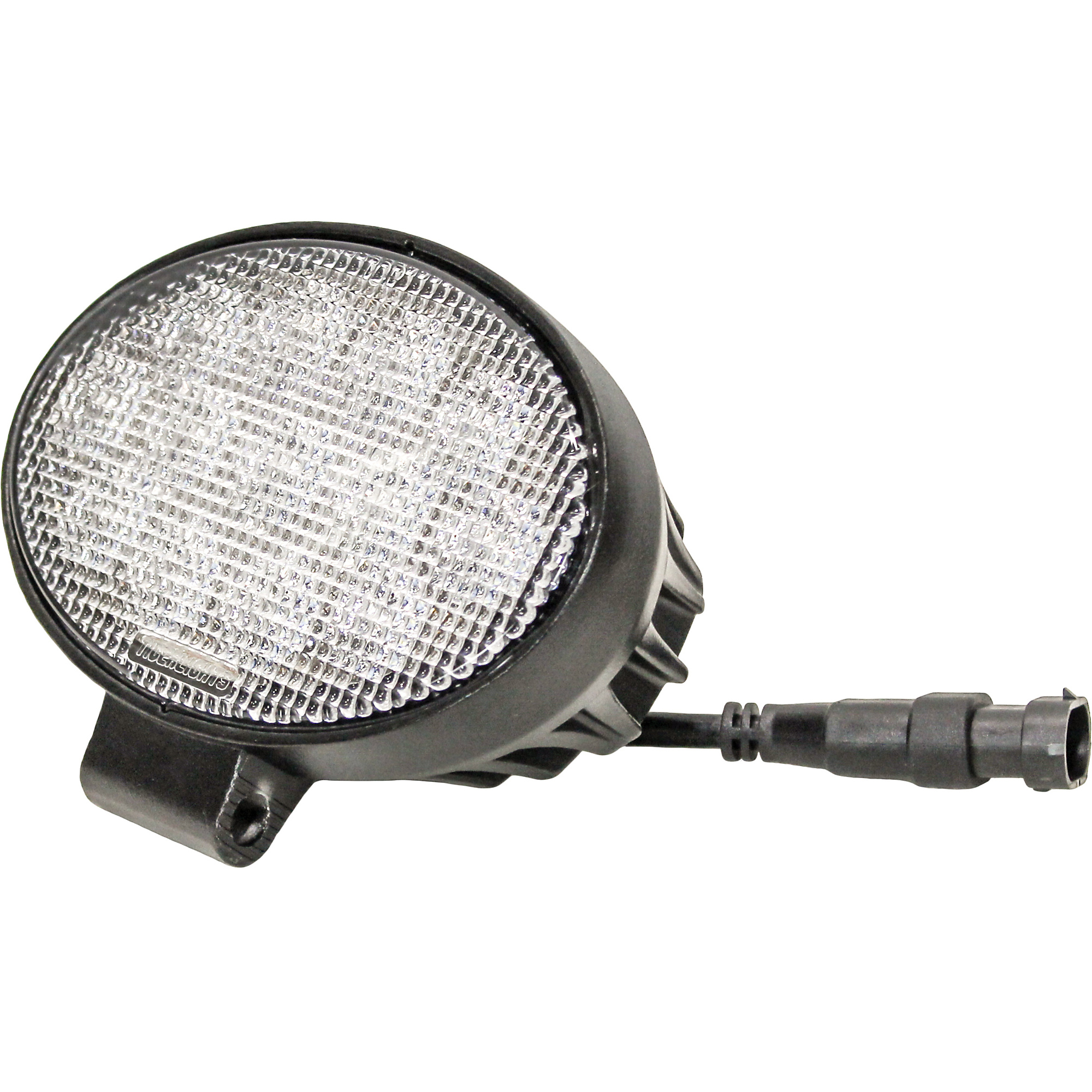

Case IH/John Deere Combine or Utility Tractor LED

Item# 6284876
1 Included
Case IH/John Deere Combine or Utility Tractor LED

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Case IH/John Deere Combine or Utility Tractor LED

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Tiger Lights TL5655 Light
  • 5.75" x 3.75" x 3" (W x H x D) oval
  • Flood beam pattern with 2,900 effective lumens
  • Input voltage: 12-Volt to 24-Volt
  • Plug and play wiring for easy install - Includes connector, adapter, mounting bracket and hardware

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Complete plug and play replacement LED Light for the Auger, Field, Grain Tank, Stubble or Unloading Auger Light on Case IH® 5088-9230, or John Deere® 9060, CTS, Sidehill, STS, S, T and W Series combines, 1R, 2000, 2R, 3D, 3E, 3R, 3020, 4M, 4R, 4020, 5E, 5M, 5020 and 5025 Series tractor, or windrowers. Also replaces Upper Cab Light on Bobcat® Toolcat utility vehicles. Save yourself time and money with LED Lights that are IP68 rated so that no dust will get in your light and your light can be fully and continuously submerged in water, but there will be no side effects. These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle any severe environmental condition. This LED Light features a durable polycarbonate lens, it is built to be RoHS compliant, and comes with stainless steel hardware. The color of light LEDs emit is near the color spectrum of the mid-day sun and allows the human eye to function and view objects better to improve your work environment.

What's Included

    (1) Light (1) Connector (1) Adapter (1) Mounting Bracket (1) Mounting Hardware

Features + Benefits

  • Tiger Lights TL5655 Light
  • 5.75" x 3.75" x 3" (W x H x D) oval
  • Flood beam pattern with 2,900 effective lumens
  • Input voltage: 12-Volt to 24-Volt
  • Plug and play wiring for easy install - Includes connector, adapter, mounting bracket and hardware
  • Replaces auger, field, grain tank, stubble or unloading auger light on Case IH® combines and John Deere® combines or Windrowers.
  • Replaces oval cab or fender light on John Deere® utility tractors.
  • Replaces upper cab light on Bobcat® utility vehicles.
  • Case IH® Combines: 5088, 5130, 5140, 6088, 6140, 7010, 7088, 7120, 7130, 7140, 7230, 8010, 8120, 8230, 8240, 9120, 9230
  • John Deere® 9060, CTS, Sidehill, STS, S, T and W Series Combines, 1R, 2000, 2R, 3D, 3E, 3R, 3020, 4M, 4R, 4020, 5E, 5M, 5020 and 5025 Series Tractors, and Windrowers
  • Replaces John Deere® Part Numbers: AH207788, AH205072, AXE16947, AXE40244
  • Bobcat® Toolcat Utility Vehicles: 5600, 5610
  • Replaces Bobcat® Part Numbers: 6683314, 7012802, 6683315, 6682472

Key Specs

AttributeSpecification

item#

6284876

Brand

Tiger Lights

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.0 LB

Light Type

LED

Lens Color

White

Included (qty.)

1

Product Type

Tractor Light Kit

Watts

35
AttributeSpecification

Light Shape

Oval

Brightness

2,900 lumen

Connector Type

Plug

LED (qty.)

13

Amps

2.9

Volts

Multi

Product Weight

3.0000 lb

Dimensions L x W x H (in.)

5.75 x 3.0 x 3.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
