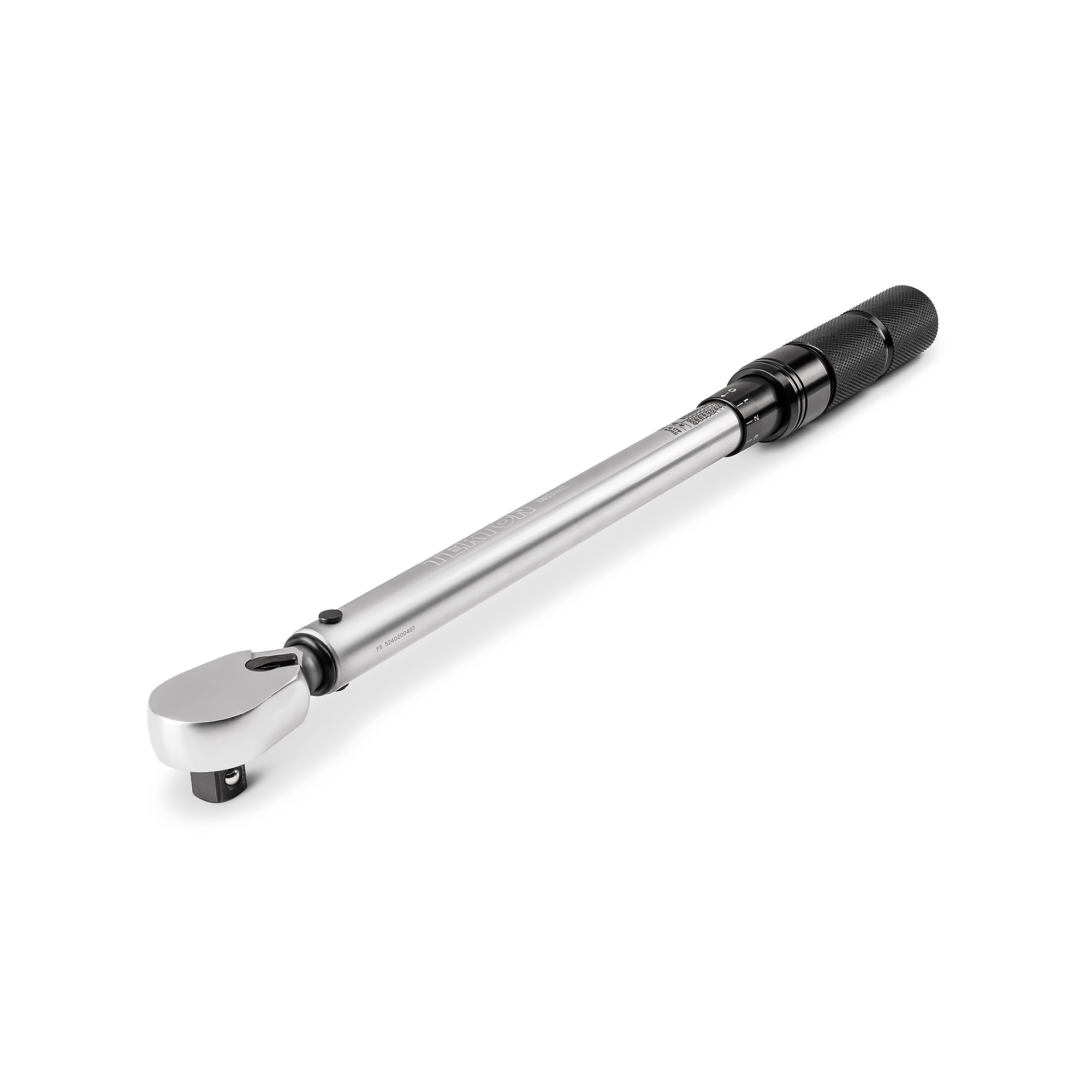

TEKTON 1/2 Inch Drive 90-Tooth Dual-Direction Micrometer Torque Wrench (40 - 200 ft-lb) | TRQ52402

Item# 6984514
1 Pieces
TEKTON 1/2 Inch Drive 90-Tooth Dual-Direction Micrometer Torque Wrench (40 - 200 ft-lb) | TRQ52402

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TEKTON 1/2 Inch Drive 90-Tooth Dual-Direction Micrometer Torque Wrench (40 - 200 ft-lb) | TRQ52402

Click or Tap image to Zoom

$125.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Accurate within ±3% for Both Directions – The actual calibration accuracy will be stated on the certificate for your wrench, but will be no worse than ±3%
  • Full-Range Calibration Using the ISO Standard – Since this torque wrench is calibrated to the ISO standard, it also meets and exceeds the ASME standard

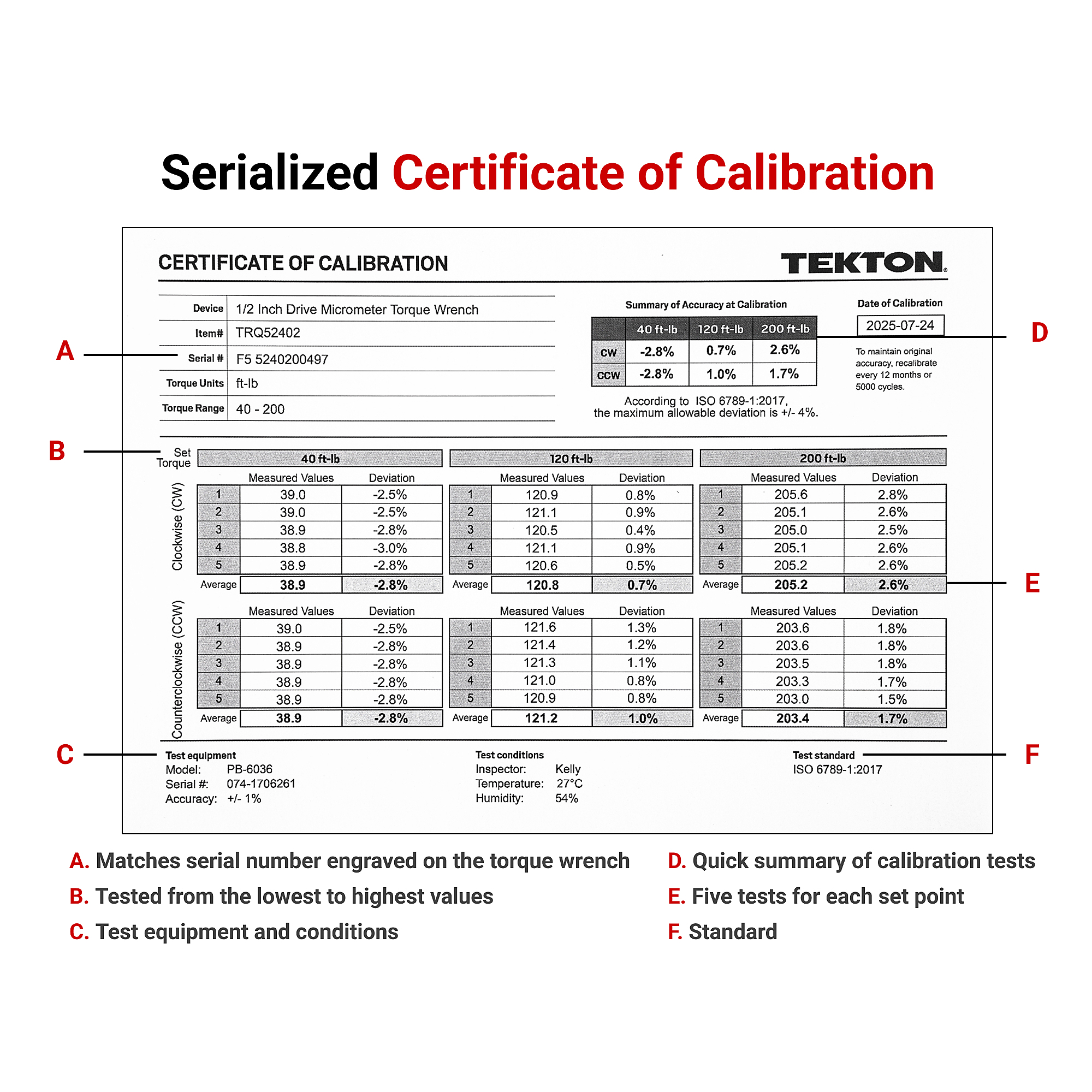

  • Serialized Certificate of Calibration – Includes serial number, test results, and test equipment and conditions
  • 90-Tooth Fixed Ratchet Head – The single half-moon pawl maintains 9 teeth engaged with the gear at all times, so it won't skip under stress and the 4-degree swing arc reduces length of travel
  • Easy-to-Read Micrometer Scales – The single-unit scale is marked with high-contrast laser markings on a satin-finished handle body to reduce glare

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Tekton micrometer torque wrenches are designed to instill confidence in the wrench’s accuracy and control during operation. They are calibrated to be accurate within ±3% for both clockwise and counterclockwise directions and certified to the ISO standard for the full listed range (40 - 200ft.-lb), unlike torque wrenches calibrated to ASME standards, which do not require calibration below 20% of the listed range. The single half-moon pawl maintains 9 teeth engaged with the gear at all times, so it won't skip under stress. The internal components are the same design and construction as all of our 90-tooth ratchets. The 4-degree swing arc reduces the length of travel at the end of the wrench handle between each click. The micrometer scales are laser-marked in bold fonts on the satin-finished handle body, making them easy to read. The collar springs into a locked position that holds your setting and prevents accidental movement during operation. There is no thumb knob to tighten at the end of the handle. A deep, sharp-cut diamond pattern on the surface of the handle creates a coarse texture that won’t slip in your hand. The case provides safe transport for the torque wrench and protects it from drops. Each item in the case has its own place and is held securely. The case is made of high-density polyethylene (HDPE), and the latches are polypropylene (PP). Includes a serialized certificate of calibration.

What's Included

    (2) Torque Wrench

Features + Benefits

  • Accurate within ±3% for Both Directions – The actual calibration accuracy will be stated on the certificate for your wrench, but will be no worse than ±3%
  • Full-Range Calibration Using the ISO Standard – Since this torque wrench is calibrated to the ISO standard, it also meets and exceeds the ASME standard
  • Serialized Certificate of Calibration – Includes serial number, test results, and test equipment and conditions
  • 90-Tooth Fixed Ratchet Head – The single half-moon pawl maintains 9 teeth engaged with the gear at all times, so it won't skip under stress and the 4-degree swing arc reduces length of travel
  • Easy-to-Read Micrometer Scales – The single-unit scale is marked with high-contrast laser markings on a satin-finished handle body to reduce glare

Key Specs

AttributeSpecification

item#

6984514

Brand

Tekton

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

4.03 LB

Pieces (qty.)

1

Tool Length

19.1 in

Measurement Standard

Standard (SAE)

Material

Steel

Drive Size

0.5 in
AttributeSpecification

Torque Range

200 ft-lbs.

Finish Type

Satin

Storage Type

Case

Ratcheting

Yes

Flex Head

No

Reversible

Yes

Accuracy

±3%

Product Weight

2.7700 lb

Dimensions L x W x H (in.)

19.1 x 1.5 x 1.6 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

Lifetime Limited Warranty
