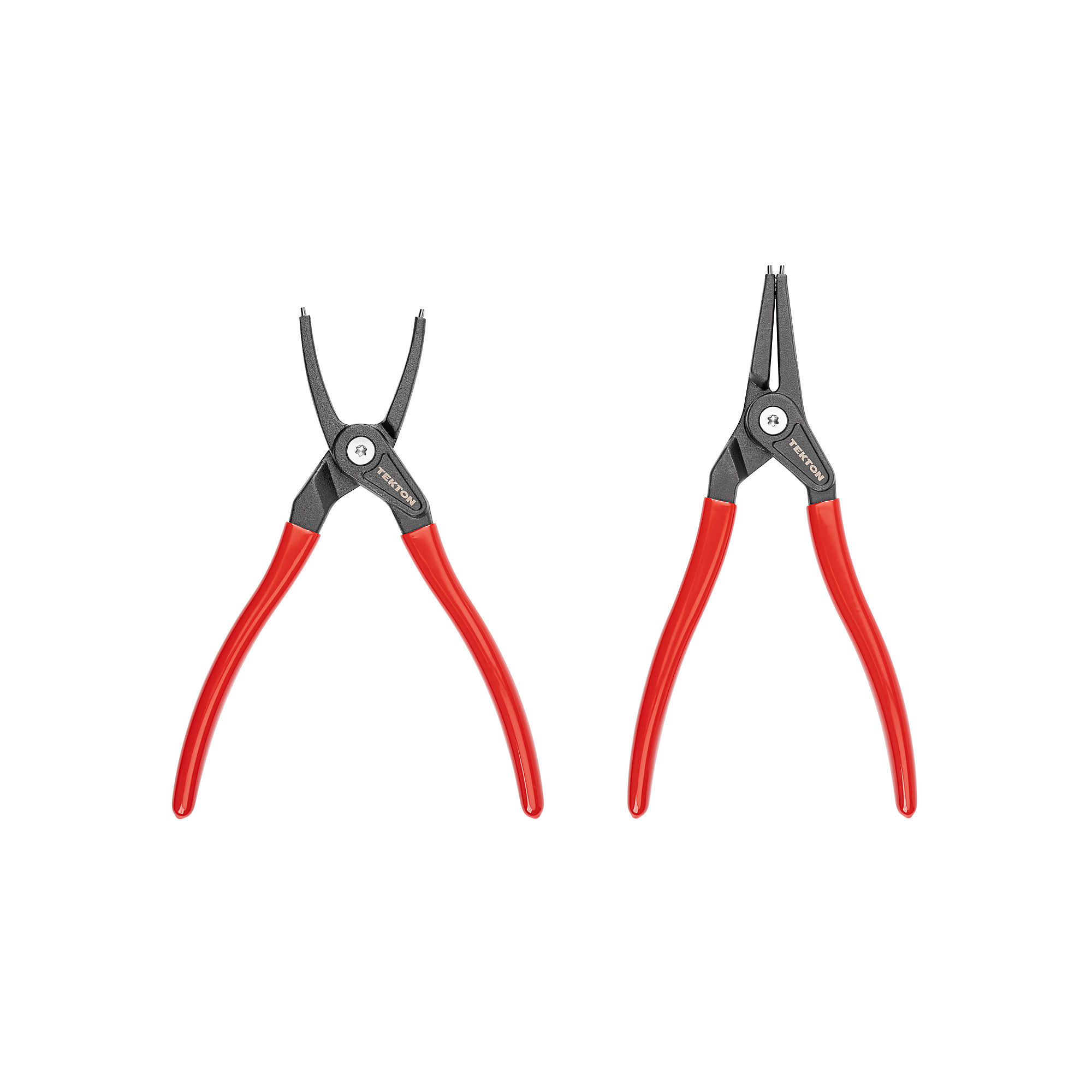

TEKTON 9 Inch Internal and External Retaining Ring Pliers Set, 2-Piece (0.090 in. Tips) | PRR90018

Item# 6656490
TEKTON 9 Inch Internal and External Retaining Ring Pliers Set, 2-Piece (0.090 in. Tips) | PRR90018

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TEKTON 9 Inch Internal and External Retaining Ring Pliers Set, 2-Piece (0.090 in. Tips) | PRR90018

Click or Tap image to Zoom

$57.00

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Refined Tips for Strength and Control – The tips are angled, hardened, and crimped-in to provide optimized strength and control

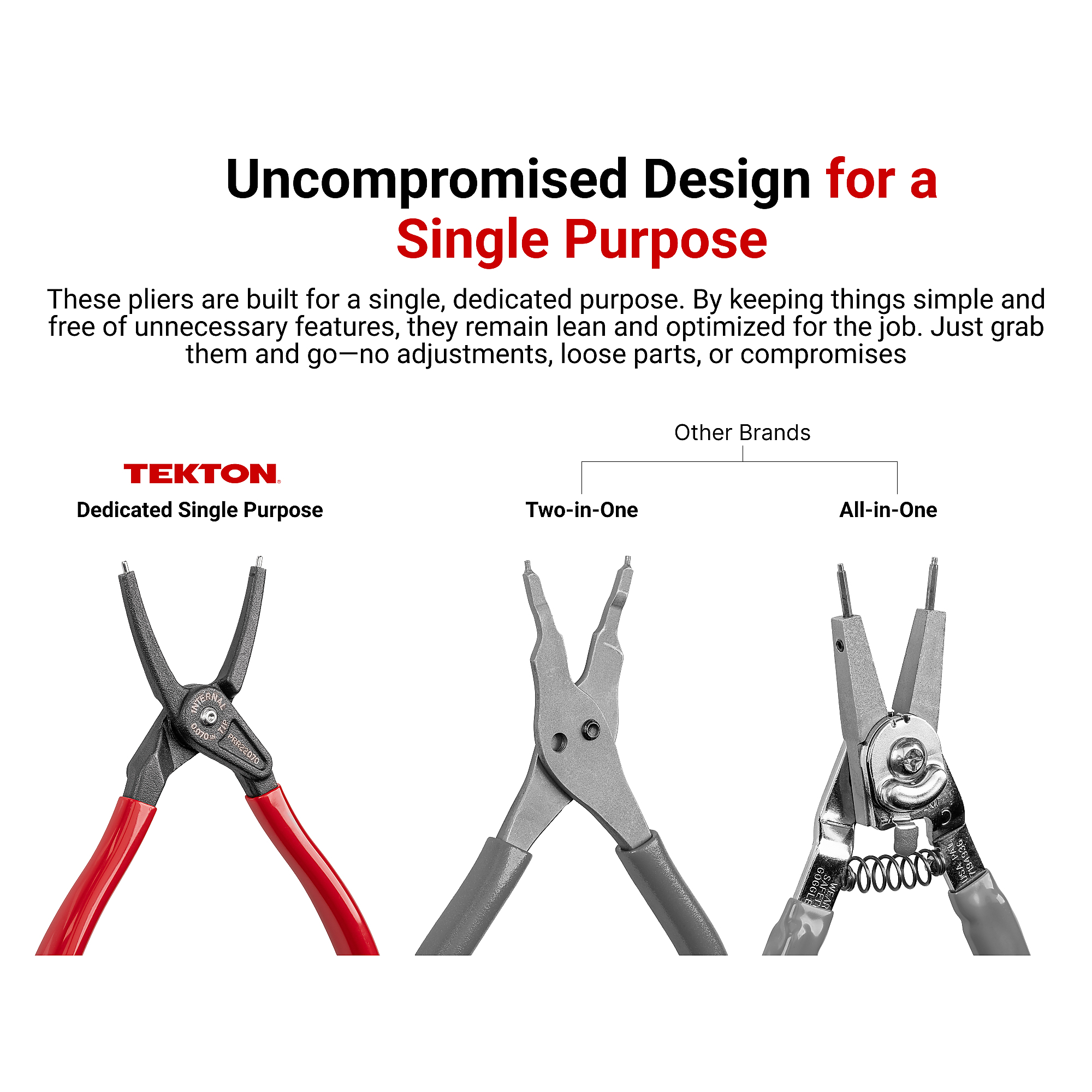

  • Uncompromised Design for a Single Purpose – By keeping things simple and free of unnecessary features, they remain lean and optimized for the job—no adjustments, loose parts, or compromises

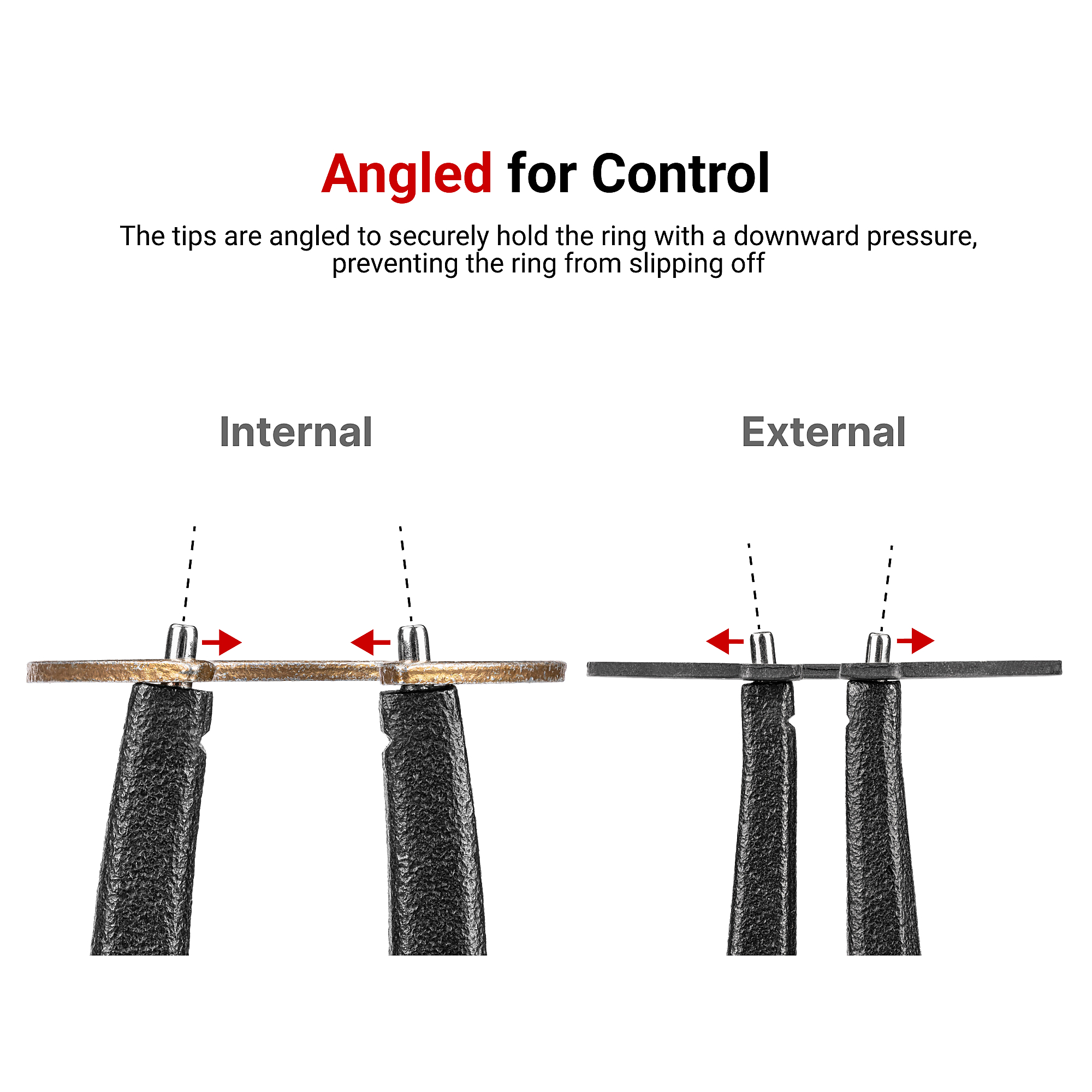

  • Secure Hold for Reduced Twisting – The combination of the outward angled tips and the flat surface at the base of the tips creates a very secure hold on the ring, which reduces twisting and the risk of slipping off

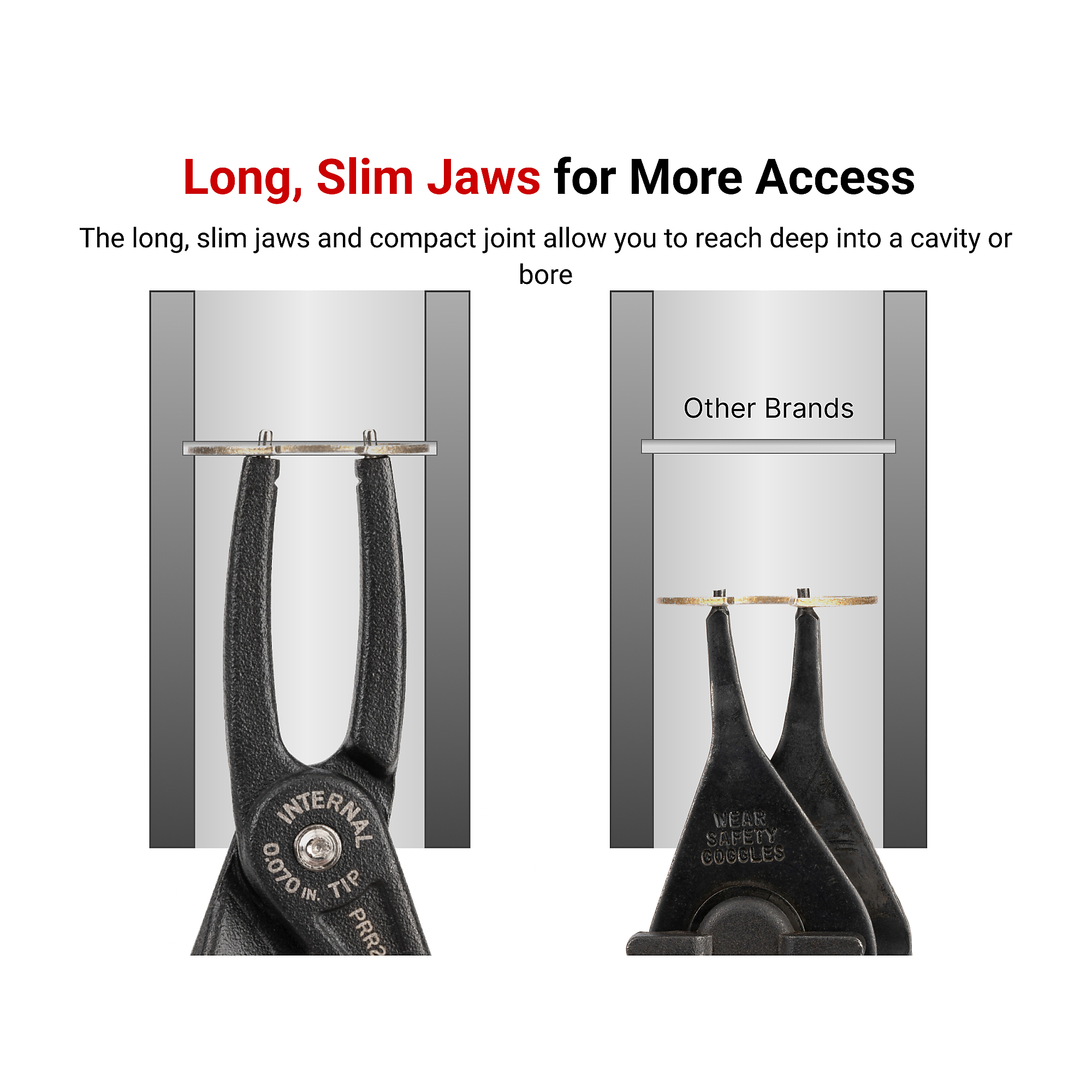

  • Long, Slim Jaws for More Access – The long, slim jaws and compact joint allow you to reach deep into a cavity or tight against a shaft
  • Spring-Loaded, Bolted Joint – The two forged handles are permanently bolted together and spring-loaded; the spring is oiled and housed inside the joint, keeping it hidden and protected while providing smooth, quiet operation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

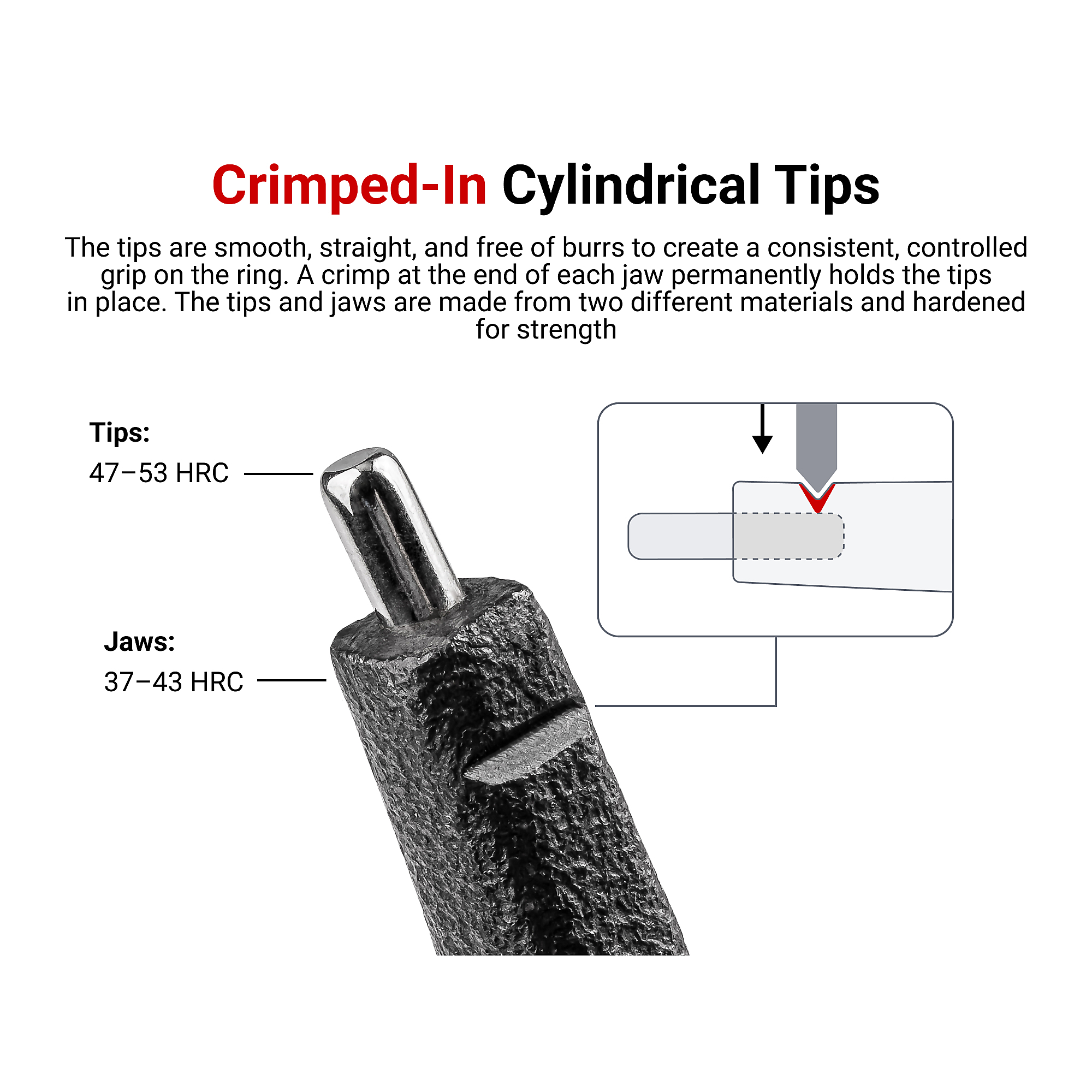

Tekton Retaining Ring Pliers are built for a single, dedicated purpose. By keeping things simple and free of unnecessary features, they remain lean and optimized for the job. Just grab them and go—no adjustments, loose parts, or compromises. The tips of the pliers are angled to securely hold the ring with a downward pressure, preventing the ring from slipping off. The tips are smooth, straight, and free of burrs to create a consistent, controlled grip on the ring. A crimp at the end of each jaw permanently holds the tips in place. The two forged handles are permanently bolted together and spring-loaded. The spring is oiled and housed inside the joint, keeping it hidden and protected while providing smooth, quiet operation. The joint is not adjustable or serviceable. The forged handles get wider in the center and are coated with vinyl grips to improve control and comfort. The tip size and function are clearly laser-marked on the pliers for quick reference. The tips are made of ASTM-E52100 bearing steel that's hardened to 47–53 HRC with nickel plating. The jaws are made of S45C steel that's hardened to 37–43 HRC with black oxide finish and a light coating of rust inhibitor. The pivot screw is made of AISI-1015 steel with nickel plating. It is not removable. The handle grips are made of single-layer vinyl, and the oiled internal spring is made of 1065 spring steel.

What's Included

    (2) Snap Ring Pliers

Features + Benefits

  • Refined Tips for Strength and Control – The tips are angled, hardened, and crimped-in to provide optimized strength and control
  • Uncompromised Design for a Single Purpose – By keeping things simple and free of unnecessary features, they remain lean and optimized for the job—no adjustments, loose parts, or compromises
  • Secure Hold for Reduced Twisting – The combination of the outward angled tips and the flat surface at the base of the tips creates a very secure hold on the ring, which reduces twisting and the risk of slipping off
  • Long, Slim Jaws for More Access – The long, slim jaws and compact joint allow you to reach deep into a cavity or tight against a shaft
  • Spring-Loaded, Bolted Joint – The two forged handles are permanently bolted together and spring-loaded; the spring is oiled and housed inside the joint, keeping it hidden and protected while providing smooth, quiet operation
  • 9 inch internal retaining ring pliers (0.090 in. tips)
  • 9 inch external retaining ring pliers (0.090 in. tips)

Key Specs

AttributeSpecification

item#

6656490

Brand

Tekton

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

1.35 LB

Material

Steel

Jaw Capacity

2.5 in
AttributeSpecification

Locking

No

Length

9.1 in

Jaw Type

Internal and External

Handle Type

Vinyl coated

Product Weight

1.3000 lb

Dimensions L x W x H (in.)

9.5 x 3.0 x 1.25 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited Warranty
