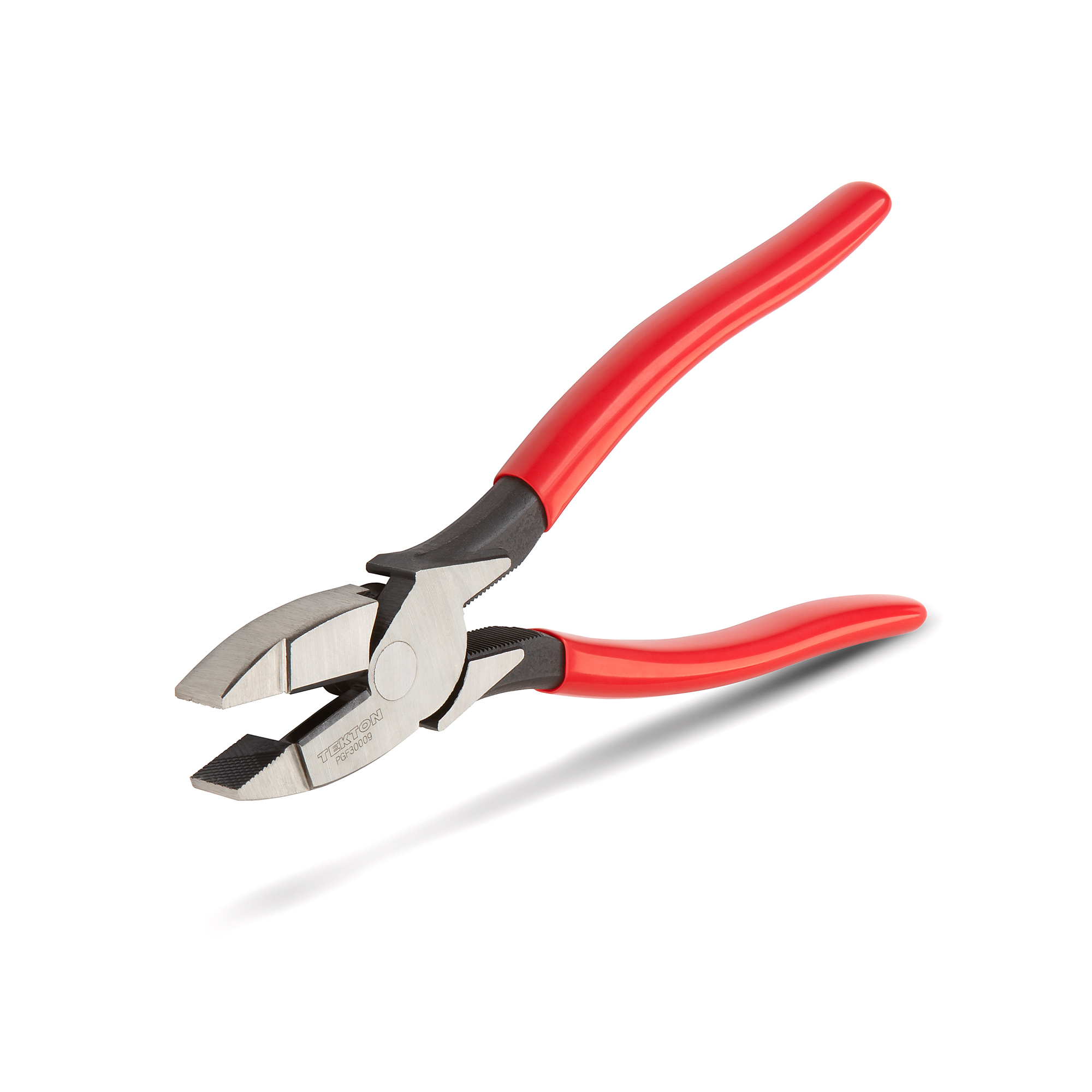

TEKTON 9-1/2 Inch Lineman's Pliers | PGF30009

Item# 6080603
1 Pieces
TEKTON 9-1/2 Inch Lineman's Pliers | PGF30009

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TEKTON 9-1/2 Inch Lineman's Pliers | PGF30009

Click or Tap image to Zoom

$29.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

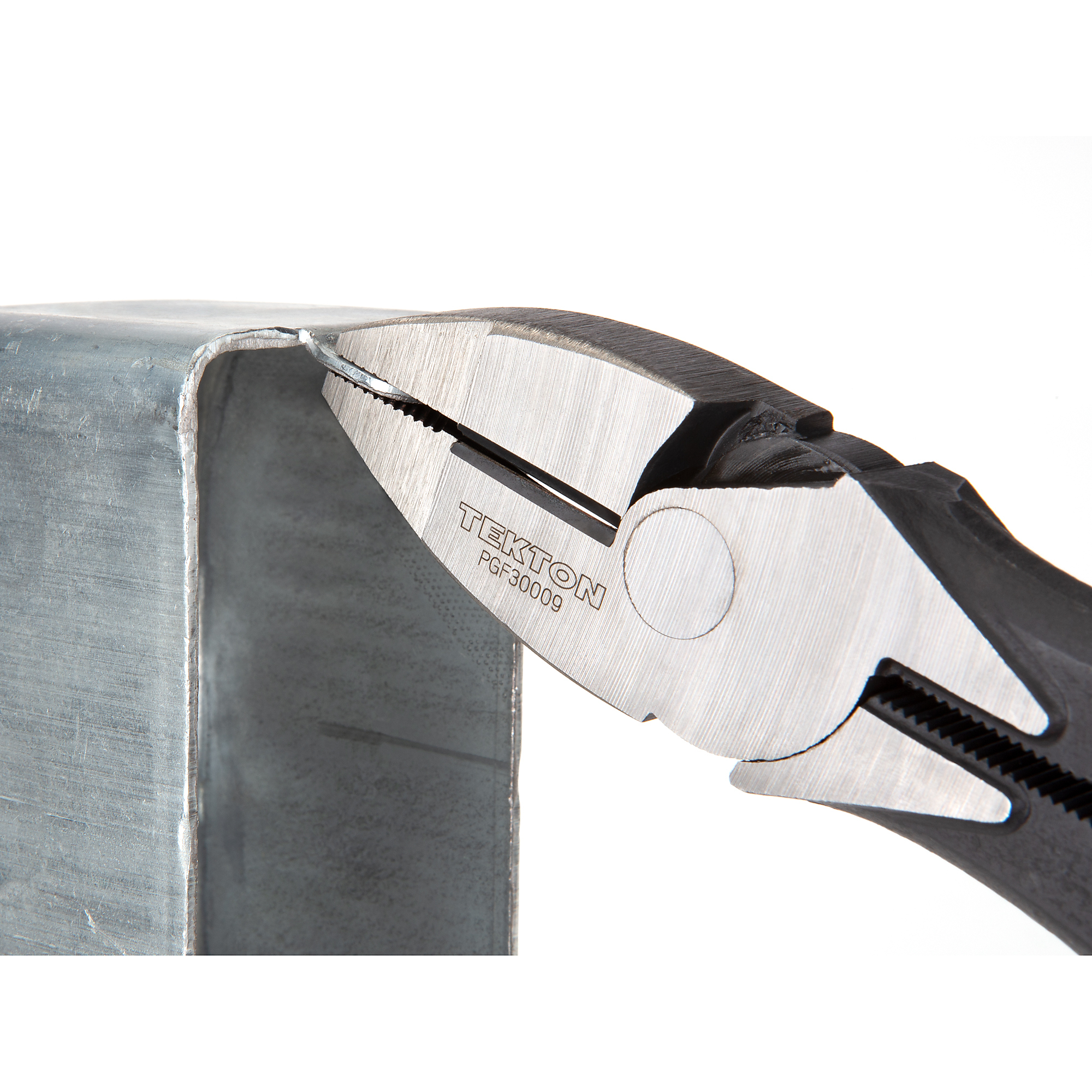

  • Broad, Flat Jaws – The jaws are nearly square with a straight, flat nose and can bend thin, flat pieces like metal tabs, mounting brackets, and cable clamps to a crisp right angle

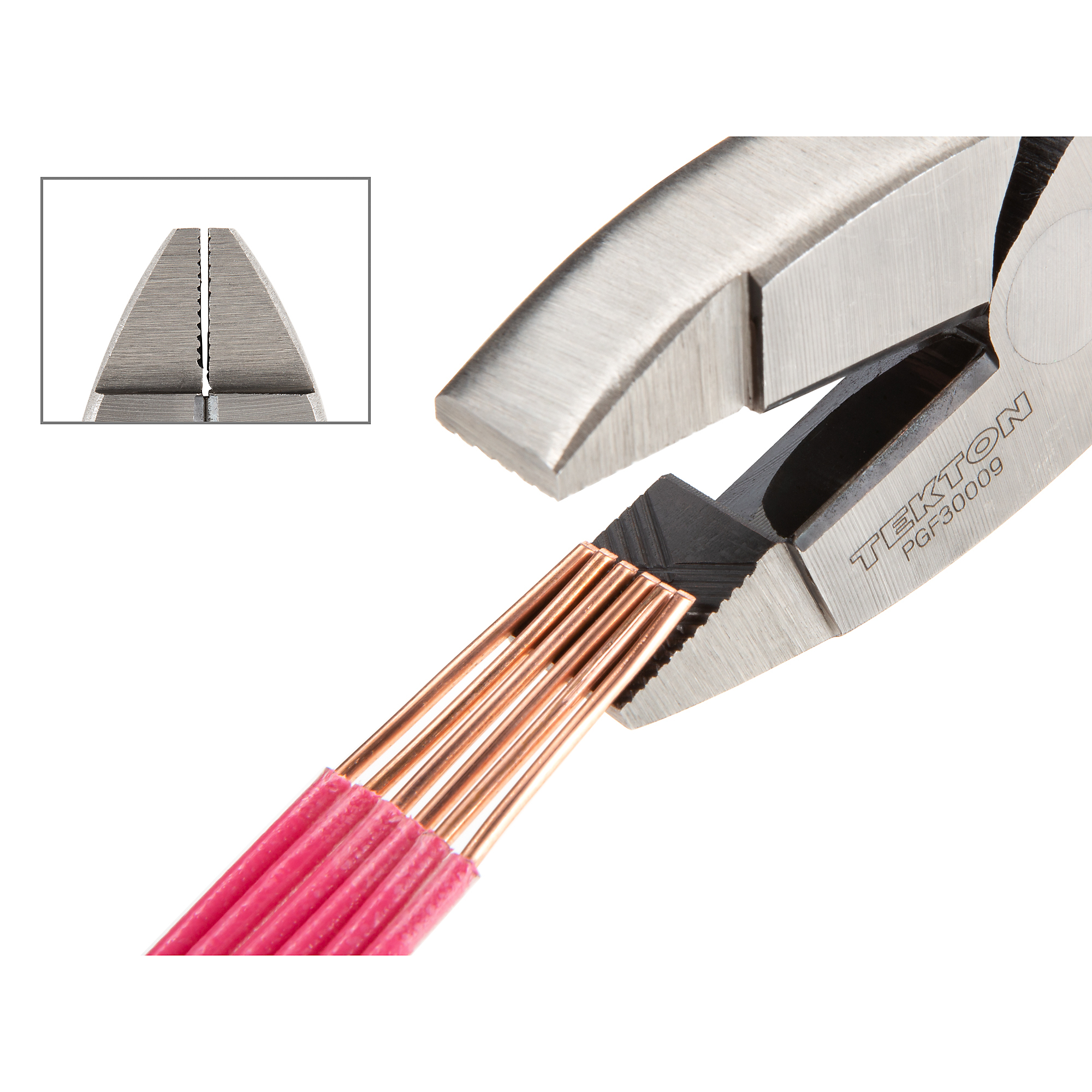

  • Gap Spacing Holds Wire Ends – A small gap (1 mm ±0.5 mm) allows the jaw faces to remain nearly parallel while holding the ends of multiple wires, keeping each wire flat and in position while twisting them together

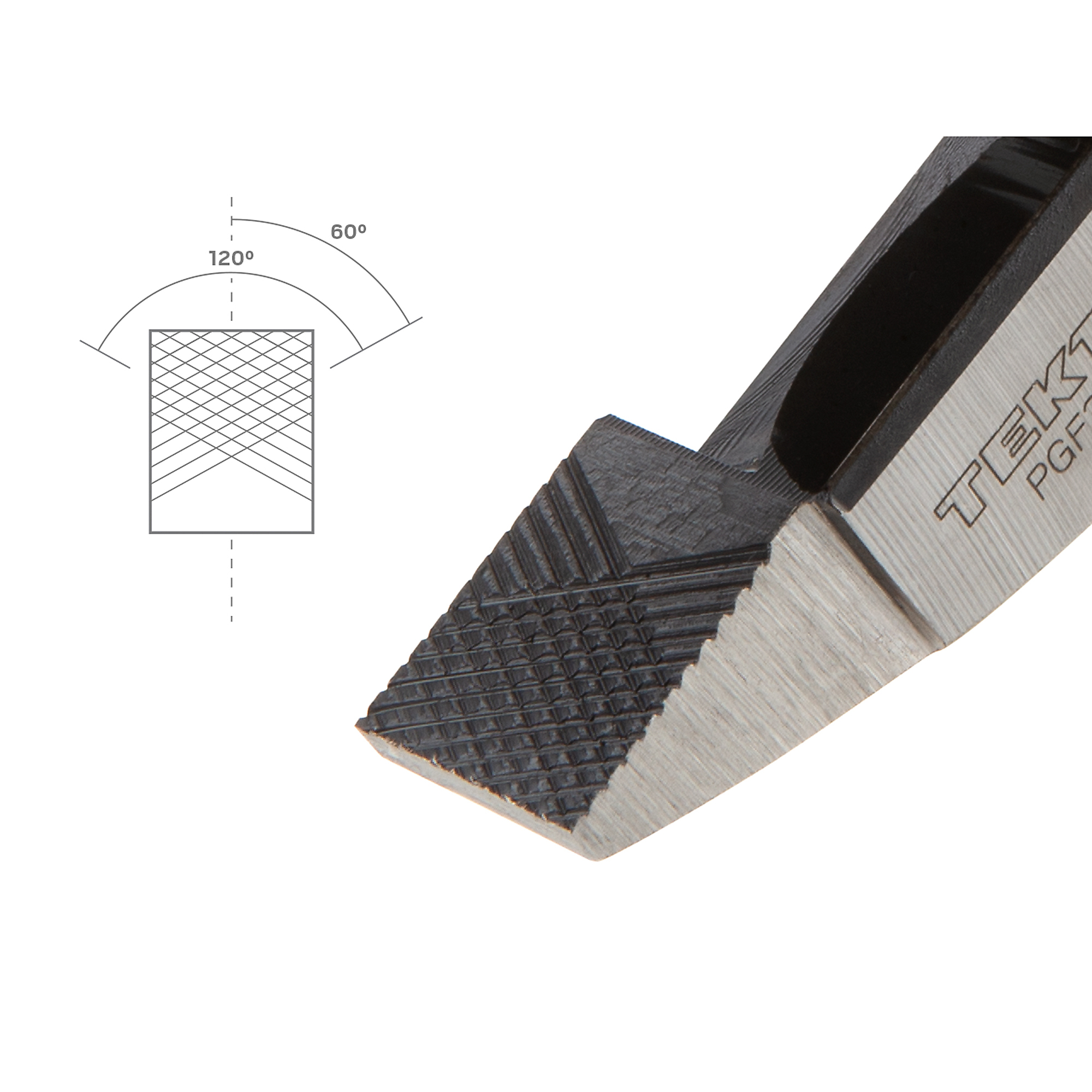

  • Crosscut Teeth – Oriented at 120 degrees to each other, the serrations are cut into two passes to form regularly-spaced, diamond-shaped teeth
  • High-Leverage Lower Jaws – Because they are located below the pivot and a little closer to the fulcrum, the lower jaws can exert about 30% more force than the main jaws, useful for crushing functions like closing wire clamps and crimping connectors
  • Knife-to-Knife Cutting Jaws – The blades are comprised of two opposing blades that meet in the center, resulting in an extremely reliable cutting method, especially for harder wires

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Tekton 9-1/2in. Lineman's Pliers have broad, flat jaws that can bend thin, flat pieces like metal tabs, mounting brackets, and cable clamps to a crisp right angle. A small gap (1 mm ±0.5 mm) allows the jaw faces to remain nearly parallel while holding the ends of multiple wires, keeping each wire flat and in position while twisting them together. Oriented at 120 degrees to each other, the serrations are cut in two passes to form regularly-spaced, diamond-shaped teeth. Unlike straight serrations where the grip strength varies relative to tooth direction, a crosscut pattern grips evenly in any direction. Because they are located below the pivot and a little closer to the fulcrum, the lower jaws can exert about 30% more force than the main jaws, useful for crushing functions like closing wire clamps and crimping connectors. Machining the blades to a 65-degree angle allows them to be strong yet sharp, producing a smooth, clean cut with minimal effort. They are comprised of two opposing blades that meet in the center, resulting in an extremely reliable cutting method, especially for harder wires. The blades are hardened to 58 - 64 HRC. The handles have an extra-wide, gently rounded profile that creates a large, smooth contact surface. This spreads out the pressure against your hand so you can comfortably squeeze as hard as needed. Slim single-layer vinyl grips offer a smooth, nonslip surface that is easy to clean.

What's Included

    (1) Pliers

Downloads

Additional Product Info

Features + Benefits

  • Broad, Flat Jaws – The jaws are nearly square with a straight, flat nose and can bend thin, flat pieces like metal tabs, mounting brackets, and cable clamps to a crisp right angle
  • Gap Spacing Holds Wire Ends – A small gap (1 mm ±0.5 mm) allows the jaw faces to remain nearly parallel while holding the ends of multiple wires, keeping each wire flat and in position while twisting them together
  • Crosscut Teeth – Oriented at 120 degrees to each other, the serrations are cut into two passes to form regularly-spaced, diamond-shaped teeth
  • High-Leverage Lower Jaws – Because they are located below the pivot and a little closer to the fulcrum, the lower jaws can exert about 30% more force than the main jaws, useful for crushing functions like closing wire clamps and crimping connectors
  • Knife-to-Knife Cutting Jaws – The blades are comprised of two opposing blades that meet in the center, resulting in an extremely reliable cutting method, especially for harder wires
  • Cutting Capacity for Low Carbon Steel Wire: 5 AWG, Cutting Capacity for Copper Wire: 4 AWG
  • Wide, gently rounded handle profile with slim, nonslip grips lets you comfortably squeeze as hard as needed

Key Specs

AttributeSpecification

item#

6080603

Brand

Tekton

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

1.3 LB

Pieces (qty.)

1

Material

Steel
AttributeSpecification

Jaw Capacity

1.25 in

Locking

No

Length

9.5 in

Product Weight

1.1200 lb

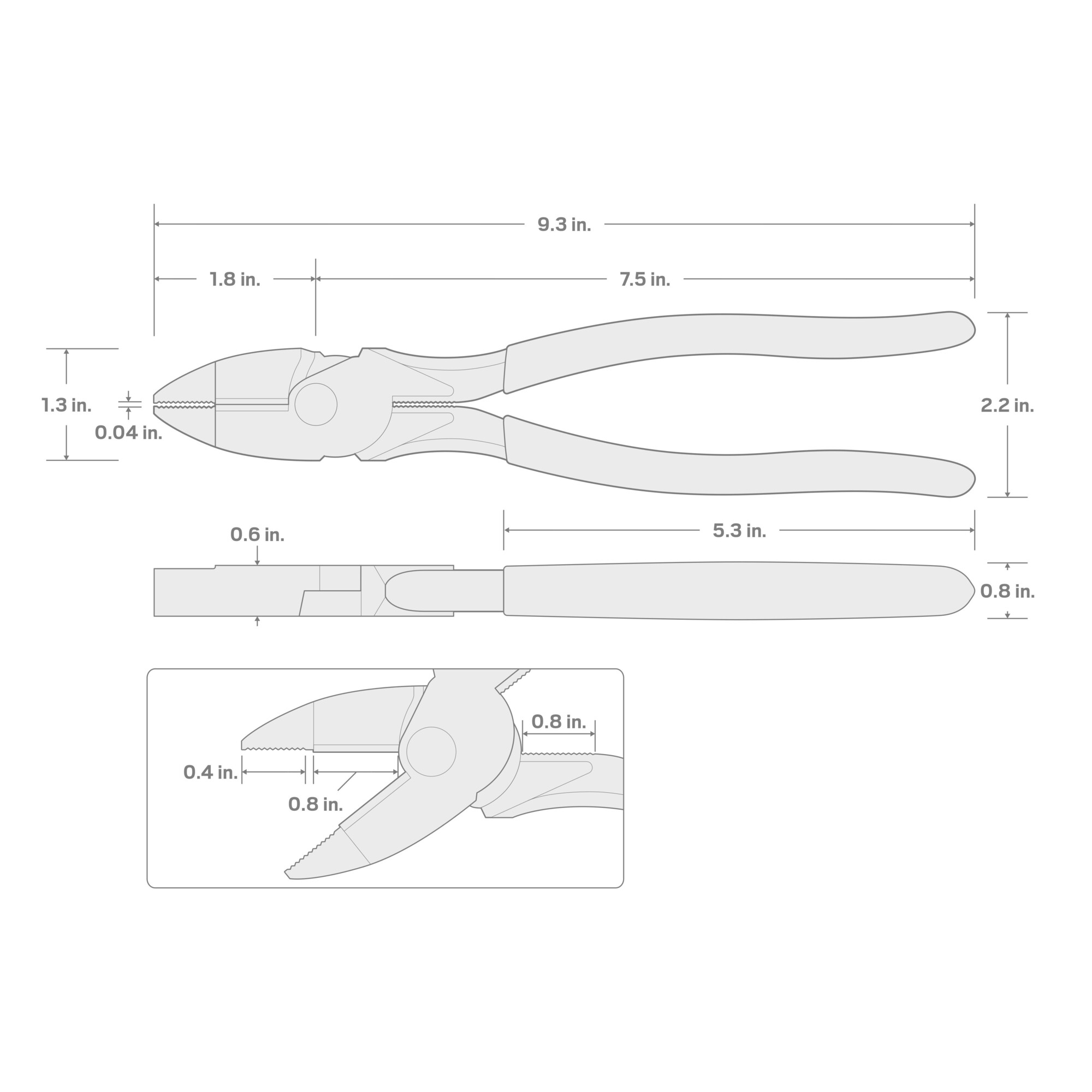

Dimensions L x W x H (in.)

9.3 x 2.2 x 0.8 in
