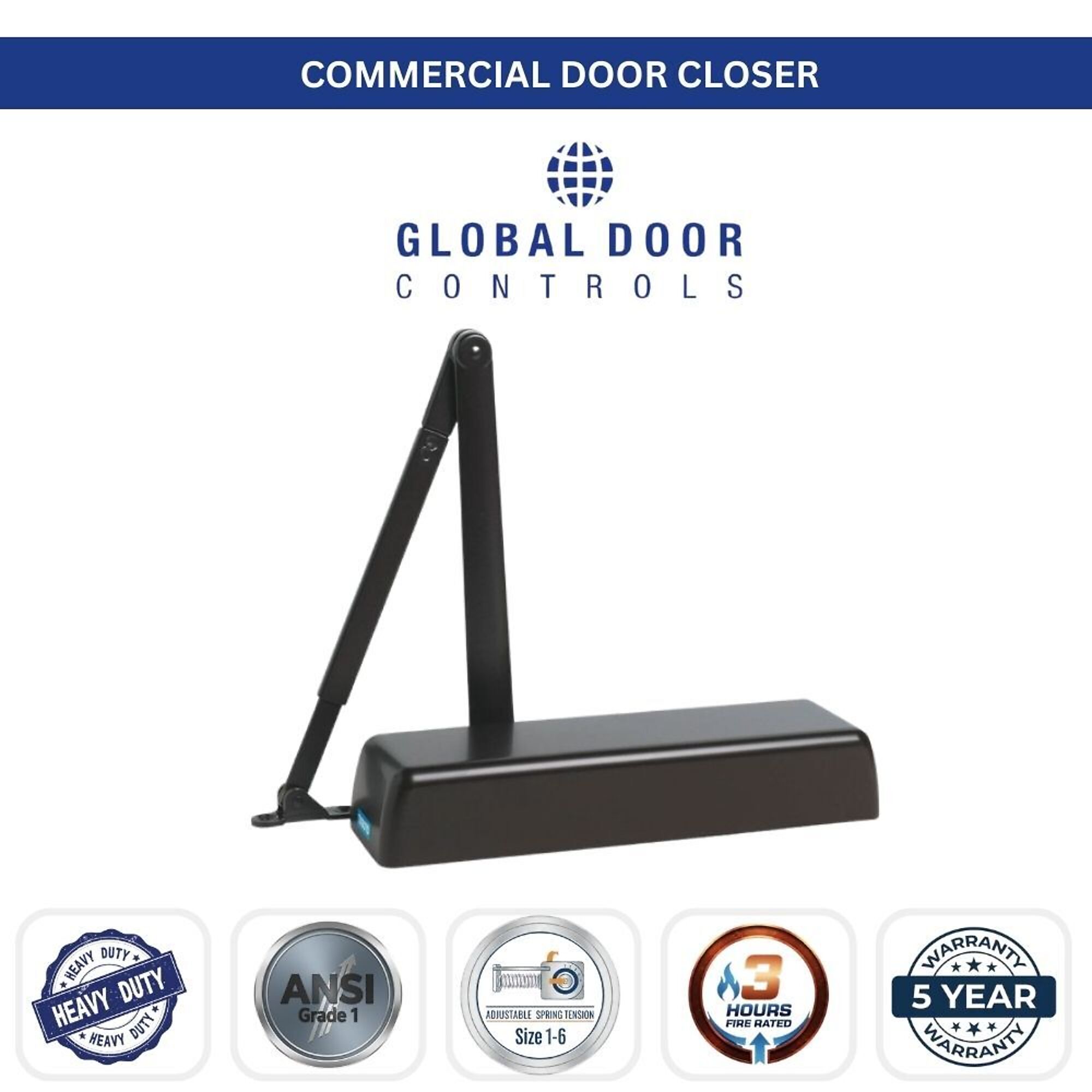

Global Door Controls Heavy Duty Commercial Grade 1 Door Closer — Duronodic, Sizes 1–6, Model# 83664

Item# 83664
Global Door Controls Heavy Duty Commercial Grade 1 Door Closer — Duronodic, Sizes 1–6, Model# 83664

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls Heavy Duty Commercial Grade 1 Door Closer — Duronodic, Sizes 1–6, Model# 83664

Click or Tap image to Zoom

$161.42

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy-duty cast iron construction
  • Independent latch, sweep and back-check
  • Meets the performance standards of Grade 1 and ANSI A156.2
  • Recommended for institutional and other high traffic demanding applications
  • Made from cast iron body with hardened steel rack & pinion

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Global Door Controls TC4300 series is our heaviest duty closer. It has a wide choice of options and installation accessories to accommodate the requirements specified in any industrial or institutional application. This model comes tri-packed standard and can be ordered with different arm styles for maximum versatility. In addition, these are fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

What's Included

    (1) Door Closer

Downloads

Product Manual

Features + Benefits

  • Heavy-duty cast iron construction
  • Independent latch, sweep and back-check
  • Meets the performance standards of Grade 1 and ANSI A156.2
  • Recommended for institutional and other high traffic demanding applications
  • Made from cast iron body with hardened steel rack & pinion
  • Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door

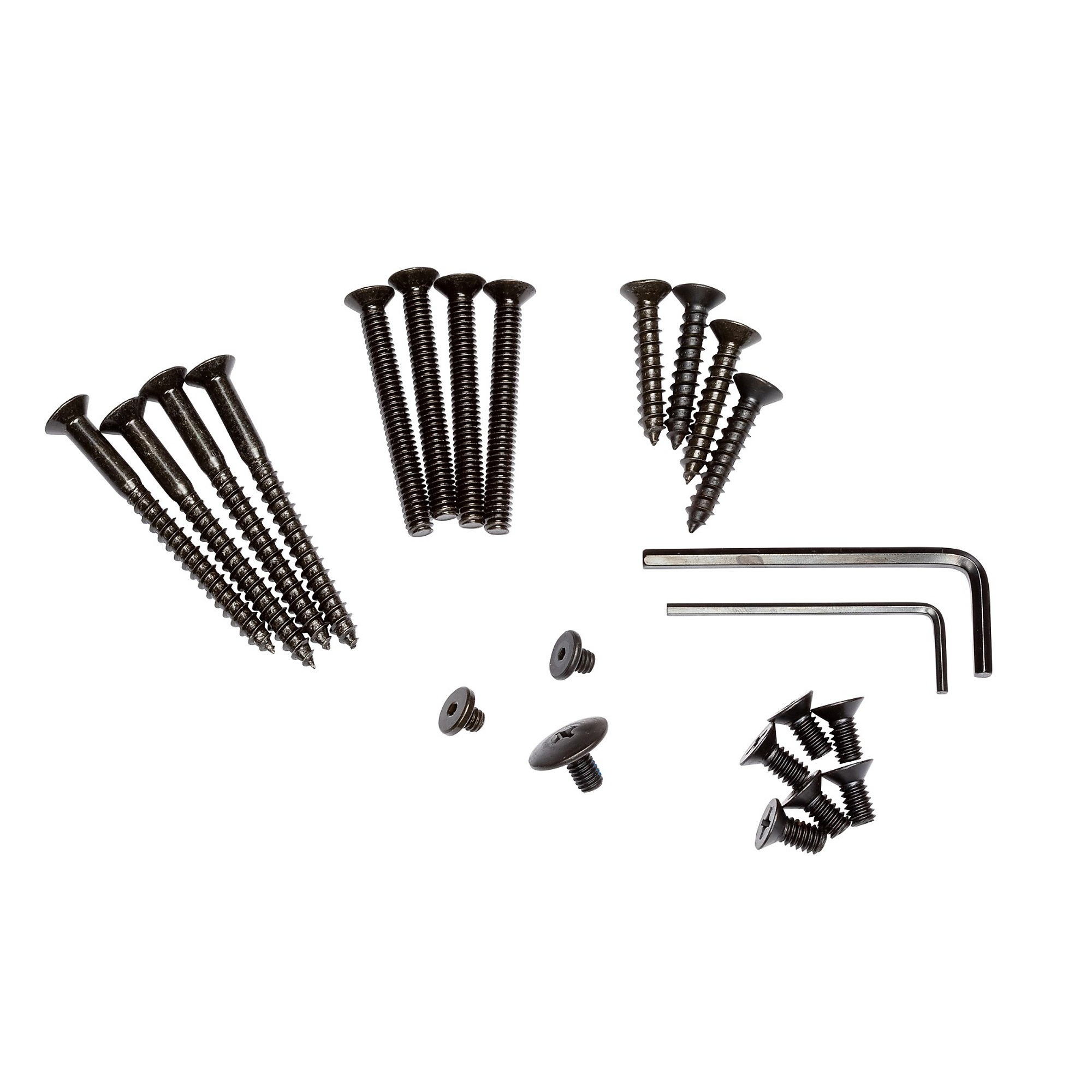

  • Supplied with both wood and machine screws

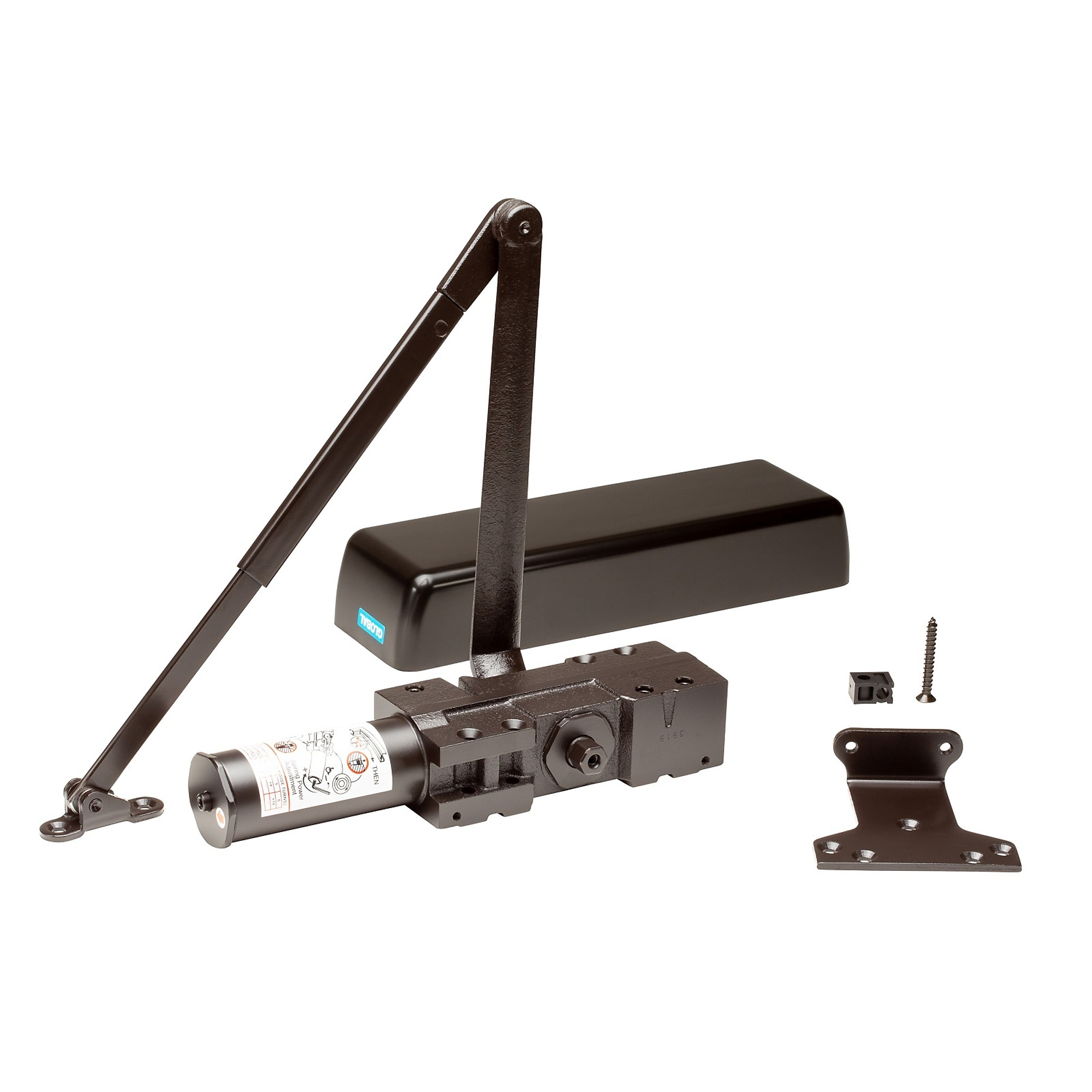

  • Tri-packed - regular pull side, top jamb, parallel arm
  • Includes independent latch, sweep and backcheck
  • 5-year mechanical warranty
  • Duronodic finish
  • UL listed R13255
  • ADA compliant
  • Length of closer body: 11 in.
  • Horizontal mounting holes: 5 in.
  • Vertical mounting holes: 1 in.
  • Width of closer body: 2-3/4 in.
  • Projection from door: 2 in.

Key Specs

AttributeSpecification

item#

83664

Brand

Global Door Controls

Manufacturer's Warranty

5 year limited warranty

Ship Weight

9.1 LB

Size

Adjustable

Load Capacity

300 lb

Closer Type

Non-Hold Open
AttributeSpecification

Product Type

Door Closer

Material

Cast Iron

Finish

Other

Mounting Type

Flat Surface

Hand Orientation

Non Handed

Product Weight

9.1000 lb

Dimensions L x W x H (in.)

13.0 x 13.0 x 4.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. What color is the door closer? Does it have all the brackets for using it on both sides of the door?

    1 answer

    1. The color of the door closer is a deep bronze. It can be mounted to either side of a door.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
