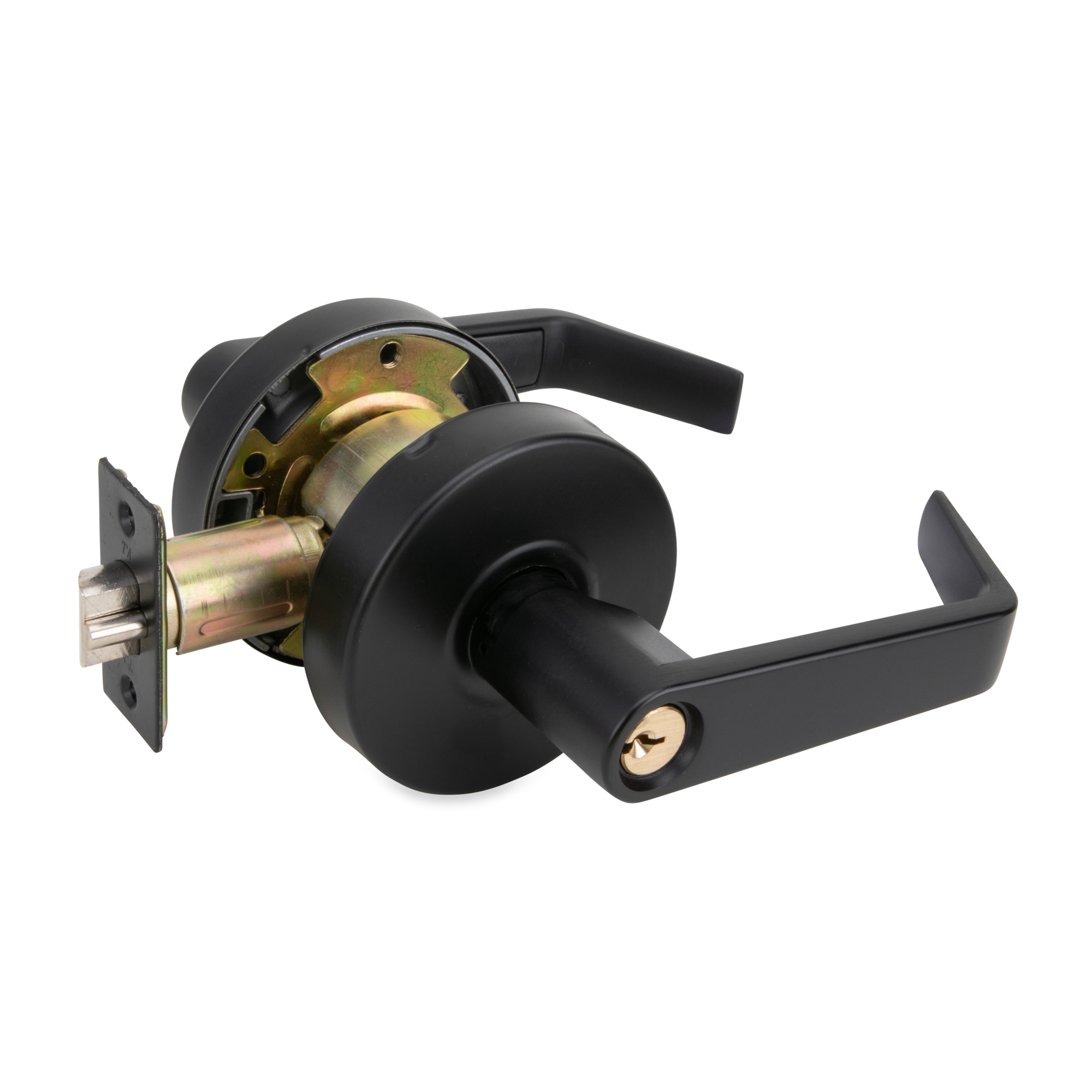

Trans Atlantic Saturn Standard Duty Classroom Door Handle with Lock — Matte Black, Grade 2, ADA Compliant, Model# DL-LSV70-US10B

Item# 5692886
Trans Atlantic Saturn Standard Duty Classroom Door Handle with Lock — Matte Black, Grade 2, ADA Compliant, Model# DL-LSV70-US10B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trans Atlantic Saturn Standard Duty Classroom Door Handle with Lock — Matte Black, Grade 2, ADA Compliant, Model# DL-LSV70-US10B

Click or Tap image to Zoom

$83.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Keyed locking lever with locking function disabled on the inside
  • ANSI A156.2 Grade 2 Certified
  • Fits doors with 1-3/4" to 1-5/8" thickness
  • Removable Thru-Bolts to prevent lock rotation
  • Non-handed/reversible (fits both right and left-handed doors)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Trans-Atlantic LSV Saturn cylindrical classroom leverset comes in a matte black finish and includes an ANSI strike. This classroom door handle has a cylinder on the outside of the door so teachers cannot be locked out from the inside of the classroom. From the inside, the door is always unlocked so students can't get locked in. This leverset is ADA compliant and exceeds ANSI standards for Grade 2 making it the perfect fit for commercial, standard duty applications.

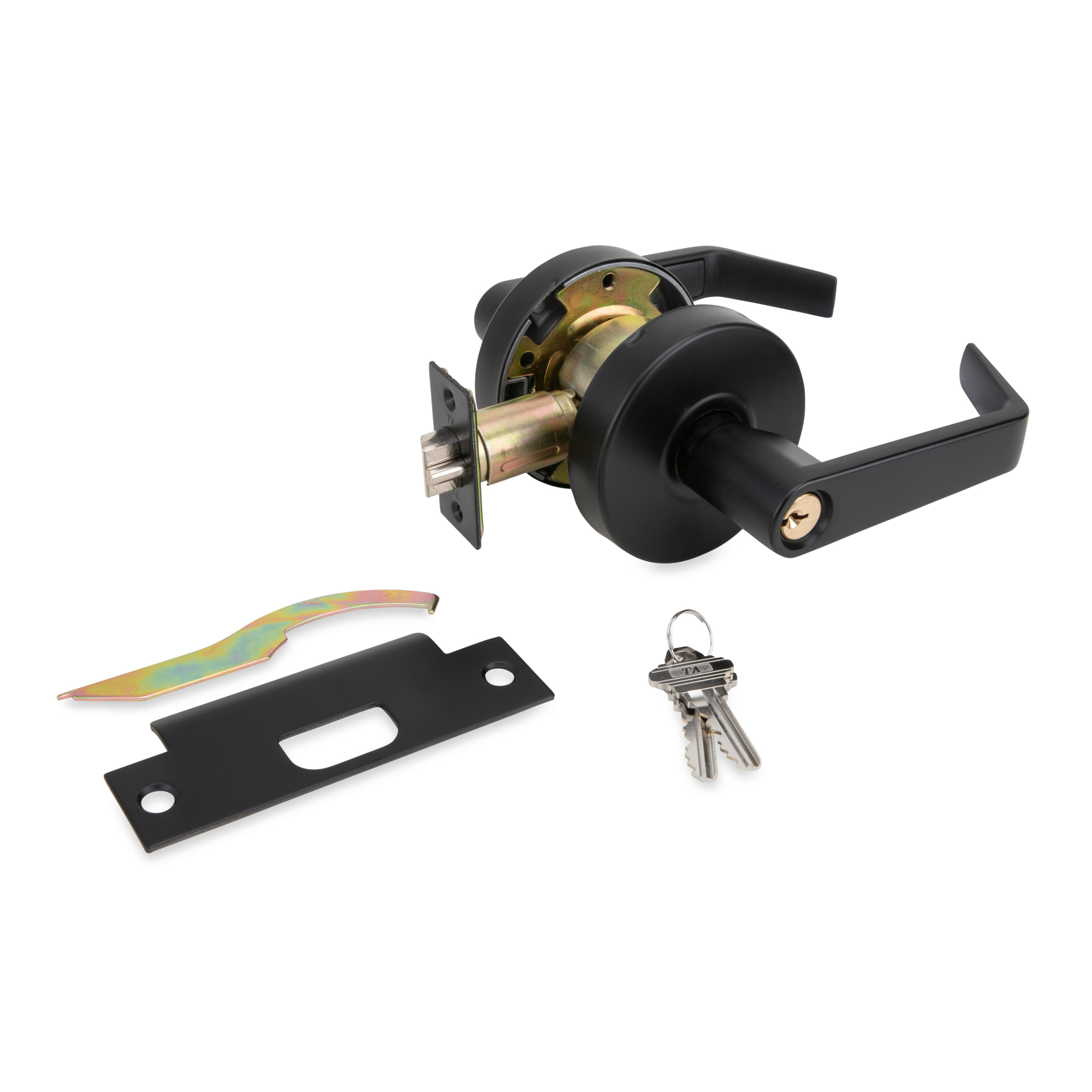

What's Included

    (1) Locksets

Features + Benefits

  • Keyed locking lever with locking function disabled on the inside
  • ANSI A156.2 Grade 2 Certified
  • Fits doors with 1-3/4" to 1-5/8" thickness
  • Removable Thru-Bolts to prevent lock rotation
  • Non-handed/reversible (fits both right and left-handed doors)
  • Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.
  • Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
  • Schlage "C" keyway, includes two 6 pin keys
  • Latch: 1/2 in. projection Stainless Steel
  • Bore: 2-1/8 in. hole retrofits all cylindrical locksets
  • Fits 161 prep doors
  • Individual spring on each side prevents lever sag
  • ADA compliant
  • UL Listed R14879
  • 1 year mechanical and finish warranty
  • Easy installation with hardware included

Key Specs

AttributeSpecification

item#

5692886

Brand

Trans Atlantic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.2 LB

Product Type

Leverset

Material

Steel
AttributeSpecification

Color

Black

Security/ANSI Grade

2

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

20.0 x 20.0 x 9.0 in

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

20.0 x 20.0 x 9.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
