Trans Atlantic LSV Saturn Double Cylinder Door Handle with Lock — Brushed Chrome, ADA Compliant, Grade 2, Model# DL-LSV60-US26D

Item# 5692860
Trans Atlantic LSV Saturn Double Cylinder Door Handle with Lock — Brushed Chrome, ADA Compliant, Grade 2, Model# DL-LSV60-US26D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trans Atlantic LSV Saturn Double Cylinder Door Handle with Lock — Brushed Chrome, ADA Compliant, Grade 2, Model# DL-LSV60-US26D

Click or Tap image to Zoom

$89.29

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Keyed lever locks and unlocks from both sides
  • ANSI A156.2 Grade 2 Certified
  • Fits doors with 1-3/4" to 1-5/8" thickness
  • Removable Thru-Bolts to prevent lock rotation
  • Non-handed/reversible (fits both right and left-handed doors)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

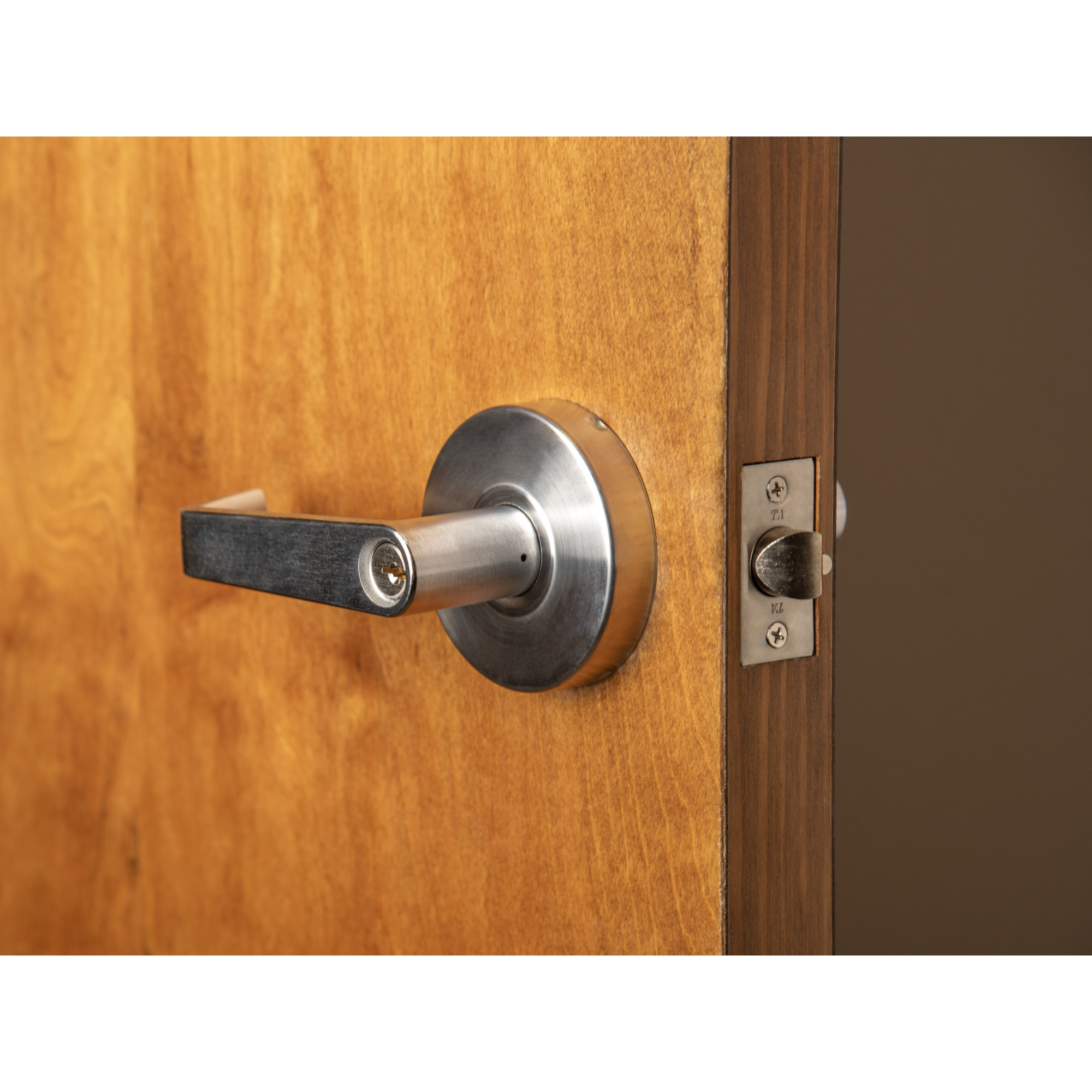

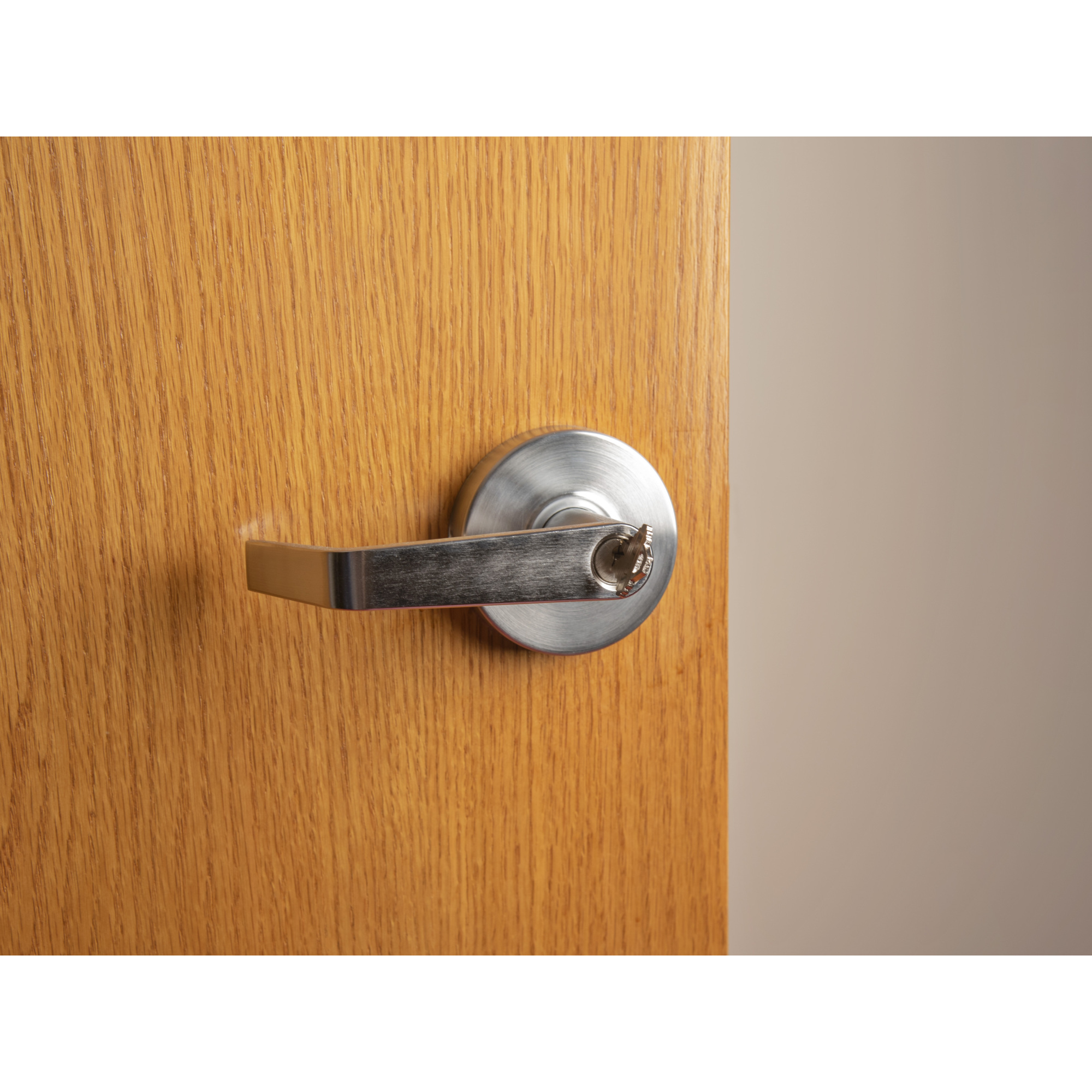

Trans-Atlantic LSV Saturn double cylinder leverset comes in a brushed chrome finish and includes an ANSI strike. This double cylinder door lever can lock or unlock from both sides. The sides are independent of each other. This leverset is ADA compliant and exceeds ANSI standards for Grade 2 making it the perfect fit for commercial, standard duty applications.

What's Included

    (1) Locksets

Features + Benefits

  • Keyed lever locks and unlocks from both sides
  • ANSI A156.2 Grade 2 Certified
  • Fits doors with 1-3/4" to 1-5/8" thickness
  • Removable Thru-Bolts to prevent lock rotation
  • Non-handed/reversible (fits both right and left-handed doors)
  • Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.

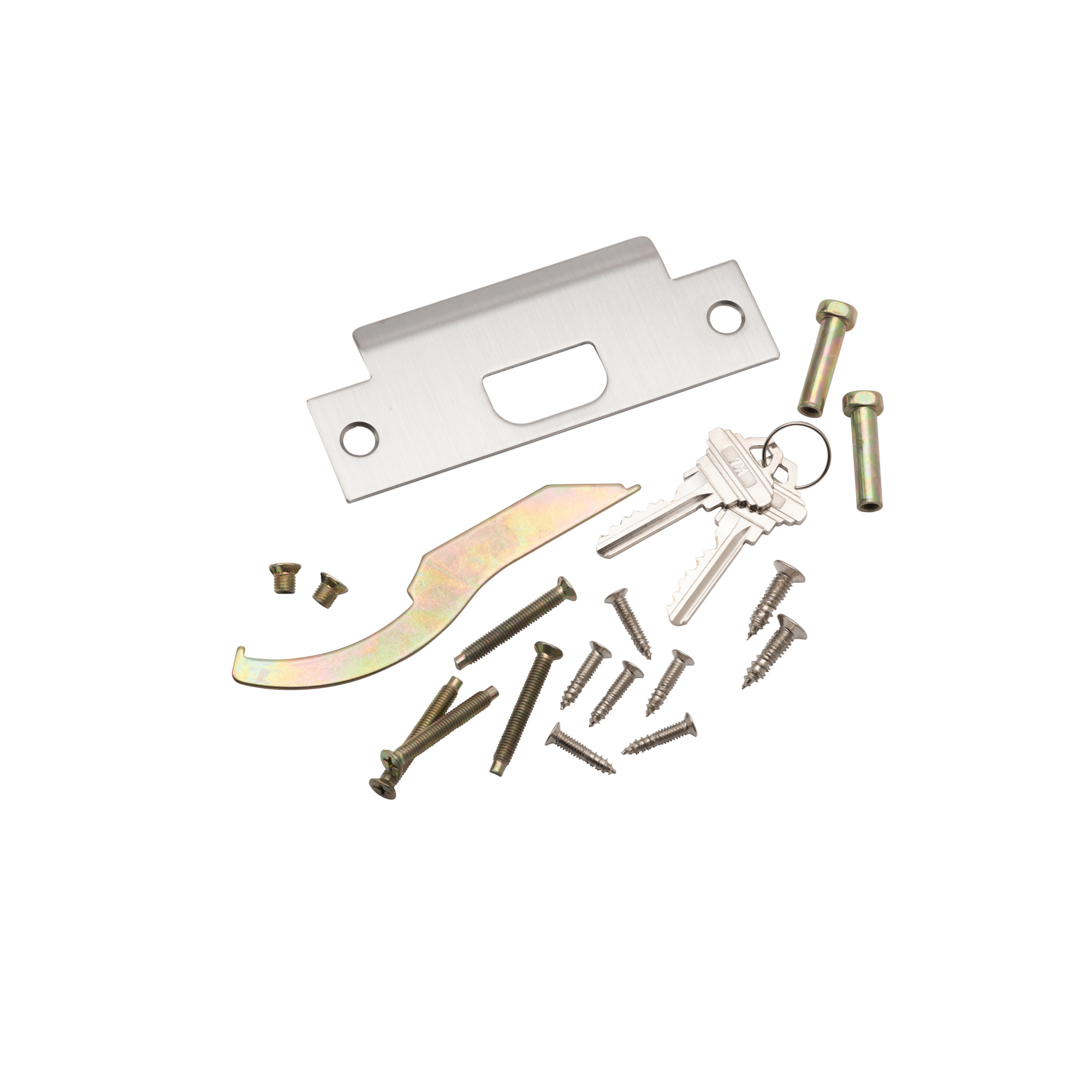

  • Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
  • Schlage "C" keyway, includes two 6 pin keys

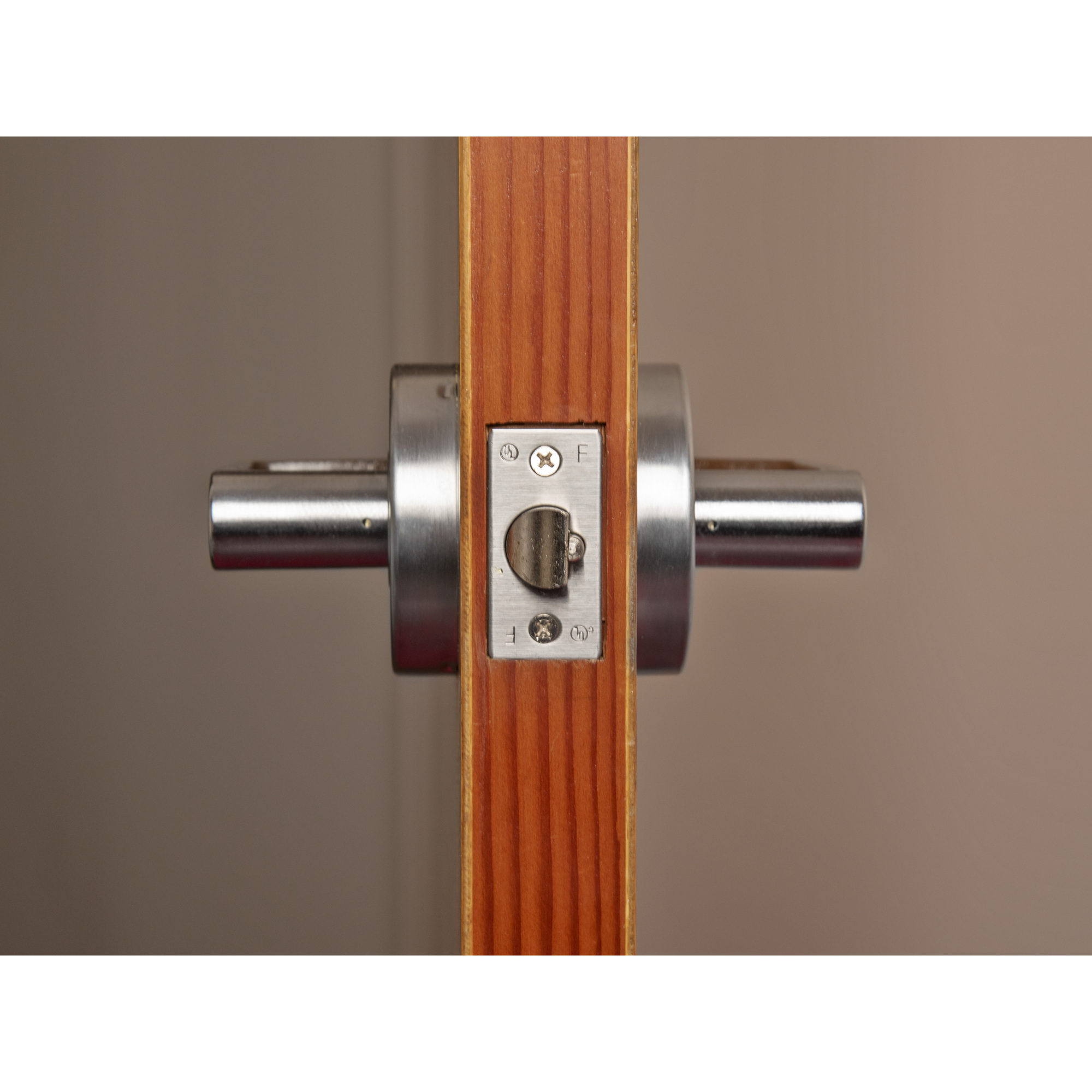

  • Latch: 1/2 in. projection Stainless Steel
  • Bore: 2-1/8 in. hole retrofits all cylindrical locksets
  • Fits 161 prep doors
  • Individual spring on each side prevents lever sag
  • ADA compliant
  • UL Listed R14879
  • 1 year mechanical and finish warranty
  • Easy installation with hardware included

Key Specs

AttributeSpecification

item#

5692860

Brand

Trans Atlantic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.2 LB

Product Type

Leverset

Material

Steel
AttributeSpecification

Color

Silver

Security/ANSI Grade

2

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

20.0 x 20.0 x 9.0 in

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

20.0 x 20.0 x 9.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
