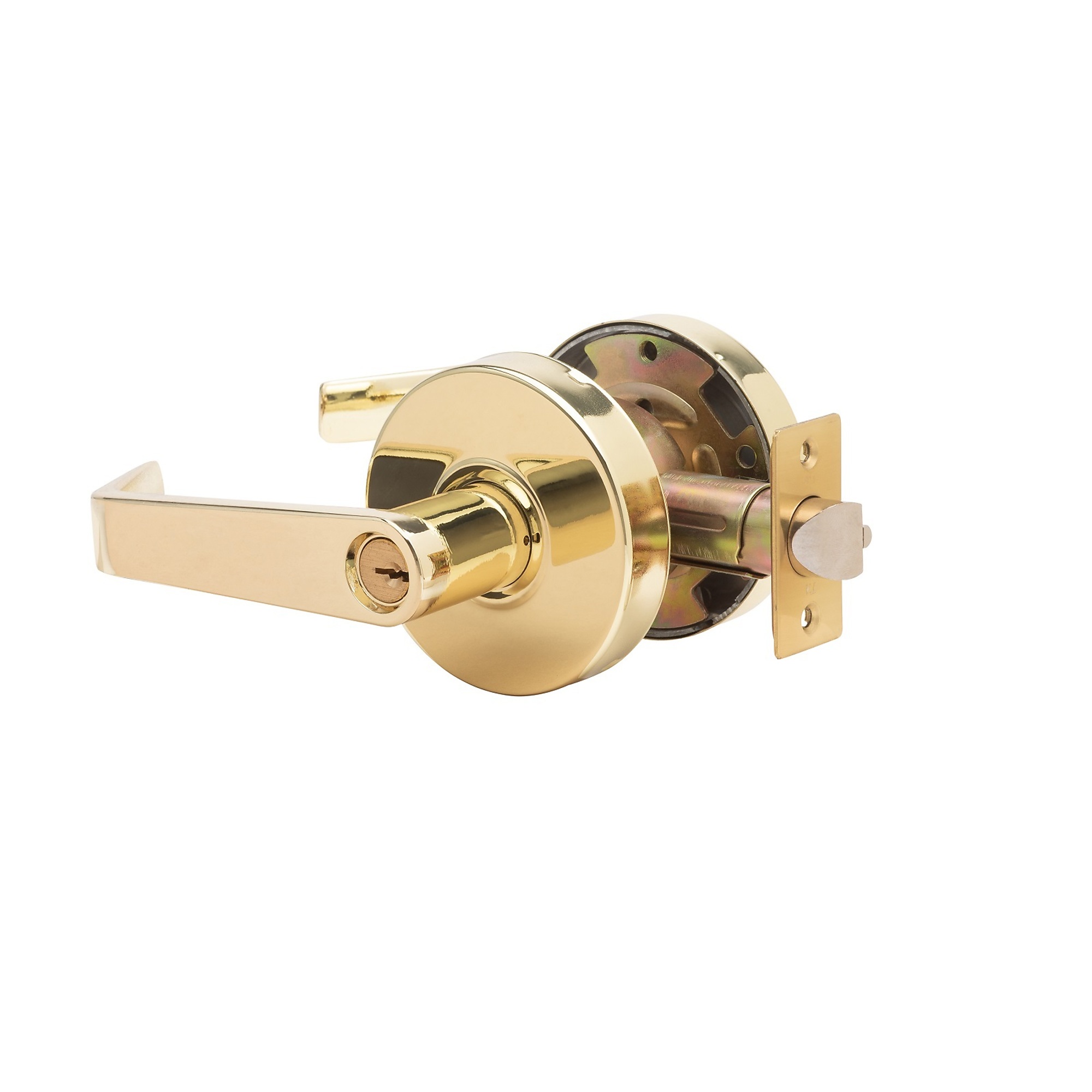

Trans Atlantic Saturn Cylindrical Entry Door Handle with Lock — Bright Brass, Grade 2, ADA Compliant, Model# DL-LSV53-US3

Item# 5693512
Trans Atlantic Saturn Cylindrical Entry Door Handle with Lock — Bright Brass, Grade 2, ADA Compliant, Model# DL-LSV53-US3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trans Atlantic Saturn Cylindrical Entry Door Handle with Lock — Bright Brass, Grade 2, ADA Compliant, Model# DL-LSV53-US3

Click or Tap image to Zoom

$55.83

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Keyed entry lever best used for security on exterior doors
  • ANSI A156.2 Grade 2 Certified
  • Fits doors with 1-3/4" to 1-5/8" thickness
  • Removable Thru-Bolts to prevent lock rotation
  • Non-handed/reversible (fits both right and left-handed doors)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

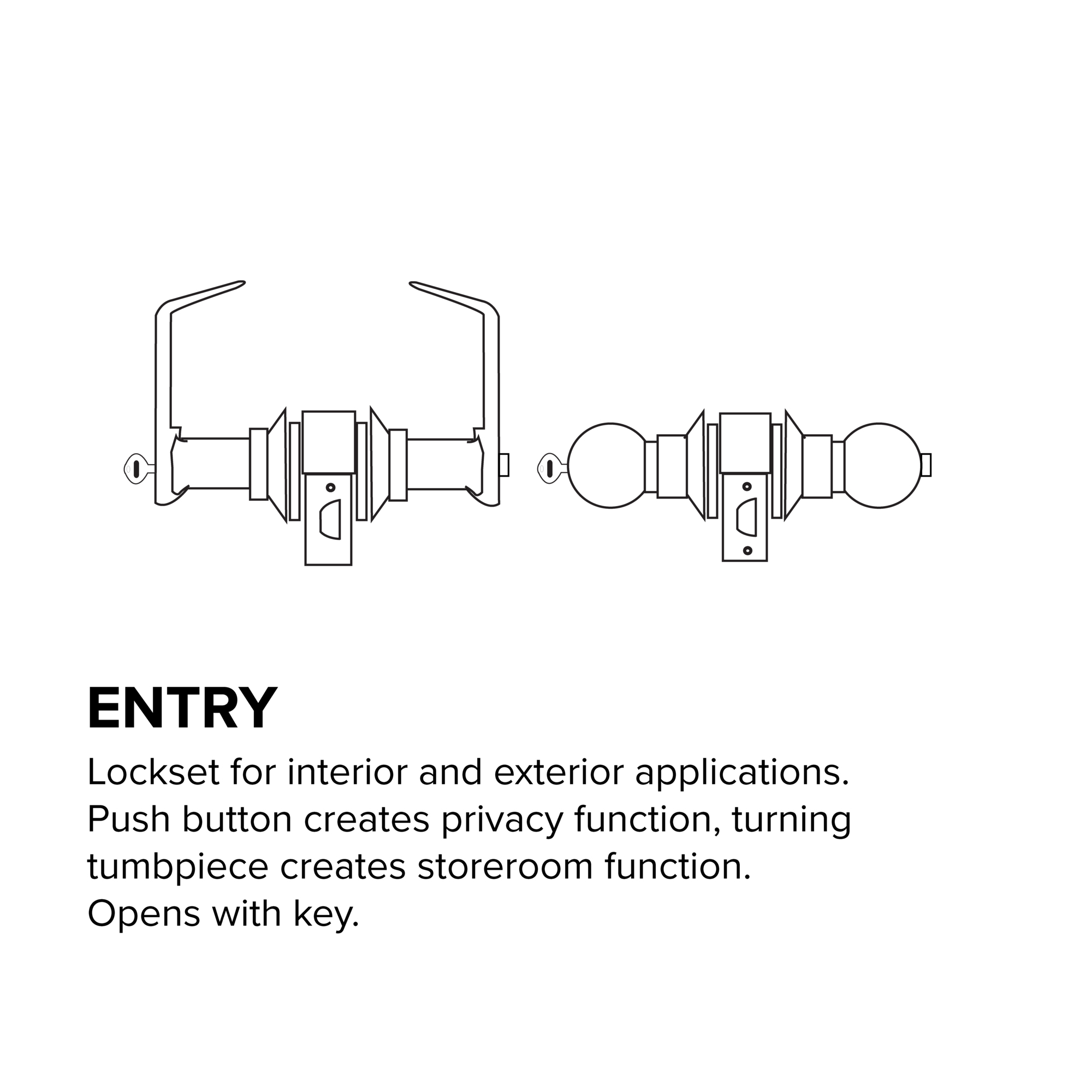

Trans-Atlantic LSV Saturn cylindrical entry leverset comes in a bright brass finish and includes an ANSI strike. This entry door handle has a push button on the interior and a key for the exterior side of the lever, allowing you to leave quickly and re-enter easily. This leverset is ADA compliant and exceeds ANSI standards for Grade 2 making it the perfect fit for commercial, standard duty applications.

What's Included

    (1) Locksets

Features + Benefits

  • Keyed entry lever best used for security on exterior doors
  • ANSI A156.2 Grade 2 Certified
  • Fits doors with 1-3/4" to 1-5/8" thickness
  • Removable Thru-Bolts to prevent lock rotation
  • Non-handed/reversible (fits both right and left-handed doors)

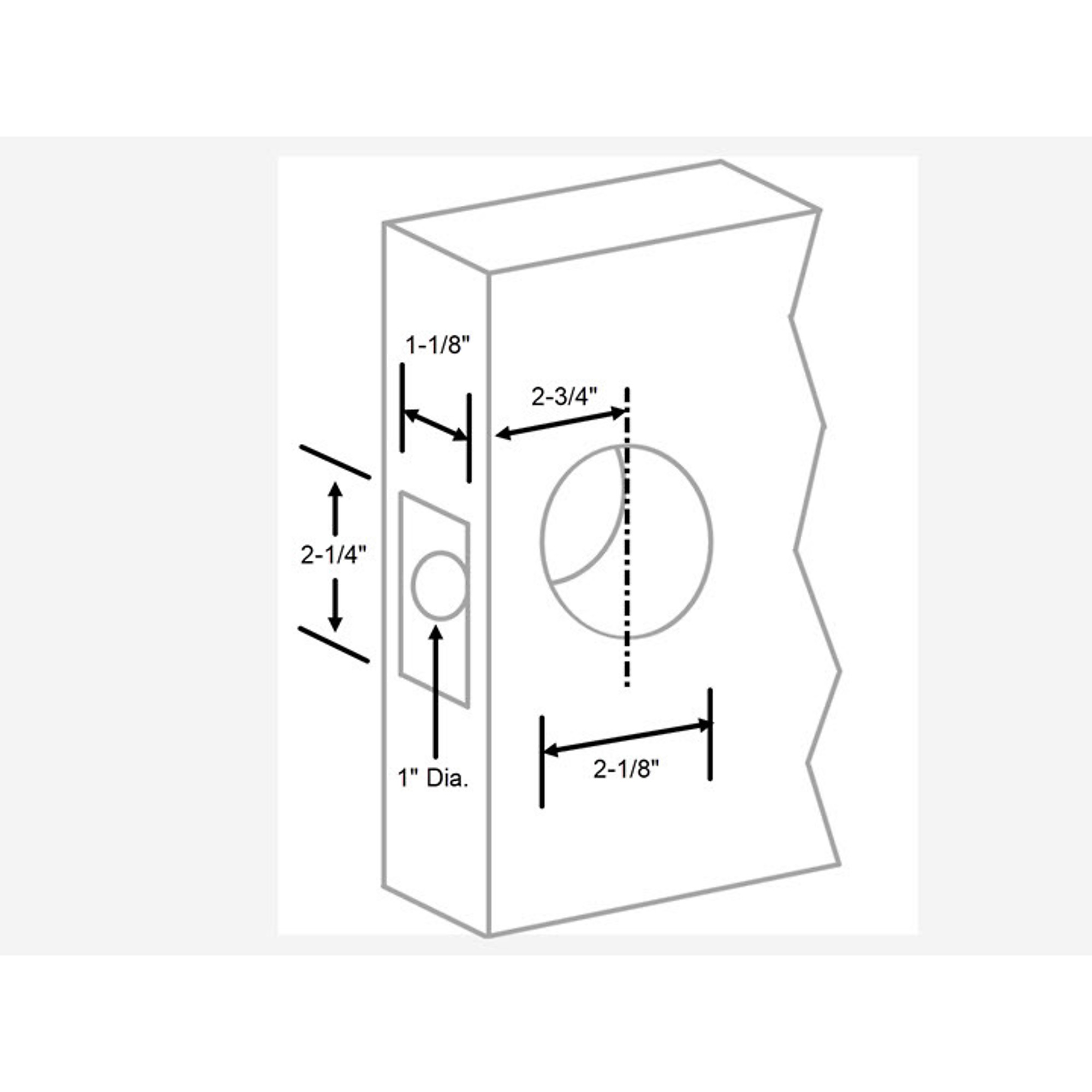

  • Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.

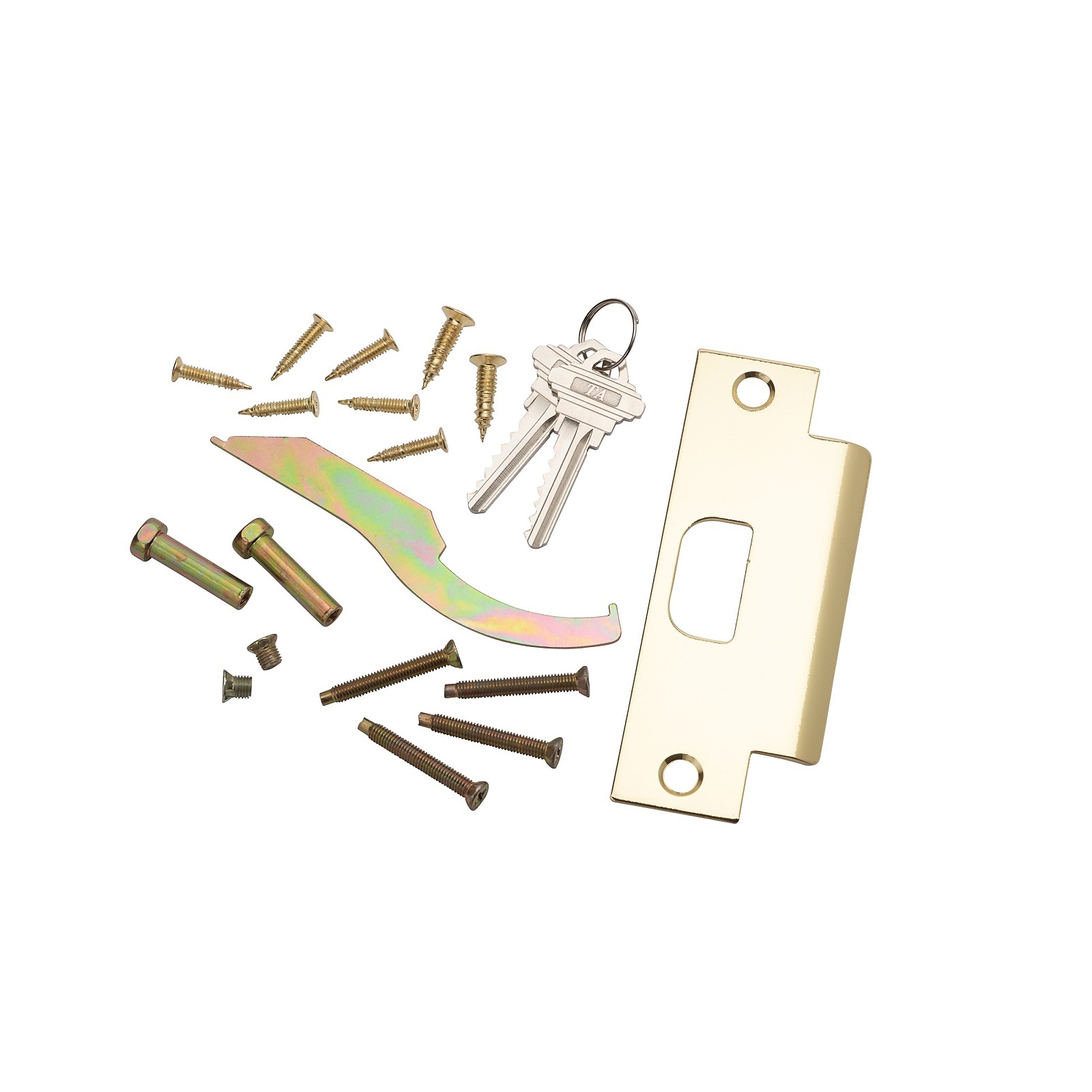

  • Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
  • Schlage "C" keyway, includes two 6 pin keys
  • Latch: 1/2 in. projection Stainless Steel
  • Bore: 2-1/8 in. hole retrofits all cylindrical locksets
  • Fits 161 prep doors
  • Individual spring on each side prevents lever sag
  • ADA compliant
  • UL Listed R14879
  • 1 year mechanical and finish warranty
  • Easy installation with hardware included

Key Specs

AttributeSpecification

item#

5693512

Brand

Trans Atlantic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.2 LB

Product Type

Leverset

Material

Steel
AttributeSpecification

Color

Gold

Security/ANSI Grade

2

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

20.0 x 20.0 x 9.0 in

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

20.0 x 20.0 x 9.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
