Trans Atlantic Global Door Controls Eiffel Commercial Entry Door Handle — Brushed Chrome, Grade 2, Cylindrical, ADA Compliant, Model# GAL-1151L-R-626

Item# 84563
1 of 1 reviewers received a sample product or took part in a promotion
Trans Atlantic Global Door Controls Eiffel Commercial Entry Door Handle — Brushed Chrome, Grade 2, Cylindrical, ADA Compliant, Model# GAL-1151L-R-626

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trans Atlantic Global Door Controls Eiffel Commercial Entry Door Handle — Brushed Chrome, Grade 2, Cylindrical, ADA Compliant, Model# GAL-1151L-R-626

Click or Tap image to Zoom

$55.91

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Keyed entry lever best used for security on exterior doors
  • ANSI A156.2 Grade 2 Certified
  • Freewheeling clutch lever mechanism for added safety
  • Fits doors with 1-3/8 to 1-5/8 in. thickness
  • Removable Thru-Bolts to prevent lock rotation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

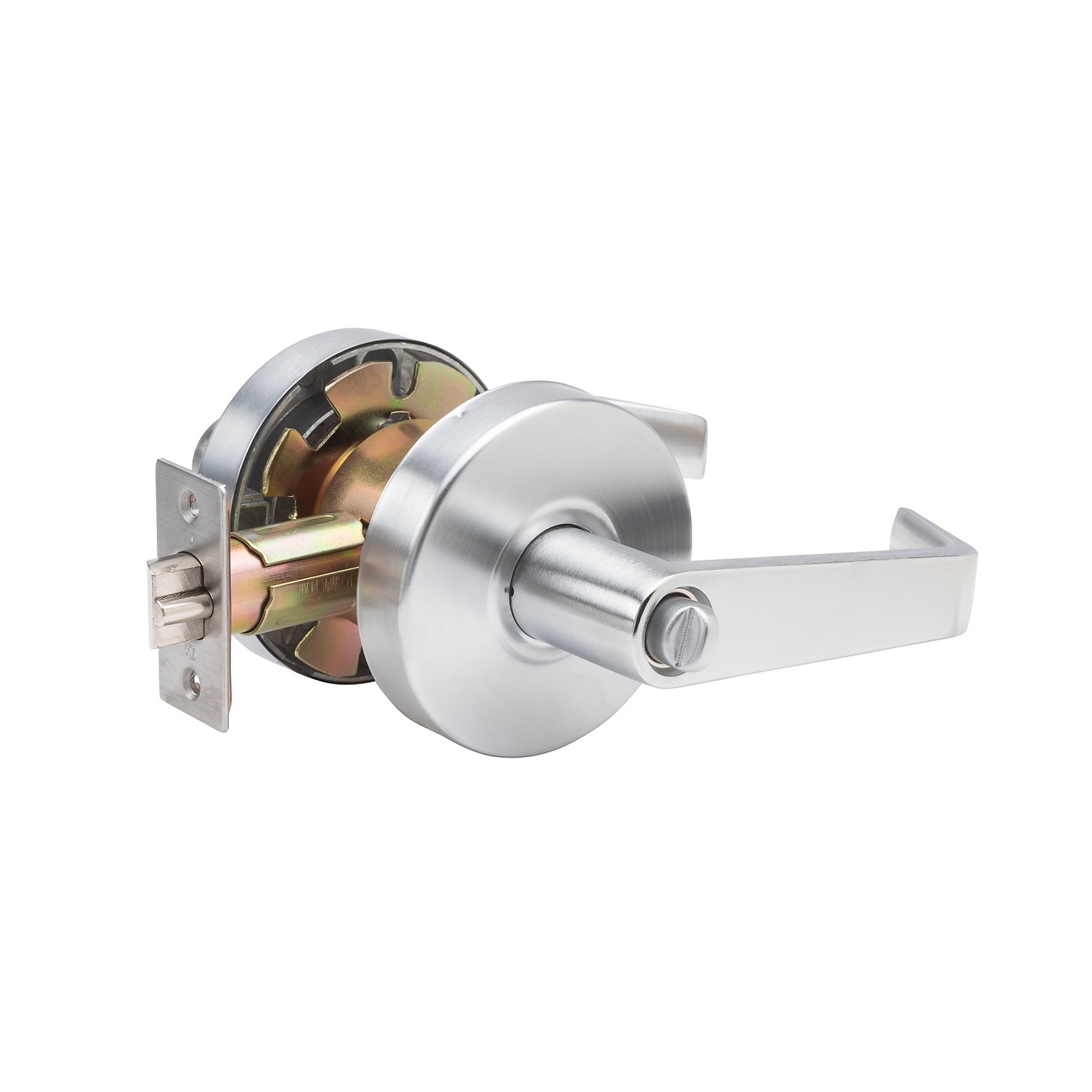

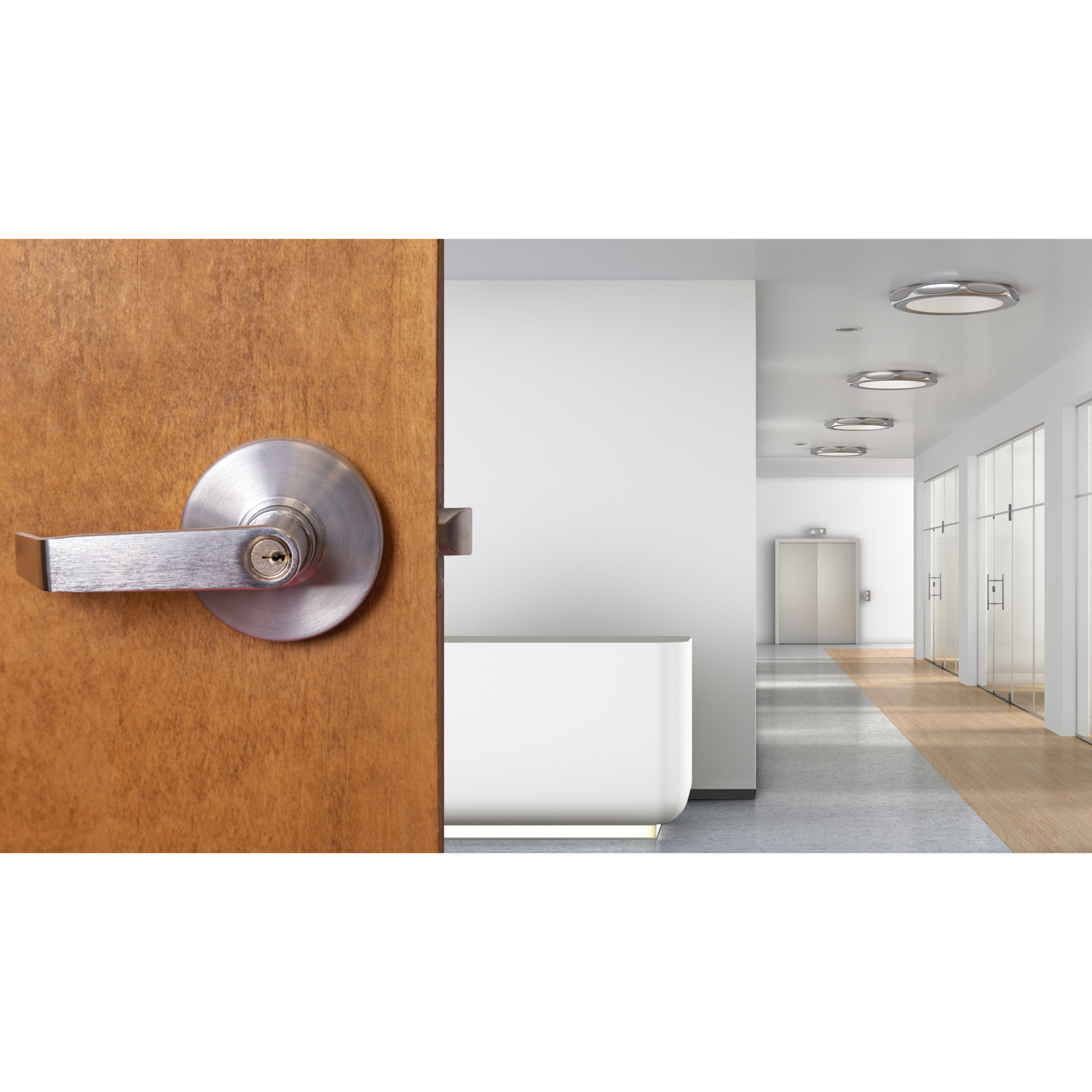

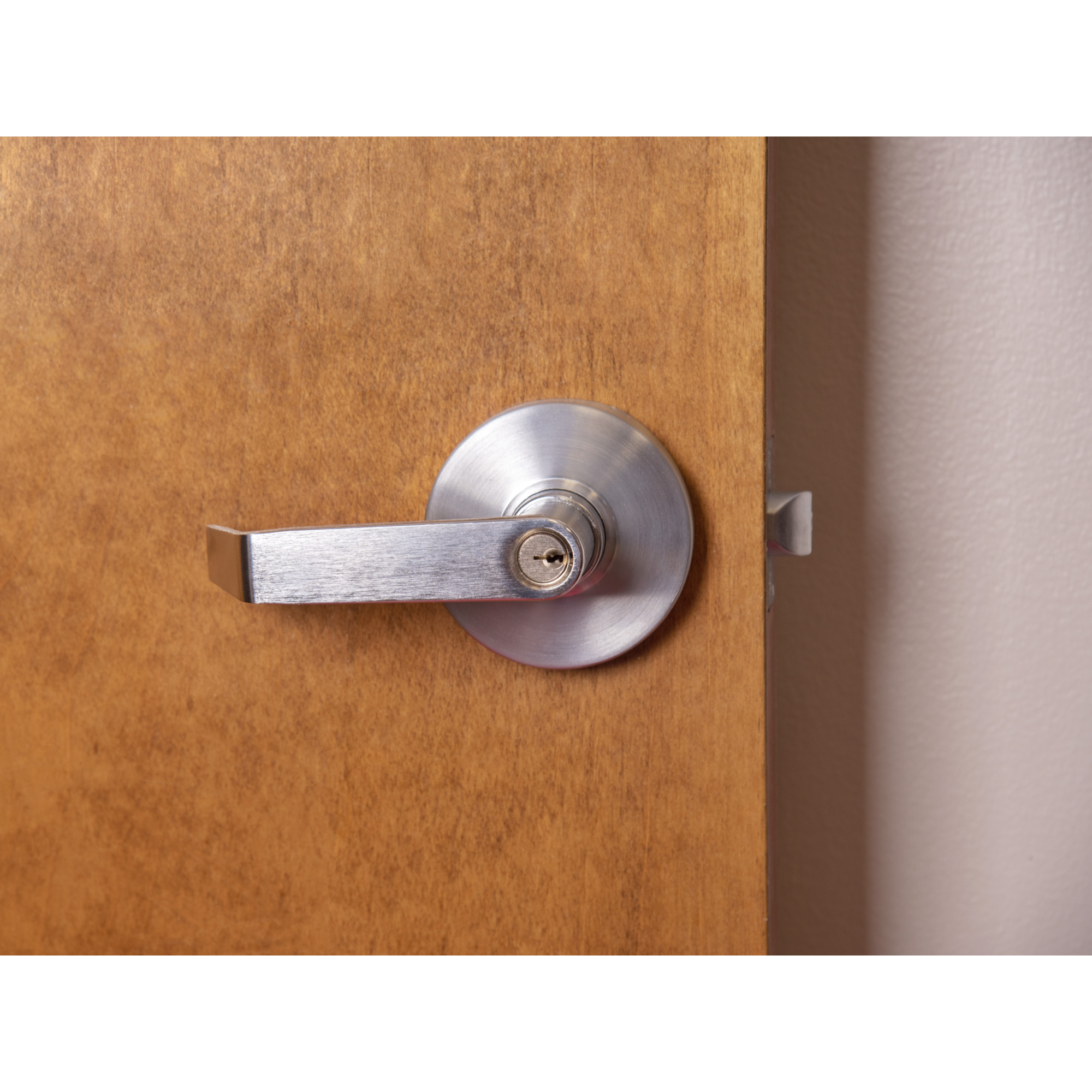

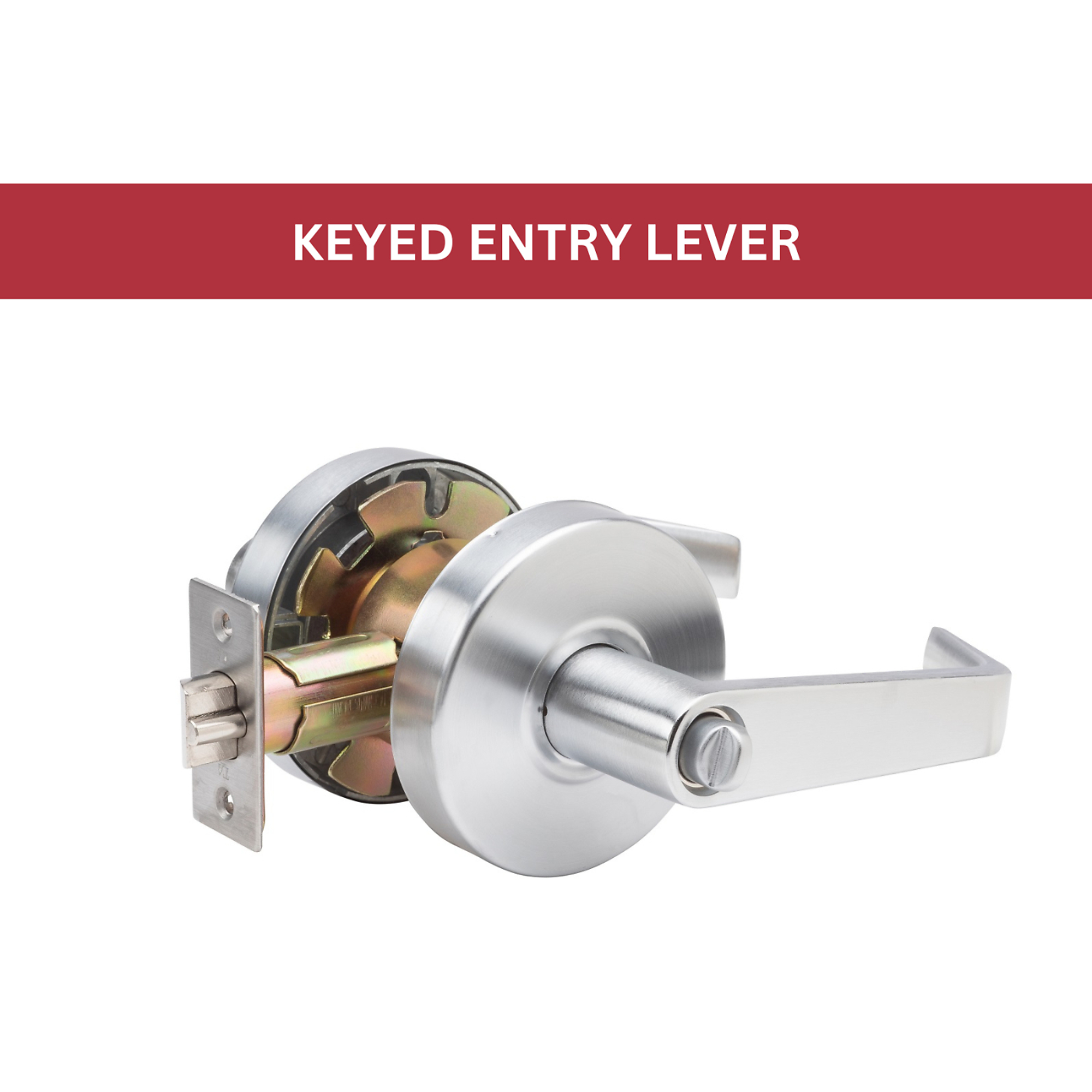

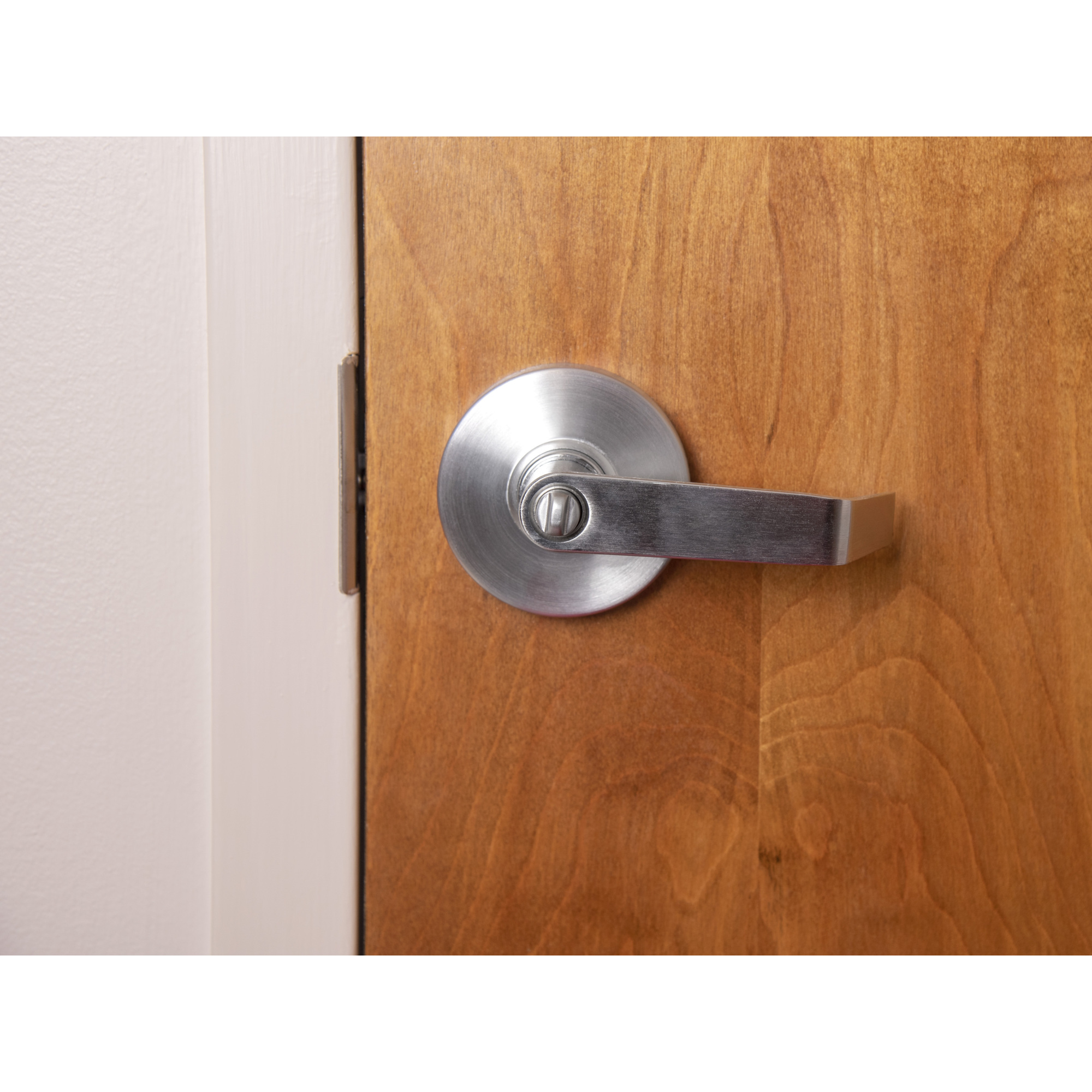

The Global Door Controls GAL cylindrical entry leverset comes in a brushed chrome finish and includes an ANSI strike. This entry door handle has a push button on the interior and a key for the exterior side of the lever, allowing you to leave quickly and re-enter easily. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. It includes all necessary hardware and instructions, resulting in an easy installation process.

What's Included

    (1) Entry function commercial leverset

Downloads

Product Manual

Features + Benefits

  • Keyed entry lever best used for security on exterior doors
  • ANSI A156.2 Grade 2 Certified
  • Freewheeling clutch lever mechanism for added safety
  • Fits doors with 1-3/8 to 1-5/8 in. thickness
  • Removable Thru-Bolts to prevent lock rotation
  • Non-handed/reversible (fits both right and left-handed doors)
  • Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.
  • Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
  • Schlage "C" keyway, includes two 5 pin keys (6 pin capable)
  • Latch: 5/8 in. projection Stainless Steel 3 hour UL R20759
  • Bore: 2-1/8 in. hole retrofits all cylindrical locksets
  • Construction: Steel, Zinc Dichromated resists corrosion
  • ADA compliant
  • Fits 161 door prep
  • Individual spring on each side prevents lever sag
  • 1 year mechanical and finish warranty
  • Lifetime Mechanical Warranty

Key Specs

AttributeSpecification

item#

84563

Brand

Trans Atlantic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.2 LB

Keyed

Schlage 6-pin

Product Type

Leverset
AttributeSpecification

Material

Steel

Product Weight

4.2000 lb

Dimensions L x W x H (in.)

7.25 x 7.25 x 4.0 in

Product Weight

4.2000 lb

Dimensions L x W x H (in.)

7.25 x 7.25 x 4.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
