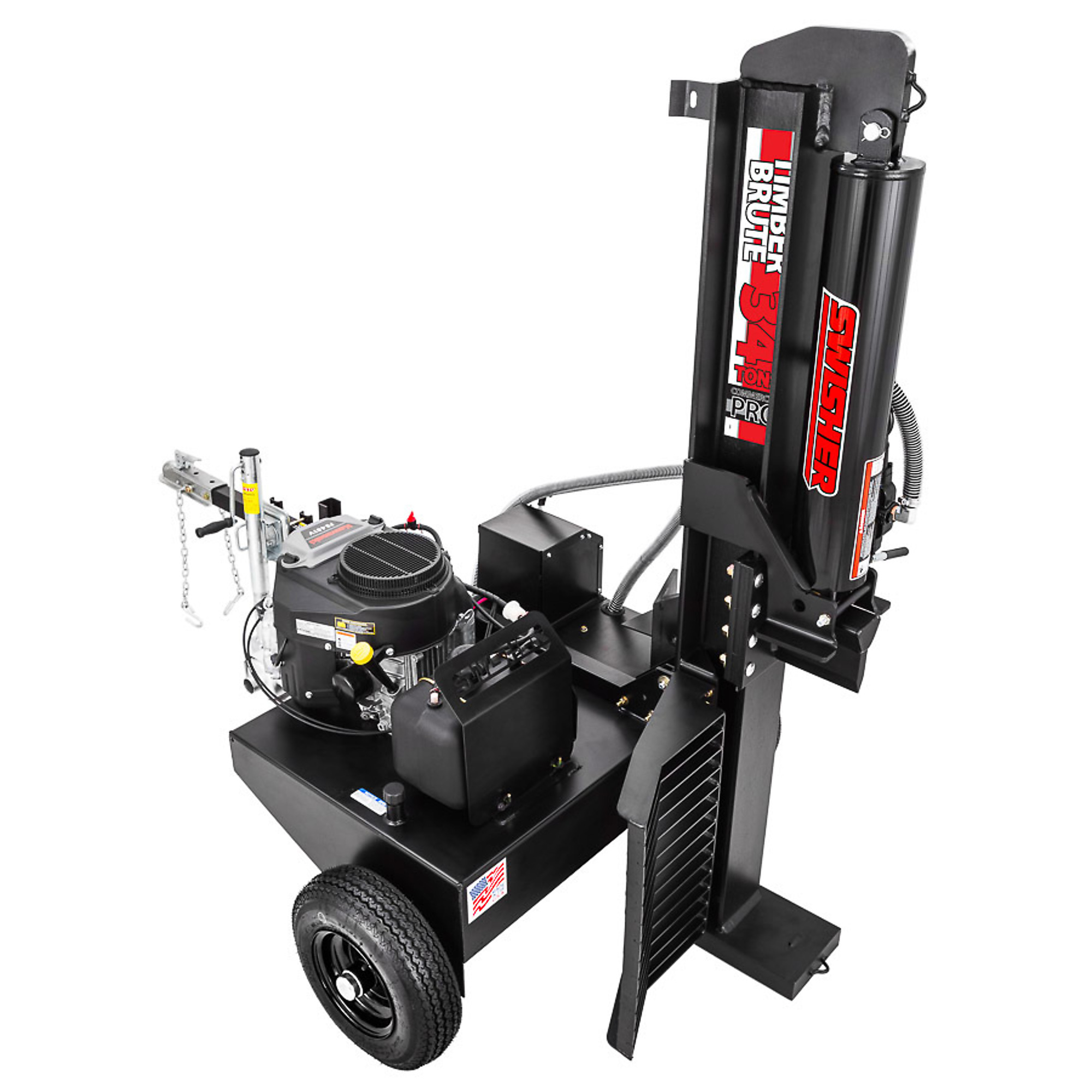

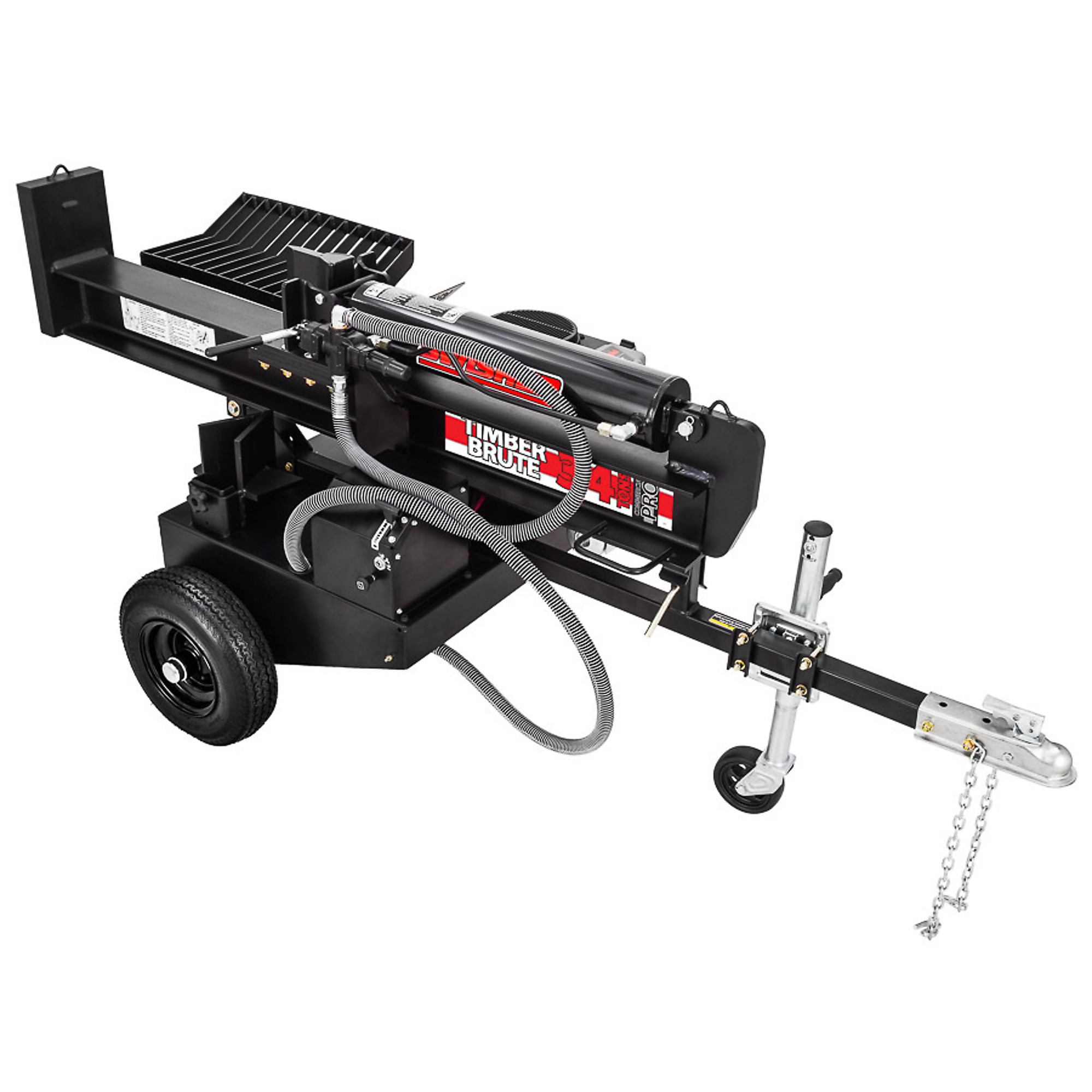

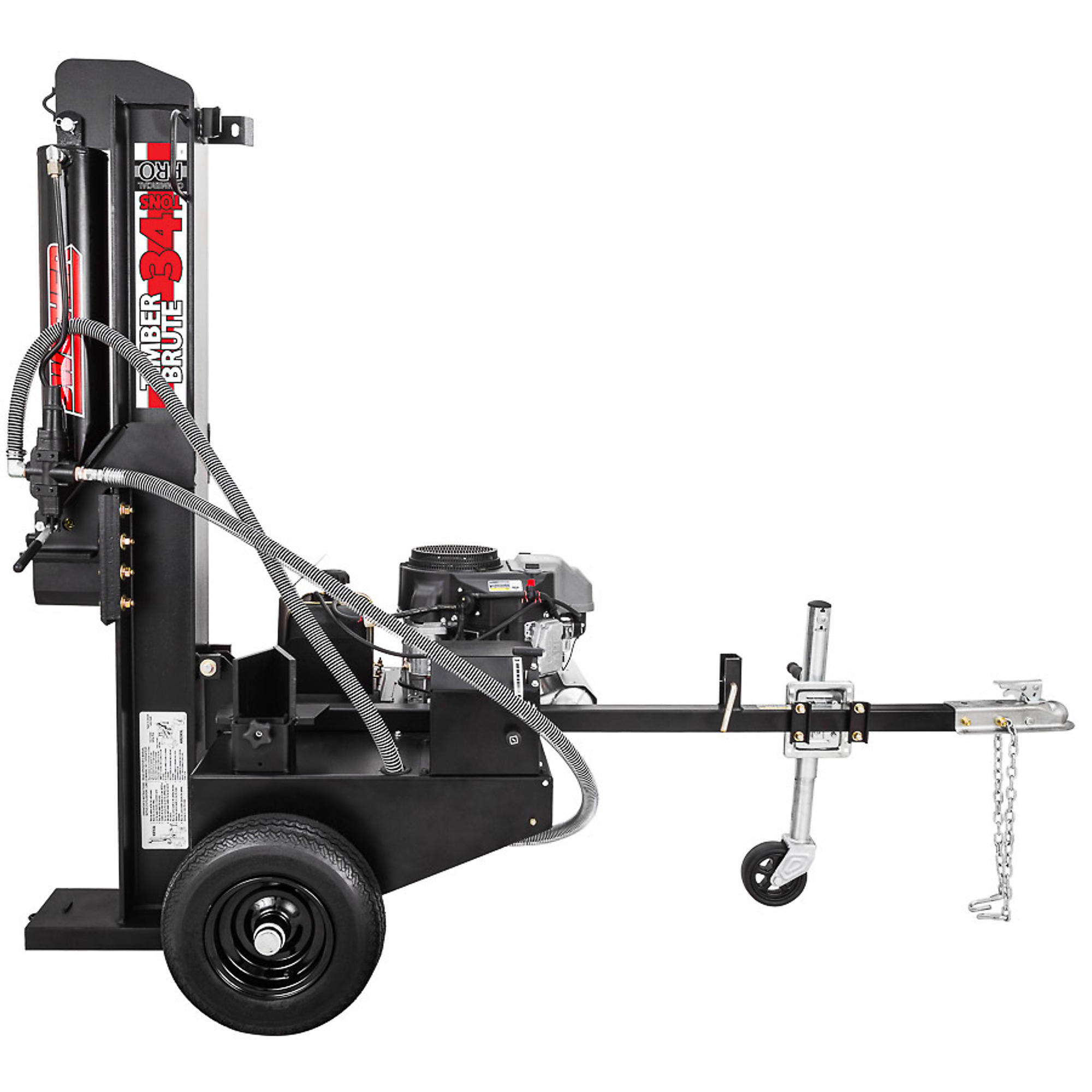

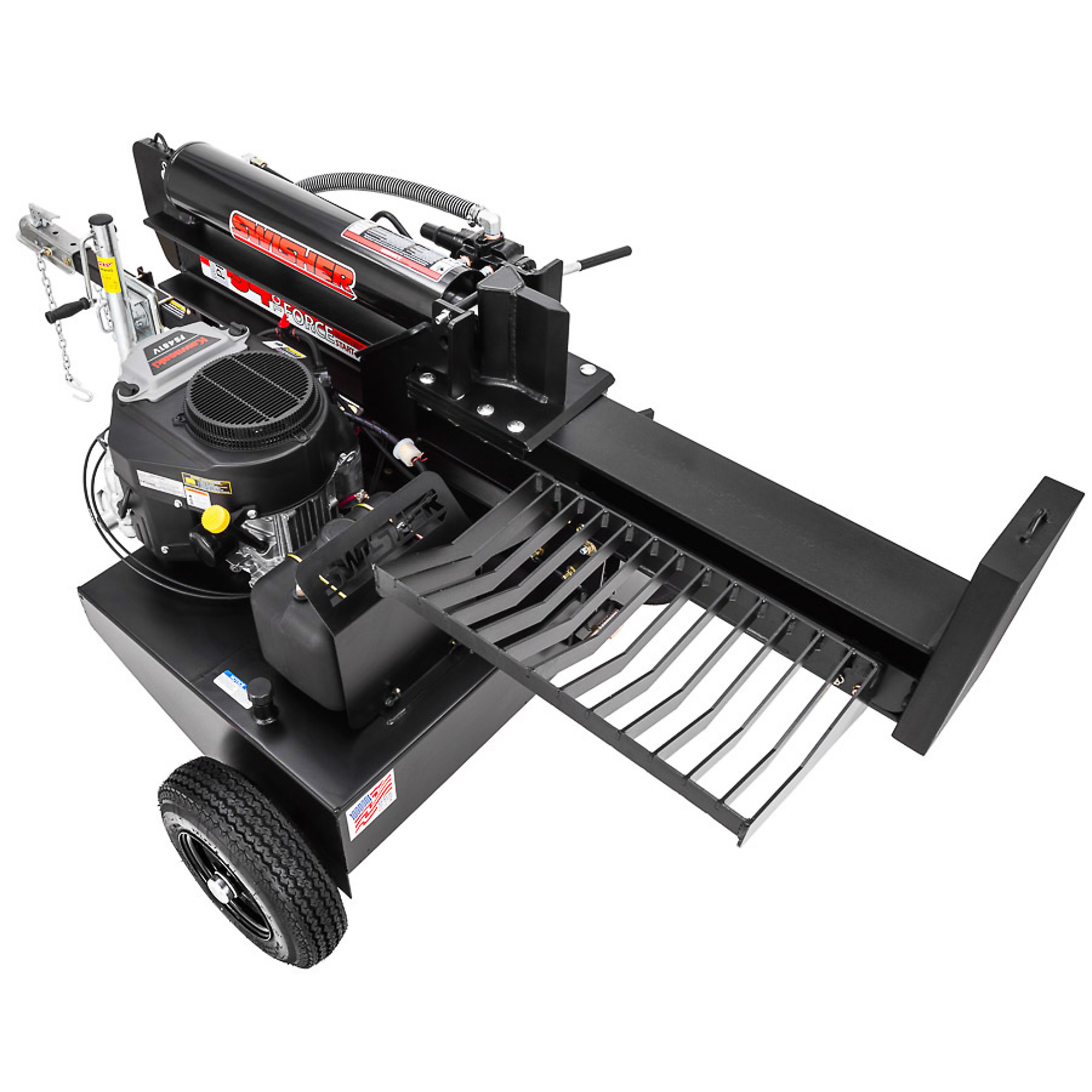

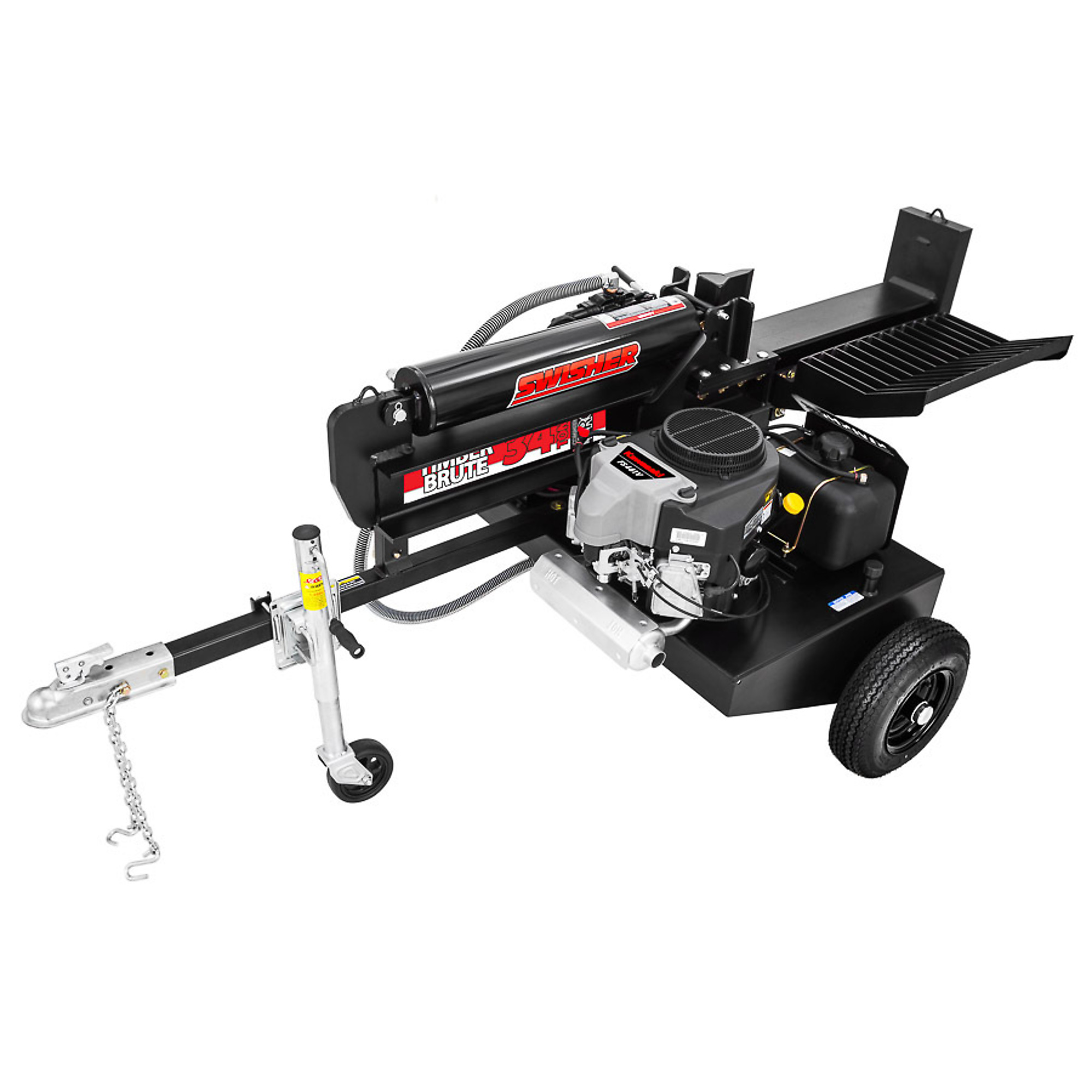

Swisher Log Splitter — 34 Ton, 14.5 HP, 603cc Kawasaki Engine, 22 GPM Pump, 25in. Log Opening, 15 Gallon Hydraulic Tank, Model# LSED14534

Item# 6736852
Swisher LSED14534 14.5 HP 12V Kawasaki Commercial Grade 34 Ton Log Splitter
Swisher Log Splitter — 34 Ton, 14.5 HP, 603cc Kawasaki Engine, 22 GPM Pump, 25in. Log Opening, 15 Gallon Hydraulic Tank, Model# LSED14534

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Swisher Log Splitter — 34 Ton, 14.5 HP, 603cc Kawasaki Engine, 22 GPM Pump, 25in. Log Opening, 15 Gallon Hydraulic Tank, Model# LSED14534

Click or Tap image to Zoom

$5629.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • 14.5 HP (603cc) Kawasaki electric start engine — powerful, reliable performance
  • 34?ton horizontal/vertical splitting — handles large, dense hardwoods
  • 25 in. log opening — accommodates longer logs
  • Two?stage 22 GPM pump — fast, efficient cycle times
  • Direct?drive system — reduces maintenance and increases durability

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Swisher 14.5 HP (603cc) Commercial Grade log splitter delivers 34 tons of splitting force powered by a Kawasaki electric start engine. The direct?drive system and heavy duty 2?stage 22 GPM pump provide maximum performance and fast cycle times. Operates in both horizontal and vertical positions, with a beam lock for secure vertical splitting. The adjustable wheeled front stand makes hitching and moving easier. Includes Swisher’s 4?Way Wedge to double productivity. Road?towable for convenience. Features include a 25in. log opening, oversized cylinder, and a 15?gallon welded steel hydraulic tank. Assembly required. Not for sale in California. Made in the USA of US global parts. Built to help you work smarter, faster, and tougher.*U1L battery not included *Hydraulic fluid not included.

What's Included

    (1) Log Splitter

Downloads

Product Manual

Features + Benefits

  • 14.5 HP (603cc) Kawasaki electric start engine — powerful, reliable performance
  • 34?ton horizontal/vertical splitting — handles large, dense hardwoods
  • 25 in. log opening — accommodates longer logs
  • Two?stage 22 GPM pump — fast, efficient cycle times
  • Direct?drive system — reduces maintenance and increases durability
  • 4?way wedge included — doubles splitting productivity
  • 1 in. machined steel compound wedge — delivers strong, clean splits
  • 15?gallon welded steel hydraulic tank — built for long?term durability
  • Vertical beam lock — added safety during upright splitting
  • Integrated heavy duty log cradle — keeps logs stable and reduces operator strain
  • Adjustable wheeled front stand — easier hitching, moving, and positioning
  • Road?towable design — easy to transport
  • Standard lawn & garden battery not included

Key Specs

AttributeSpecification

item#

6736852

Brand

Swisher

Manufacturer's Warranty

3 year limited warranty

Ship Weight

869.0 LB

Product Type

Gas

Ram Force

34 Tons

Max. Log Diameter

25 in

Max. Log Length

25 in
AttributeSpecification

Continuous Force

34 Tons

Engine Brand

Kawasaki

Engine Displacement

603 cc

Towable

Yes

Wheels

Yes

Product Weight

751.0000 lb

Dimensions L x W x H (in.)

98.0 x 49.0 x 39.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

  1. Describe the wheels, their bearings and permissible road speed

    1 answer

    1. This log splitter would come with 4.00 X 4.80 X 8 tires with high speed bearings. The maximum speed limit for the trailer is 45 MPH.
