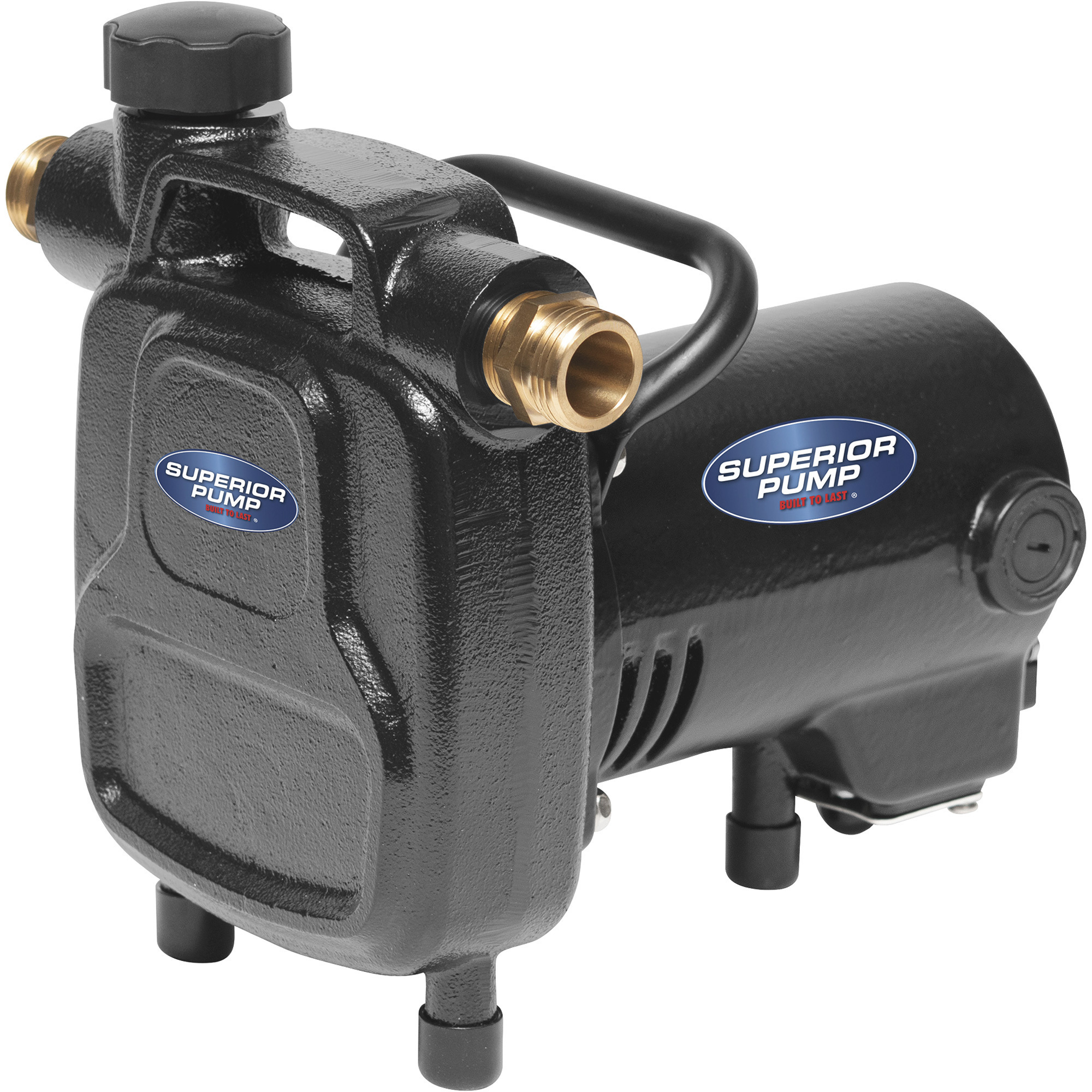

Superior Pump Cast Iron Transfer Pump, 1500 GPH, 1/2 HP, Model# 90050

Item# 95071
Superior Pump Cast Iron Transfer Pump, 1500 GPH, 1/2 HP, Model# 90050

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Superior Pump Cast Iron Transfer Pump, 1500 GPH, 1/2 HP, Model# 90050

Click or Tap image to Zoom

$199.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Cast iron pump housing
  • Solid copper motor windings
  • Electronically controlled split capacitor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Superior Pump Cast Iron Transfer Pump is ideal for draining water heaters, filling radiant heating systems and general water transfer uses.

What's Included

    (1) Transfer pump (1) Garden hose adapter (1) Suction attachment

Downloads

Product Manual

Features + Benefits

  • Cast iron pump housing
  • Solid copper motor windings
  • Electronically controlled split capacitor

Key Specs

AttributeSpecification

item#

95071

Brand

Superior Pump

Manufacturer's Warranty

1 year limited warranty

Ship Weight

17.95 LB

Max. Flow

1,500 GPH

Port Size

0.75 in

Max. Head Pressure

110 ft

Amps

8.4
AttributeSpecification

Vertical Lift

10 ft

Power Cord Length

120 in

Housing Material

Cast-Iron

Max. PSI

52

Horsepower

0.5

Product Weight

17.9500 lb

Dimensions L x W x H (in.)

10.0 x 8.25 x 10.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can this pump be used with a float switch? Float switch  would be in a cistern that triggers the pump when water level is close to overflowing ? Essentially acting as an overflow pump?

    1 answer

    1. A float switch can be used with the pump. You will also need to add a foot or check valve to the intake line so that the pump will maintain its prime.

      Helpful?

  2. what type of garden hose do you use as a suction hose?

    1 answer

    1. The pump will work with a standard 3/4" garden hose with the included adapter.

      Helpful?

  3. What is the maximum distance/length of the intake/suction hose (from the water source to the pump) of the Superior 90050 Transfer Pump?

    1 answer

    1. The maximum suction lift for this pump from the water source to the pump would be 10 feet. It would have a total maximum head of 110 feet.

      Helpful?

  4. Does this run continuous

    1 answer

    1. The pump is rated for continuous duty.

      Helpful?

  5. Can I pump saltwater with this pump?

    1 answer

    1. This transfer pump is not designed to pump salt water.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
