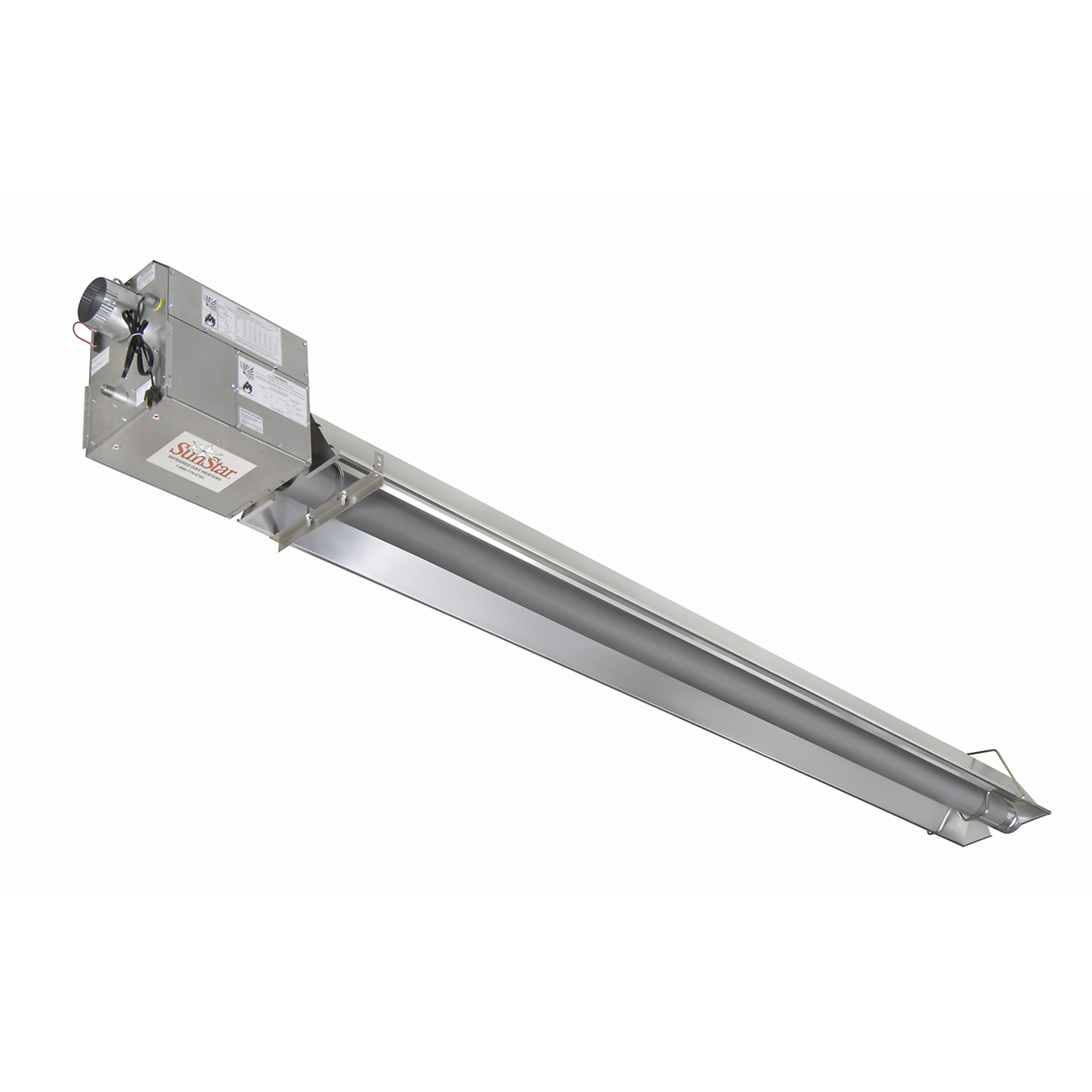

SunStar, Straight Positive Pressure Infrared Tube Heater, Fuel Type Natural Gas, Heat Output 50000 Btu/hour, Heat Type Infrared, Model# SPS50-30-N5

Item# 4774265
SunStar, Straight Positive Pressure Infrared Tube Heater, Fuel Type Natural Gas, Heat Output 50000 Btu/hour, Heat Type Infrared, Model# SPS50-30-N5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar, Straight Positive Pressure Infrared Tube Heater, Fuel Type Natural Gas, Heat Output 50000 Btu/hour, Heat Type Infrared, Model# SPS50-30-N5

Click or Tap image to Zoom

$1358.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 30 Foot Emitter Tube Length. Positive pressure- Push Through System pressurizes the products of combustion though the emitter tubes utilizing a blower inside the burner box.
  • Ideal for complete building heating using multiple heaters. When a single heater is utilized for building space heating (e.g. spot heating) always use a u-tube for more uniform energy distribution.
  • Standard Constuction hot rolled emitter tubes. Standard 4" flue and 4" outside combustion air supply to the control box in contaminated environments.
  • The minimum mounting height is 11ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 6in. above, 56in. below and 22in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar, Straight Positive Pressure Infrared Tube Heater, Fuel Type Natural Gas, Heat Output 50000 Btu/hour, Heat Type Infrared, Model# SPS50-30-N5
  • SunStar Heating Products 24 Volt Thermostat, Model# 30562000
  • SunStar Heating Products Line Voltage Thermostat, Model# 30348020
Price for all three:

$1439.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Offers fuel savings up to 50%. Straight Tube heaters ideal for complete building heating. Positive pressure system pressurizes the combustion chamber. All gas and electrical connection at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40ft. of ducting in fresh air or 40ft. sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise ( less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. Mount heaters as high as possible. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar's Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that's right for you, view the Heat Loss Estimating Chart for proper model and heater selection.

What's Included

    (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors

Features + Benefits

  • 30 Foot Emitter Tube Length. Positive pressure- Push Through System pressurizes the products of combustion though the emitter tubes utilizing a blower inside the burner box.
  • Ideal for complete building heating using multiple heaters. When a single heater is utilized for building space heating (e.g. spot heating) always use a u-tube for more uniform energy distribution.
  • Standard Constuction hot rolled emitter tubes. Standard 4" flue and 4" outside combustion air supply to the control box in contaminated environments.
  • The minimum mounting height is 11ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 6in. above, 56in. below and 22in. from the sides of the heater

Key Specs

AttributeSpecification

item#

4774265

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

166.0 LB

Heat Output

50,000 Btu/hour

Heat Type

Infrared

Heating Capability

500 ft²
AttributeSpecification

Blower Included

Yes

Amps

2

Thermostat Included

No

Volts

120

Product Weight

132.8000 lb

Dimensions L x W x H (in.)

372.0 x 13.0 x 8.0 in

Reviews

Questions & Answers

Questions

  1. Does this unit require a vent?

    1 answer

    1. This heater is for indoor installation and covered patio installation only. The heater can be used in either vented or unvented mode. The term unvented actually means indirect vented. While the products of combustion are expelled into the building, national codes require ventilation in the building to dilute these products of combustion. This ventilation may be provided by gravity or mechanical means. The heater will have a 4" flue and 4" fresh air connection. Multiple venting instructions will be located in the manual that is included with the heater.
