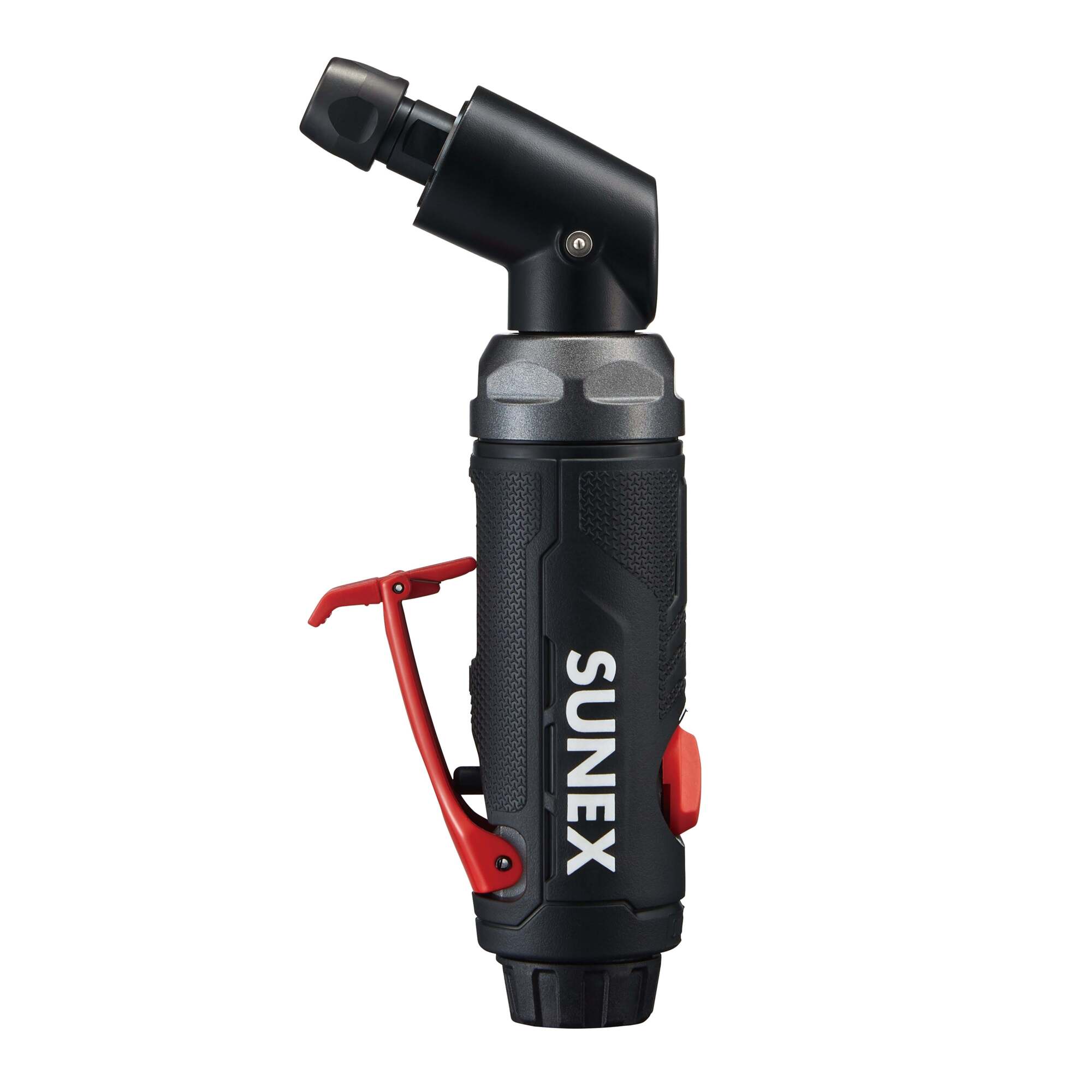

Sunex Tools Angle Die Grinder — 0.5 HP, 115-Degree, 1/4in. Collet, 18,000 RPM, Model# SX5204

Item# 7021277
Sunex Tools Angle Die Grinder — 0.5 HP, 115-Degree, 1/4in. Collet, 18,000 RPM, Model# SX5204

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Sunex Tools Angle Die Grinder — 0.5 HP, 115-Degree, 1/4in. Collet, 18,000 RPM, Model# SX5204

Click or Tap image to Zoom

$124.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Strong 0.5HP motor - Delivers high-speed performance for demanding applications such as porting, weld grinding, polishing, and gasket removal.
  • Precision 3-piece 1/4" collet - Provides secure accessory retention and reliable performance across a wide range of grinding applications.
  • 115-degree angle head design - Offers the ideal reach and positioning for tight or awkward angles—perfect for auto bodywork, brake cleaning, weld dressing, and surface prep.
  • Adjustable power regulator - Enables precise speed control for working on different materials with maximum efficiency and safety.
  • Lightweight composite body - Weighs in at only 1.6 lbs and is built for durability while reducing operator fatigue during long grinding sessions.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Sunex Tools, 0.5HP 115 DEGREE ANGLE DIE GRINDER, Model: SX5204 The SUNEX Tools SX5204 0.5HP 115-Degree Angle Die Grinder is built for power, control, and accessibility in demanding applications. Its high-performance 0.5HP motor delivers the speed and torque needed for porting, weld grinding, polishing, and gasket removal. The 115-degree angle head design provides optimal access to tight, awkward areas—perfect for auto bodywork, brake cleaning, and weld dressing. Equipped with a precision 3-piece 1/4in. collet, this grinder ensures secure accessory retention and consistent performance across a range of grinding tasks. The adjustable power regulator offers precise speed control for efficient material removal and reduced surface damage. Its lightweight 1.6 lb composite body and ergonomic overmold grip reduce vibration and fatigue during extended use. A safety lock-off trigger prevents accidental activation, while the rear exhaust system keeps air and debris away from your workspace for improved visibility. Running at 18,000 RPM and consuming only 6.0 CFM at 90 PSI, the SX5204 is compatible with standard air systems and integrates easily into any professional shop setup. Whether you're working under the hood or on detailed finishing, this angle die grinder offers the reach and control you need for precision work.

What's Included

    (1) Sunex Tools, 0.5HP 115 DEGREE ANGLE DIE GRINDER, Model: SX5204

Features + Benefits

  • Strong 0.5HP motor - Delivers high-speed performance for demanding applications such as porting, weld grinding, polishing, and gasket removal.
  • Precision 3-piece 1/4" collet - Provides secure accessory retention and reliable performance across a wide range of grinding applications.
  • 115-degree angle head design - Offers the ideal reach and positioning for tight or awkward angles—perfect for auto bodywork, brake cleaning, weld dressing, and surface prep.
  • Adjustable power regulator - Enables precise speed control for working on different materials with maximum efficiency and safety.
  • Lightweight composite body - Weighs in at only 1.6 lbs and is built for durability while reducing operator fatigue during long grinding sessions.
  • Ergonomic overmold grip - Provides a comfortable, non-slip hold and reduces vibration for improved handling and control.
  • Safety lock-off trigger - Helps prevent accidental start-up, adding an extra layer of safety in busy or mobile work environments.
  • 18,000 RPM free speed - Ensures fast material removal, fine detailing, and efficient performance across a wide range of grinding tasks.
  • Efficient air consumption - Runs on 6.0 CFM at 90 PSI, compatible with standard air systems and easy to integrate into any shop.

Key Specs

AttributeSpecification

item#

7021277

Brand

Sunex Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.2 LB

Max. Speed

18,000 rpm

Max. Pressure

90 PSI

Air Inlet Size

1/4 in

Collet Size

1/4 in

Product Type

Angle
AttributeSpecification

Min. Hose Size

1/4 in

Side Handle

No

Air Consumption

6 cfm

Trigger Lock

Yes

Variable Speed

Yes

Storage Type

None

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

8.0 x 3.25 x 2.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
