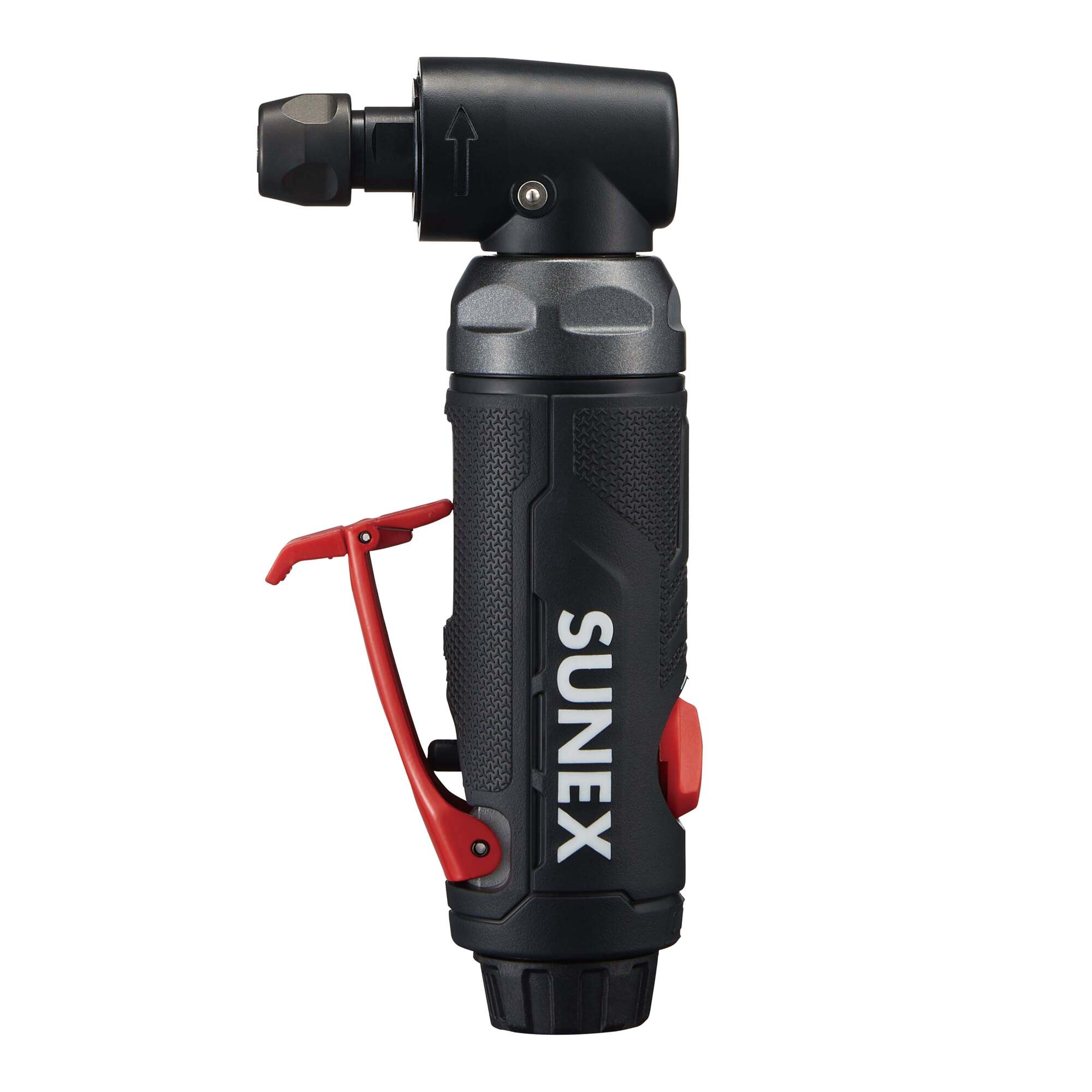

Sunex Tools 90-Degree Angle Die Grinder — 0.5 HP, 1/4in. Collet, 20,000 RPM, Model# SX5208

Item# 7021285
Sunex Tools 90-Degree Angle Die Grinder — 0.5 HP, 1/4in. Collet, 20,000 RPM, Model# SX5208

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Sunex Tools 90-Degree Angle Die Grinder — 0.5 HP, 1/4in. Collet, 20,000 RPM, Model# SX5208

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Strong 0.5HP motor - Delivers high-speed performance for demanding tasks like porting, weld breaking, deburring, and polishing.
  • Precision 3-piece 1/4" collet - Provides secure accessory retention and reliable performance across a wide range of grinding applications.
  • 90-degree angle head design - Offers improved access in tight or confined spaces, making it ideal for under-dash, engine bay, and frame work.
  • Adjustable power regulator - Enables precise speed control for working on different materials with maximum efficiency and safety.
  • Lightweight composite body - Weighs in at only 1.54 lbs and is built for durability while reducing operator fatigue during long grinding sessions.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Sunex Tools, 0.5HP 90 DEGREE ANGLE DIE GRINDER, Model: SX5208 The SUNEX Tools SX5208 0.5HP 90-Degree Angle Die Grinder is engineered for performance, precision, and accessibility in tight workspaces. Featuring a powerful 0.5HP motor, this high-speed grinder is built for demanding tasks like weld breaking, porting, polishing, and deburring. The precision 3-piece 1/4in. collet ensures secure accessory retention, while the 90-degree angle head design provides better access in confined areas such as engine bays, under dashboards, and chassis work. With an adjustable power regulator, you can fine-tune speed and power for optimal results across various materials and applications. Weighing just 1.54 lbs, the lightweight composite body reduces user fatigue without compromising durability. An ergonomic overmold grip delivers a secure, comfortable hold and minimizes vibration during extended use. Safety is enhanced with a lock-off trigger to prevent accidental start-ups in busy shop environments. The rear exhaust system directs air and debris away from the user and work surface, helping maintain a cleaner, more visible workspace. With a free speed of 20,000 RPM and efficient 3.5 CFM air consumption at 90 PSI, the SX5208 is compatible with most shop air setups and built for all-day use. Perfect for precision work in compact spaces, this tool delivers control, power, and reliability.

What's Included

    (1) Sunex Tools, 0.5HP 90 DEGREE ANGLE DIE GRINDER, Model: SX5208

Features + Benefits

  • Strong 0.5HP motor - Delivers high-speed performance for demanding tasks like porting, weld breaking, deburring, and polishing.
  • Precision 3-piece 1/4" collet - Provides secure accessory retention and reliable performance across a wide range of grinding applications.
  • 90-degree angle head design - Offers improved access in tight or confined spaces, making it ideal for under-dash, engine bay, and frame work.
  • Adjustable power regulator - Enables precise speed control for working on different materials with maximum efficiency and safety.
  • Lightweight composite body - Weighs in at only 1.54 lbs and is built for durability while reducing operator fatigue during long grinding sessions.
  • Ergonomic overmold grip - Provides a comfortable, non-slip hold and reduces vibration for improved handling and control.
  • Safety lock-off trigger - Helps prevent accidental start-up, adding an extra layer of safety in busy or mobile work environments.
  • Rear exhaust system - Directs air and debris away from the work surface and operator, maintaining visibility and a cleaner workspace.
  • 20,000 RPM free speed - Ensures fast material removal, fine detailing, and efficient performance across a wide range of grinding tasks.
  • Efficient air consumption Runs on 3.5 CFM at 90 PSI, compatible with standard air systems and easy to integrate into any shop

Key Specs

AttributeSpecification

item#

7021285

Brand

Sunex Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.02 LB

Max. Speed

20,000 rpm

Max. Pressure

90 PSI

Air Inlet Size

1/4 in

Collet Size

1/4 in

Product Type

Angle
AttributeSpecification

Min. Hose Size

1/4 in

Side Handle

No

Air Consumption

3 cfm

Trigger Lock

Yes

Variable Speed

Yes

Storage Type

None

Product Weight

2.0200 lb

Dimensions L x W x H (in.)

9.06 x 5.2 x 1.85 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
