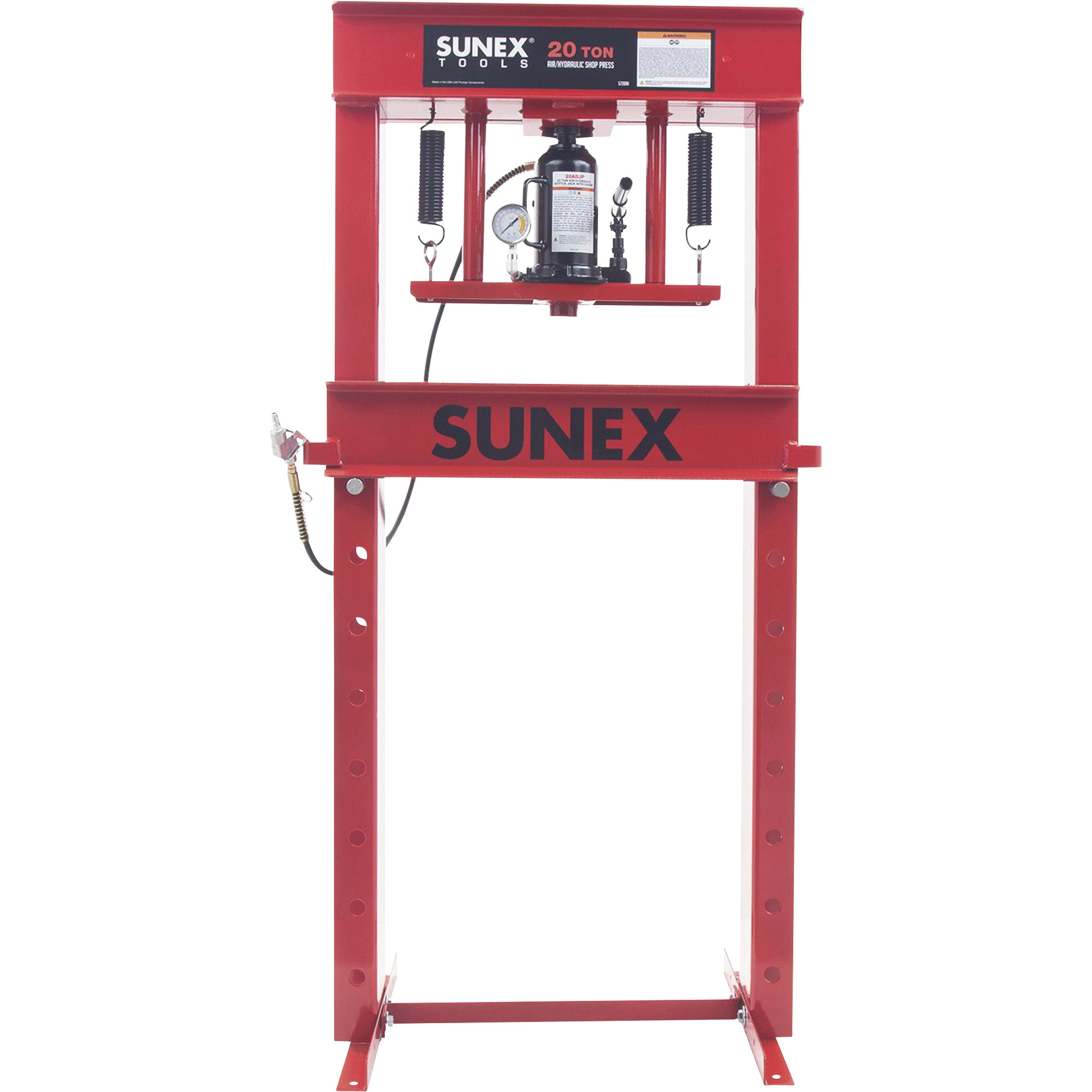

Sunex Tools Air/Hydraulic Shop Press, 20-Ton Capacity, Heavy-Duty, Model# 5720AH

Item# 62855
Sunex Tools Air/Hydraulic Shop Press, 20-Ton Capacity, Heavy-Duty, Model# 5720AH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Sunex Tools Air/Hydraulic Shop Press, 20-Ton Capacity, Heavy-Duty, Model# 5720AH

Click or Tap image to Zoom

$1199.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Produces 20 tons of continuous force
  • Heavy-duty all-welded frame construction built to exacting standards for quality and durability
  • Air/hydraulic pump for quick cycling times
  • Sliding head for ease of use in multiple work positions
  • 2in. ram dia. with 6in. stroke length; 33in. working range

See full description

Complete Your Solution

  • Sunex Tools Air/Hydraulic Shop Press, 20-Ton Capacity, Heavy-Duty, Model# 5720AH
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all two:

$1209.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Sunex Air/Hydraulic Shop Press can be used for a variety of shop applications including straightening, bending, and removing/installing gears, bearings and bushings. The air/hydraulic pump delivers quicker cycling times by depressing an air valve at the end of a 4ft. air line. Delivers up to 20 tons of continuous force. The powerful winch has a nonslip clutch for safe operation.

What's Included

    (1) 20-ton air/hydraulic shop press (1) 3-pc. punch kit (2) Bed plates (1) Bearing shield

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Produces 20 tons of continuous force
  • Heavy-duty all-welded frame construction built to exacting standards for quality and durability
  • Air/hydraulic pump for quick cycling times
  • Sliding head for ease of use in multiple work positions
  • 2in. ram dia. with 6in. stroke length; 33in. working range
  • Winch has a nonslip safety clutch and solid steel cable rollers
  • 24 1/2in. bed opening; 67 3/4in.L x 34 1/2in.W x 11 1/2in.H overall size

Key Specs

AttributeSpecification

item#

62855

Brand

Sunex Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.0 LB

Press Type

Pneumatic

Max. Pressure

20 Tons
AttributeSpecification

Stroke Length

6 in

Bed Opening

24.5 in

Max. Working Distance

33 in

Product Weight

290.0000 lb

Dimensions L x W x H (in.)

67.75 x 34.5 x 11.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Can you get parts? I am interested in the gauge.

    1 answer

    1. Please contact the manufacturer directly for parts.

      Helpful?

  2. What is the measurement of the opening between the front and rear C-channel of the bed? I'm always surprised that nobody publishes this measurement in their specs.

    1 answer

    1. The measurement on the front of the C channel would be 2 3/34". The measurement on the rear is 7" OD and 6 5/8" ID.

      Helpful?

  3. HOW WIDE IS THE 2 MAIN BEAMS THAT HOLDS THE REST AND THE DISTANCE FROM 1 SIDE TO THE OTHER

    1 answer

    1. The outer diameter of the side beam are 7" OD and 6 5/8" ID. The depth of the side beam is 2 3/4". The inside width between the beams will be 24 1/2".

      Helpful?

  4. What's the dimensions of the bed opening it say 24 wide how about between the bars.

    1 answer

    1. The inside dimension for the bed opening is 11.25".

      Helpful?

  5. This says that it has a sliding head but the picture doesn’t show that it does

    1 answer

    1. This shop press does not have a sliding head.

      Helpful?

  6. What is the air compressor requirements in terms volume and PSI to power this press

    1 answer

    1. The air/hydraulic shop press would require a range of 100 to 145 PSI.

      Helpful?
