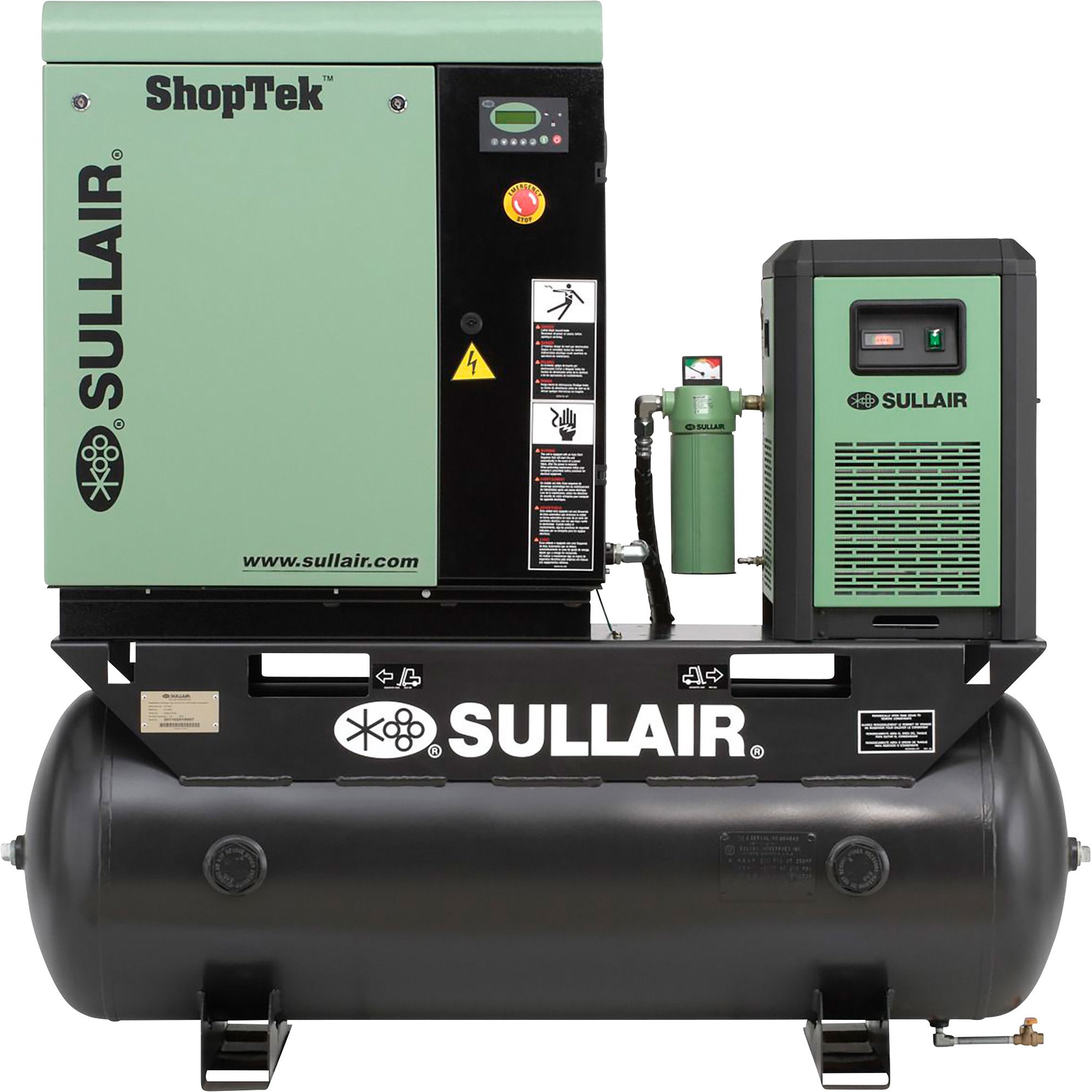

Sullair ShopTek Rotary Screw Air Compressor with Refrigerated Air Dryer — 5 HP, 230 Volt, 1 Phase, 80-Gallon Horizontal Tank, Model# ST410RD/230/1/60

Item# 106678
Sullair ShopTek Rotary Screw Air Compressor with Refrigerated Air Dryer — 5 HP, 230 Volt, 1 Phase, 80-Gallon Horizontal Tank, Model# ST410RD/230/1/60

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Sullair ShopTek Rotary Screw Air Compressor with Refrigerated Air Dryer — 5 HP, 230 Volt, 1 Phase, 80-Gallon Horizontal Tank, Model# ST410RD/230/1/60

Click or Tap image to Zoom

  • Compact and quiet rotary screw air system with refrigerated air dryer
  • Small footprint sound enclosure removes easily for fast servicing
  • Design delivers 66DbA sound level with extremely low maintenance
  • Energy efficient 5 HP, 230V 1 phase premium IEC TEFC motor is standard
  • Refrigerated air dryer cools compressed air and condenses water for removal from compressed air system

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Sullair ShopTek ST4–ST15 rotary screw air compressors redefine industry standards for continuous-duty compressors in the 5 to 20 HP range. Designed with the end customer in mind, ShopTek compressors feature a small footprint and are built to provide exceptional reliability and extremely low maintenance. Refrigerated air dryer cools compressed air and condenses water for removal from compressed air system. All ShopTek air compressors come standard with: legendary Sullair air end 10,000 hour Genuine Sullube® factory fill 5-year Emerald Warranty — providing coverage on major components including the air end; air/fluid receiver main drive motor; fluid cooler; and aftercooler *with a start up and service done by an authorized Sullair distributor.

What's Included

  • (1) 5 HP rotary screw air compressor with refrigerated air dryer and 80-gallon tank

Downloads

Product Manual Product Manual2

Features + Benefits

  • Compact and quiet rotary screw air system with refrigerated air dryer
  • Small footprint sound enclosure removes easily for fast servicing
  • Design delivers 66DbA sound level with extremely low maintenance
  • Energy efficient 5 HP, 230V 1 phase premium IEC TEFC motor is standard
  • Refrigerated air dryer cools compressed air and condenses water for removal from compressed air system
  • V-belt drive delivers maximum output with minimum power consumption
  • 80-gallon horizontal air receiver is an ASME / CRN approval rated tank
  • Standard pressure relief and ball valve are included
  • 150 PSI max.
  • Intelligent microprocessor control has simple user interface with clear and concise graphic display
  • Displays essential parameters and ensures uniform operation and uninterrupted production
  • Transducer control pressure to minimize off-load running and reduce over-compression
  • Heavy-duty air filter protects key components and enhances compressor air quality
  • 99% efficient at 4.9 microns delivers clean air system and tools
  • Easy separator maintenance with no tubing to disconnect, simply unbolt the cover and lift it off
  • O-ring seal prevents leaking
  • Patented rotor design with bearing fluid reservoirs ensure maximum long lifespan
  • Reliable Sullair air end
  • Long life bearings
  • Factory-filled with Sullube biodegradable 10,000-hour lubricant to protect and clean moving parts
  • 1-year factory warranty
  • 5-year Emerald factory warranty requires Authorized Distributor Startup (additional charge)

Key Specs

AttributeSpecification

item#

106678

Brand

Sullair

Manufacturer's Warranty

5 year limited warranty

Ship Weight

935.0 LB

Horsepower

5 HP

Air Tank Size

80 Gal

Volts

230
AttributeSpecification

Max. PSI

150

Amps

34

Motor Phase

1

Air Outlet Size

1 in. NPT

Tank Orientation

Horizontal

Product Weight

935 lb

Dimensions L x W x H (in.)

64 x 23 x 63 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
