SUBMERSIBLE STUD MOUNT RED TAIL LIGHT KIT

Item# 6702505
SUBMERSIBLE STUD MOUNT RED TAIL LIGHT KIT
1 Included
SUBMERSIBLE STUD MOUNT RED TAIL LIGHT KIT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SUBMERSIBLE STUD MOUNT RED TAIL LIGHT KIT

Click or Tap image to Zoom

$34.99

  • Shipping:

    Available now

  • Store Pickup:

    Call Store for Availability
  • Stud mount on 2” centers, grounds through mounting studs
  • Hard wired, self grounding (brown = tail/license, green = passenger side stop/turn, yellow = driver side stop/turn)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

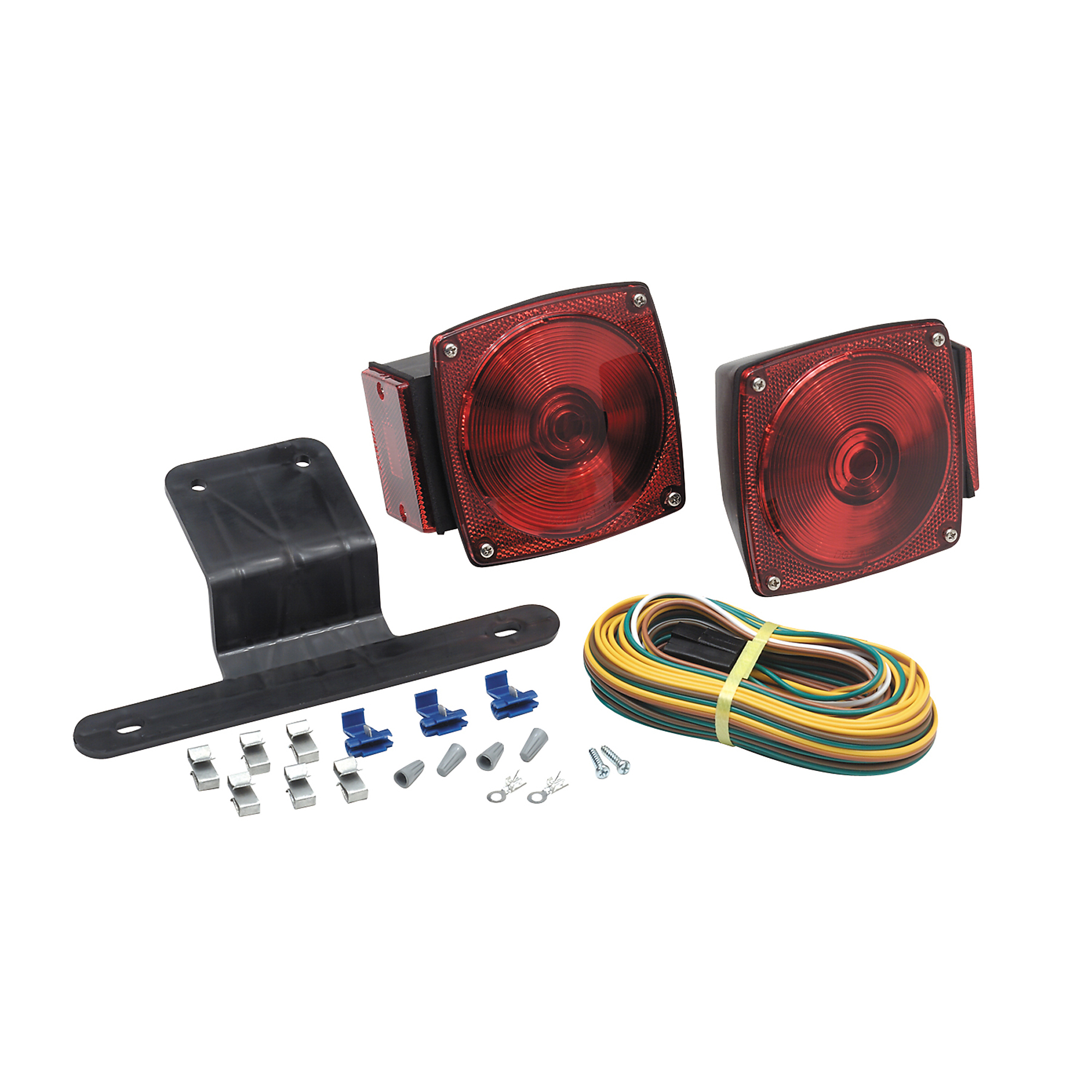

Optronics universal mount tail lights are original equipment on many trailers, and are easy to replace to keep your trailer highway legal. This kit includes a set of submersible passenger side and driver side lights combining tail, stop, turn, rear reflex, side marker and side reflex into a single light that fits the traditional footprint on many utility and marine trailers. The driver side light also includes an integrated license lamp. Also included in the kit are a license plate bracket and a 25ft. wishbone style wiring harness. Installation is simple using included hardware, and the lenses are easy to remove to replace the 1157 or 168 bulbs.

What's Included

    (1) Submersible Trailer Light Kit

Features + Benefits

  • Stud mount on 2” centers, grounds through mounting studs
  • Hard wired, self grounding (brown = tail/license, green = passenger side stop/turn, yellow = driver side stop/turn)

Key Specs

AttributeSpecification

item#

6702505

Brand

Optronics

Manufacturer's Warranty

3 year limited warranty

Ship Weight

2.05 LB

Light Type

Incandescent

Shape

Square

Lens Color

Red

Housing Material

Plastic
AttributeSpecification

Mount Type

Bolt

Bulbs Per Light (qty.)

2

Included (qty.)

1

Mounting Hardware Included

Yes

Connector Type

Hardwire

License Plate Bracket Included

Yes

Product Weight

0.3090 lb

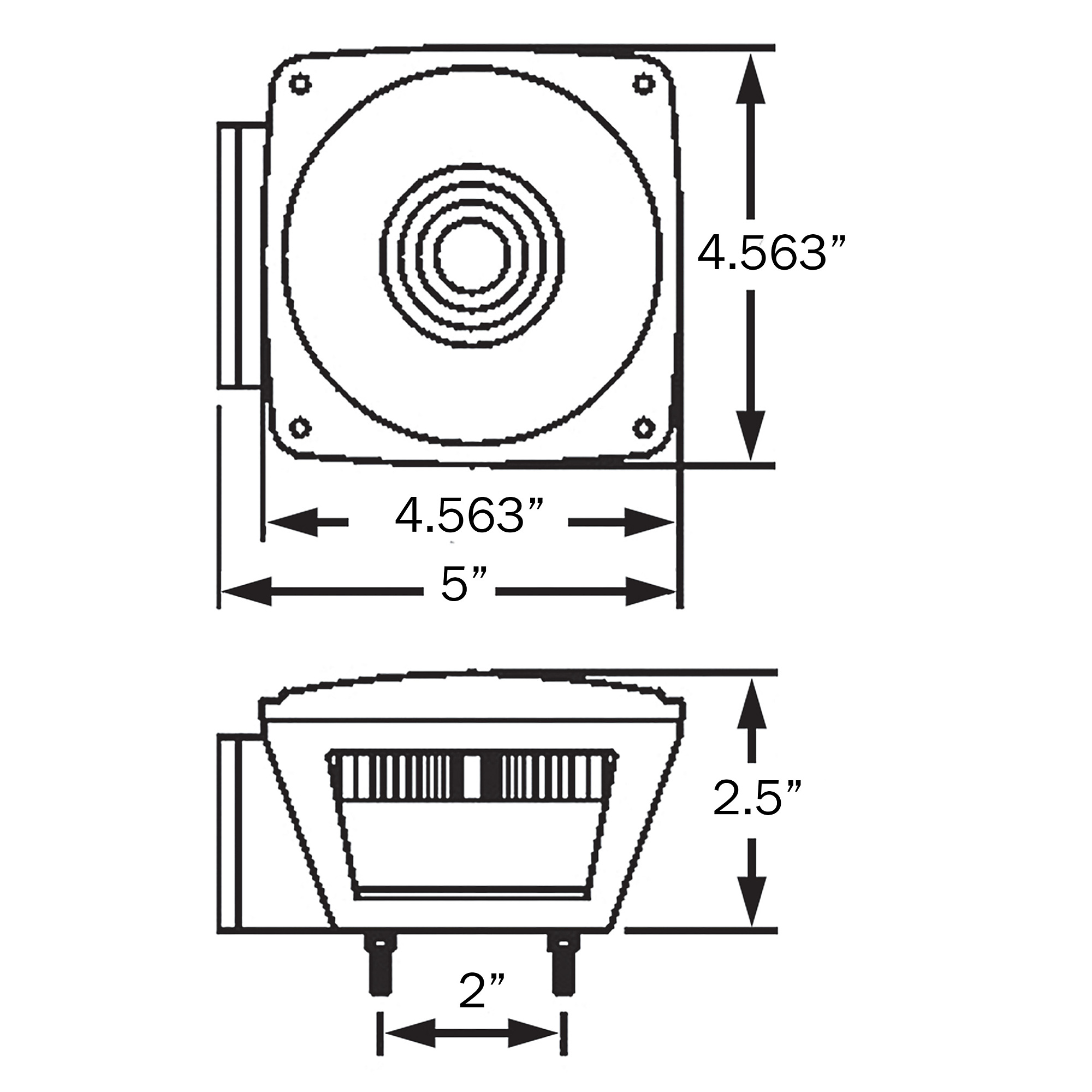

Dimensions L x W x H (in.)

5.0 x 2.875 x 4.563 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
