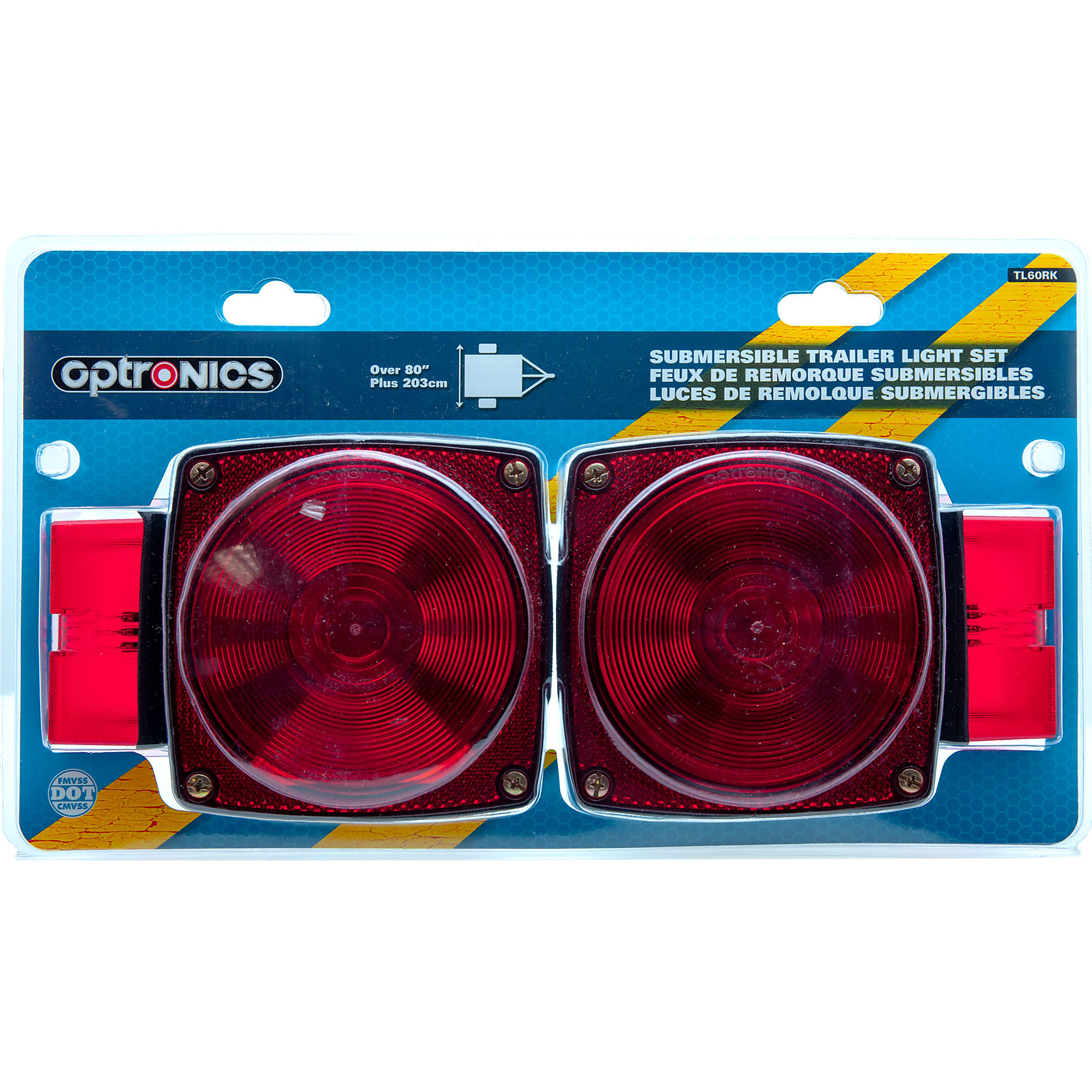

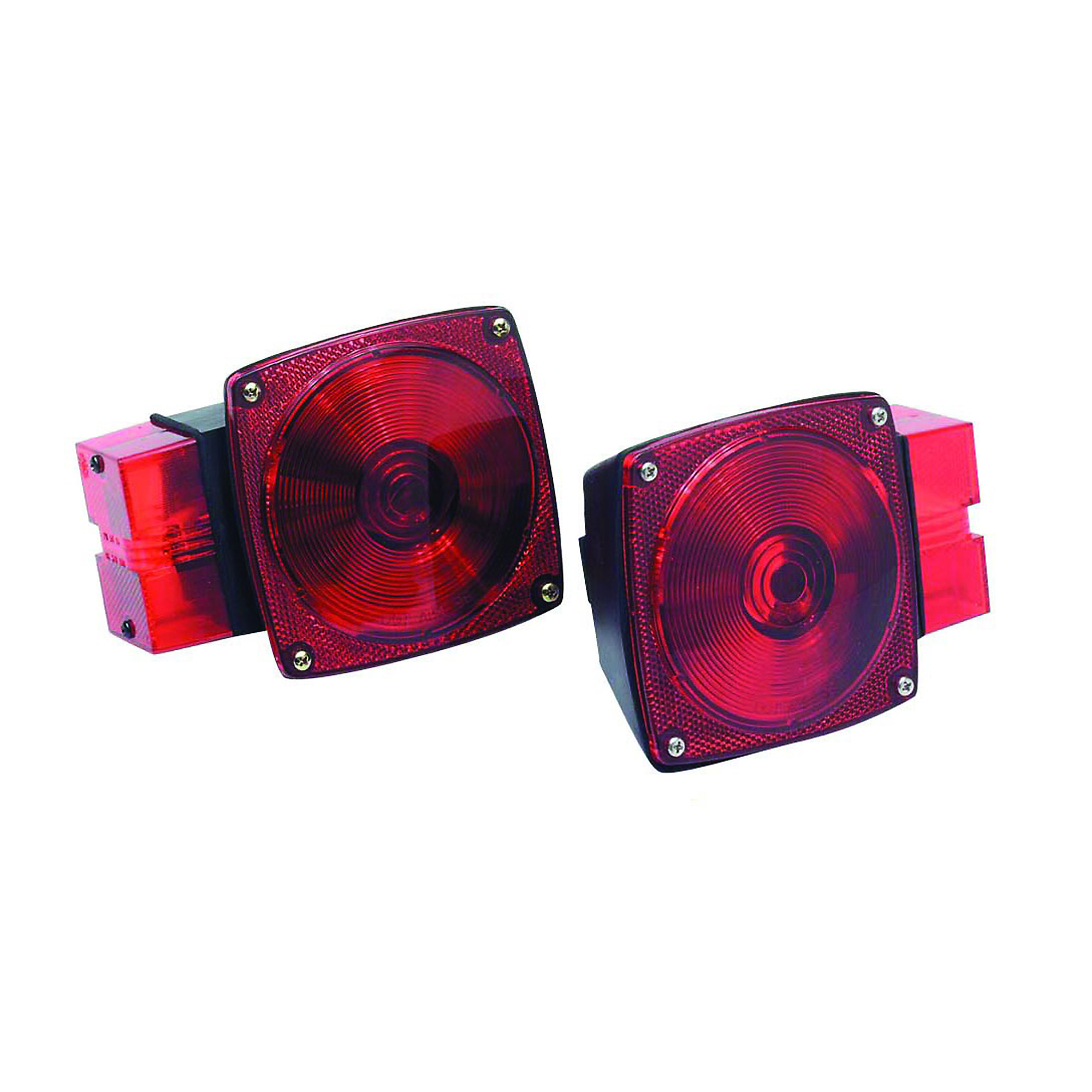

Optronics Submersible Stud-Mount Red Tail Light Kit for Trailers Over 80in. Wide, Model# TL60RK

Item# 6702548
1 Included
Optronics Submersible Stud-Mount Red Tail Light Kit for Trailers Over 80in. Wide, Model# TL60RK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Optronics Submersible Stud-Mount Red Tail Light Kit for Trailers Over 80in. Wide, Model# TL60RK

Click or Tap image to Zoom

$32.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 10/08/26

  • Store Pickup:

    Not Available
  • Stud mount on 2” centers, grounds through mounting studs
  • Hard wired, self grounding (brown = tail/license, green = passenger side stop/turn, yellow = driver side stop/turn)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Optronics trailer light set contains a pair of submersible universal mount combination tail lights for over 80in. wide trailers. The submersible design is suitable for many applications. Passenger side light combines 7 functions into one lamp: stop, tail, turn, rear reflex, rear clearance, side marker, and side reflex. The driver side light also includes a license illuminator.

What's Included

    (1) SUBMERSIBLE TRAILER LIGHT KIT

Features + Benefits

  • Stud mount on 2” centers, grounds through mounting studs
  • Hard wired, self grounding (brown = tail/license, green = passenger side stop/turn, yellow = driver side stop/turn)

Key Specs

AttributeSpecification

item#

6702548

Brand

Optronics

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1.2 LB

Light Type

Incandescent

Shape

Square

Lens Color

Red

Housing Material

Plastic
AttributeSpecification

Mount Type

Bolt

Bulbs Per Light (qty.)

2

Included (qty.)

1

Mounting Hardware Included

Yes

Connector Type

Hardwire

License Plate Bracket Included

No

Product Weight

0.4410 lb

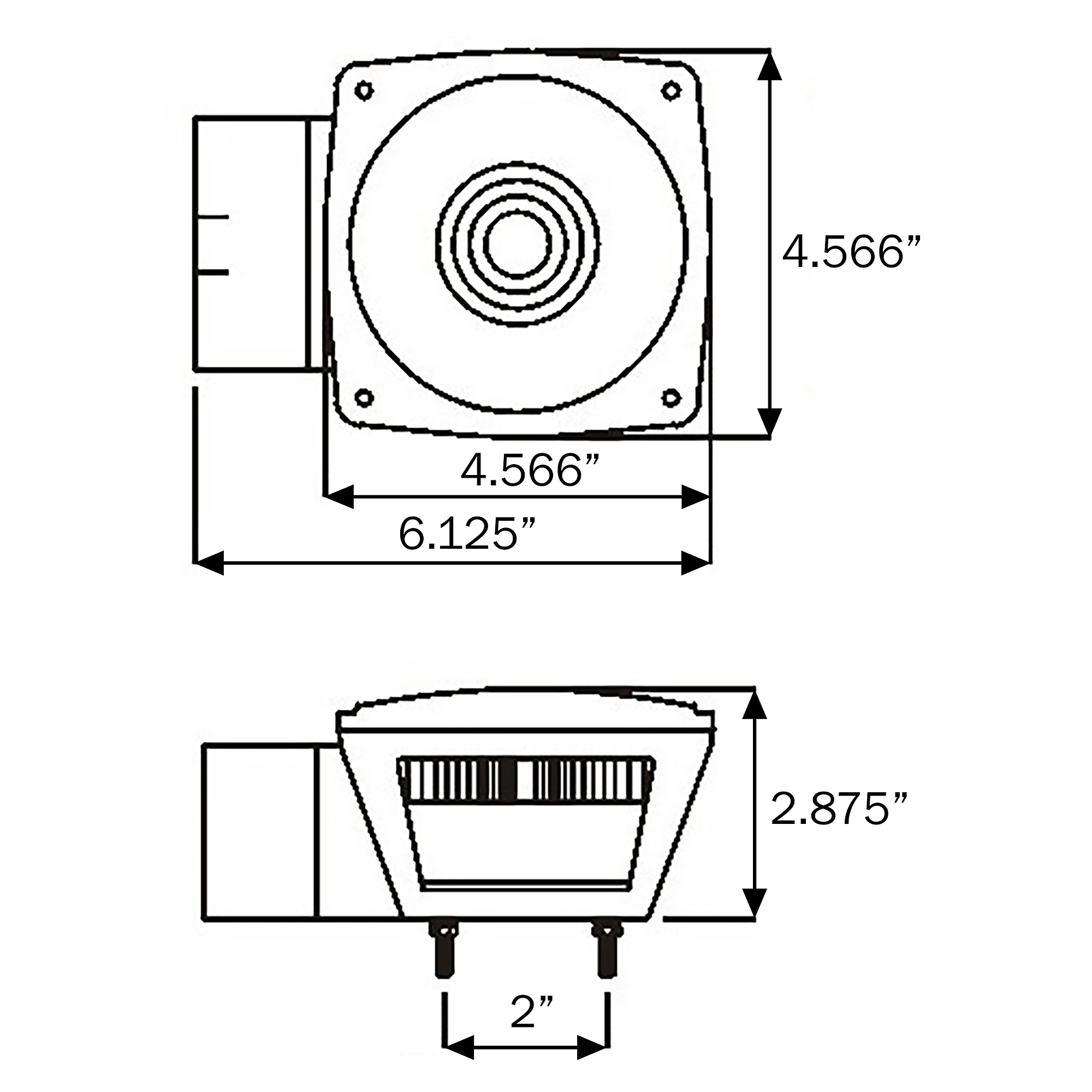

Dimensions L x W x H (in.)

6.125 x 2.875 x 4.563 in

Reviews

Questions & Answers

Questions

  1. Is wiring included?

    1 answer

    1. The light kit would include the wiring to install the lights.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
