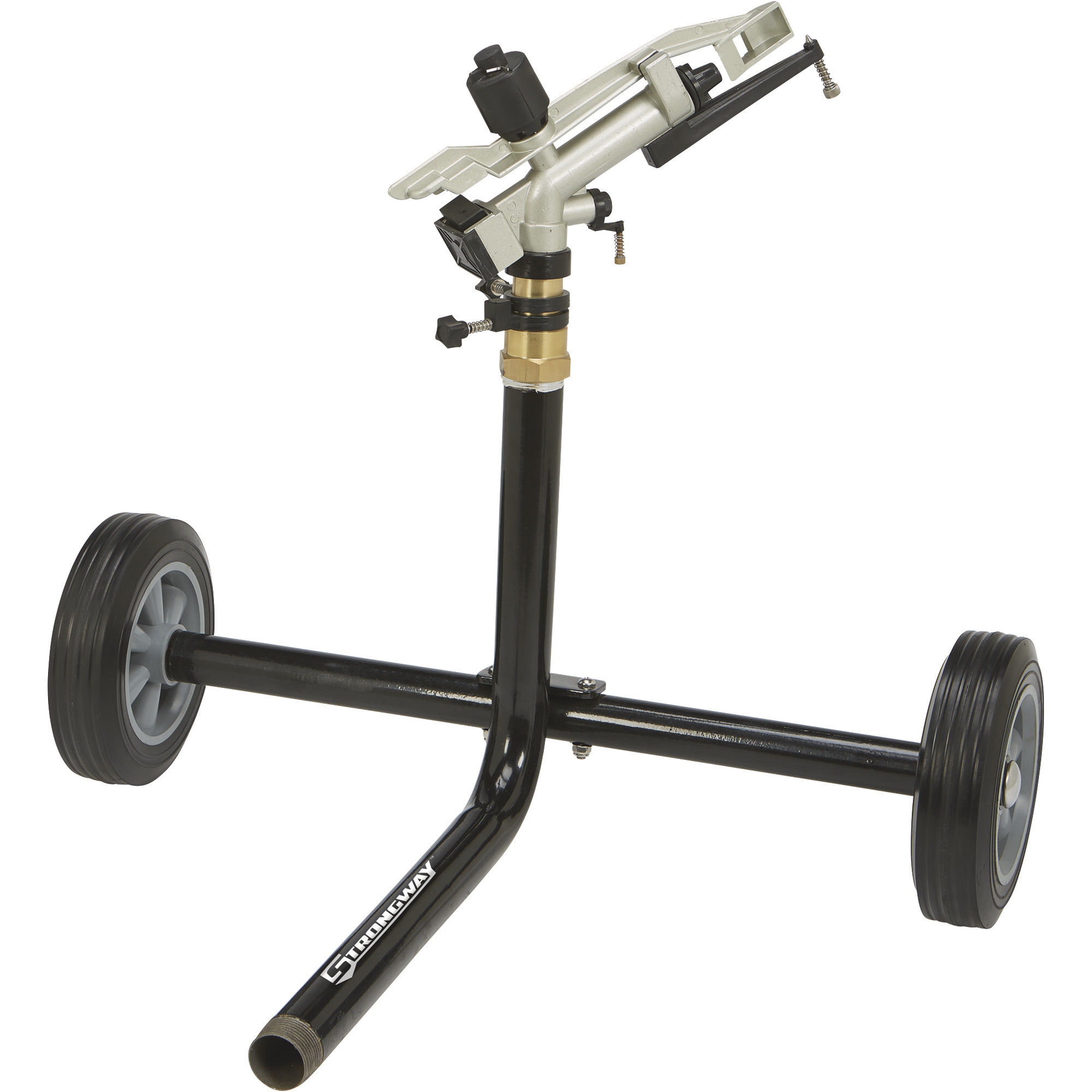

Strongway Wheeled Sprinkler, 1-1/4in. Head with 5 Nozzles, 8in. Rubber Tires

Item# 49521
"Strongway Wheeled Sprinkler, 1-1/4in. Head with 5 Nozzles, 8in. Rubber Tires"
Top SellerOn Sale
Strongway Wheeled Sprinkler, 1-1/4in. Head with 5 Nozzles, 8in. Rubber Tires

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Wheeled Sprinkler, 1-1/4in. Head with 5 Nozzles, 8in. Rubber Tires

Click or Tap image to Zoom

$132.99
Reg $189.99Save $57.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Adjustable spray pattern can be set to a full or partial circle for versatile watering
  • 5 nozzles deliver water at a 28° trajectory with a fast 23–63 GPM flow rate
  • Provides up to 150ft. dia. or 17,000 sq. ft. total coverage
  • Handles 22–70 PSI water pressure for dependable operation
  • Impact-style die-cast aluminum sprinkler head with brass union for long-lasting durability

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Strongway Wheeled Sprinkler is built with a heavy-gauge 1-1/4in. steel pipe frame and (2) 8in. solid rubber tires for easy mobility. The adjustable impact-style sprinkler head can be set to full or partial circle spray patterns, delivering up to 150ft. dia. or 17,000 sq. ft. of coverage.

What's Included

    (1) 1-1/4in. wheeled sprinkler

Downloads

Product Manual

Features + Benefits

  • Adjustable spray pattern can be set to a full or partial circle for versatile watering
  • 5 nozzles deliver water at a 28° trajectory with a fast 23–63 GPM flow rate
  • Provides up to 150ft. dia. or 17,000 sq. ft. total coverage
  • Handles 22–70 PSI water pressure for dependable operation
  • Impact-style die-cast aluminum sprinkler head with brass union for long-lasting durability
  • Heavy-duty frame with weighted 1-1/2in. solid steel axle, stainless hardware and powder-coat finish for corrosion resistance
  • Equipped with (2) 8in. solid rubber tires with cap nuts and stainless hairpin clips for smooth mobility

Key Specs

AttributeSpecification

item#

49521

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

31.0 LB

Coverage Diameter

150 ft

Gallons per Minute

63

Connection Size

1-1/4 in
AttributeSpecification

Adjustable

Yes

Product Type

Impulse

Base Type

Wheeled

Sprinkler Coverage

17,000 ft²

Material

Multiple

Product Weight

lb

Dimensions L x W x H (in.)

21.25 x 28.0 x 24.2 in

Reviews

Questions & Answers

48 Reviews This action will navigate to reviews.

Questions

1–10 of 25 Questions
Sort by:

  1. I need a sprnkiler that can connect to a 2" supply line. Wil this work? I fnot, what SKU # do you have?

    1. I use a 2", I found a reducer bushing from an irrigation place on the internet that had a 1 1/4 to 2 bushing. Then put your on fitting on the end I used a cam lock on the 2" side.

      Helpful?

    2. I have 2 of these and bought a reducer to hook between the 2 inch and the 1 1/4 sprinkler. These work great. You need a good pump to supply enough water to it. I use a Star 2 HP pump that I also bought from Northern. A great pump at a great price. I plan on buying 2 more this spring.

      Helpful?

    3. Northern Tool does not currently offer a larger sprinkler. This sprinkler can be fed from a 2" supply line as long as the flow rate is 23-63 GPM and 22-75 PSI. Northern Tool does not offer a fitting that is 1-1/4" x 2". That would have to be purchased locally.

      Helpful?

  2. Can this be used to irrigate a vegetable farm?

    1. Absolutely, just keep it in a narrow drive row and plant high growing veggies away from it if you have it in the middle of your garden. You just have to plan accordingly when you plant your garden.

      Helpful?

    2. This sprinkler can be used to water vegetables. It does require a water source that can provide 23-63 gallons per minute with 22-70 PSI and a 1-1/4" hose to deliver the water to the sprinkler. The unit will cover a 150 foot diameter (17,000 square feet) so be careful to not over water smaller plants.

      Helpful?

  3. Why 5 nozzles? How are they used?

    1. They change the spray pattern. Full stream is not always ideal.

      Helpful?

    2. The included nozzle sizes are 8 mm, 10 mm, 12 mm, 14 mm and 16 mm. The different size nozzles will provide different flow rate output.

      Helpful?

  4. Can I get parts

    1 answer

    1. Replacement parts can be purchased through our sister company, Jacks Small Engines. Please call our sales department at 1.800.221.0516 for assistance with part numbers and ordering instructions.

      Helpful?

  5. Would this work in a residential application? What hose size is required? 1 1/2 sprinker head is pretty large is it not?

    1 answer

    1. This sprinkler could be used for residential applications. It has an inlet fitting size of 1 1/4". An adapter could be used for a 3/4" standard garden hose fitting provided the flow rate is 23-63 GPM and 22-75 PSI for proper operation.

      Helpful?

  6. Does it move by itself

    1 answer

    1. This sprinkler does not travel by itself.

      Helpful?

  7. Does this have a screen to stop debris from plugging nozzle as I will feed from river

    1 answer

    1. This sprinkler is not equipped with a suction filter. This item is designed to be connected to a clean household water pipe. We do not recommend using a river, lake or pond as the water source.

      Helpful?

  8. Will this work with a 2" trash pump?

    1 answer

    1. This sprinkler handles a flow rate of 23-63 gallons per minute. If it is used with a pump that is significantly higher in GPM, it can potentially damage the sprinkler or cause inefficient operation.

      Helpful?

  9. Could I run 2 of these off of a 2 horse water pump and where can I get the small water hose from I haven’t looked only asking and thanks

    1 answer

    1. This sprinkler requires 23 to 63 GPM and 22 to 70 PSI to operate. As long as the pump can continuously provide this to each sprinkler, they should operate properly. A water supply hose for this sprinkler is not available from Northern Tool.

      Helpful?

  10. In the bag of nozzles, there are additional parts. The manual doesn't show what these are, or how to use them. What are these extra parts for?

    1 answer

    1. The black arm is attached to the bottom of the nozzle with the set screw. The pin and spring are inserted in the end of the arm and will be moved up and down to adjust the spray pattern as desired.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
