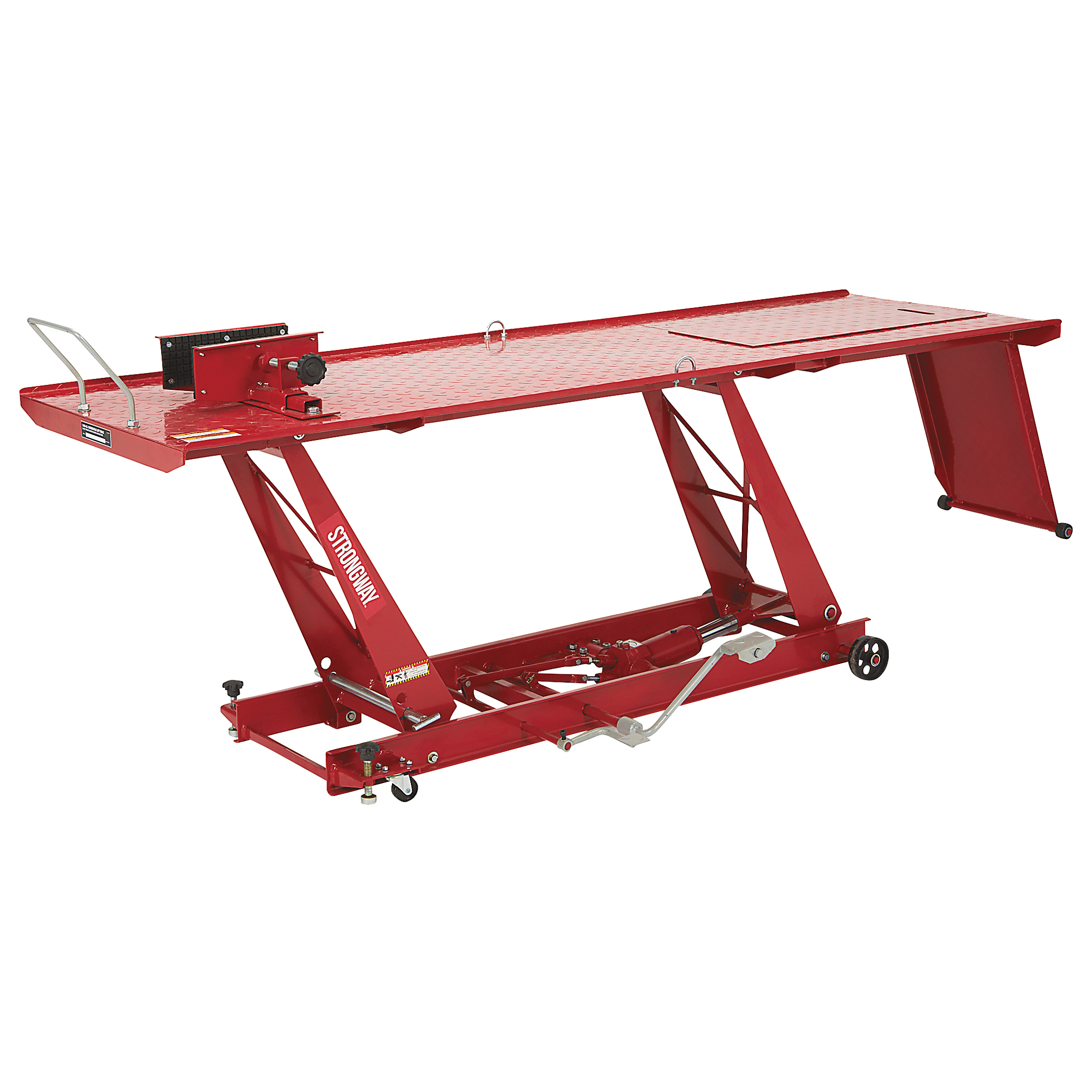

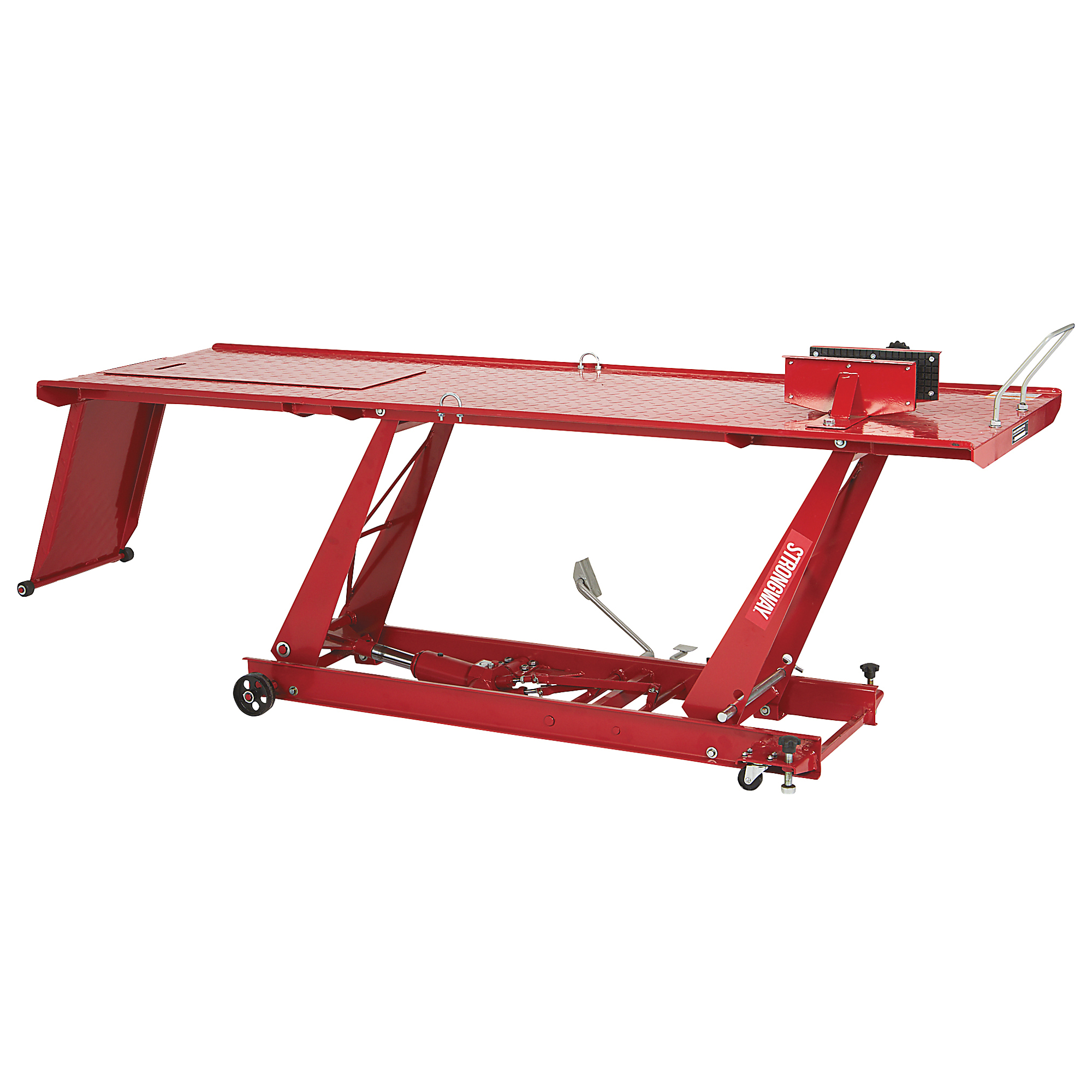

Strongway Hydraulic Motorcycle Lift, 1000-Lb. Capacity, Steel

Item# 5387806
"Strongway Steel Hydraulic Motorcycle Lift, 1100-Lb. Capacity, Model# ZD04101D-500"
Strongway Hydraulic Motorcycle Lift, 1000-Lb. Capacity, Steel

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Hydraulic Motorcycle Lift, 1000-Lb. Capacity, Steel

Click or Tap image to Zoom

$569.99

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 1,000-Lb. Lift Capacity: Hydraulic system raises motorcycles from 7.08in. to 30in. working height for maintenance and service access
  • Diamond-Plate Steel Platform: Rugged steel surface helps reduce tire slippage during loading and lifting
  • Removable Ramp Design: Hinged ramp with rollers extends and retracts smoothly and locks with a 7/8in. safety lock pin
  • Wheel Clamp with Rubber Tabs: 7in. clamp helps secure the front wheel while helping prevent hub scratching
  • Foot-Operated Hydraulic Pump: Cast iron 6mm foot pedal supports controlled hands-free lifting operation

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Strongway Hydraulic Motorcycle Lift is built to provide stable elevated access for motorcycle maintenance, service and repair tasks in garage or shop environments. A heavy-duty welded steel frame and diamond-plate platform help maintain traction and stability, while the foot-operated hydraulic pump allows controlled hands-free lifting to a comfortable working height. A removable ramp and wheel clamp assist with secure loading, and integrated transport wheels support repositioning when needed. Designed for reliable lifting performance and convenient servicing access, the Strongway Hydraulic Motorcycle Lift delivers stable support and controlled elevation for routine maintenance tasks.

What's Included

    (1) Strongway Hydraulic Motorcycle Lift, 1,000-lb. capacity
Play Item Video

Features + Benefits

  • 1,000-Lb. Lift Capacity: Hydraulic system raises motorcycles from 7.08in. to 30in. working height for maintenance and service access
  • Diamond-Plate Steel Platform: Rugged steel surface helps reduce tire slippage during loading and lifting
  • Removable Ramp Design: Hinged ramp with rollers extends and retracts smoothly and locks with a 7/8in. safety lock pin
  • Wheel Clamp with Rubber Tabs: 7in. clamp helps secure the front wheel while helping prevent hub scratching
  • Foot-Operated Hydraulic Pump: Cast iron 6mm foot pedal supports controlled hands-free lifting operation
  • Safety Lock System: 7/8in. safety lock pin helps prevent accidental lowering during service
  • Integrated Transport Wheels: Front and rear wheels allow easier positioning on garage or shop floors
  • Screw-Fixed Pump Assembly: Supports easier servicing and component access when maintenance is required
  • Convenient Access Panel: Provides access to internal components for inspection and upkeep
  • Overall Dimensions: 112in.L x 15.5in.W x 32in.H

Key Specs

AttributeSpecification

item#

5387806

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

335.0 LB

Capacity

1,000 lb

Max. Lift Range

30 in
AttributeSpecification

Min. Lift Range

7.08 in

Material

Steel

Ramp Length

23.2 in

Product Weight

260.0000 lb

Dimensions L x W x H (in.)

112.0 x 15.5 x 32.0 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. In the specs it shows 112L x 15.5 W but in the Q&A section an answer was given of 112L x 23.5W Which is it?

    1 answer

    1. The overall size is 112" long x 32" wide x 15.5" high when the platform is lowered. The platform size is 86.5" long x 26.75" wide.

      Helpful?

  2. what is the rear panel opening dimensions? length and width in inches?

    1 answer

    1. The access panel measures 28.74" (730mm) long x 9.06" (280mm) wide.

      Helpful?

  3. dose this come with side panels

    1 answer

    1. This motorcycle lift does not include any side panels. It comes as shown in the photos.

      Helpful?

  4. What are the wheels on this lift made of. Cast iron?,

    1 answer

    1. The wheels of this lift are constructed from steel.

      Helpful?

  5. Are replacement parts available for this motorcycle lift?  I am in need of the hydraulic jack.

    1 answer

    1. Currently, parts are not available for this motorcycle lift.

      Helpful?

  6. can this be hooked up to a air compressor

    1 answer

    1. This hydraulic lift does not have a pneumatic option to work with an air compressor.

      Helpful?

  7. What is the platform width?

    1 answer

    1. The dimensions on the platform are 86.5" L x 26.75" W.

      Helpful?

  8. Are there tie down points in the rear of the lift platform

    1 answer

    1. There is a set of U bolts that will come with the lift. There are three sets of holes that you may install the U bolts to be able to use multiple tie down points.

      Helpful?

  9. Does it come assembled?

    1 answer

    1. There is some assembly required. The ramp will need to be attached with the pins. The clamp assembly and the stop plate will need to be attached to the front of the platform. The foot pedal will need to be added and the strap U-rings will need to be added. Instructions will be included in the manual with the product.

      Helpful?

  10. Does the back panel drop for rear tire removal?

    1 answer

    1. Both the moveable plate on top of the table and the ramp can be removed for convenience.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
