Strongway Adjustable Gantry Crane, 4000-Lb. Capacity, 7.8ft.–11.7ft. Lift

Item# 5071182
Strongway Adjustable Gantry Crane, 4000-Lb. Capacity, 8.2ft.–12.14ft. Lift
Top Seller
Strongway Adjustable Gantry Crane, 4000-Lb. Capacity, 7.8ft.–11.7ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Adjustable Gantry Crane, 4000-Lb. Capacity, 7.8ft.–11.7ft. Lift

Click or Tap image to Zoom

$899.99

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • All-steel construction
  • Adjusts from 7.8ft.–11.7ft.
  • 7.77ft. between vertical beams
  • Quick assembly and disassembly for easy transport
  • 9 positive stops provide a sturdy overhead points for lifting car engines, heavy machinery and other equipment

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Strongway Adjustable Gantry Crane, 4000-Lb. Capacity, 7.8ft.–11.7ft. Lift
  • Strongway Push Trolley, 4400-Lb. Capacity, Fits 2-5/8in.–8-5/8in.W I-Beam
  • Strongway Manual Chain Hoist, 4400-Lb. Capacity, 20ft. Lift
  • Strongway Electric Chain Hoist, 2-Ton Load Capacity, 9.84ft. Lift
Price for all four:

$2809.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Strongway Adjustable Gantry Crane is ideal for shops where lifting is an essential part of the business. This all-steel yet lightweight crane goes where forklifts can’t. The crane's adjustment range is from 7.8ft.–11.7ft.H with 9 positive stops to provide sturdy overhead points for lifting car engines, heavy machinery and other equipment. The distance between vertical beams is 7.77ft. Quick assembly and disassembly allow for easy transport within a jobsite or from site to site. The auto-lock feature keeps the Strongway Adjustable Gantry Crane secure. Superstrong 6in. casters (4 locking) with rubber roll smoothly and swivel 360°. This gantry crane is NOT to be moved while loaded.

What's Included

    (1) Strongway Adjustable Gantry Crane

Downloads

Product Manual

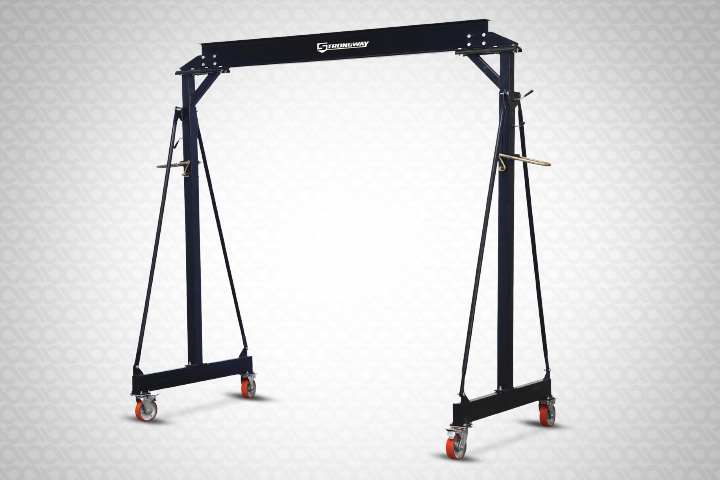

VERSATILE LIFTING TOOL

The Strongway ADJUSTABLE GANTRY CRANE is a vital resource for shops, providing a HIGH-CAPACITY, stable platform for LIFTING ENGINES,MACHINERY and other heavy equipment

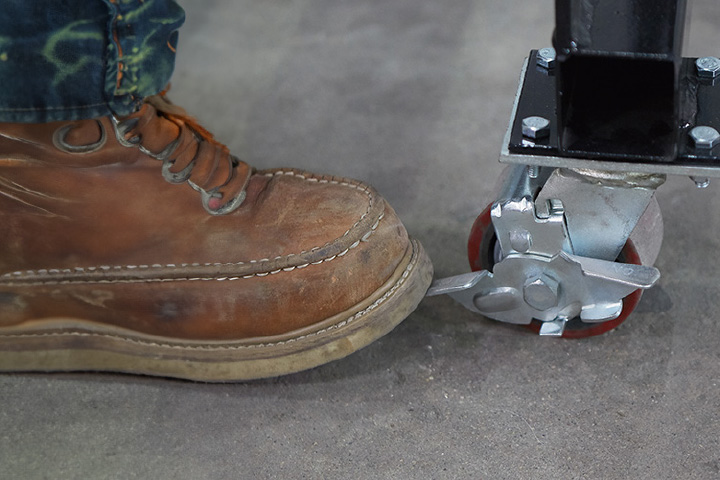

EFFICIENT OPERATION

The LARGE SWIVEL CASTERS allow for smooth movement around the workspace and the LOCKABLE WHEELS PREVENT MOVEMENT during lifts, combining mobility with operational safety

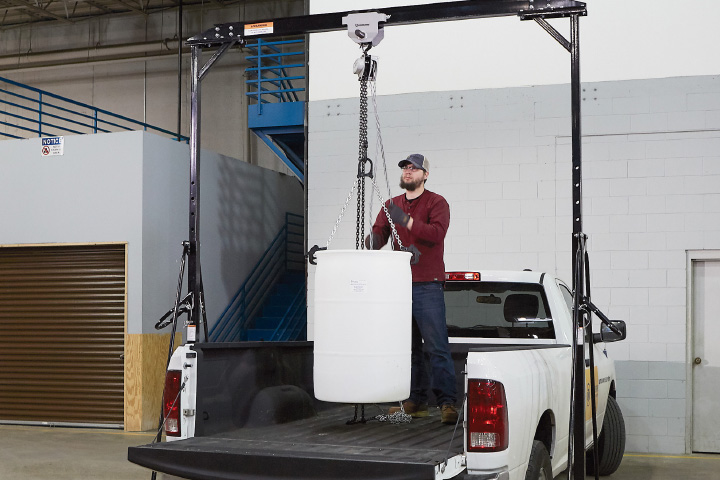

DESIGNED FOR CONVENIENCE

This CRANE’S LIGHTWEIGHT yet durable construction allows it to be deployed in areas inaccessible to FORKLIFTS, making it a versatile choice for varied lifting needs

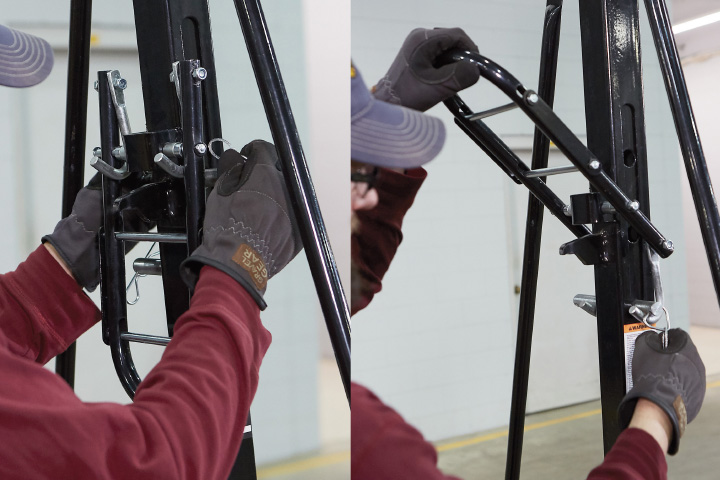

ADJUSTABLE AND SECURE

With its easy height adjustability and secure AUTO-LOCKING MECHANISM, the crane offers both FLEXIBILITY and SAFETY, ensuring it meets the specific needs of any task

Features + Benefits

  • All-steel construction
  • Adjusts from 7.8ft.–11.7ft.
  • 7.77ft. between vertical beams
  • Quick assembly and disassembly for easy transport
  • 9 positive stops provide a sturdy overhead points for lifting car engines, heavy machinery and other equipment
  • Auto lock to keep unit secure
  • Lightweight crane goes where forklifts can't
  • Superstrong 6in. swivel casters (4 locking) with rubber for smooth rolling

Key Specs

AttributeSpecification

item#

5071182

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

393.0 LB

Material

Steel
AttributeSpecification

Load Capacity

4,000 lb

I-Beam Length

96 in

I-Beam to Ground

93 in

Product Weight

352.7400 lb

Dimensions L x W x H (in.)

86.61 x 18.5 x 14.76 in

Reviews

Questions & Answers

75 Reviews This action will navigate to reviews.

Questions

1–10 of 29 Questions
Sort by:

  1. Is it shipped in one package? Will the package(s) be on a skid?

    1. this is shipped in 1 crate that has a skid bottom

      Helpful?

    2. The product arrived packed in one long wood crate. I had it delivered to a business where I was able to use a lift truck to unload and reload into the back of my pickup truck. I then broke the crate down and unloaded at my shop piece by piece. A lot of work but able to be done by just myself by sliding the long components out and placing one end on the ground. No really heavy lifting required.

      Helpful?

    3. This item is packaged inside a sealed wooden crate that is banded and nailed shut. The crate has its own legs and is floor loaded on a truck.

      Helpful?

  2. Is the 11ft. 9 1/2in max height the working height (ground to bottom of the I beam) or the total height (ground to top of the I beam)?

    1. Ground to top of beam

      Helpful?

    2. The 11' 9-1/2" maximum height is measured to the top of the I-beam. The I-beam is 6.3" high so the measurement to the bottom of the I-beam (at its maximum height) is approximately 11' 3-1/4" (135.2").

      Helpful?

  3. does the i bean have the load rating stamped on the beam ?

    1 answer

    1. There are two warning labels, including load rating labels located on both posts rather than on the I-beam.

      Helpful?

  4. Can I get it with metal wheels?

    1 answer

    1. Metal casters are not available for this crane.

      Helpful?

  5. What are the height adjustments in inche

    1 answer

    1. This crane will adjust in increments of 3.97". The crane can be locked in at the following heights: 93.27", 97.20", 101.14", 105.08", 109.02", 112.95", 116.89", 120.83", 124.76", 128.31", 132.64", 136.57" and 140.51".

      Helpful?

  6. Is this osha approved engineer stamped per osha

    1 answer

    1. This gantry crane does not have an OSHA approved label on it.

      Helpful?

  7. This product does not say how to raise and lower the I beam. Hoist system or do you have to raise it from ladders?

    1 answer

    1. The gantry crane uses a hook and pin system, located on both sides of the crane to lift and lower the crane easily between 9 available height options.

      Helpful?

  8. Is there an option to get a wider I beam? Would be nice to have it over vehicle and be able to walk between upright and vehicle.

    1 answer

    1. An option for a wider I-beam would not be available for this gantry crane.

      Helpful?

  9. What is the size of the I beam, S8 x 18.4 beam?

    1 answer

    1. The I-beam is 86.61" long x 3.7" wide x 7.08" high. The middle thickness is 6.5mm and the bottom thickness is 9mm.

      Helpful?

  10. Does this come with a beam trolley?

    1 answer

    1. A trolley is not included. Please vew item #57078 for a compatible trolley.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Trolleys
Strongway Push Trolley, 4400-Lb. Capacity, Fits 2-5/8in.–8-5/8in.W I-Beam
4.6 out of 5 stars. 11 reviews

Strongway Push Trolley, 4400-Lb. Capacity, Fits 2-5/8in.–8-5/8in.W I-Beam

Item # 57078

$159.99
See All Manual Gear Chain Hoists

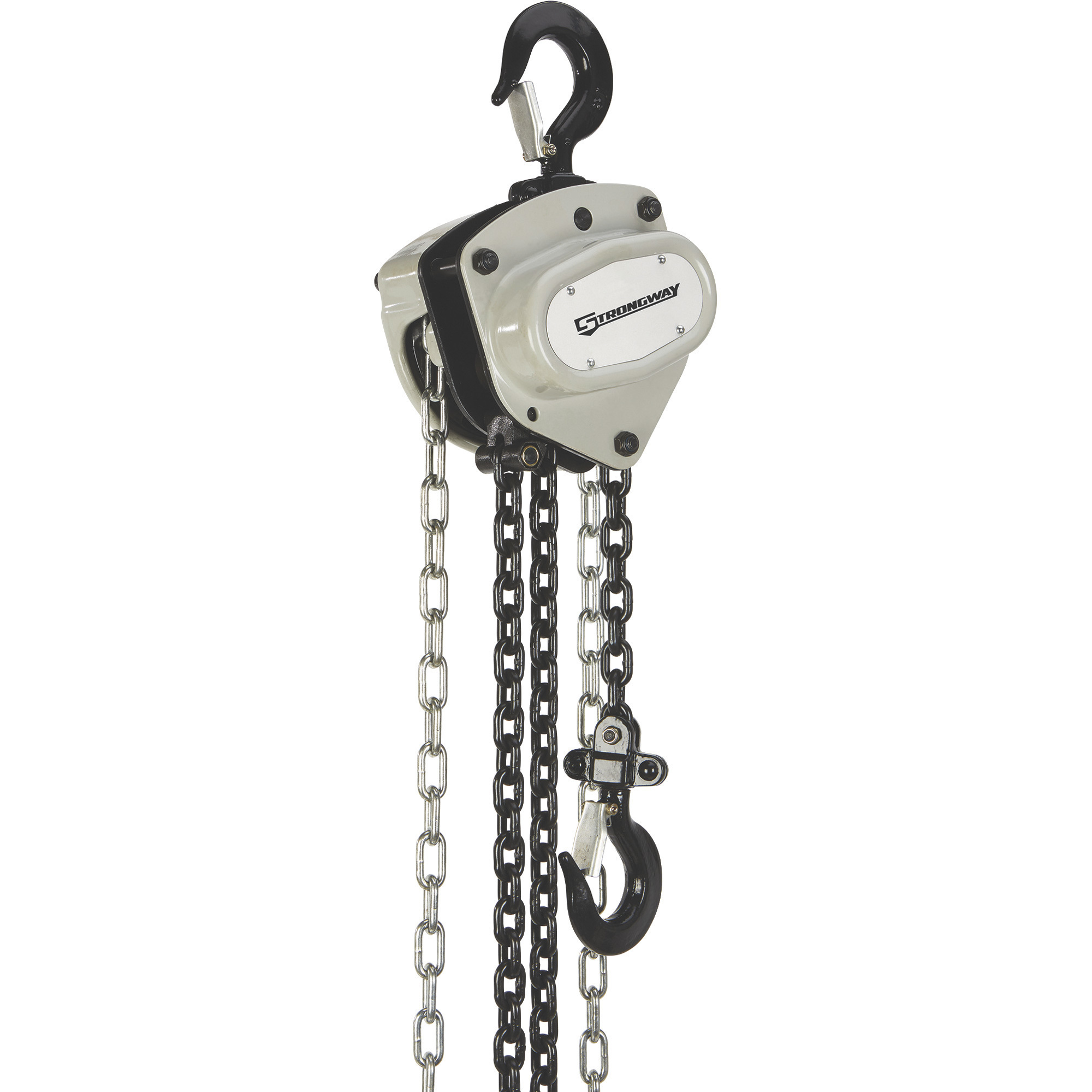

Strongway Manual Chain Hoist, 4400-Lb. Capacity, 20ft. Lift
