The user will need to install the handle, check the oil, and purge air from the hydraulic system before using it.

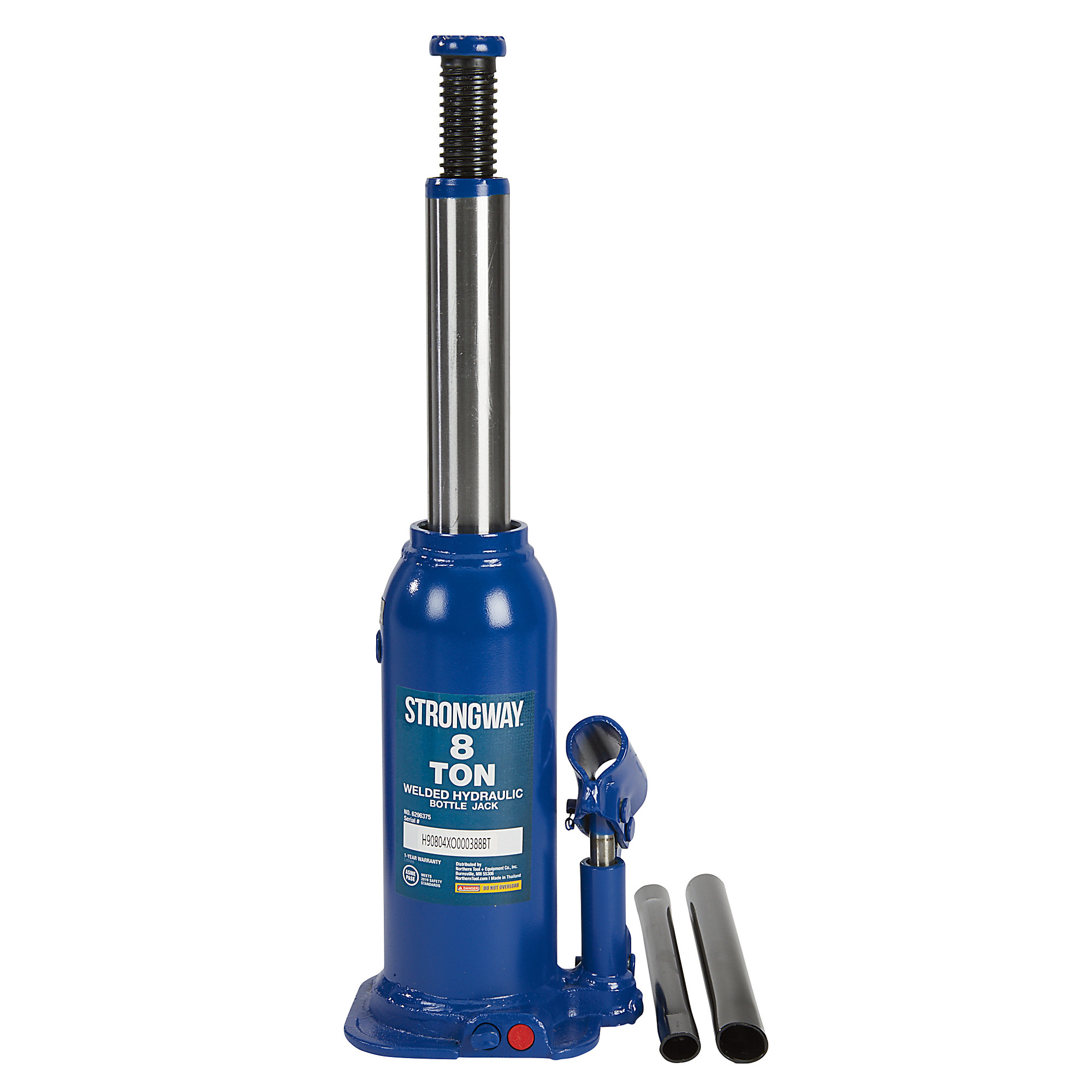

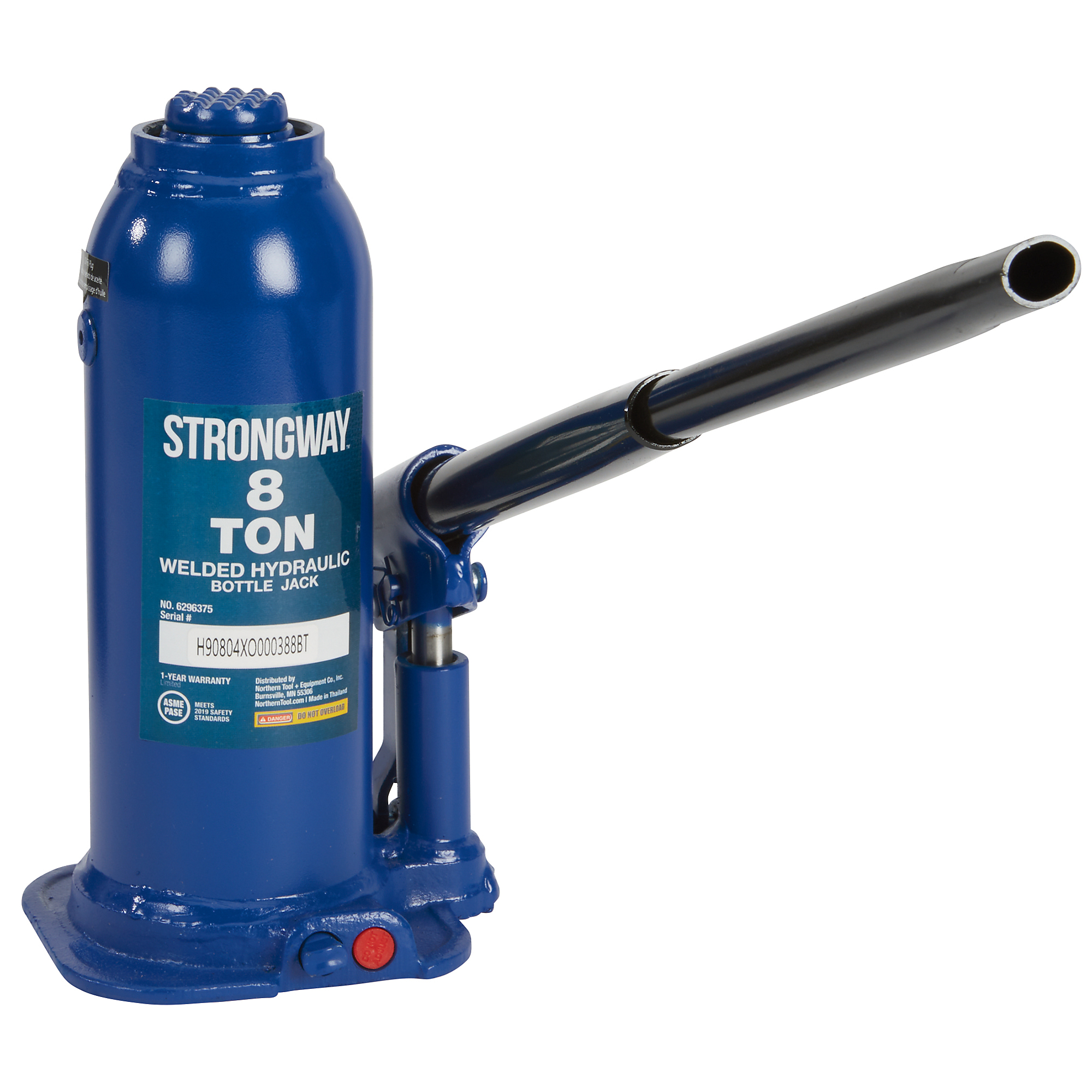

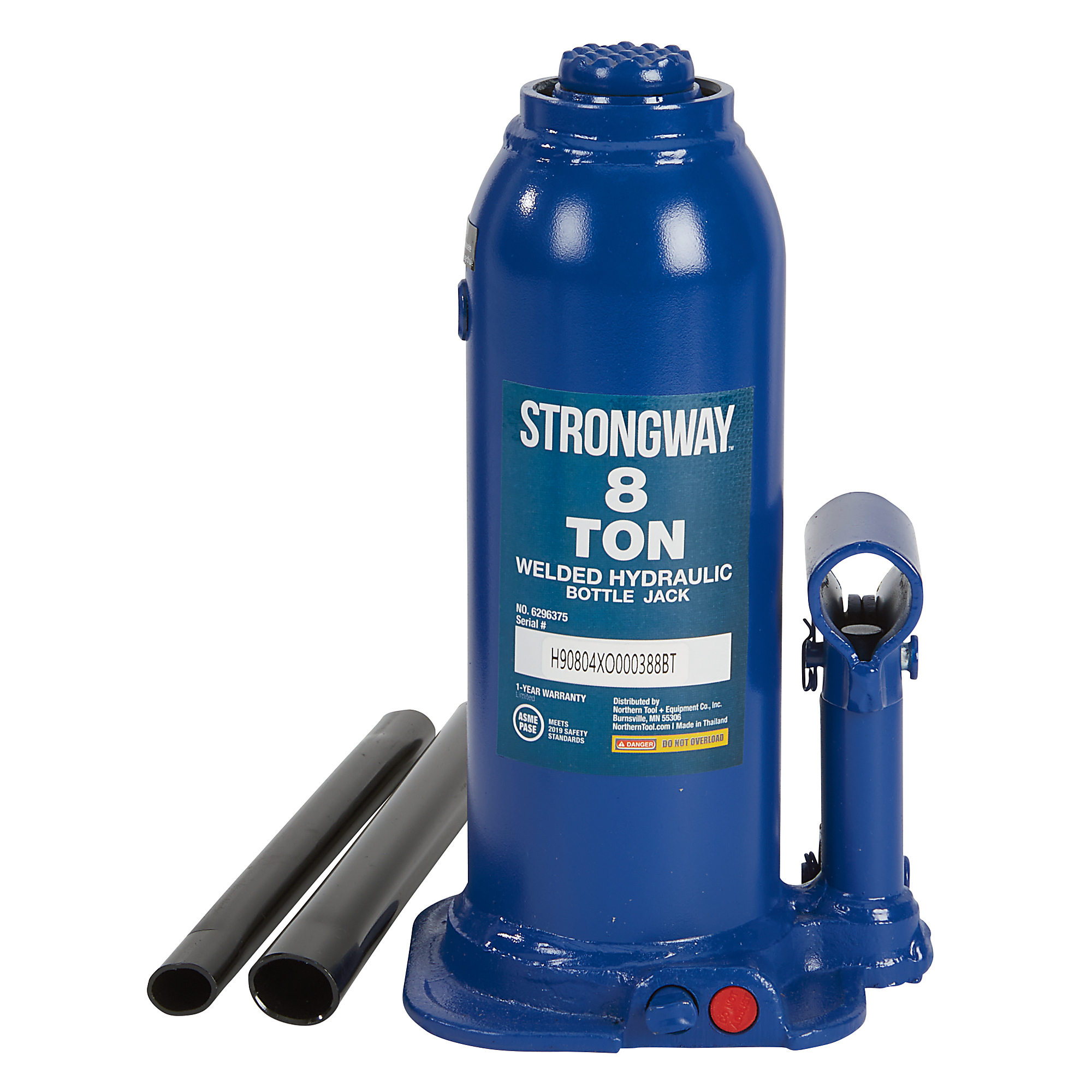

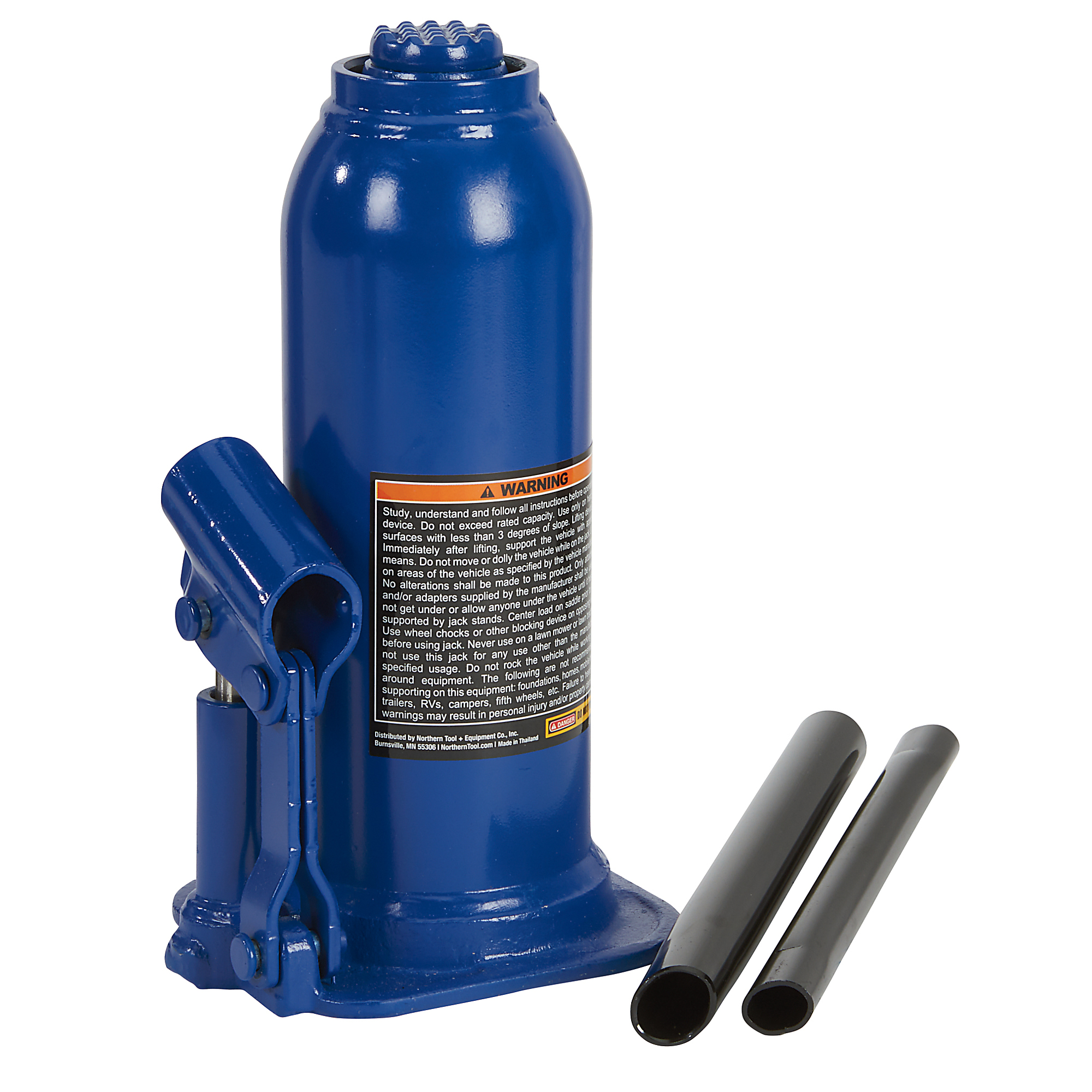

Strongway 8-Ton Welded Bottle Jack, 8.75in.–17.63in. Lift Height
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$47.99
- 8-Ton Lifting Capacity: Handles heavy vehicles, equipment and industrial loads
- Welded Base Construction: Reduces leaks and improves long-term durability
- Large-Diameter Hydraulic Cylinder: Requires lower oil pressure to reduce wear and extend service life
- Wide Rugged Base: Enhances stability under load
- Knurled Heat-Treated Saddle with Screw Extension: 3-1/8in. adjustment improves grip and lifting versatility
Prop 65 Warning: See Details
See full description
What's Included
- (1) Strongway 8-Ton Welded Bottle Jack
Features + Benefits
- 8-Ton Lifting Capacity: Handles heavy vehicles, equipment and industrial loads
- Welded Base Construction: Reduces leaks and improves long-term durability
- Large-Diameter Hydraulic Cylinder: Requires lower oil pressure to reduce wear and extend service life
- Wide Rugged Base: Enhances stability under load
- Knurled Heat-Treated Saddle with Screw Extension: 3-1/8in. adjustment improves grip and lifting versatility
- Adjustable Screw Extension: 3-1/8in. lift adjustment increases versatility
- High-Strength Steel Build: Constructed from high-grade steel with QT450 nodular iron pump for durability
- Polished Piston Ram with Y-Style Seal: Resists wear and helps prevent oil bypass and load drift
- Corrosion-Resistant Finish: Lead-free paint resists oil, grease and dirt for easier cleanup
- All-Temperature Hydraulic Oil: Operates in conditions from 40°F to 105°F for consistent performance
- Sectional Handle: Connects quickly for operation and compact storage
- ISO-Certified Manufacturing: Built in ISO-certified facilities for consistent production quality
- ASME PASE 2019 Compliant: Meets recognized safety standards for lifting equipment
See All Bottle Jacks
See All Strongway Bottle Jacks
Currently Viewing This Product
Specifications
Specifications
Strongway 8-Ton Welded Bottle Jack, 8.75in.–17.63in. Lift Height
Omega 20-Ton Low Profile Air Actuated Bottle Jack,Model# 18209
Stronghold 20-Ton Air/Hydraulic Bottle Jack, Model# 61202
JET 17 1/2-Ton Hydraulic Bottle Jack, Model# JHJ-17-1/2
Lift Capacity
Same
8 Tons
20 Tons
20 Tons
17 Tons
Max. Lift Height
Same
17.63 in
15.5 in
20 in
20 in
Min. Lift Height
Same
8.75 in
8.13 in
10.25 in
10.38 in
Screw Top Adjustment
Same
3.13 in
-
3.13 in
-
Power Source
Same
Hydraulic
-
-
-
Handle Included
Same
Yes
-
Yes
Yes
Safety Valve
Same
Yes
-
-
No
Material
Same
Steel
-
-
-
Product Weight
Same
10.3500 lb
-
33.0600 lb
23.8000 lb
Dimensions L x W x H (in.)
Same
4.875 x 4.17 x 8.75 in
-
9.05 x 6.89 x 10.24 in
8.0 x 4.625 x 11.31 in
Ram Travel
Same
-
-
6.63 in
9.63 in
