Strongway 50-Ton Pneumatic Shop Press with Gauge and Winch

Item# 46264
Strongway 50-Ton Pneumatic Shop Press with Gauge and Winch
Top SellerOn Sale
Strongway 50-Ton Pneumatic Shop Press with Gauge and Winch

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway 50-Ton Pneumatic Shop Press with Gauge and Winch

Click or Tap image to Zoom

$1599.99
Reg $1799.99Save $200.00

Order today to get this price.

  • Shipping:

    Available now
    $19.99 Same Day

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Heavy-duty H-frame built from high-grade steel for strength and lasting durability
  • Lead-free paint applied after chemical wash for a long-lasting, rust-resistant finish
  • Oil, grease and dirt-resistant coating for easy cleanup
  • Large-diameter hydraulic steel cylinder requires lower oil pressure to lift loads, reducing wear and extending service life
  • Polished, treated piston ram resists skiving for smoother operation

See full description

Complete Your Solution

  • Strongway 50-Ton Pneumatic Shop Press with Gauge and Winch
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all two:

$1609.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Strongway 50-Ton Pneumatic Shop Press with Gauge and Winch is great for straightening, stamping, bending and pressing any component that is hard to handle. Polished inner cylinder walls extend the life of the hydraulic seals to minimize abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high-performance seals, wear rings and dust seals. Includes a dial gauge for dual metric/tons pressure readings. Equipped with a hand winch for easy adjustment of press bed height. Adjustable lower bolster. Some assembly required. Meets ASME ASP 2010 standards.

What's Included

    (1) Strongway 50-Ton Pneumatic Shop Press with Gauge and Winch (1) Hardware kit (2) Solid steel press plates

Downloads

Product Manual
Play Item Video

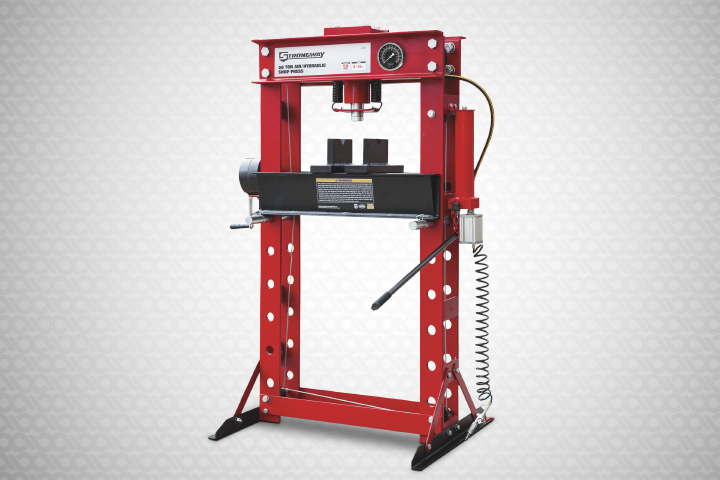

VERSATILE APPLICATIONS

Perfect for STRAIGHTENING, STAMPING, BENDING and PRESSING TASKS, capable of handling tough components effortlessly

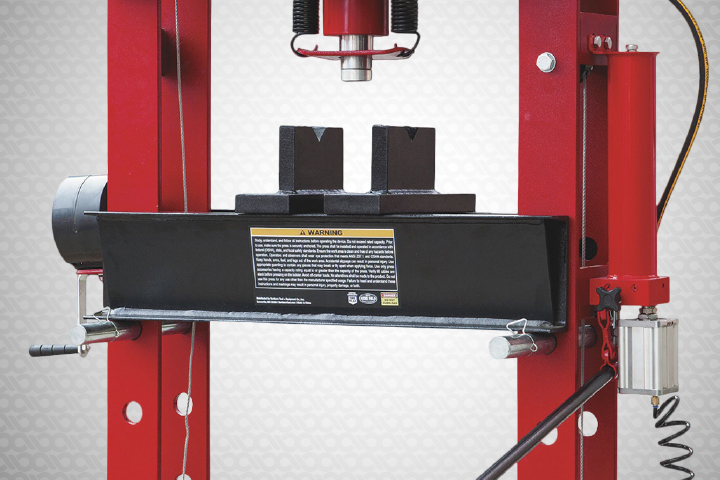

ENHANCED OPERATIONAL SAFETY

Complies with ASME ASP 2010 STANDARDS and includes an integrated overload protection valve to PREVENT SYSTEM OVERLOADING

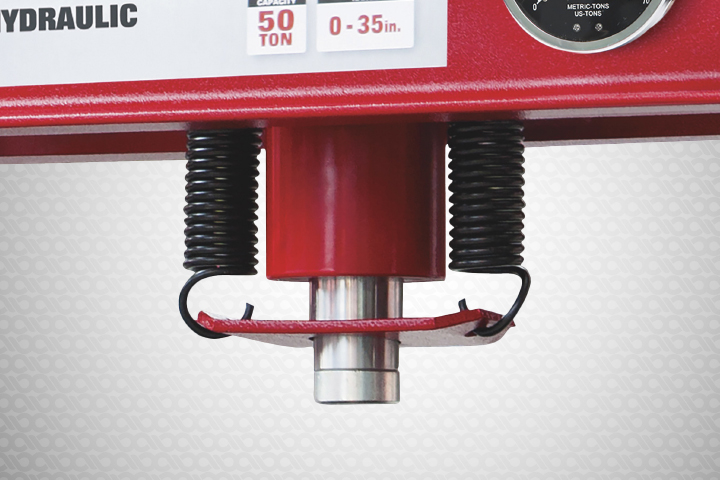

HIGH-PERFORMANCE SEALS

Utilizes high-performance seals, WEAR RINGS and DUST SEALS, alongside a Y-STYLE POLYURETHANE SEALING RING with a backup ring to maintain performance under load

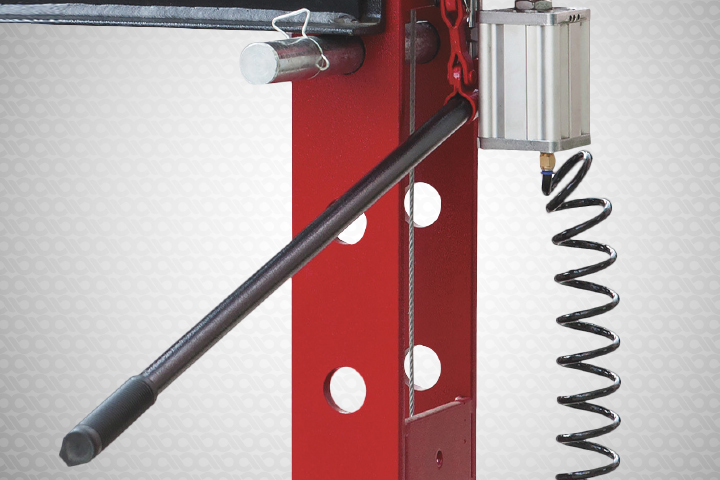

EASE OF USE

Features PUSH-BUTTON AIR TRIGGER for ram travel control and an EXTRA-LONG HANDLE for minimal pumping effort

Features + Benefits

  • Heavy-duty H-frame built from high-grade steel for strength and lasting durability
  • Lead-free paint applied after chemical wash for a long-lasting, rust-resistant finish
  • Oil, grease and dirt-resistant coating for easy cleanup
  • Large-diameter hydraulic steel cylinder requires lower oil pressure to lift loads, reducing wear and extending service life
  • Polished, treated piston ram resists skiving for smoother operation
  • Y-style polyurethane sealing ring with backup ring prevents slow load drift or oil bypass
  • QT450 nodular iron hydraulic pump delivers superior strength and durability
  • High-quality hydraulic oil provides corrosion resistance and reliable performance from 40°–105°F
  • Pushbutton air trigger offers controlled ram travel
  • Hand winch allows fast, easy press bed height adjustment
  • Integrated overload valve protects system components
  • Extra-long handle provides easier pumping leverage
  • Manufactured in ISO-certified facilities using aerospace- and automotive-grade engineering systems
  • Meets ASME ASP 2010 safety standards

Key Specs

AttributeSpecification

item#

46264

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

682.0 LB

Press Type

Pneumatic
AttributeSpecification

Max. Pressure

50 Tons

Stroke Length

6.875 in

Max. Working Distance

35 in

Dimensions L x W x H (in.)

49.1875 x 31.5 x 65.3125 in

Reviews

Questions & Answers

23 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. can you bend metal with it?

    1 answer

    1. This shop press can be used for bending metal. No other attachments are required.

      Helpful?

  2. So you can use this by simply plugging in your compressor to it?

    1 answer

    1. This shop press can be operated by connecting it to an air compressor. If an air source is unavailable, it can also operate manually.

      Helpful?

  3. What size compressor is required?

    1 answer

    1. Ensure the air source can dedicate 100-175 PSI to the jack. The air compressor needs to be capable of providing a minimum of 110 PSI to raise the rated load capacity.

      Helpful?

  4. What thickness of concrete pad is needed to support this hammer?

    1 answer

    1. There is no required or recommended thickness for the concrete pad. Bolts can just be driven into the floor for anchoring this press.

      Helpful?

  5. What are the dimensions of the feet/angle steel base? Is 1-1/2”, 2” angle steel?

    1 answer

    1. The angle steel measures 1.57" x 2.48". The feet are 31.5" long overall and 0.16" thick.

      Helpful?

  6. Is this press able to be controlled with manual hydraulics as well as pneumatic with full press power

    1 answer

    1. The press can be used manually or pneumatically.

      Helpful?

  7. I need to replace the winch , do you offer replacements?

    1 answer

    1. We currently do not offer replacement parts for this product. It is best to contact the manufacturer directly. The manufacturer is Torin.

      Helpful?

  8. I NEED TO ORDER THE PNEUMATIC PUMP AND IS THERE ANY WARRANTY ON THIS

    1 answer

    1. Please contact the manufacturer directly for parts. The press will come with a one year limited warranty.

      Helpful?

  9. Can the cylinder be slid side to side in the top frame for off center work?

    1 answer

    1. The hydraulic cylinder cannot be moved on this shop press.

      Helpful?

  10. What is the space between uprights? Looking to use this with a press break insert and need to know how much room there is.

    1 answer

    1. The distance between the uprights is 27.16 inches.

      Helpful?
