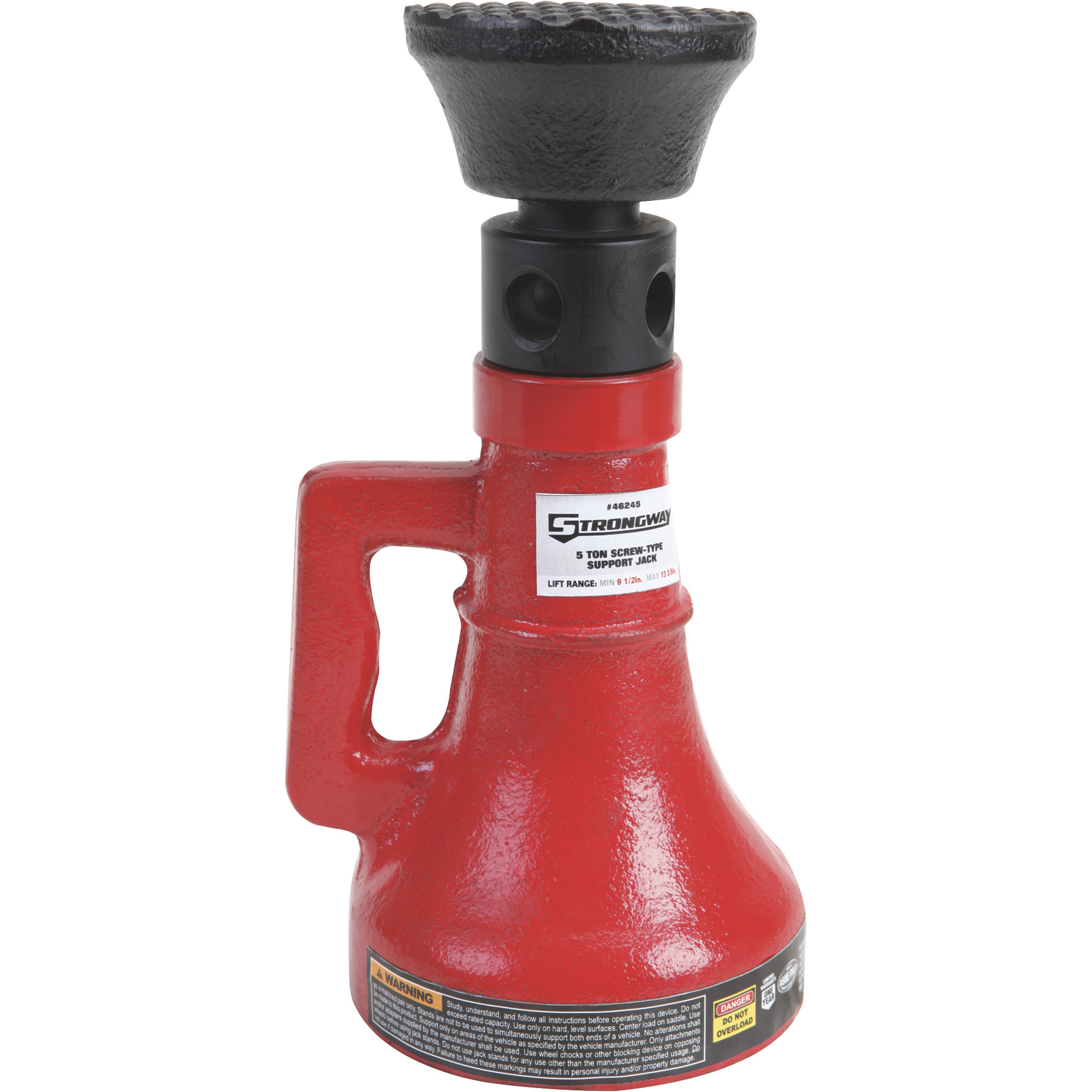

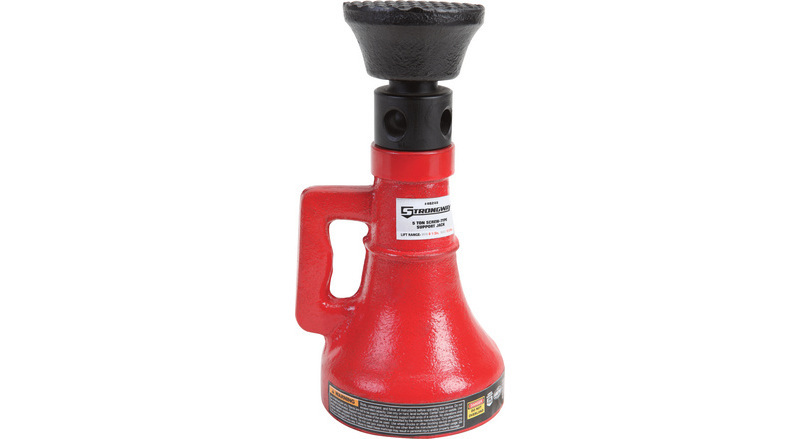

Strongway 5-Ton Screw Jack, Mechanical Jack, Construction Jack, Load Support Jack

Item# 46245
Strongway 5-Ton Screw Jack
Strongway 5-Ton Screw Jack, Mechanical Jack, Construction Jack, Load Support Jack

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway 5-Ton Screw Jack, Mechanical Jack, Construction Jack, Load Support Jack

Click or Tap image to Zoom

$69.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available

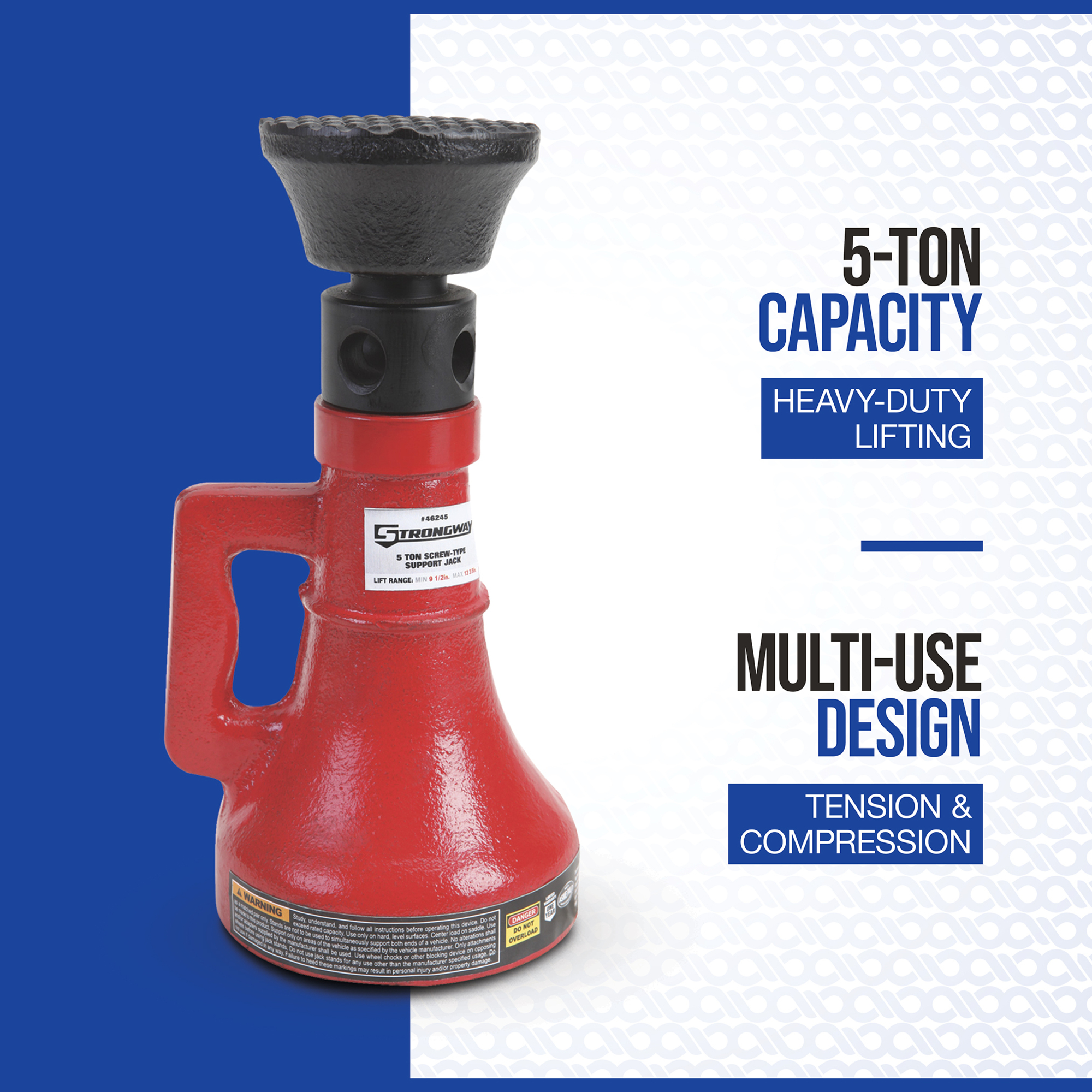

  • 5-Ton Capacity: Supports lifting and positioning of loads and structures
  • Mechanical Screw System: Provides precise control for lifting and load positioning
  • Tension + Compression Operation: Functions upright or inverted for versatile applications
  • Self-Locking Design: Helps maintain load position for added safety
  • Multi-Axis Cleated Saddle: Supports load leveling and secure contact

See full description

Complete Your Solution

  • Strongway 5-Ton Screw Jack, Mechanical Jack, Construction Jack, Load Support Jack
  • 3M Band-Style Earplugs, NRR 25dB, Model# 90537-80002
Price for all two:

$81.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Strongway Screw Jack is designed for lifting, positioning and supporting loads with a 5-ton capacity and a mechanical screw-drive system for precise control. The jack operates in tension or compression, upright or inverted, to support a wide range of construction, industrial and stabilization applications. A self-locking design helps maintain load position during use, while the multi-axis cleated saddle supports leveling and secure contact. Constructed of high-grade steel with a lead-free, oil-, grease- and dirt-resistant finish, this jack is built for durability and long-term performance. A 4-1/2in. x 4-1/2in. base provides stability under load, and a steel carrying handle supports transport. Built for demanding environments, the Strongway Screw Jack meets ASME PASE 2019 safety standards.

What's Included

    (1) Strongway Screw Jack

Downloads

Product Manual
Play Item Video

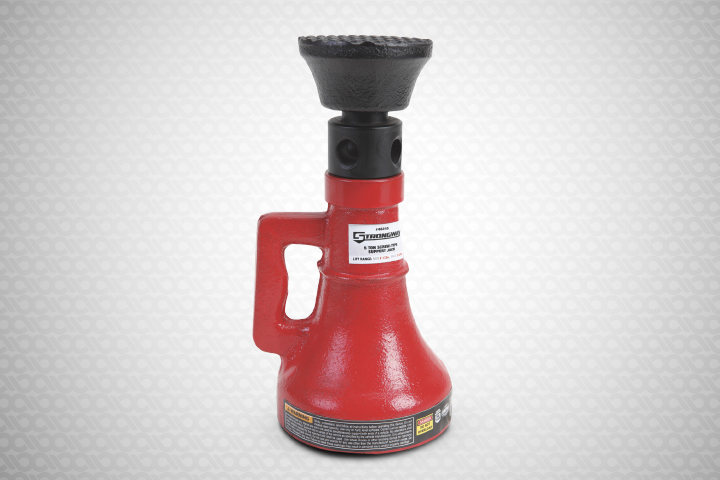

ENGINEERED FOR EXCELLENCE

Experience unmatched durability with our screw jack, crafted from HIGH-GRADE STEEL and coated with a robust, OIL-RESISTANT PAINT FINISH after a thorough chemical wash, customizable lifting range of 3-7/8 inch (with minimum 9-1/2 inch - maximum 13-3/8 inch) height and saddle diameter 9/16 inch

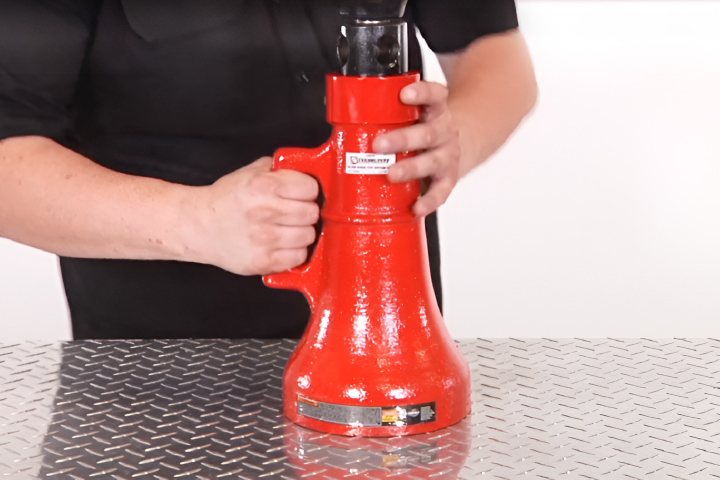

DESIGNED FOR MOBILITY

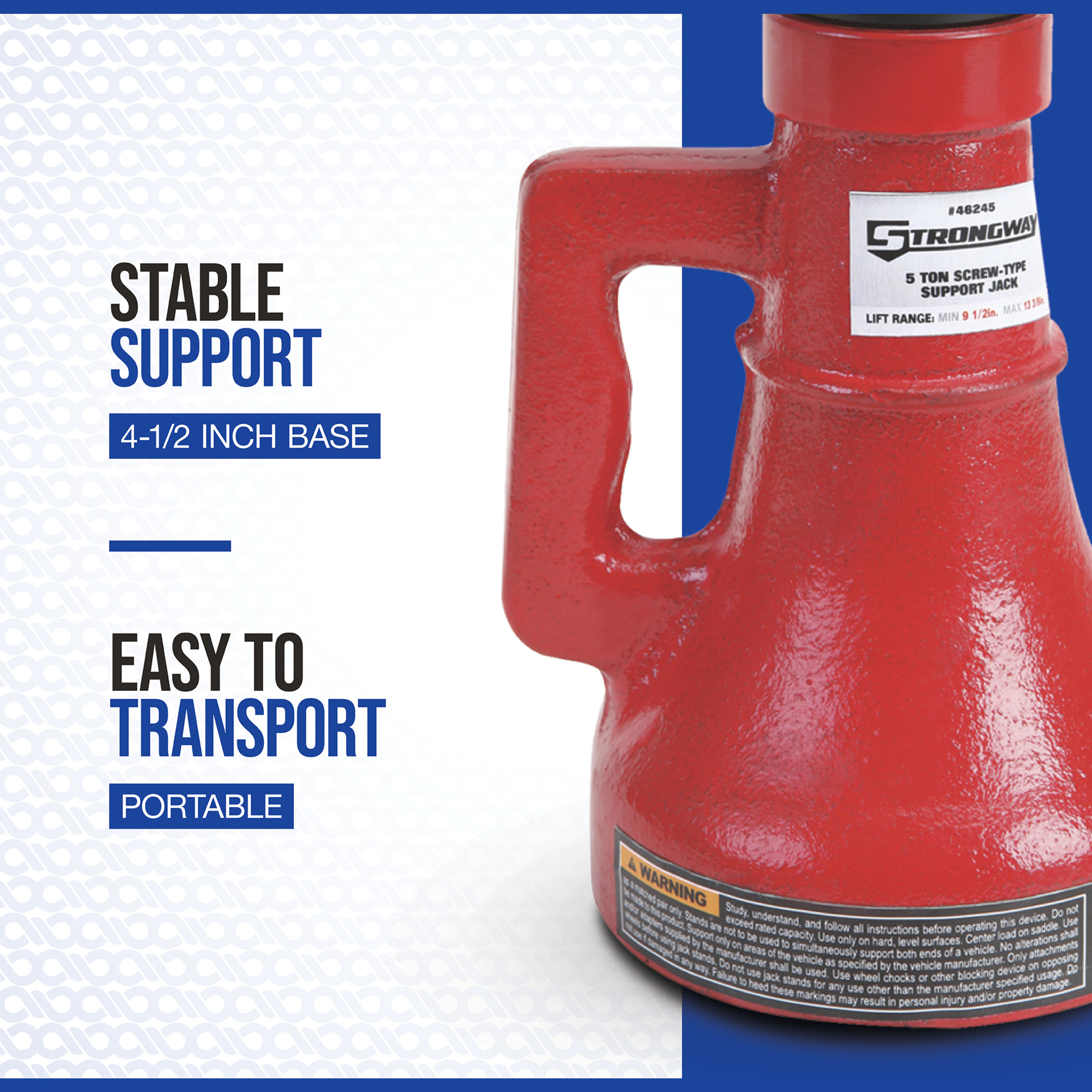

MOVE IT EFFORTLESSLY to any site thanks to its CONVENIENT STEEL HANDLE and compact base (4.5 inch x 4.5 inch), providing stability under heavy loads

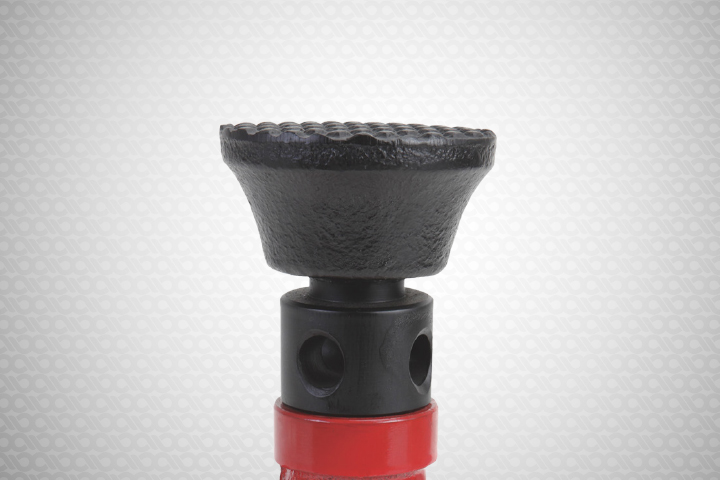

ENHANCED SAFETY FEATURES

Designed with your safety in mind, it features a SELF-LOCKING MECHANISM that PREVENTS ACCIDENTAL RELEASE, ensuring stable and secure lifting with an anti-skid saddle for easier load leveling and positioning

Features + Benefits

  • 5-Ton Capacity: Supports lifting and positioning of loads and structures
  • Mechanical Screw System: Provides precise control for lifting and load positioning
  • Tension + Compression Operation: Functions upright or inverted for versatile applications
  • Self-Locking Design: Helps maintain load position for added safety
  • Multi-Axis Cleated Saddle: Supports load leveling and secure contact
  • Heavy-Duty Steel + Coated Finish: Durable construction with lead-free coating resists oil, grease and corrosion
  • Stable Base: 4-1/2in. x 4-1/2in. footprint provides support under load
  • Carrying Handle + Bar Hole: Steel handle and 9/16in. bar hole support transport and operation
  • Manufacturing + Safety Standards: Built in ISO-certified facilities and meets ASME PASE 2019 requirements

Key Specs

AttributeSpecification

item#

46245

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

8.29 LB

Lift Capacity

5 Tons
AttributeSpecification

Max. Lift Height

13.38 in

Min. Lift Height

9.5 in

Base Length

4.5 in

Base Width

4.5 in

Material

Steel

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. How tall is 5 ton and 15 ton ?

    1. The 5 ton lifting screw jack has a lifting range from 9-1/2" - 13-3/8". The 15 ton lifting screw jack, item 46246, has a lifting range of 14" - 21-7/8".

      Helpful?

    2. The 5 ton lifting screw jack has a lifting range from 9-1/2" - 13-3/8". The 15 ton lifting screw jack item 46246 shown below has a lifting range of 14" - 21-7/8".

      Helpful?

  2. What is the minimum and maximum height that can be obtained with this screw jack

    1 answer

    1. This will lift a minimum height of 9-1/2" to a maximum height of 13-3/8".

      Helpful?

  3. Where can I get the appropriate turning bar?

    1 answer

    1. This screw jack has a 9/16" diameter bar hole. At this time, Northern Tool does not offer a turning bar for this jack, we recommend checking local sources.

      Helpful?

  4. Would one of these at each corner of a 5000 pound shipping container be suitable for long term application?

    1 answer

    1. Using two of these jacks in each corner of a shipping container would work as long as it does not exceed the weight capacity.

      Helpful?

  5. What is the thread and pitch on the jack lead screw?

    1 answer

    1. The jack will have a metric thread pitch of 5.0 or 5 US TPI. It will have large course threads.

      Helpful?

  6. Does it come with the lifting handle?

    Obviously the haul handle is built in, but what a handle to turn the screw?

    1 answer

    1. The handle turning bar is not included with this Strongway Jack. The turning bar hole is 9/16" in diameter.

      Helpful?

  7. what is the height in the closed position

    1 answer

    1. This screw jack is 9-1/2" tall when it is retracted and 13-3/8" tall when it is extended.

      Helpful?
