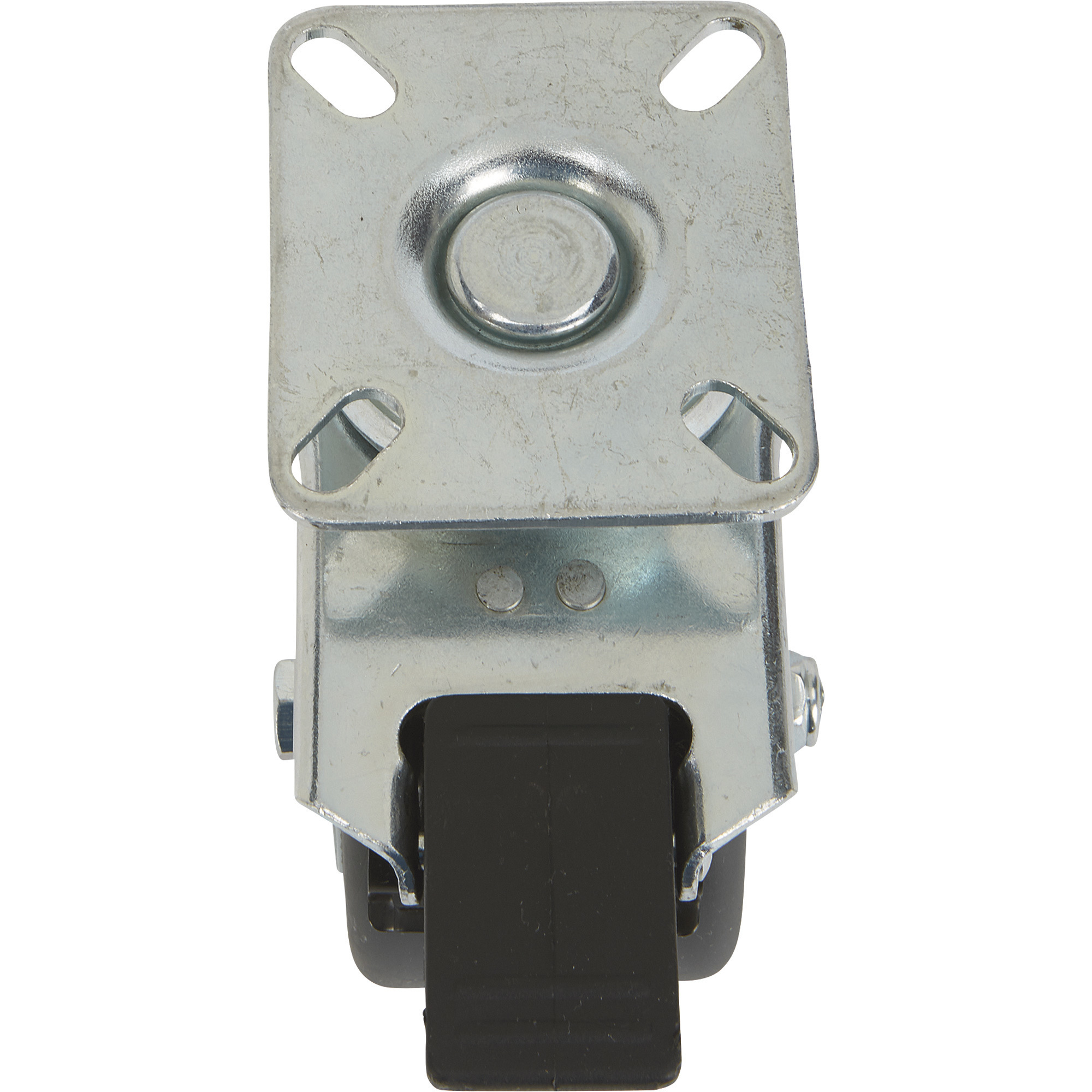

Strongway 3in. Dual-Wheel Swivel Caster with Brake, 330-Lb. Capacity, Thermoplastic Rubber Wheels

Item# 50391
Clearance
Strongway 3in. Dual-Wheel Swivel Caster with Brake, 330-Lb. Capacity, Thermoplastic Rubber Wheels

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway 3in. Dual-Wheel Swivel Caster with Brake, 330-Lb. Capacity, Thermoplastic Rubber Wheels

Click or Tap image to Zoom

  • 330-lb. capacity
  • Thermoplastic rubber wheels
  • Dual-wheel caster improves stability
  • Swivels more easily than a single wheel with the same size footprint
  • Differential action reduces the "scrubbing" effect of wide treads on floor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Strongway 3in. Dual-Wheel Swivel Caster with Brake improves stability and swivels more easily than a single wheel with the same size footprint thanks to differential action that reduces the "scrubbing" effect of wide treads against the floor. Double-ball raceway provides more strength and more swivel ability. Rugged caster has dual thermoplastic rubber wheels and is constructed of cold-forged steel. Strong kingpin. Zinc electrogalvanized finish provides a bright look and rust prevention.

What's Included

    (1) Caster with brake

Features + Benefits

  • 330-lb. capacity
  • Thermoplastic rubber wheels
  • Dual-wheel caster improves stability
  • Swivels more easily than a single wheel with the same size footprint
  • Differential action reduces the "scrubbing" effect of wide treads on floor
  • Double-ball raceway provides more strength and swivel ability
  • Brake stops wheel rotation with an easy foot motion
  • Constructed of cold-forged steel
  • Strong kingpin
  • Bright zinc electrogalvanized finish provides rust prevention
  • 3in. diameter wheels
  • 1in. wheel width
  • 3-1/32in. x 2-43/64in. top plate
  • 2-11/64in. x 1-57/64in. bolt hole spacing
  • Fork thickness: 3/32in.
  • Plate thickness: 1/8in.
  • Bolt hole diameter: 21/64in.
  • Sold individually

Key Specs

AttributeSpecification

item#

50391

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.52 LB

Wheel Diameter

3 in

Caster Type

Swivel

Capacity Class

300-499

Load Capacity per Caster

330 lb
AttributeSpecification

Wheel Material

Thermoplastic Rubber

Package (qty.)

1

Wheel Width

1 in

Foot Brake

Yes

Plate Dimensions

3.03 x 2.67

Bolt Hole Spacing

2.17 x 1.89

Bearing Type

Ball

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Are these total lock casters? Or are the brakes just for the wheel and not the swivel?

    1. These are total lock casters.
      Applying the brake locks BOTH the wheels and the swivel.

      Helpful?

    2. The brake is for the wheels.

      Helpful?

  2. What is the diameter (bolt/screw size) of the slotted holes on the mounting plate of this caster?

    1 answer

    1. The bolt holes are 0.59in. (15mm) long x 0.33in. (8.3mm) wide. The spacing of these bolt holes is 2.16in. (54.8mm) long x 1.84in. (6.7mm) wide on center. They sit an 80.8 degree angle from each other.

      Helpful?

  3. Whats the total height of this caster?

    1 answer

    1. The total height of the caster is 4.055" ± 0.06" (103 ± 1.5mm).

      Helpful?

  4. What is the durometer for these?

    1 answer

    1. The durometer of the caster wheels is HA80.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
