The saddle on this screw jack is not removable.

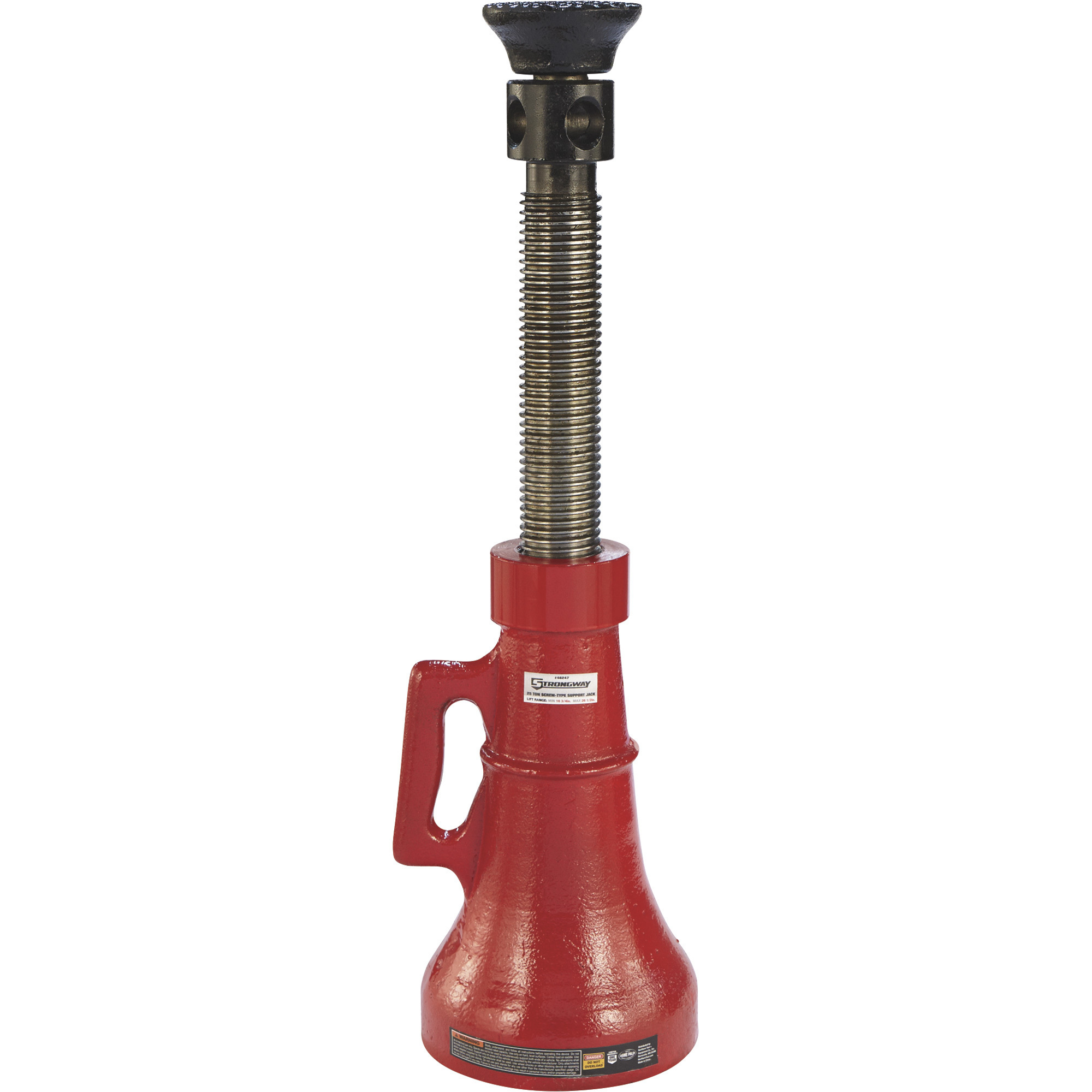

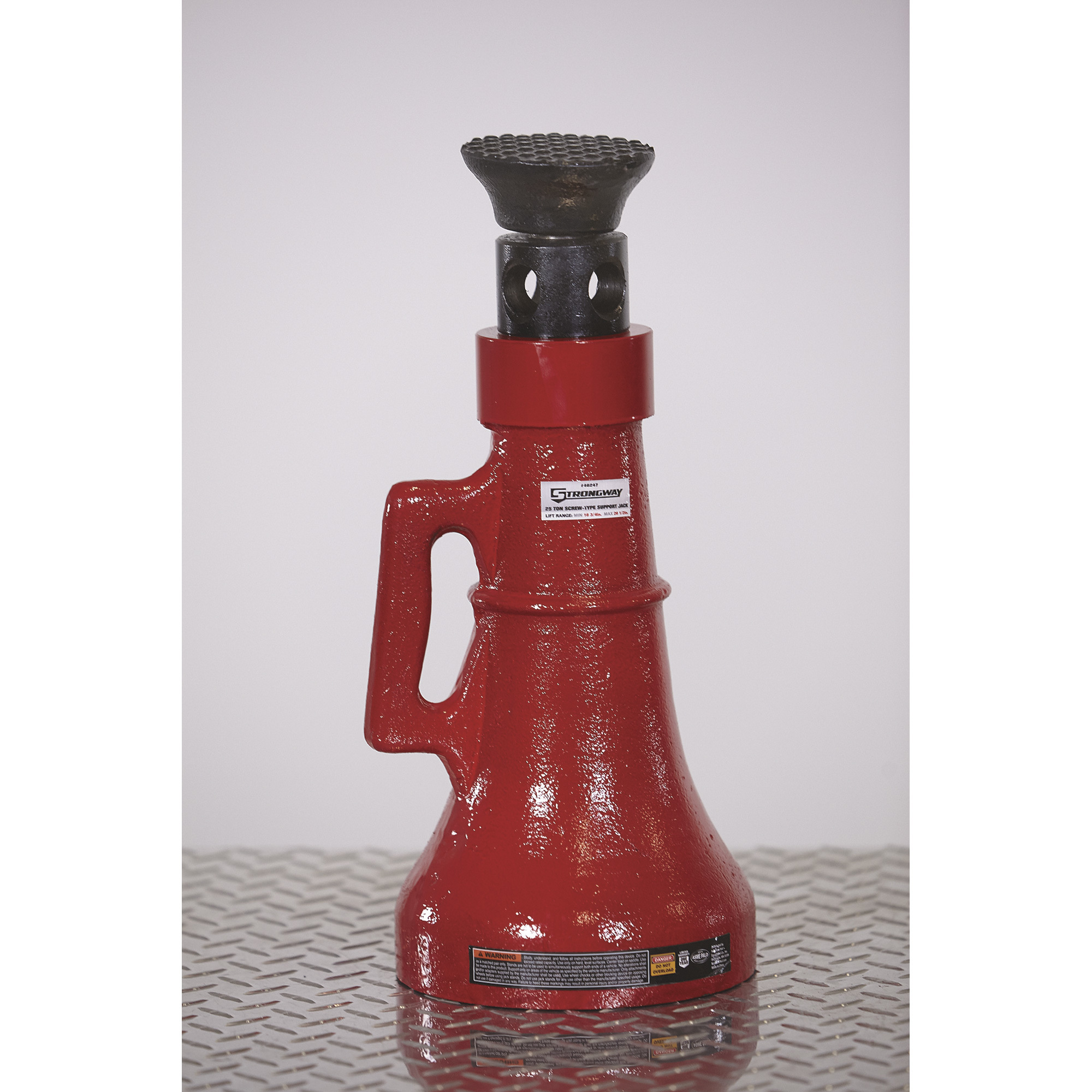

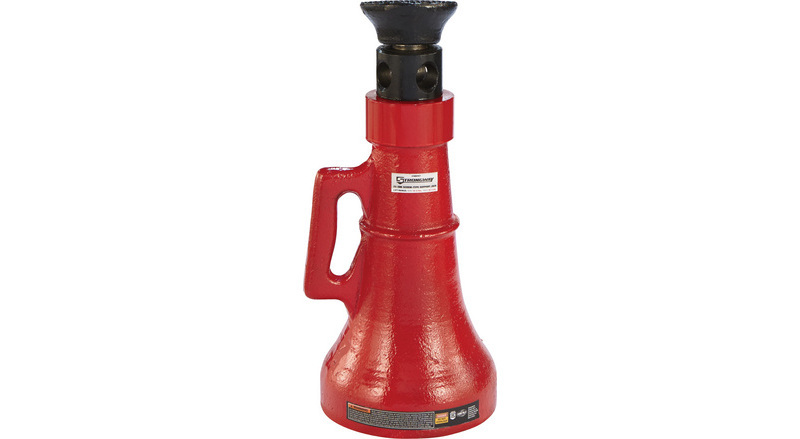

Strongway 25-Ton Screw Jack, Heavy-Duty Mechanical Jack, Construction Jack, Load Stabilization Jack
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$229.99
- 25-Ton Capacity: Supports lifting and positioning of heavy loads and structures
- Mechanical Screw System: Provides precise control for lifting and load positioning
- Tension + Compression Operation: Functions upright or inverted for versatile applications
- Self-Locking Design: Helps maintain load position for added safety
- Multi-Axis Cleated Saddle: Supports load leveling and secure contact
See full description
What's Included
- (1) Strongway Screw Jack
Downloads

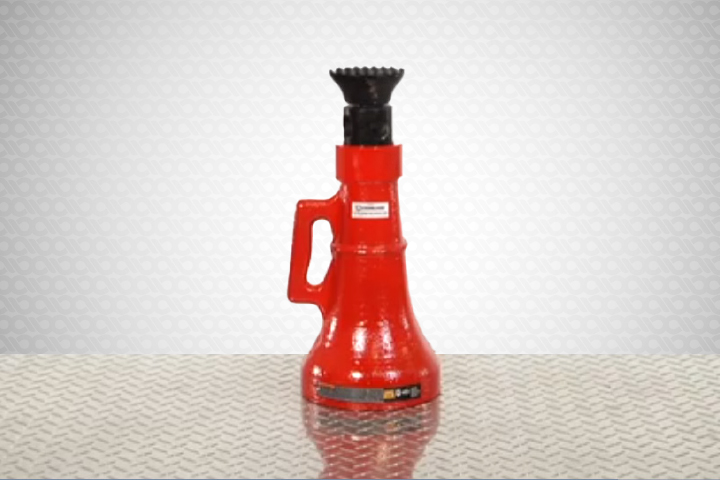

BUILT TO LAST
Crafted from the FINEST HIGH-GRADE STEEL and meeting rigorous aerospace standards, this jack ensures RELIABILITY and LONGEVITY

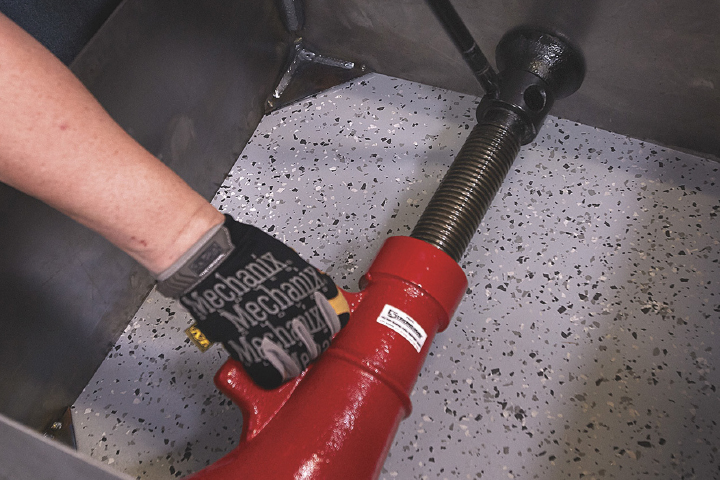

CLEAN AND DURABLE FINISH
Its SUPERIOR PAINT FINISH, applied post a thorough chemical wash, stands up to TOUGH CONDITIONS WHILE PREVENTING RUST

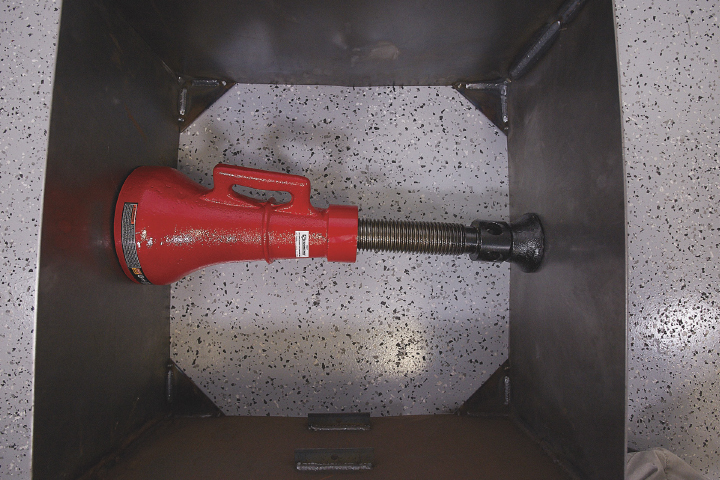

ADAPTABLE FOR ANY TASK
Whether PULLING or LIFTING, UPRIGHT or INVERTED, the screw jack performs with consistent strength and stability, from 16-3/4 inch minimum to a 26-1/2 inch maximum lift height

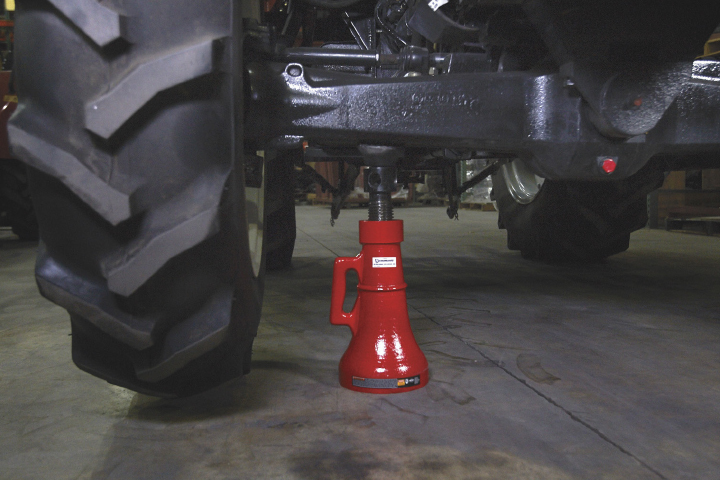

SAFETY FIRST
The SELF-LOCKING MECHANISM and compliance with ASME PASE 2019 SAFETY STANDARDS provide peace of mind during operation with an anti-skid saddle for easier load leveling and positioning, 1 inch saddle diameter

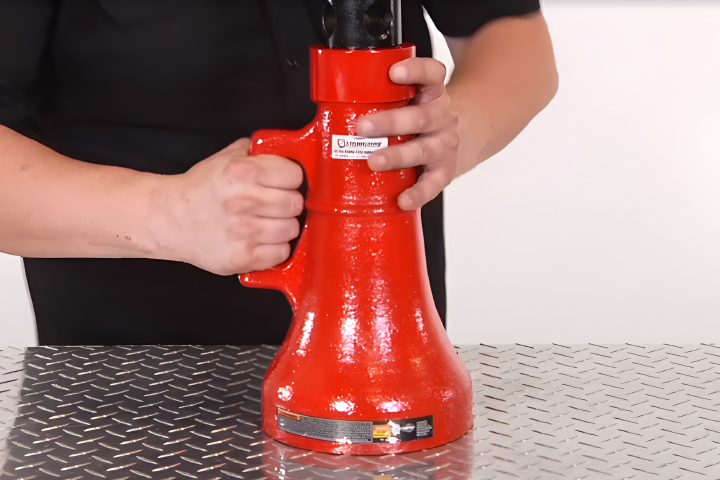

TRANSPORT WITH EASE
Designed with a ROBUST CARRYING HANDLE and a COMPACT BASE (7.25 inch x 7.25 inch), this jack is as portable as it is stable
Features + Benefits
- 25-Ton Capacity: Supports lifting and positioning of heavy loads and structures
- Mechanical Screw System: Provides precise control for lifting and load positioning
- Tension + Compression Operation: Functions upright or inverted for versatile applications
- Self-Locking Design: Helps maintain load position for added safety
- Multi-Axis Cleated Saddle: Supports load leveling and secure contact
- Heavy-Duty Steel + Coated Finish: Durable construction with lead-free coating resists oil, grease and corrosion
- Stable Base: 7-1/4in. x 7-1/4in. footprint provides support under load
- Carrying Handle + Bar Hole: Steel handle and 1in. bar hole support transport and operation
- Manufacturing + Safety Standards: Built in ISO-certified facilities and meets ASME PASE 2019 requirements
See All Jack Stands
See All Strongway Jack Stands
Currently Viewing This Product
Specifications
Specifications
Strongway 25-Ton Screw Jack, Heavy-Duty Mechanical Jack, Construction Jack, Load Stabilization Jack
Safeguard 12-Ton Jack Stands, 1 Pair, Model# 63120
Safeguard 3-Ton Jack Stands, 1 Pair, Model# 63030
Buffalo Tools, 10 Ton High Height Jack Stand (2pk), Lift Capacity 10 Tons, Max. Lift Height 46.75 in, Min. Lift Height 28.75 in, Model# JS10HSET
Lift Capacity
Same
25 Tons
12 Tons
3 Tons
10 Tons
Max. Lift Height
Same
26.5 in
30.31 in
16.9 in
46.75 in
Min. Lift Height
Same
16.38 in
19.68 in
11.8 in
28.75 in
Base Length
Same
7.25 in
14.75 in
7.625 in
-
Base Width
Same
7.25 in
12.75 in
6.875 in
-
Material
Same
Steel
-
-
-
Product Weight
Same
-
74.9 lb
14.9 lb
110.0000 lb
Dimensions L x W x H (in.)
Same
-
-
-
38.6 x 18.11 x 18.11 in
