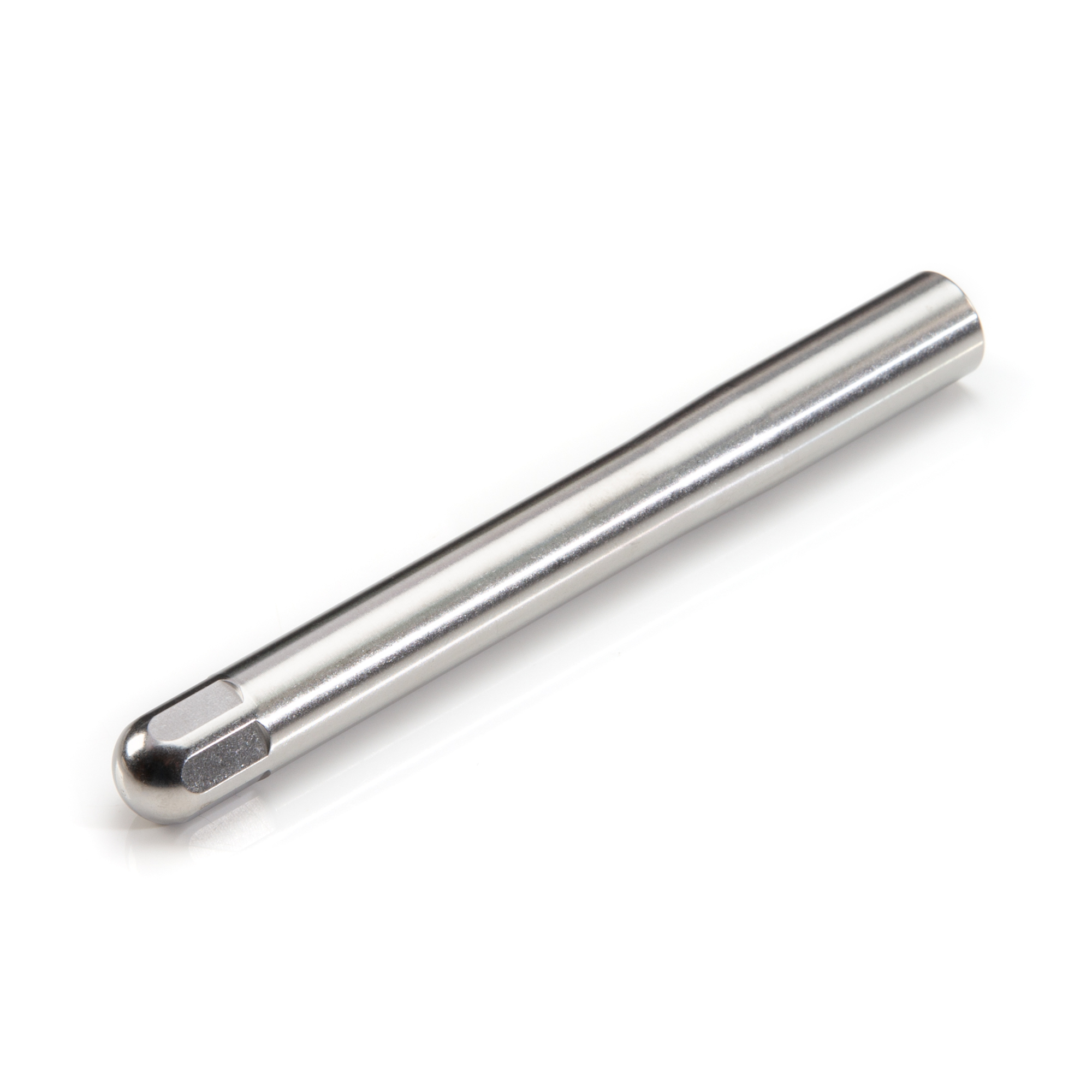

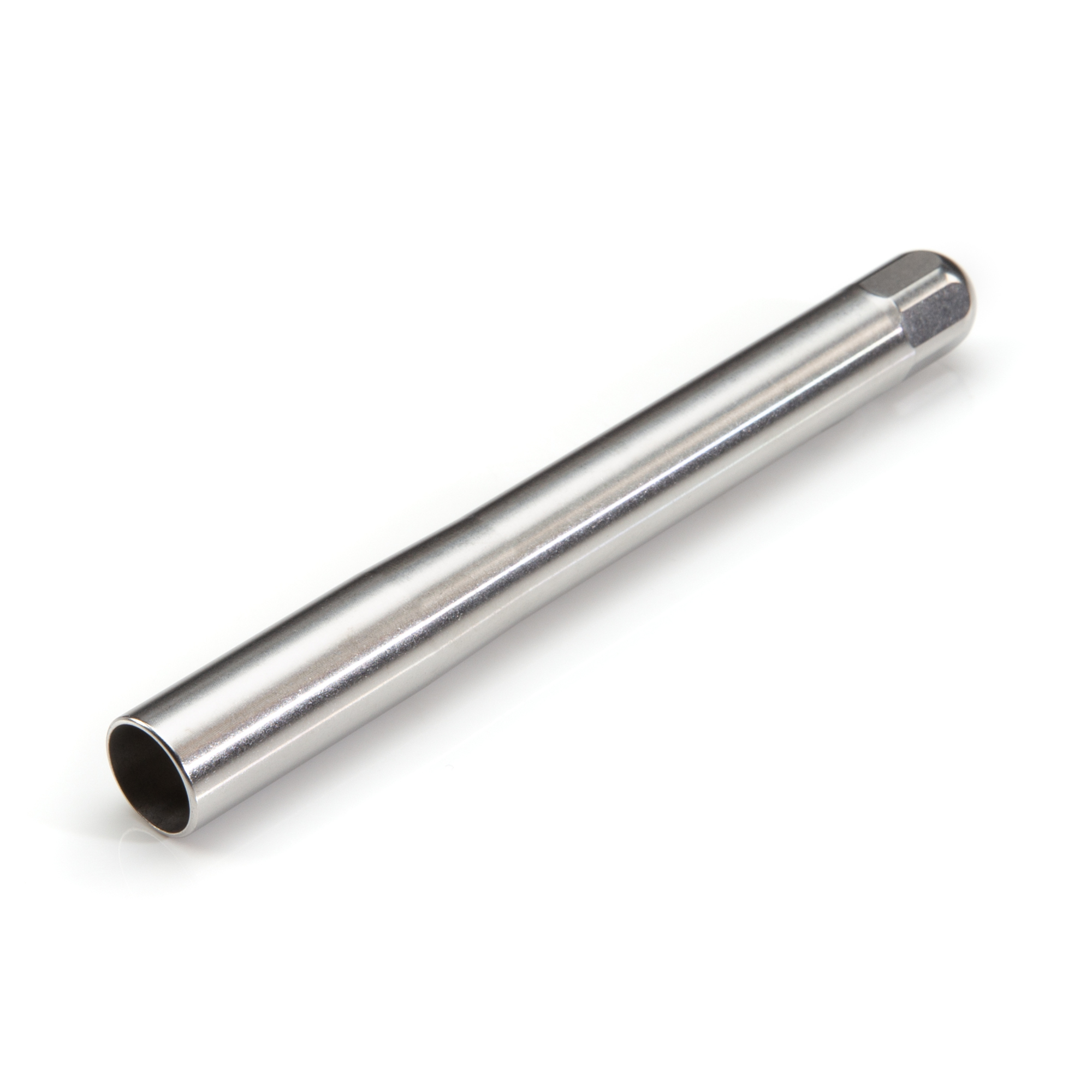

STEELMAN Stainless Steel Female 1/2-Inch x 20 Hex End Wheel Hanger and Lug Guide Tool, Model# 61014

Item# 7322934
New
STEELMAN Stainless Steel Female 1/2-Inch x 20 Hex End Wheel Hanger and Lug Guide Tool, Model# 61014

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

STEELMAN Stainless Steel Female 1/2-Inch x 20 Hex End Wheel Hanger and Lug Guide Tool, Model# 61014

Click or Tap image to Zoom

$32.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • SAVE TIME - Save time when changing wheels by extending short lug bolts for easier mounting
  • REDUCE BACK STRAIN - Fit through lug holes to support wheels taking strain off you and your back
  • PROTECT THREADS - Guide tool covers and protects lug bolt threads from damage during mounting

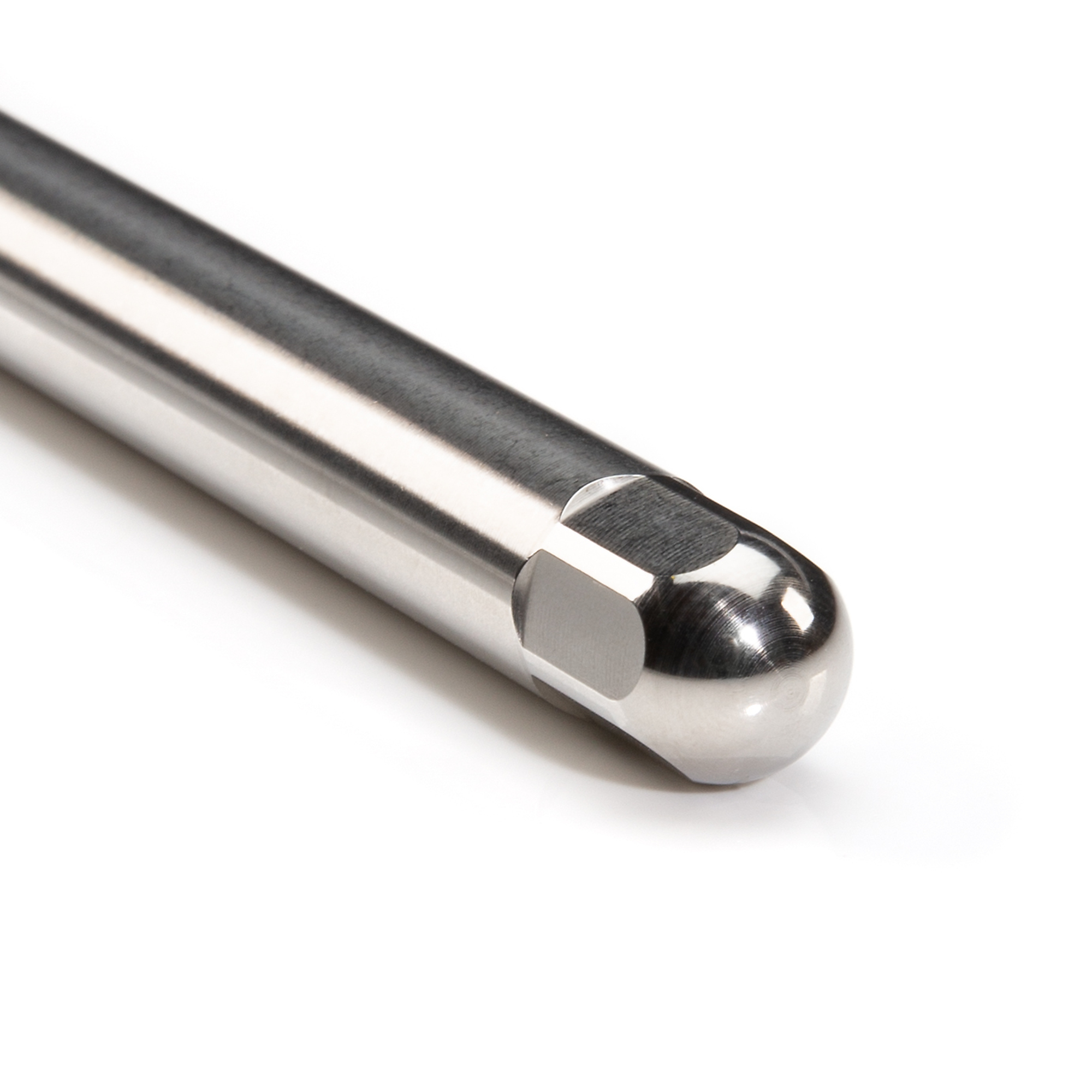

  • HEX END -17/32-Inch (13.5mm) hex end allows easy removal with any compatible socket or an adjustable wrench

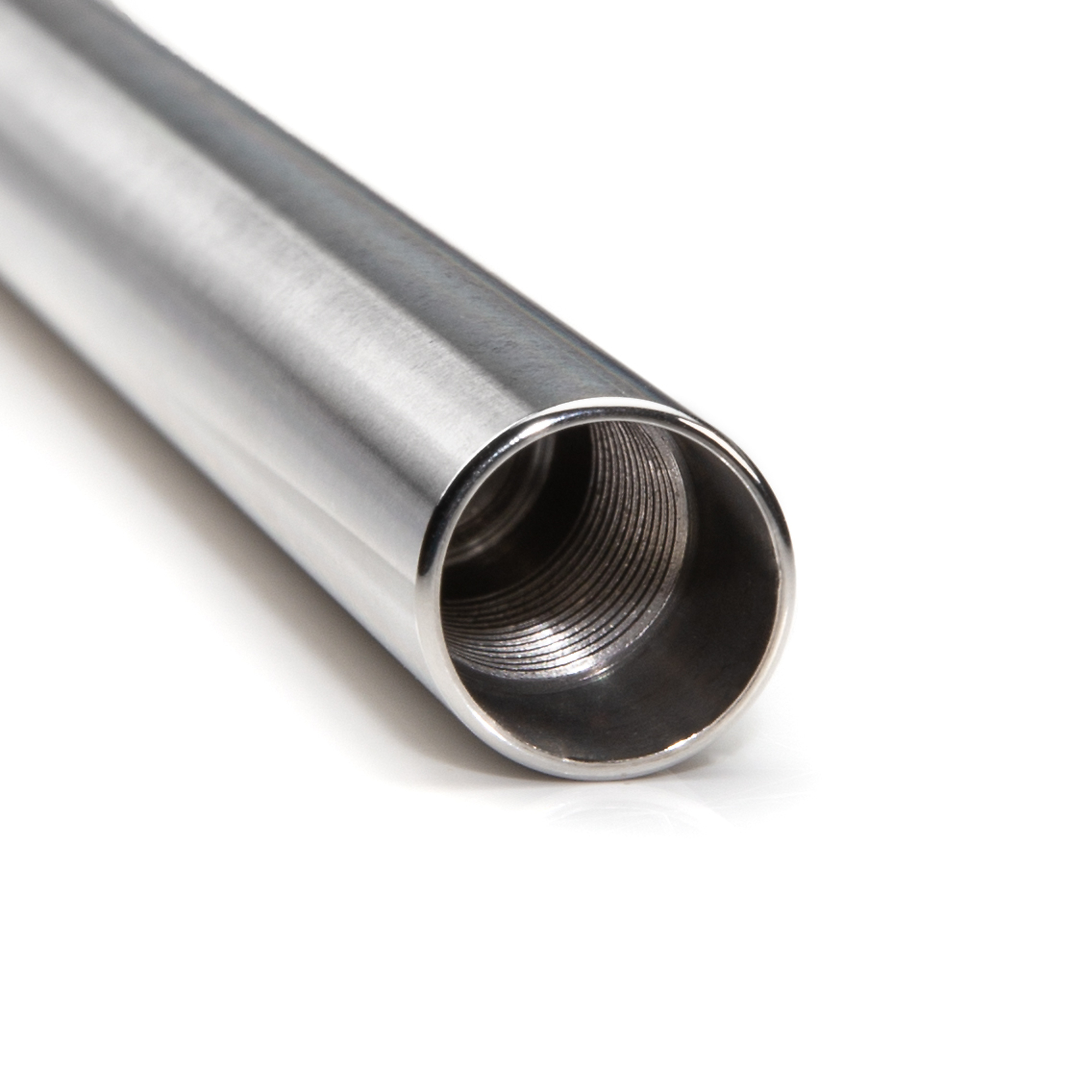

  • THREAD SIZE - Tool is threaded to fit lug bolts machined for 1/2-inch x 20 size nuts

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

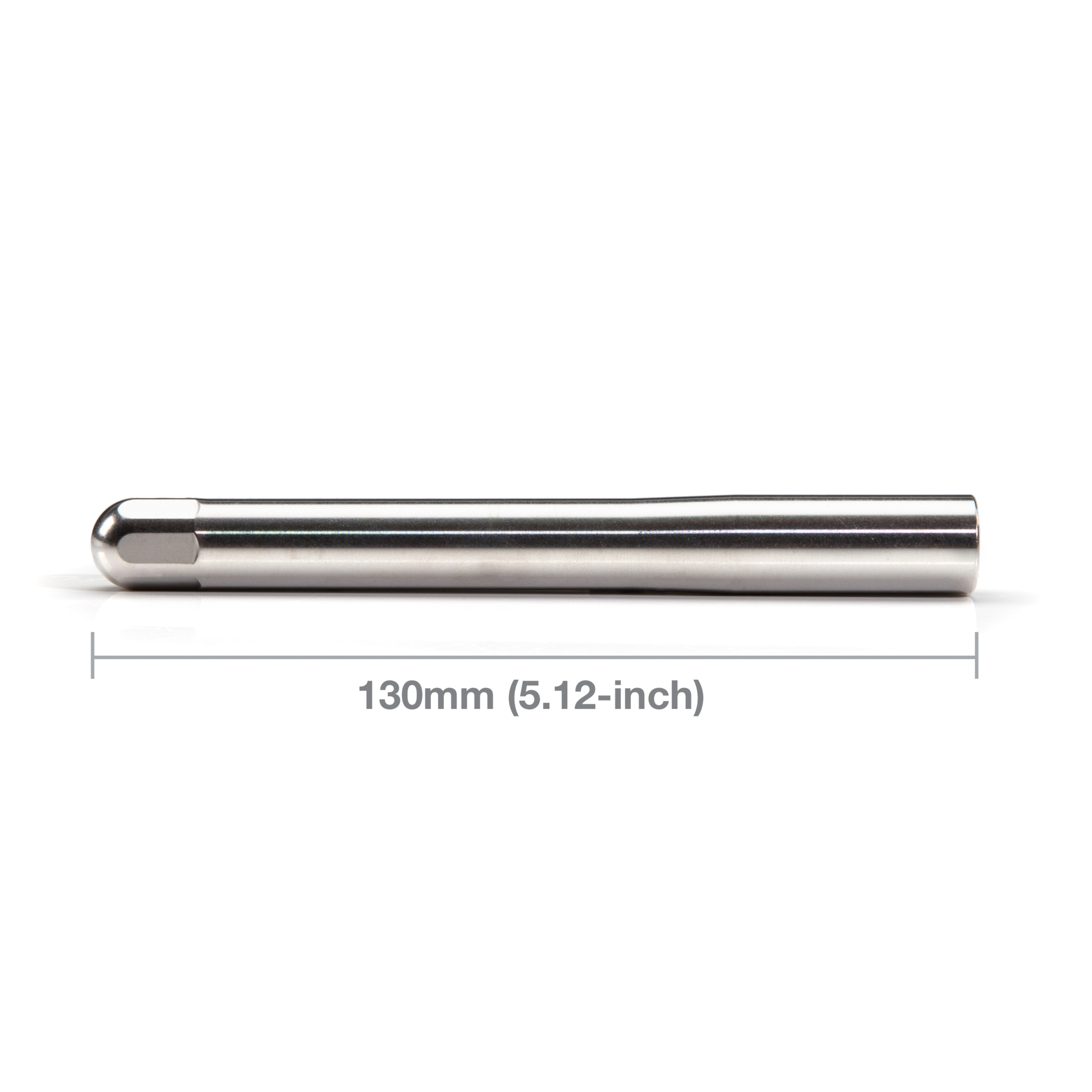

Save time and work more efficiently using a STEELMAN 61014 Stainless Steel Female 1/2in. x 20 Hex End Wheel Hanger and Lug Guide Tool. This handy hanger is ideal for changing wheels on a range of vehicles as it adds extra length to often short lug bolts making it easier to line up and mount wheels. Additionally it helps prevent painful back strain caused from trying to hold a heavy wheel and tire in place while fumbling to get a lug nut started to take away the load. The female ended design acts a short shroud that covers more of the lug bolt to protect the threads and prevent them being damaged while maneuvering the wheel and tightening lug nuts. The 13.5mm (17/32in.) hex end provides an easy way to install and remove the hanger either by hand or using a compatible socket or combination / adjustable wrench. Machined from stainless steel, this tool is threaded to fit onto vehicles that use 1/2in. x 20 size lug nuts and the tool has a maximum outer diameter of 14.75mm (37/64 or 0.58in.). This 130mm (5.12in.) long hanger can also be used to prevent accidental damage when removing your wheels.

What's Included

    (1) Lug Guide Tool

Features + Benefits

  • SAVE TIME - Save time when changing wheels by extending short lug bolts for easier mounting
  • REDUCE BACK STRAIN - Fit through lug holes to support wheels taking strain off you and your back
  • PROTECT THREADS - Guide tool covers and protects lug bolt threads from damage during mounting
  • HEX END -17/32-Inch (13.5mm) hex end allows easy removal with any compatible socket or an adjustable wrench
  • THREAD SIZE - Tool is threaded to fit lug bolts machined for 1/2-inch x 20 size nuts
  • STAINLESS STEEL - Constructed of durable and corrosion resistant stainless steel for long service life

Key Specs

AttributeSpecification

item#

7322934

Brand

Steelman

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.27 LB

Length

0.5 in
AttributeSpecification

Material Type

Stainless Steel

Product Type

Other

Socket (qty.)

1

Product Weight

0.2500 lb

Dimensions L x W x H (in.)

5.0 x 0.54 x 0.54 in
