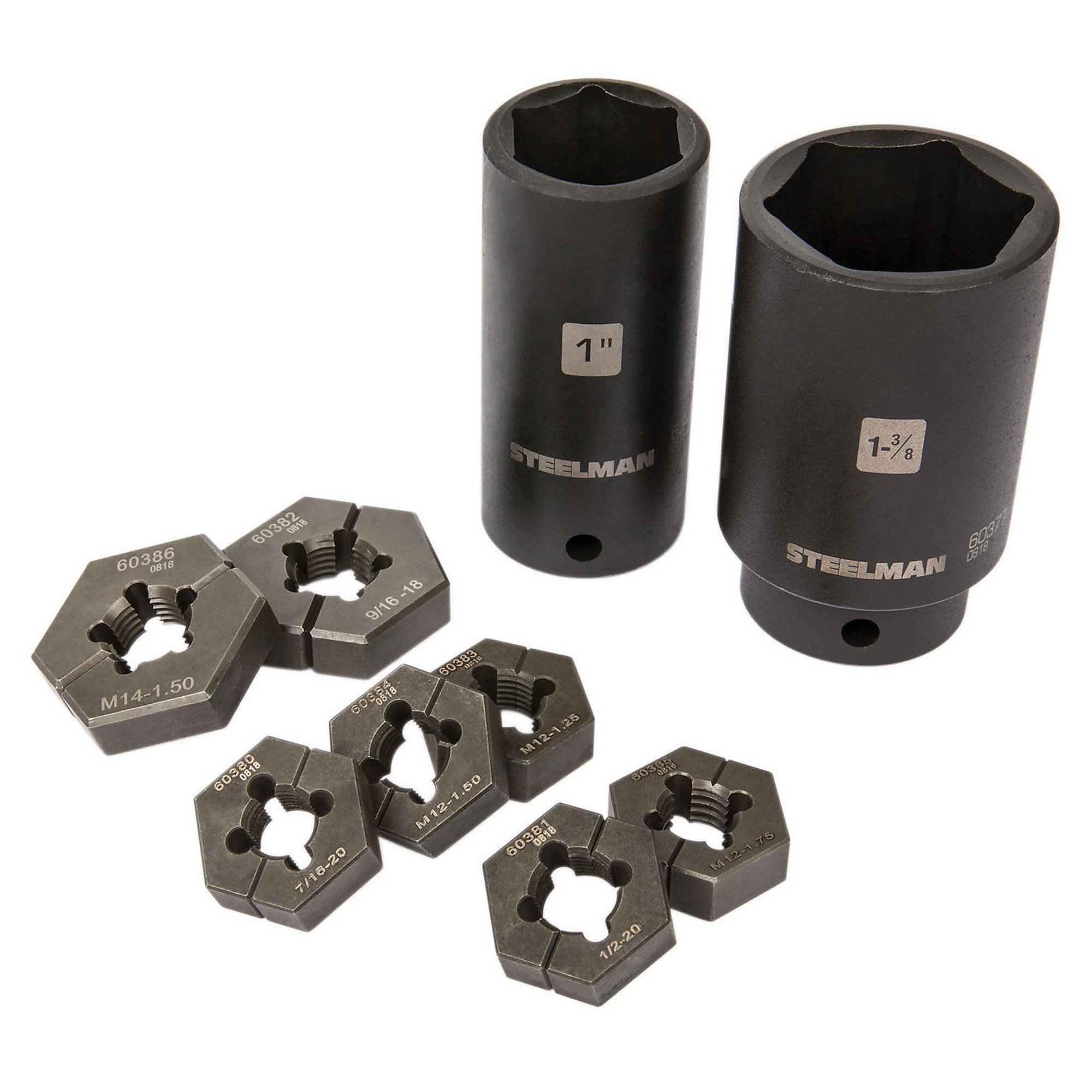

STEELMAN 9-Piece Split Die Thread Chaser Wheel Stud and Bolt Repair/Rethreading Kit, Model# 60375

Item# 7307321
New
STEELMAN 9-Piece Split Die Thread Chaser Wheel Stud and Bolt Repair/Rethreading Kit, Model# 60375

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

STEELMAN 9-Piece Split Die Thread Chaser Wheel Stud and Bolt Repair/Rethreading Kit, Model# 60375

Click or Tap image to Zoom

$214.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • REPAIR DAMAGED THREADS - Repair damaged threads on wheel studs, bolts and other fasteners

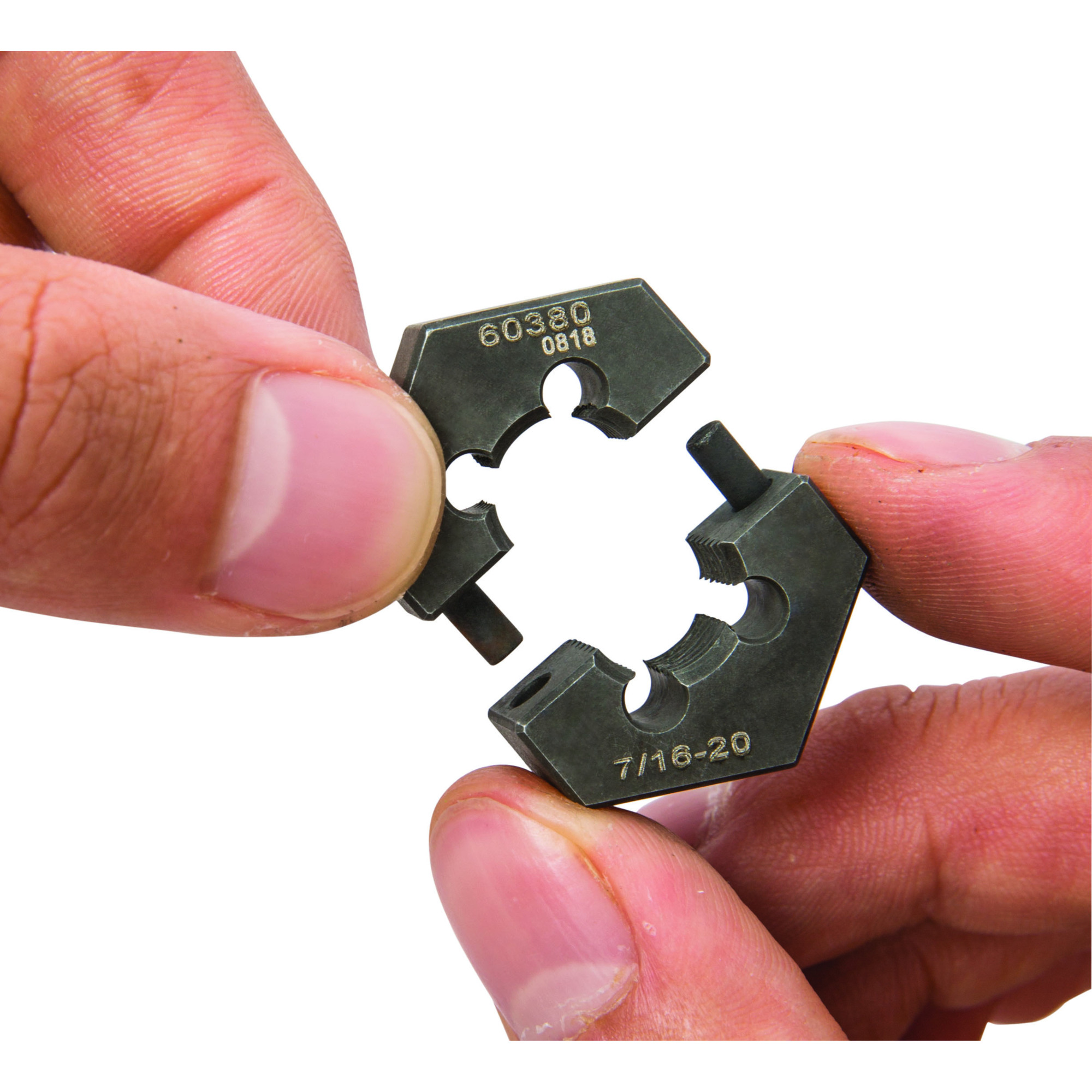

  • PREVENT CROSS THREADING - Split die design allows repairs to start behind damage to eliminate the chance of cross threading
  • INDEXING PINS - Indexing pins connect the die sections together keeping them straight and secure during use
  • DIE SIZES - Kit includes dies to fit 7/16"-20, 1/2"-20, 9/16"-20, M12-1.25, M12-1.50, M12-1.75, and M14-1.50 metric and SAE studs, bolts, and fasteners
  • INCLUDED SOCKETS - Kit includes two 1/2-inch drive deep impact sockets in 1-inch and 1-3/8-inch size

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Having to repair damaged bolt threads can be aggravating to start with but when the die ends up cross threading the bolt it can lead to lost time and more costly repairs. The STEELMAN 60375 9-Piece Split Die Wheel Stud Repair and Rethreading Kit is designed to remove the worry of cross threading by allowing repairs to begin behind damaged threads. By starting the repair on undamaged threads you can ensure a continuous repair that is perfectly aligned with the original threads. Made of hardened high carbon and chromium steel, these dies feature dual indexing pins that ensure correct tooth alignment and hold the tool straight and secure during use. To drive the dies, this kit includes 2 chromoly steel 1/2in. drive deep impact sockets in 1in. and 1-3/8in. size so you can easily use the thread chasers with your favorite ratchet or with a standard 'T' handle (not included). Kit includes 7in.dividual dies to fit 7/16in.-20, 1/2in.-20, and 9/16-20 SAE and M12-1.25, M12-1.50, M12-1.75, and M14-1.50 metric bolts, studs, and fasteners. Designed to meet or exceed 150% of ASME torque requirements, these tools will last for years of reliable use in any professional or home garage / workshop and they come with a convenient blow molded black plastic storage case to keep them organized between uses. WARNING: To prevent damage to bolt threads, only use dies with hand-driven tools. Using dies with air, electric, or hydraulic power tools will void warranty.

What's Included

    (1) Rethreading Kit

Features + Benefits

  • REPAIR DAMAGED THREADS - Repair damaged threads on wheel studs, bolts and other fasteners
  • PREVENT CROSS THREADING - Split die design allows repairs to start behind damage to eliminate the chance of cross threading
  • INDEXING PINS - Indexing pins connect the die sections together keeping them straight and secure during use
  • DIE SIZES - Kit includes dies to fit 7/16"-20, 1/2"-20, 9/16"-20, M12-1.25, M12-1.50, M12-1.75, and M14-1.50 metric and SAE studs, bolts, and fasteners
  • INCLUDED SOCKETS - Kit includes two 1/2-inch drive deep impact sockets in 1-inch and 1-3/8-inch size
  • DURABLE - Designed to meet or exceed 150% of ASME torque requirements to allow for a lifetime of dependable use

Key Specs

AttributeSpecification

item#

7307321

Brand

Steelman

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

3.93 LB
AttributeSpecification

Product Type

Other

Product Weight

3.9300 lb

Dimensions L x W x H (in.)

12.25 x 9.75 x 2.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
