Fountainhead Group Smith Performance Stainless Steel Extreme Concrete Compression Sprayer — 3.5 Gal. Capacity, 0.5 GPM Flow, 90 PSI, Model# S103EX

Item# 89690
Fountainhead Group Smith Performance Stainless Steel Extreme Concrete Compression Sprayer — 3.5 Gal. Capacity, 0.5 GPM Flow, 90 PSI, Model# S103EX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fountainhead Group Smith Performance Stainless Steel Extreme Concrete Compression Sprayer — 3.5 Gal. Capacity, 0.5 GPM Flow, 90 PSI, Model# S103EX

Click or Tap image to Zoom

$289.97

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ideal for low VOC sealers, curing compounds, releasing agents, acetone, oils, and water- or solvent-based chemicals
  • 3.5-gallon capacity, AISI-304 grade stainless steel tank inside and out (no need for epoxy coatings) is built to withstand harsh concrete chemicals along with rugged transport
  • Piston-type pump delivers up to 90 PSI max. pressure
  • Stainless steel, 24in. wand and shutoff
  • Removable 5 psi check valve located at the end of the spray wand to prevent liquid from dripping out after shut off is released

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 3.5-gal. Smith Performance Stainless Steel Extreme Concrete Sprayer is built to work as hard as you do in a wide variety of concrete applications. The industrial and contractor series professional, chemical resistant sprayer is designed to withstand the most demanding work conditions. It withstands the toughest solvent-based or water-based chemicals and acetone in the roughest work conditions including etching chemicals, diesel, bond breakers, sealers, curing compounds and more. Includes a durable stainless steel tank inside and out making this sprayer highly resistant to chemicals -- no need for epoxy coatings. NOTE: Clean with water or Xylene. Remove liquid from wand and hose. Remove pump after cleaning to ensure adequate drying.

What's Included

    (1) 3.5-gal. stainless steel sprayer with wand

Features + Benefits

  • Ideal for low VOC sealers, curing compounds, releasing agents, acetone, oils, and water- or solvent-based chemicals
  • 3.5-gallon capacity, AISI-304 grade stainless steel tank inside and out (no need for epoxy coatings) is built to withstand harsh concrete chemicals along with rugged transport
  • Piston-type pump delivers up to 90 PSI max. pressure
  • Stainless steel, 24in. wand and shutoff
  • Removable 5 psi check valve located at the end of the spray wand to prevent liquid from dripping out after shut off is released
  • Large, wide-mouthed opening is easy to fill
  • Specially designed, 4-prong locking mechanism seals the pump tightly against an internal O-ring
  • Faster, easier repair -- pump seals can be changed within minutes, which equals less downtime

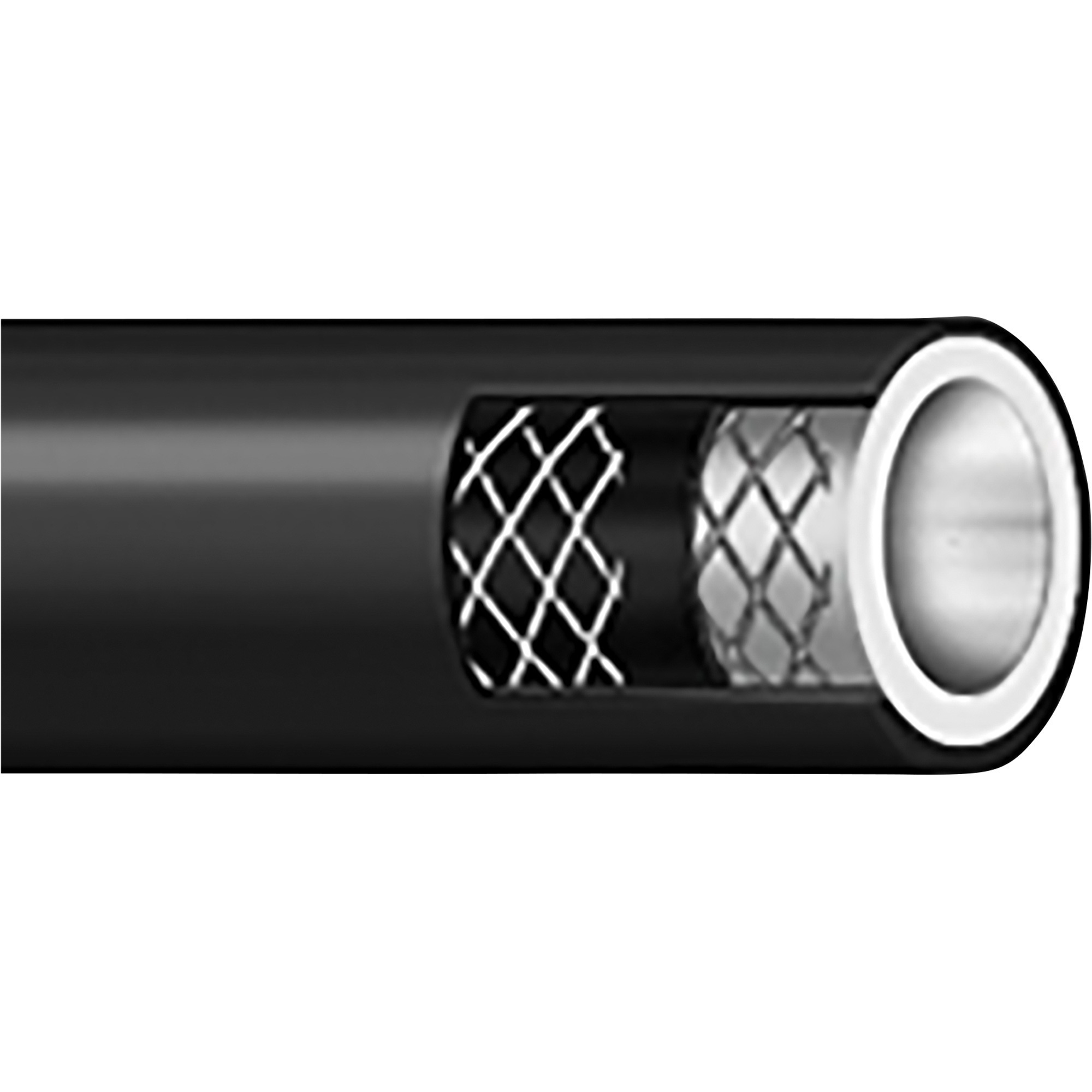

  • 50-in. nylon-core, synthetic rubber hose is strong, resists kinks, and handles harsh chemicals
  • Pull-button pressure release valve makes it quick, easy, and safe to release internal pressure prior to opening the canister

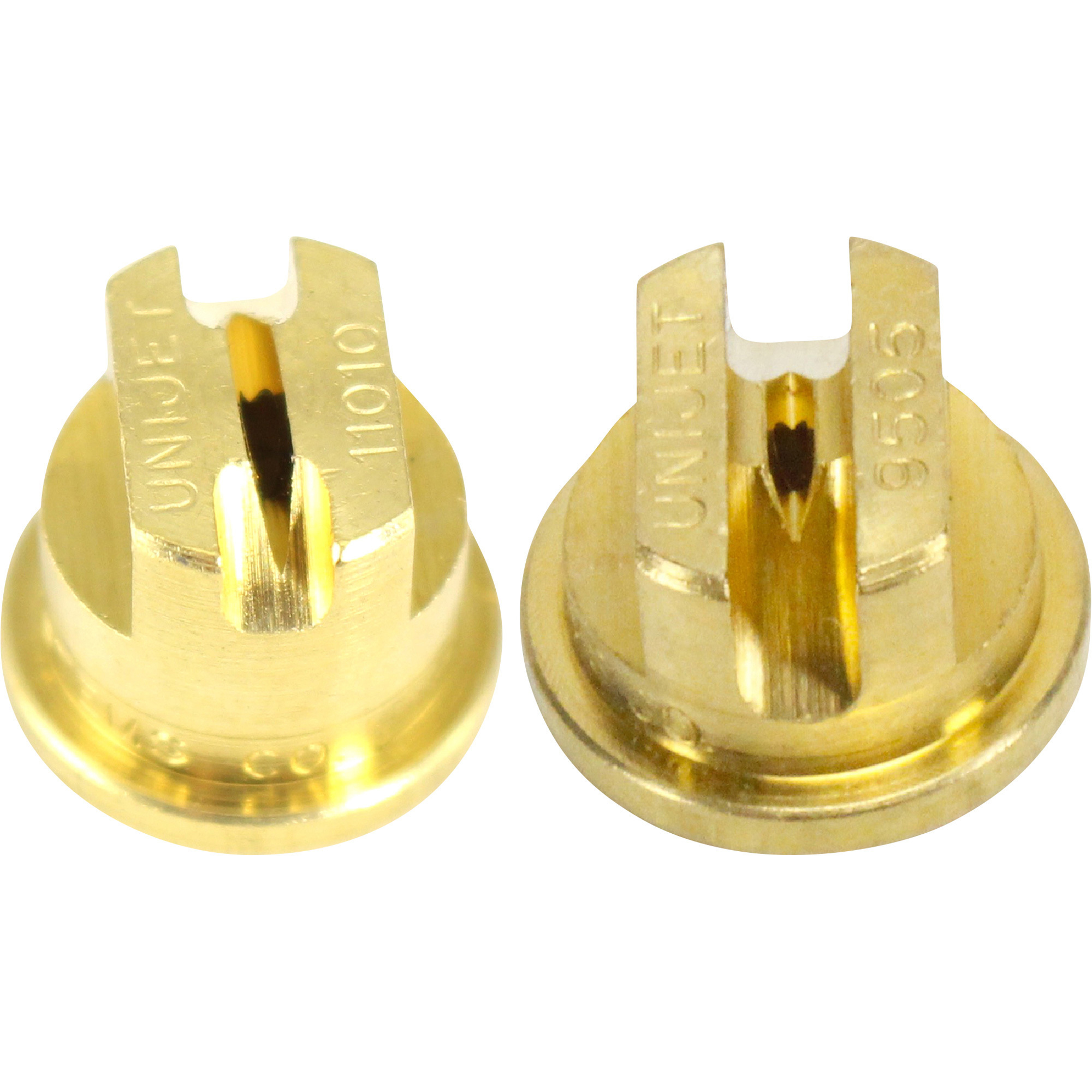

  • Includes 1 brass flat fan nozzle (0.5 GPM angled at 95°) to deliver popular demand flow rates
  • Accepts TeeJet® nozzles (not included)
  • Welded-on steel wand retention bracket for durable storage during transportation

Key Specs

AttributeSpecification

item#

89690

Brand

Fountainhead Group

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.9 LB

Tank Size

3.5 Gal

Flow

0.5 GPM

Pressure

90 PSI
AttributeSpecification

Spray Height

5 ft

Spray Pattern

Flat Fan

Wand Length

24 in

Pump Type

Piston

Hose Length

50 in

Product Weight

12.8000 lb

Dimensions L x W x H (in.)

8.5 x 8.5 x 27.0 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. Is the sprayer good to use for spraying a solvent based sealant like penn seal 144?

    1 answer

    1. The S103EX is compatible with Penn Seal 144. Before using the sprayer, remove the handle filter, as acrylic can gradually clog it. After use, the sprayer must be completely emptied and flushed to prevent acrylic buildup in the dip tube, shutoff, and nozzles.

      Helpful?

  2. Can this spray asphalt emulsion sealer?

    1 answer

    1. This cannot be used to spray asphalt emulsion sealer.

      Helpful?

  3. Can this be used to spray used automobile motor oil? If not, is there another spray rig that can?

    1 answer

    1. The sprayer will work with diesel and other petroleum chemicals.

      Helpful?

  4. Is this product a multi purpose tool - or - is it only for concrete use? If multi purpose - what are your recommendations? Thank you

    1 answer

    1. This is a multi-use sprayer, ideal for low VOC sealers, curing compounds, releasing agents, acetone, oils, and water- or solvent-based chemicals.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
