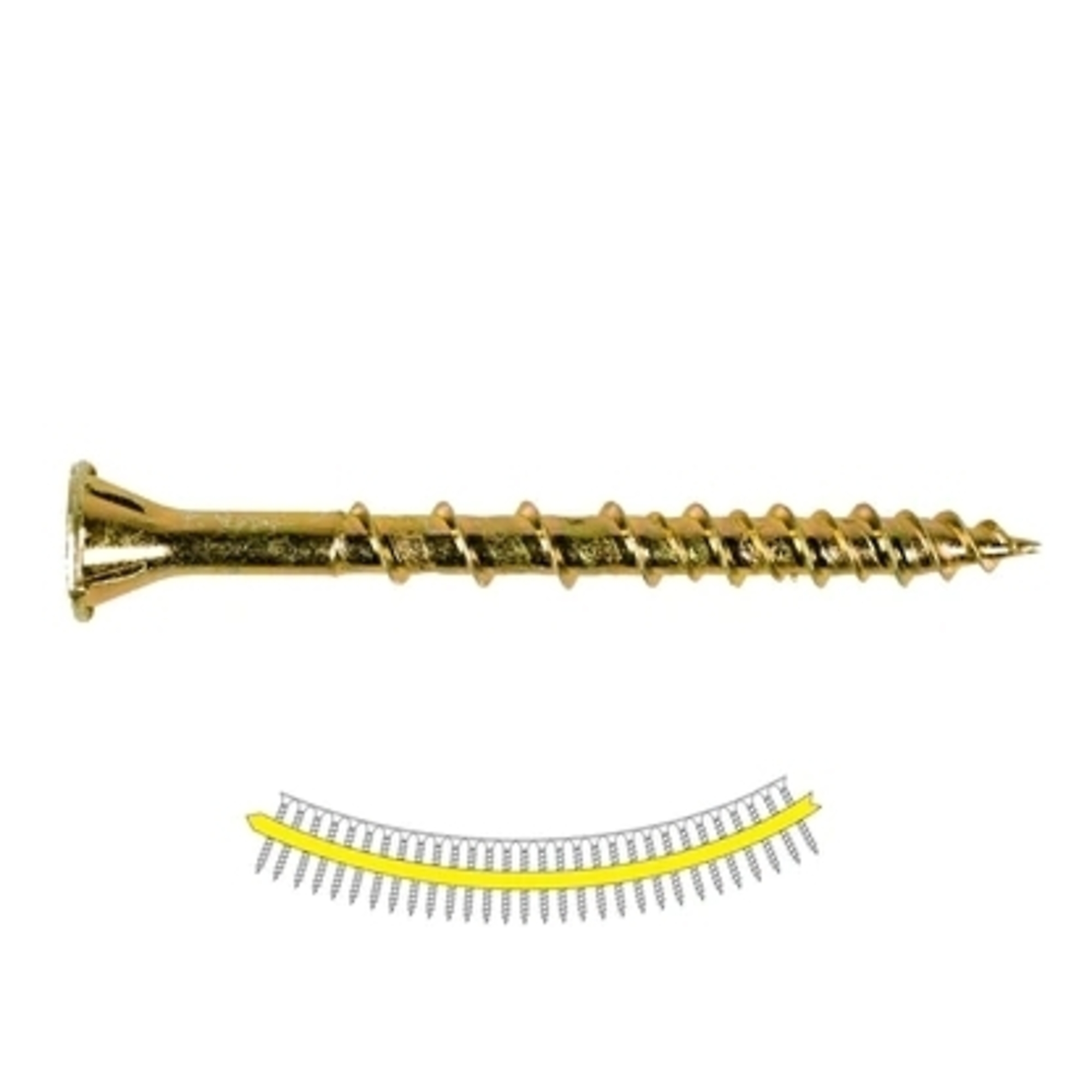

Simpson Strong-Tie WSV134S Strong-Drive SUBFLOOR Screw #9 2000PK

Item# 7391243
New
Simpson Strong-Tie WSV134S Strong-Drive SUBFLOOR Screw #9 2000PK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Simpson Strong-Tie WSV134S Strong-Drive SUBFLOOR Screw #9 2000PK

Click or Tap image to Zoom

$171.41

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Redesigned tip and thread pattern provides easy starts and up to 25% less torque while driving1 — makes for up to 20% faster driving2
  • Less installation torque also means less wear on tools
  • Deep 6-lobe recessed ribbed head provides clean countersinking and more secure bit retention for fewer cam-outs
  • The holding power of WSV screws reduces the gaps between the joist and subfloor that cause floor squeaks
  • WSV screws can be easily backed out, allowing for future access to floor cavities

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Simpson Strong-Tie has re-engineered its popular subfloor screw to reduce driving force and increase installation speed. The new Strong-Drive WSV Subfloor screw has been developed for fastening subfloor sheathing using the Quik Drive® auto-feed screw driving system. The Strong-Drive WSV Subfloor screw is the only fastener to be dual-evaluated under ICC-ES AC233 and AC120 for wood-frame subfloor fastening. This testing indicates that the WSV Subfloor screws have lateral, shear, and withdrawal values that exceed those of 10d common nails, and diaphragms built with WSV Subfloor screws meet or exceed the strength and stiffness of wood-frame diaphragms built with 10d nails. Also, Strong-Drive WSVF Subfloor screws for fire-retardant wood-based materials.

What's Included

    (2,000) Strong-Drive SUBFLOOR Screw #9

Features + Benefits

  • Redesigned tip and thread pattern provides easy starts and up to 25% less torque while driving1 — makes for up to 20% faster driving2
  • Less installation torque also means less wear on tools
  • Deep 6-lobe recessed ribbed head provides clean countersinking and more secure bit retention for fewer cam-outs
  • The holding power of WSV screws reduces the gaps between the joist and subfloor that cause floor squeaks
  • WSV screws can be easily backed out, allowing for future access to floor cavities
  • 6-lobe T25 drive bit (replacement bit BITTX25)
  • Subfloor and sheathing projects
  • Coating/Material: Yellow-Zinc Coated
  • Screw Size: #9
  • Length: 1-3/4"
  • Head Diameter: 0.333"
  • Drive Type: T25 6-Lobe
  • Head Type: Rimmed Flat Head with Nibs
  • Shank Type: 2/3-Threaded Shank
  • Thread Type: Variable Thread Design
  • Point Type: High-Low Threaded Tip

Key Specs

AttributeSpecification

item#

7391243

Brand

Simpson Strong-Tie

Ship Weight

16.3 LB

Product Type

Screws
AttributeSpecification

Concrete Use

No

Product Weight

16.3000 lb

Dimensions L x W x H (in.)

20.0 x 20.0 x 10.0 in
