SHOP FOX Radial Benchtop Drill Press, 5-Speed, 17in. Swing, 1/2 HP, 110V, Model# W1669

Item# 49563
SHOP FOX Radial Benchtop Drill Press, 5-Speed, 17in. Swing, 1/2 HP, 110V, Model# W1669

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SHOP FOX Radial Benchtop Drill Press, 5-Speed, 17in. Swing, 1/2 HP, 110V, Model# W1669

Click or Tap image to Zoom

$489.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Threaded depth stop combines with rack and pinion vertical table movement for precise adjustments
  • Hand crank raises or lowers the table quickly and easily
  • Adjustable height and angle makes this machine incredibly versatile
  • Cushioned grip quill handles add operating comfort
  • 1/16in. to 5/8in. chuck capacity holds a wide range of drill bit sizes

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

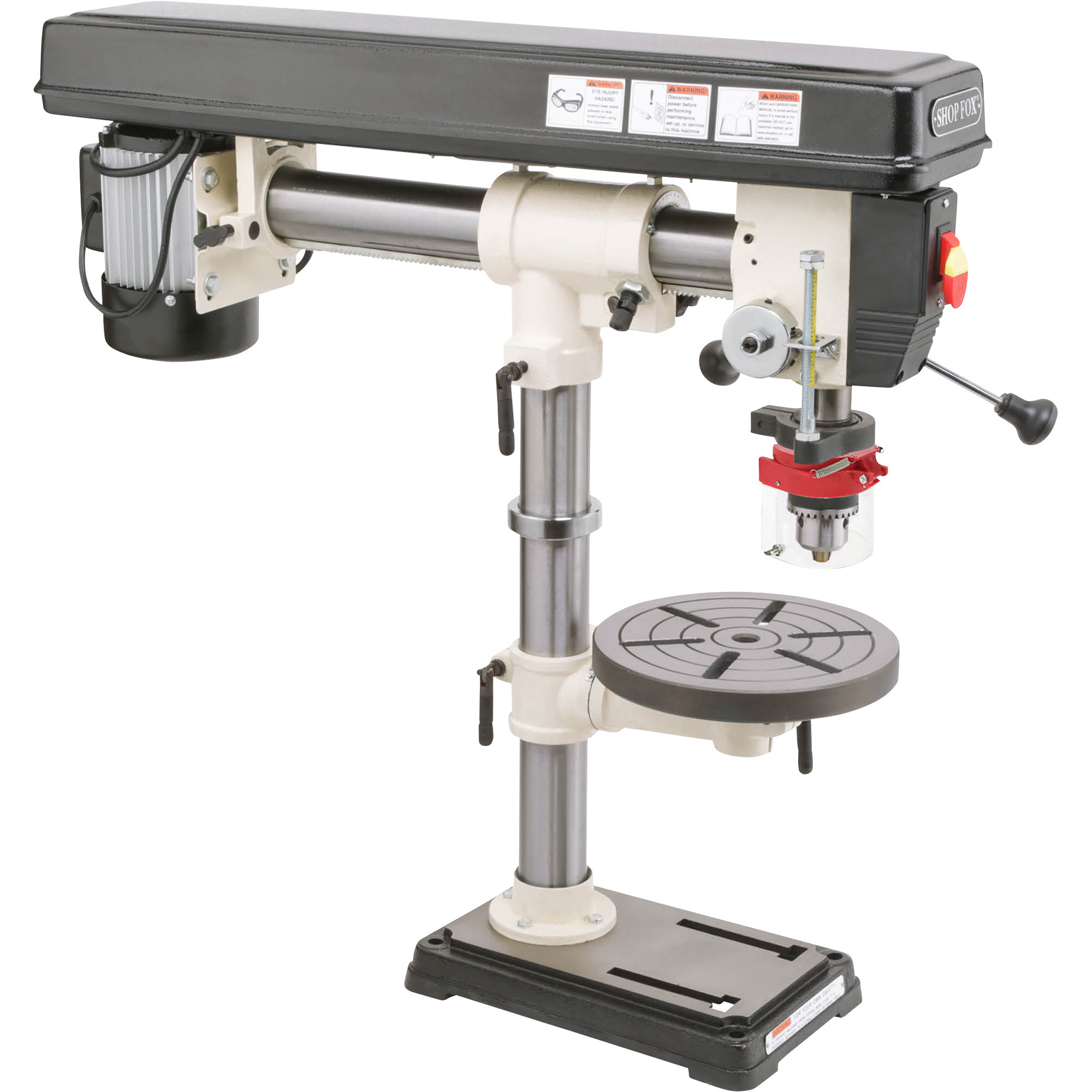

This SHOP FOX® Radial Benchtop Drill Press has a headstock that slides in and out, with an incredible swing of 17in., giving you the ability to drill workpieces up to 34in. wide. And the cast iron table tilts 90° to both the left and right, allowing you to easily drill a hole at any angle, even horizontal. Some assembly required. Cannot ship to AK, CA or HI.

What's Included

    (1) Drill press and set of hardware

Downloads

Product Manual

Features + Benefits

  • Threaded depth stop combines with rack and pinion vertical table movement for precise adjustments
  • Hand crank raises or lowers the table quickly and easily
  • Adjustable height and angle makes this machine incredibly versatile
  • Cushioned grip quill handles add operating comfort
  • 1/16in. to 5/8in. chuck capacity holds a wide range of drill bit sizes
  • 3.25in. spindle travel 5 speeds ranging from 550 to 3470 RPM
  • Arbor: JT33
  • Effectively drills mild steel up to 1/2in. thick
  • Powerful 1/2 HP, 110V motor with 5 speeds for versatility that can handle a variety of projects
  • Incredible swing of 17in. allows the drilling of workpieces up to 34in. wide
  • Sturdy, adjustable height worktable measures 9 3/4in.L x 8 5/8in.W to offer plenty of operating room

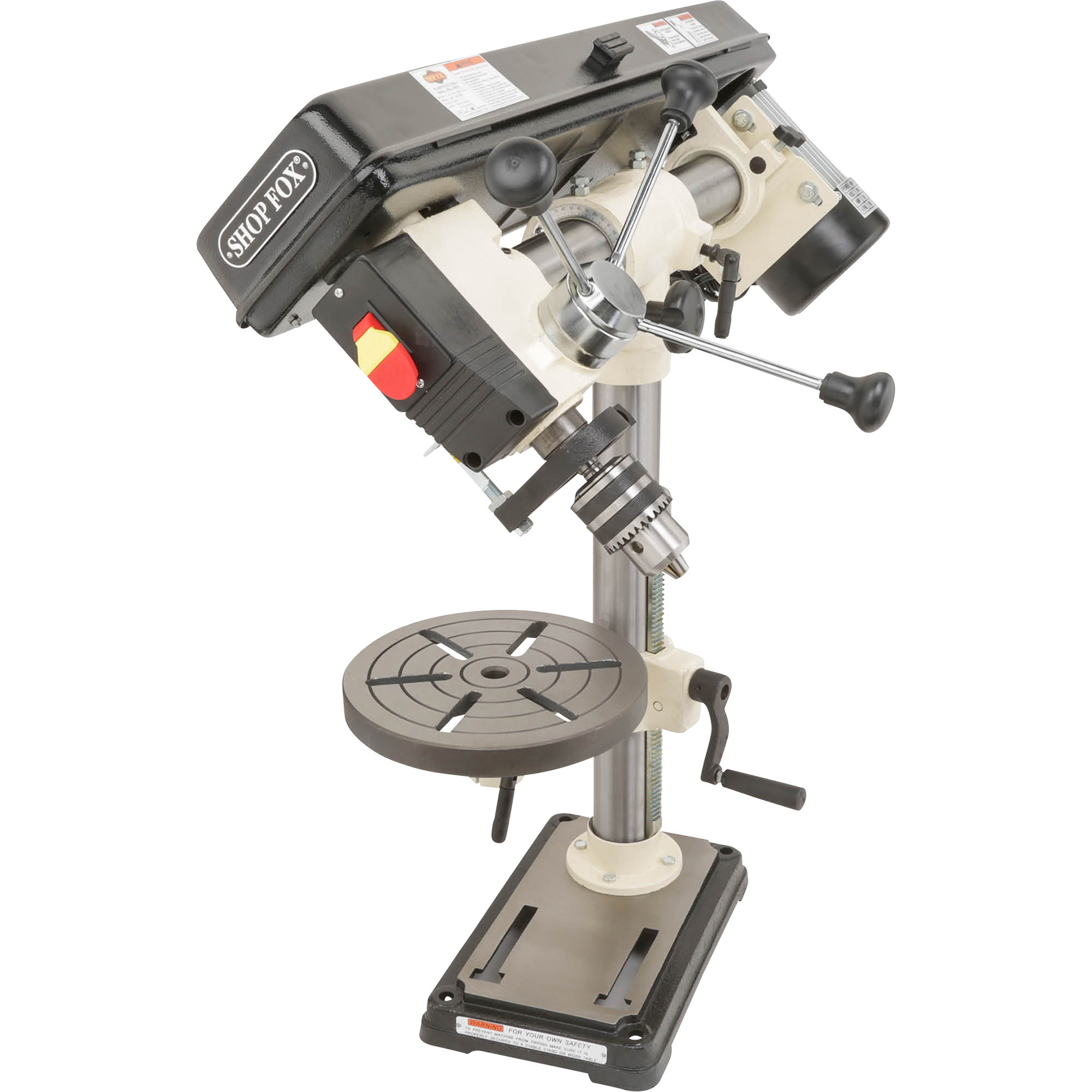

  • Worktable tilts 90° left and right, while the head tilts 45° left and 90° right
  • Horizontal sliding headstock
  • 31.5in. overall height
  • 4.7 Amp full-load current rating
  • 15 Amp minimum circuit size

Key Specs

AttributeSpecification

item#

49563

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

100.0 LB

Horsepower

0.5 HP

Volts

110

Max. Speed

1,725 rpm

360 Degree Head Swivel

Yes

Speeds (qty.)

5

Product Type

Drill Press
AttributeSpecification

Drilling Capacity

1/2 in

Chuck Size

5/8 in

Light Included

No

Stand Included

No

Variable Speed

No

Max. Spindle Distance

15.5 in

Swing

17 in

Product Weight

lb

Dimensions L x W x H (in.)

33.5 x 11.5 x 31.5 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. what is the minimum and maximum throat depth.? will the table travel to meet the maximum throat depth?

    1 answer

    1. The shop press would have a minimum throat depth of 6 3/4" and a maximum of 17".

      Helpful?

  2. How many inches horizonal travel ?

    1 answer

    1. The radial arm has a horizontal travel of 17 inches.

      Helpful?

  3. is the depth stop feature a ruler or digital read out.

    The ad states: Threaded depth stop combines with rack and pinion vertical table movement for precise adjustments. So is the depth stop feature a ruler or digital read out.

    1 answer

    1. The depth stop feature would read like a ruler rather than digitally. In figure 38 on page 22 of the product manual it shows an image of the depth stop. The underlined PDF manual can be located above the features and benefits section of the item's web page.

      Helpful?

  4. drill chuck, what is the taper

    1 answer

    1. This drill has JT-33 tapers on the spindle and inside the chuck to create an almost permanent connection.

      Helpful?

  5. What RPM are the five spindle speeds?

    1 answer

    1. The 5 RPM speeds are: 550, 880, 1570, 2490 and 3470.

      Helpful?

  6. What's the amperage of this 1/2 hp motor?

    Also, is there a depth stop feature and is it a ruler or digital read out.

    1 answer

    1. The Shop Fox Radial Drill Press features an amperage rating of 5. The unit does not have a depth stop feature and it does not feature a digital read out.

      Helpful?
