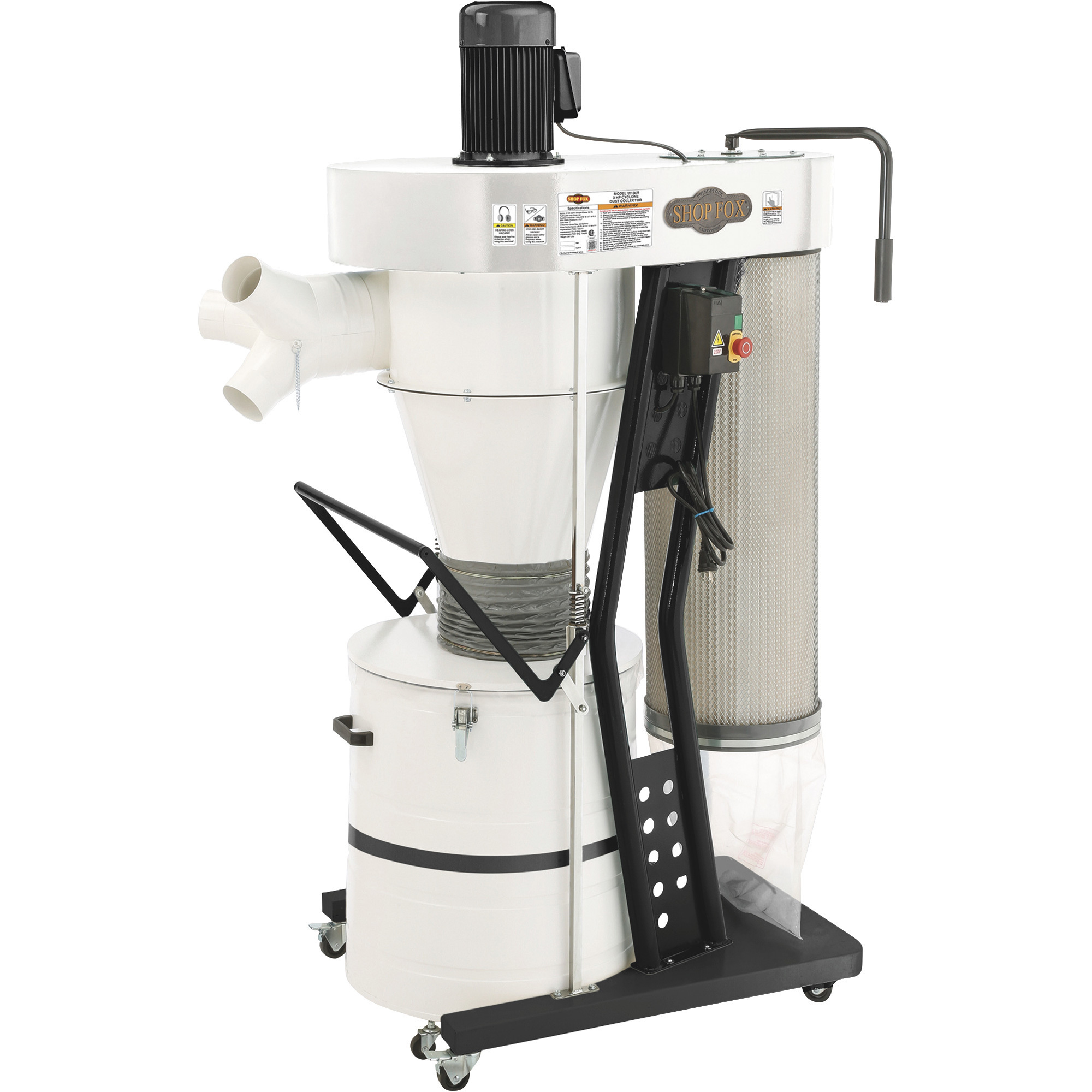

Shop Fox Portable Cyclone Dust Collector, 3 HP, Model# W1869

Item# 81958
Shop Fox Portable Cyclone Dust Collector, 3 HP, Model# W1869

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox Portable Cyclone Dust Collector, 3 HP, Model# W1869

Click or Tap image to Zoom

$2625.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor: 3 HP, 220V, 3450 RPM, 18A
  • Intake hole size: 8in.
  • Impeller: 15in. welded steel
  • Collection drum size: 35 gallons
  • Air suction capacity: 1941 CFM

See full description

Complete Your Solution

  • Shop Fox Portable Cyclone Dust Collector, 3 HP, Model# W1869
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
Price for all four:

$2684.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

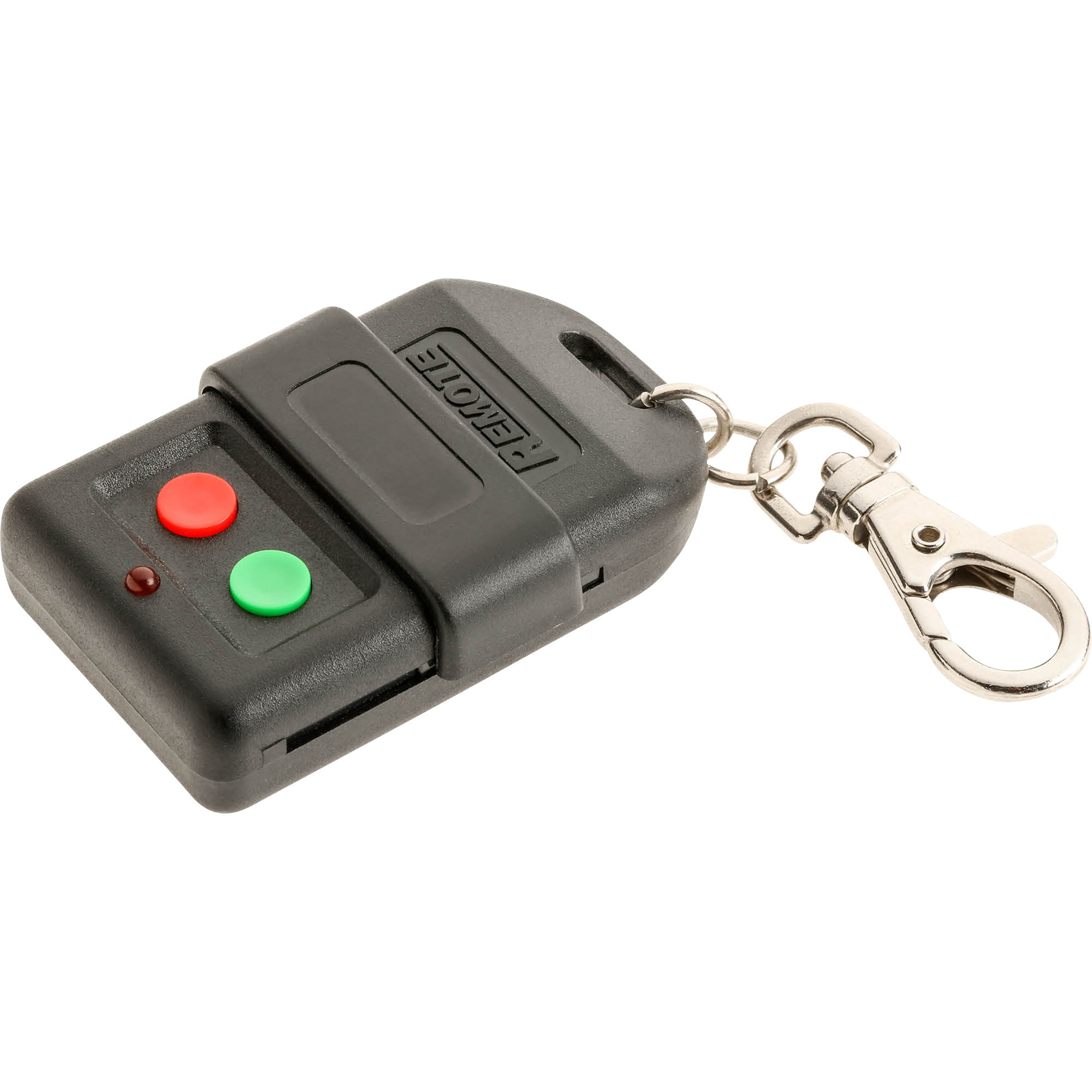

The Shop Fox 3 HP Cyclone Dust Collector provides the efficiency of a 2-stage cyclone system with the portability of a single-stage dust collector. Features include high surface area pleated filters with paddles to mechanically knock off dust cake, remotely controlled magnetic switches, easy lid lifting levers for emptying collection drums, and a compact design for moving around the shop.

What's Included

    (1) Shop Fox Portable Cyclone Dust Collector, 3 HP, Model# W1869

Downloads

Product Manual

Features + Benefits

  • Motor: 3 HP, 220V, 3450 RPM, 18A
  • Intake hole size: 8in.
  • Impeller: 15in. welded steel
  • Collection drum size: 35 gallons
  • Air suction capacity: 1941 CFM
  • Static pressure: 11.0in.

Key Specs

AttributeSpecification

item#

81958

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

376.0 LB

Air Flow

1,941 cfm

Horsepower

3 HP
AttributeSpecification

Product Type

Dust Collector

Volts

220

Filter Type

Canister

Amps

15

Product Weight

348.0000 lb

Dimensions L x W x H (in.)

31.0 x 54.0 x 82.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. how long can the w1869 be operating for in hours?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. The dust collector has not been tested based on hours of operation. It should run for the entire duration of any woodworking activity that generates dust. As long as the machine is not overly full and the filter isn't clogged, it is recommended to keep the machine running and turn it off a few minutes after the last tool is switched off to handle any remaining dust.

  2. What gauge metal duct would you recommend for an appropriate 15’ main run with drop offs?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your question. When considering the W1869 Dust Collector, the specific gauge of the ducting isn't the primary concern; rather, it should be rigid enough for suspension and/or mounting. The steel pipe we offer, sourced from U S Steel, has a minimum gauge of 22 and is suitable for this purpose. For further details, please get in touch with us at www.us-duct.com.
